ORiNG TAR-120/3120-M12 Quick Installation Manual

ORing Industrial Networking Corp.
EN50155
Wireless
Q I
uick nstallation
ACCESS POINT Router

Introduction

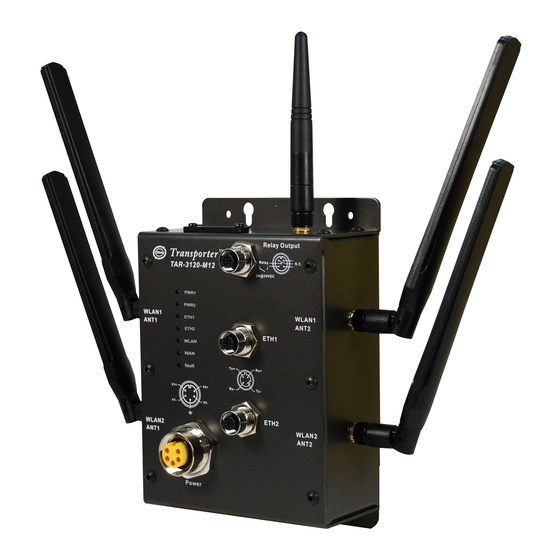

ORing's Transporter series cellular VPN router
TAR-3120-M12 are designed for industrial and rolling stock wireless
applications, such as vehicle, and railway application.
M12/TAR-3120-M12 is reliable IEEE802.11
ports LAN which is fully compliant with EN50155 certification. It
supports 802.1X and MAC filter for security control. It could be
configured to operate in 3 modes of routing function: Dynamic/Static
IP route, PPPoE authentication, and Cellular modem dial up.
addition, TAR-3120-M12 with dual Wi-Fi interface which compliant with
IEEE802.11 a/b/g and IEEE802.11 b/g standard. Users can set up
WLAN environment to fulfill demands of various applications rapidly by
dialing up cellular modem. TAR-120-M12/TAR-3120-M12
cellular VPN router use M-series connectors to ensure tight, robust
connections, and guarantee reliable operation against environmental
disturbances, such as vibration and shock.
M12 provides dual Ethernet ports in switch mode, so that you can use
Daisy Chain to reduce the usage of Ethernet switch ports. Therefore,
TAR-120-M12/TAR-3120-M12 is one of the most reliable choices for
rolling stock applications on the wireless network.

Features

Leading EN50155-compliant wireless access point for rolling stock
application
High Speed Air Connectivity: WLAN interface support up to 54Mbps
link speed
Dual RF interface with IEEE802.11 a/b/g and IEEE802.11 b/g
supported (TAR-3120-M12)
Highly Security Capability: WEP/WPA/WPA-PSK(TKIP,AES)/
WPA2/WPA2-PSK(TKIP,AES)/802.1X Authentication supported
Secured Management by HTTPs
Various kind of WAN Connection Type supported: Dynamic/Static IP,
PPPoE, Modem Dial Up
IP table configurable to prevent access from unauthorized IP address
Support VPN for secured network connection (Open VPN, PPTP VPN)
Support NAT Setting (Virtual Server , Port Trigger , DMZ , UPnP)
Support DHCP forwarding through PPTP function
3.5G HSDPA Modem dial up included
Dual redundant Ethernet ports support Ethernet redundant mode (
Recovery time <10ms) and switch mode in M12 connector (D
coding)
Wireless connecting status monitoring
Event Warning by Syslog, Email, SNMP Trap and Relay output
Ultra rugged enclosure for toughest industrial usages
Wall mounting enabled
Q I G
TAR-120/3120-M12
TAR-120/3120-M12
G
uide

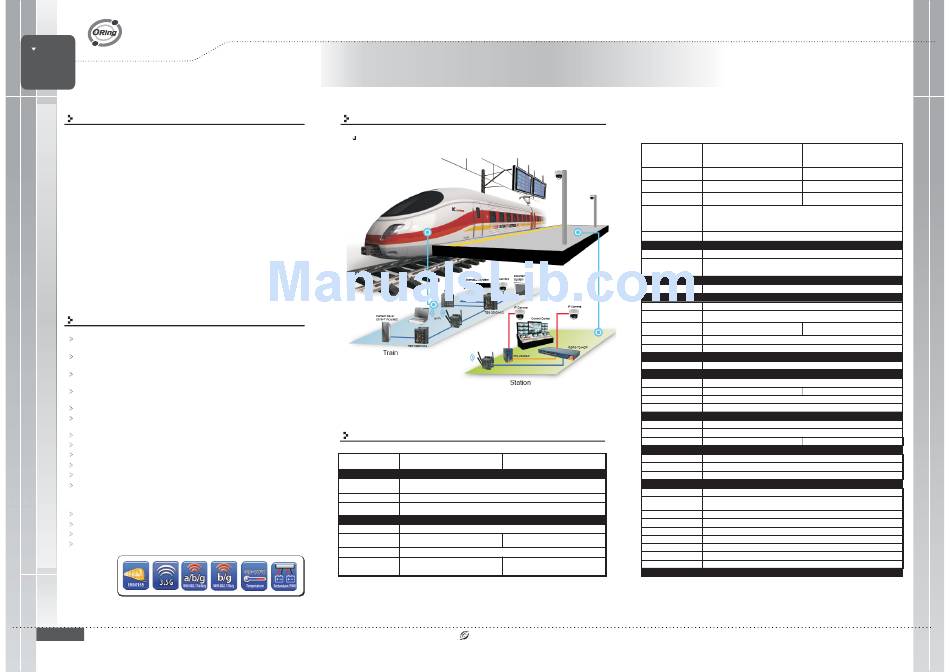

Applications

Various kinds of operation modes
TAR-120-M12 and
TAR-120-
wireless router with 2
In
EN50155
TAR-120-M12/TAR-3120-

Specifications

ORing EN50155 WLAN
Access Point Router Model
Physical Ports
10/100Base-T(X) Ports in M12
(D-coding) Auto MDI/MDIX
-
SIM Card Slot
Relay Output in M12 (D-coding)
connector
WLAN interface
WAN Connection Type
Antenna and Connector
Radio Frequency Type
Technology
Modulation
1907-2-29-TARX120M12
TAR-120-M12/
TAR-3120-M12
TAR-120-M12/
TAR-3120-M12
TAR-120-M12 TAR-3120-M12
2
1
1
Static/Dynamic IP, PPPoE, 3G Modem dial up
2 x 2 dBi (Wi-Fi) on Reverse SMA connector 4 x 2 dBi (Wi-Fi) on Reverse SMA connector
1 x 2 dBi (Cellular modem) on Reverse SMA connector 1 x 2 dBi (Cellular modem) on Reverse SMA connector
DSSS, OFDM
IEEE802.11b: CCK, DQPSK, DBPSK IEEE802.11b: CCK, DQPSK, DBPSK
IEEE802.11g: OFDM with BPSK, QPSK, 16QAM, 64QAM IEEE802.11g: OFDM with BPSK, QPSK, 16QAM, 64QAM
IEEE802.11a: OFDM with BPSK, QPSK, 16QAM, 64QAM
PRINTED ON RECYCLED PAPER
EN50155 Industrial Wireless LAN
Access Point Router
America / FCC: 2.412~2.462 GHz (11 channels) America / FCC: 2.412~2.462 GHz (11 channels)
Frequency Band
Europe CE / ETSI: 2.412~2.472 Ghz (13 channels)
Europe CE / ETSI: 2.412~2.472 GHz (13 channels)
IEEE802.11b: 1 / 2 / 5.5 / 11 Mbps IEEE802.11b: 1 / 2 / 5.5 / 11 Mbps
Transmission Rate
IEEE802.11g: 6 / 9 / 12 / 18 / 24 / 36 / 48 /54 Mbps IEEE802.11a/g: 6 / 9 / 12 / 18 / 24 / 36 / 48 /54 Mbps
Transmit Power IEEE802.11b/g: 20dBm max IEEE802.11a/b/g: 20dBm max
-81dBm @ 11Mbps, PER<8%; -86dBm @ 11Mbps, PER<8%;
Receiver Senstivity
-64dBm @ 54mMbps, PER<10%; -77dBm @ 54mMbps, PER<10%;
WEP: (64-bit, 128-bit key supported)
WAP/WAP2: 802.11 (WEP and AES encryption)
WAPPSK (256-bit key pre-shared key supported)
Encryption Security
802.1X Authentication supported
TKIP encryption
Wireless Security SSID broadcast disable

Cellular Interface

Cellular Standard GSM / GPRS / EGPRS / EDGE / WCDMA / HSDPA / HSUPA
Dual-band : HSUPA 1900 / 2100 MHZ
Band Option Quad-band : GSM / GPRS / EDGE 850 / 900 / 1800 / 1900MHz
WCDMA / HSDPA 850/900/1900/2100 MHZ
Protocol Support
Protocol ARP,BOOTP, DHCP, DNS, HTTPs, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, STP (IEEE 802.1D)
LED Indicators
Power indicator 2 x LEDs, Green for Power indicator
10/100Base-T(X) RJ45 port
2 x LEDs, Green for port Link/Act at 100Mbps. Amber for port Link/Act at 10Mbps.
indicator
1 x LED, Green for WLAN1 Link/Act. Red for WLAN2
WLAN LED 1 x LED, Green for WLAN Link/Act
Link/Act
WAN LED 1 x LED, Green for Cellular modem Link/ Act
Fault indicator
1 x LED, Red: Ethernet link down or power down
Fault Contact
Relay
Relay output to carry capacity of 3A at 24VDC
Power
Redundant Input power Dual Power Inputs. 12~48 VDC on M23 connector (24 VDC Typ)
Power consumption(Typ.)
5.8 Watts 9.6 Watts
Overload current protection
Present
Reverse polarity protection Present

Physical Characteristic

Enclosure IP-40
Dimension (W x D x H) 125(W) x 65(D) x 196(H) mm (4.92 x 2.56 x 7.72 inch.)
Weight (g)
950 g 1050 g
Environmental
Storage Temperature o o
-40 to 85 C (-22 to 185 F)
Operating Temperature -20 to 70 C (-4 to 158 F) o o
Operating Humidity
5% to 95% Non-condensing

Regulatory Approvals

EMI
FCC Part 15, CISPR (EN55022) class A
EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge),
EMS
EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11
Shock IEC60068-2-27, EN61373
Free Fall
IEC60068-2-32
Vibration
IEC60068-2-6, EN61373
Railway Traffic
EN50155
Cooling
EN60068-2-1
Dry Heat EN60068-2-2
Safety
EN60950-1
Warranty 3 years
Quick Installation Guide
Version 1.0
5.15~5.825 GHz (13 channels)
5.15~5.724GHz (19 channels)
