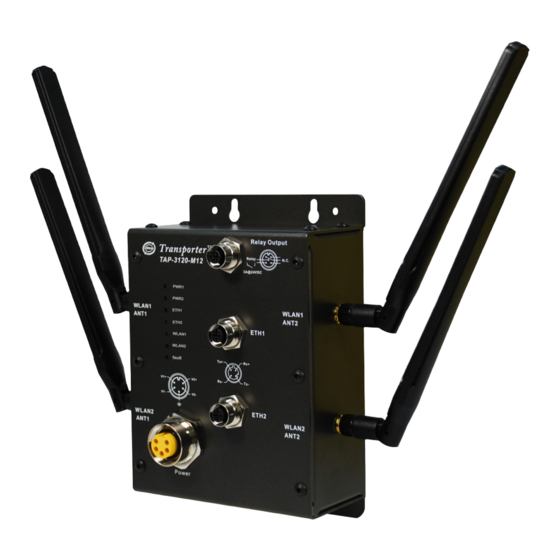

Summary of Contents for ORiNG Transporter TAP-3120-M12

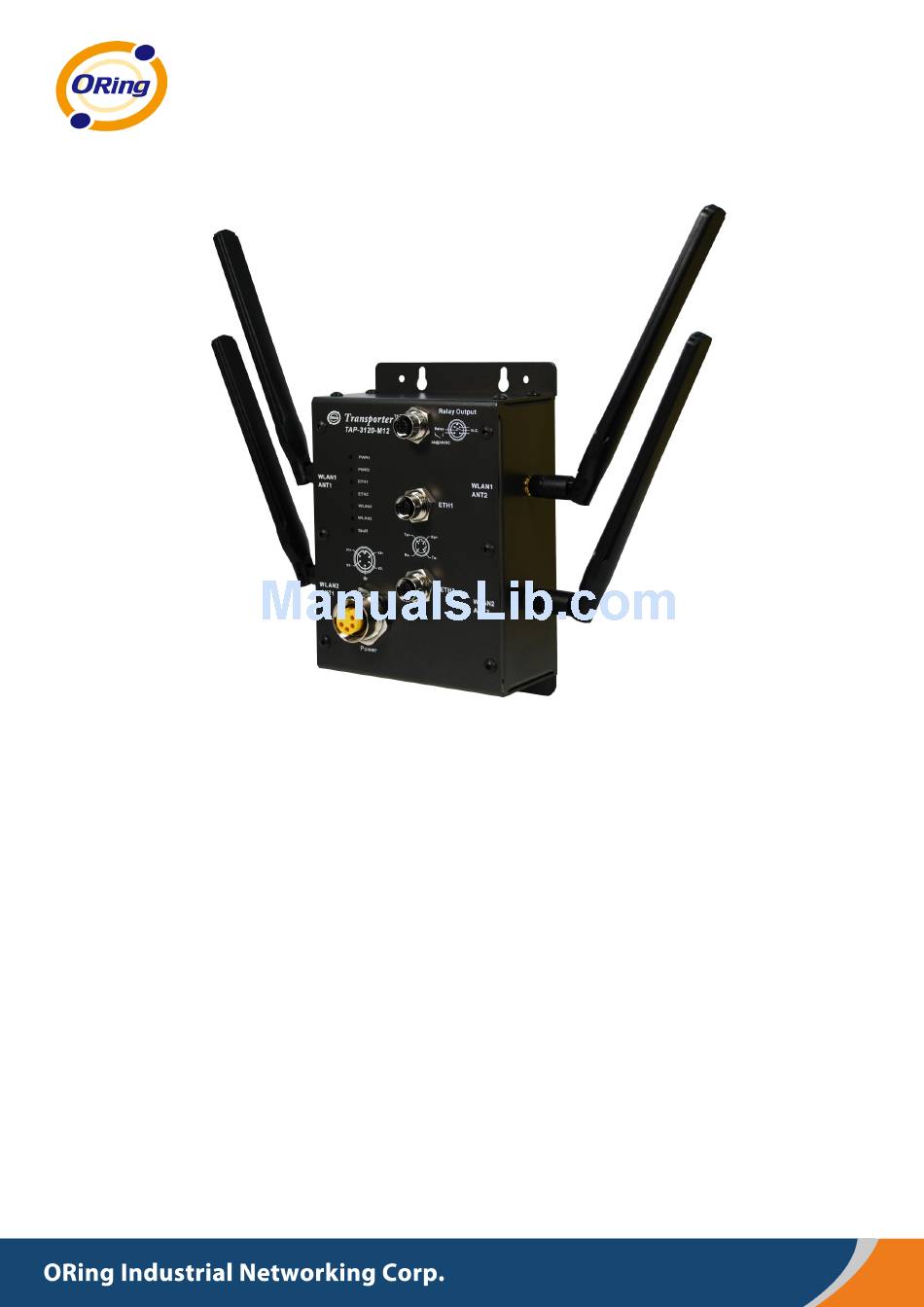

- Page 1 ’ ’...
-
Page 2: Contact Information
ORing warrants that all ORing products are free from defects in material and workmanship for a specified warranty period from the invoice date (5 years for most products). ORing will repair or replace products found by ORing to be defective within this warranty period, with shipment expenses apportioned by ORing and the distributor. -
Page 3: Table Of Contents
....................6 THERNET ABLES 100B -T(X)/10B -T P ............6 SSIGNMENTS ....................7 IRELESS NTENNA Management Interface .................. 8 TAP-3120-M12 ..................8 XPLORE 5.1.1 AP-Tool software ....................8 ....................9 QUIPMENT ............... 10 ONFIGURATION BY ROWSER ................. 10 BOUT ASED ANAGEMENT .................... - Page 4 System Event ......................28 Email Settings ......................29 SNMP Settings ....................... 29 Syslog Server Settings .................... 30 5.5.3 System Tools ....................30 Administrator ......................30 Date & Time ......................32 Configuration ......................33 Firmware Upgrade ....................34 Miscellaneous ......................34 5.5.4 System Status ....................
-
Page 6: Getting To Know Your Access Point
Access Point with 2 LAN ports. It can be configured to operate in Dual AP/Dual Client/Bridge/AP-Client mode. You can configure TAP-3120-M12 by Window Utility or WEB interfaces via LAN port or WLAN interface. TAP-3120-M12 provides dual Ethernet ports in switch mode, so you can use Daisy Chain to reduce the usage of Ethernet switch ports. -
Page 7: Hardware Installation
AP’s screw hole. top section bottom section Step 2 Secure the TAP-3120-M12 onto the wall by tightening the 4 screws all the way in so each screw firmly latches on the top section of its corresponding screw hole. ORing Industrial Networking Corp. -
Page 8: Hardware Overview
TAP-3120-M12 User’s Manual ardware Overview Front Panel The following table describes the labels that stick on the TAP-3120-M12. Port Description 10/100 Base-T(X) fast 2 10/100Base-T(X) fast Ethernet ports support auto-negotiation. Ethernet ports on Default Setting : M12 connector Speed: auto... - Page 9 TAP-3120-M12 User’s Manual TAP-3120-M12 1. 2.4/5.8GHz antenna with typical 3.0 dBi antenna for IEEE 802.11a mode and 2 dBi for IEEE 802.11b/g mode. 2. LED for PWR1 and system status. When the PWR1 links, the green LED will light on.
-
Page 10: Front Panel Leds
TAP-3120-M12 User’s Manual 11. Ethernet port 2 (ETH2) on M12(D-coding) connector 12. Relay output on M12(A-coding) connector Front Panel LEDs Color Status Description Green On DC power 1 activated. Green blinking Device been located PWR1 Green/Red Indicates an IP conflict, or... -
Page 11: Cables And Antenna
Ethernet Cables The TAP-3120-M12 WLAN AP has two 10/100Base-T(X) Ethernet ports. According to the link type, the AP uses CAT 3, 4, 5, 5e UTP cables to connect to any other network device (PCs, servers, switches, routers, or hubs). Please refer to the following table for cable specifications. -
Page 12: Wireless Antenna
Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair. Wireless Antenna 2.4GHz/5.8GHz antenna is used for TAP-3120-M12 and connected with a reversed SMA connector. External RF cable and antenna also can be applied with this connector. -
Page 13: Management Interface
Interface Explore TAP-3120-M12 5.1.1 AP-Tool software Each model contains user-friendly software, AP-Tool, to explore TAP-3120-M12 on local area network. Step 1: Open the AP tool and click “Refresh list”, the AP devices will show on the list. Step 2: Choose your access point, and it will show the AP attribute. Simultaneity, you can manually set the AP’s IP address. -
Page 14: Upnp Equipment
UPnP Equipment Step 1 To check whether the UPnP UI of the computer is connected to the TAP-3120-M12, go to Control Panel > Add or Remove Programs > Windows Components Wizard > Networking Servers > UPnP User Interface and enable the UPnP User Interface. -
Page 15: Configuration By Web Browser
TAP-3120-M12 User’s Manual Step 3 Click the sign of the UPnP equipment; then you will find the UPnP equipment in the network neighborhood. Step 4 To display information of the UPnP equipment, right-click the UPnP equipment and choose “Properties”. Step 5 Right-click the UPnP equipment or double click the UPnP equipment to transfer; it will go to the web page. -
Page 16: Main Interface
TAP-3120-M12 User’s Manual Through the front section’s information, you will see the following dialog window. Enter your user name (admin) and your password (admin), and then click OK to continue. Login screen For security reasons, we strongly suggest you change the password. Click on System Tools >... -
Page 17: Basic Setting
The static LAN-to-LAN bridging function is supported through Wireless Distribution System (WDS). In each mode, the TAP-3120-M12 forwards packet between its Ethernet interface and wireless interface for wired hosts on the Ethernet side, and wireless hosts on the wireless side. -
Page 18: Setting Wds (Bridge Mode)
TAP-3120-M12 User’s Manual Setting WDS (Bridge Mode) WDS setting interface This type of wireless link is established between two IEEE 802.11 access points. Wireless packets transmitted along the WDS link comply with the IEEE 802.11 WDS (Wireless Distribution System) format at the link layer. - Page 19 TAP-3120-M12 User’s Manual 1. LAN IP Address should set different IP in the same network. 2. All AP’s DHCP Server should set shutdown. 3. WDS should set Enable. 4. Each AP should have the same setting except ‘Peer Mac Address’ set to the other’s Mac address 5.
- Page 20 TAP-3120-M12 User’s Manual The working principle of Bridge Mode as follows: In the figure, the AP behaves as a standard bridge that forwards traffic between WDS links (links that connect to other AP/wireless bridges) and an Ethernet port. As a standard bridge,...
-
Page 21: Setting Wireless
TAP-3120-M12 User’s Manual The working principle of Repeater Mode as follows: In the figure, Repeater is used to extend the range of the wireless infrastructure by forwarding traffic between associated wireless stations and another repeater or AP connected to the wired LAN. - Page 22 TAP-3120-M12 User’s Manual to change the default setting. All devices on the network must be set to the same channel to communicate on the network. Select the type of security for your wireless network at Security Type: None: Select for no security.
- Page 23 TAP-3120-M12 User’s Manual Security Type: Select WEP WEP Encryption: Select 64 Bit or 128 Bit WEP encryption. Key Type: Select ASCII or Hex key type. Default Key Index: Select one of the keys to be the active key. Key 1-4: Input up to four encryption keys.
- Page 24 TAP-3120-M12 User’s Manual Security Type – WPA /WPA2 1. Security Type: Select WPA/WPA2 2. RADIUS Server IP: Enter the IP address of the RADIUS Server. 3. Port: Enter the RADIUS port (1812 is default). 4. Shared Secret: Enter the RADIUS password or key.
- Page 25 TAP-3120-M12 User’s Manual Security Type – 802.1x 1. Security Type: Select 802.1x 2. WEP Encryption: Select 64 Bit or 128 Bit WEP encryption. 3. Key Type: Select ASCII or Hex key type. 4. Default Key Index: Select one of the keys to be the active key.
-
Page 26: Client
TAP-3120-M12 User’s Manual RADIUS (Remote Authentication Dial-in User Service) is the industrial standard agreement, and it is used to provide an identify verification. The RADIUS customer (is usually a dial-in server, VPN server or wireless point) send your proof and the conjunction parameter to the RADIUS server by RADIUS news. - Page 27 TAP-3120-M12 User’s Manual The principle of the AP-Client/Client mode shows in the following pictures: The following table describes the labels in this screen. Label Description Peer AP SSID Enter the other AP which used for AP mode. You can scan the APs which used for AP mode in the certainty area.
-
Page 28: Lan Setting
TAP-3120-M12 User’s Manual LAN Setting The Basic Setting > LAN Setting page is mainly for setting IP address of LAN interface. To access the AP normally, a valid IP address of your LAN should be specified to the LAN interface. The default IP setting is DHCP server (Obtain an IP address automatically). -
Page 29: Setting Dhcp Server
IP will not been occupied for a long time or the server doesn’t know that the dynamic IP is idle. DHCP Clients List List the devices on your network that are receiving dynamic IP addresses from the TAP-3120-M12. ORing Industrial Networking Corp. -
Page 30: Advanced Setting
TAP-3120-M12 User’s Manual 5.5.2 Advanced Setting Wireless The following table describes the labels in this screen. Label Description Beacon Interval The default value is 100. The Beacon Interval value indicates the frequency interval of the beacon. A beacon is a packet broadcast by the AP to synchronize the wireless network. - Page 31 TAP-3120-M12 User’s Manual Fragmentation Threshold. Setting the Fragmentation Threshold too low may result in poor network performance. Only minor modifications of this value are recommended. RTS Threshold This value should remain at its default setting of 2347. The range is 0-2347 bytes. Should you encounter inconsistent data flow, only minor modifications are recommended.
-
Page 32: Mac Filter
Use Advanced Setting > MAC Filters to allow or deny wireless clients, by their MAC addresses, from accessing the TAP-3120-M12. You can manually add a MAC address or select the MAC address from Connected Clients that are currently connected to the The following table describes the labels in this screen. -
Page 33: System Event
TAP-3120-M12 User’s Manual allowed or denied option is selected by you. MAC Filter List This list will display the MAC addresses that are in the selected filter. Connected Clients This list will display the wireless MAC addresses that linked with MAC Address MAC addresses need to be added to or clear from MAC filter list. -
Page 34: Email Settings
TAP-3120-M12 User’s Manual action performs, the event will be sent to administrator by email. A trap will also be sent to SNMP server. The Syslog will record the event locally and may send the log remotely to a Syslog server. If serious event occurred, such as the power failure or link down, the fault LED will be switched on as warning. -
Page 35: Syslog Server Settings
TAP-3120-M12 User’s Manual management information to the NMS by keeping track of various operational aspects of the AP system. Turn on to open this service and off to shutdown it. SNMP Trap Server Specify the IP of trap server, which is the address to which it will send traps AP generates. - Page 36 TAP-3120-M12 User’s Manual The following table describes the labels in this screen. Label Description Old Name This field displays the old login name. It's read only. The default value of login name is "admin". Old Password Before making a new setting, you should provide the old password for a verify check.
-
Page 37: Date & Time
TAP-3120-M12 User’s Manual Port Corresponding to the Web protocol, there is a default port (HTTP: 80, HTTPS: 443). And you can enter another number which should be in range of 1-65535. Web Access Control Choose the checkbox of the Wired and Wireless; you can visit the web page through the mode you choose. -
Page 38: Configuration
Click Upload when you have selected the file to be loaded back onto the AP. Restore Default You may also reset the TAP-3120-M12 back to factory settings by Settings clicking on Restore Default Settings. Make sure to save the unit’s settings before clicking on this button. -
Page 39: Firmware Upgrade
TAP-3120-M12 User’s Manual Firmware Upgrade New firmware may provide better performance, bug fixes or more functions. To upgrade, you need a firmware file correspond to this AP model. It will take several minutes to upload and upgrade the firmware. After the upgrade is done successfully, the access point will reboot and get revalidated. -
Page 40: System Status
TAP-3120-M12 User’s Manual 5.5.4 System Status System Info This page displays the current information for the TAP-3120-M12. It will display model name, as well as firmware version, Ethernet, Wireless info and device time. ORing Industrial Networking Corp. -
Page 41: System Log
TAP-3120-M12 User’s Manual System Log The system log tracks the important events and setting changes of the AP. If the AP is rebooted, the logs are automatically cleared. Click the button 'Refresh' to refresh the page; Click the button 'Clear' to clear log entries. -
Page 42: Wireless Clients
TAP-3120-M12 User’s Manual Wireless Clients This page of the list displays the Mac Address of the wireless clients connected. Current TX Rate is corresponding to the Transmission Rate in the Advanced Setting > Wireless pages. 5.5.5 Online Help Click on any item in the Online Help screen for more information. -
Page 43: Technical Specifications
TAP-3120-M12 User’s Manual echnical pecifications LAN Interface Ethernet Ports in M12 connector 2 x 10/100Base-T(X), Auto MDI/MDI-X (4-pin, D-coding) Protocols IP, TCP, UDP, DHCP, BOOTP, ARP/RARP, DNS, SNMP MIB II, HTTPS, SNMPV1/V2, Trap, Private WLAN Interface Operating Mode Dual AP/Dual Client /Bridge/ AP-Client Antenna and Connector 4 antennas with 3dBi for IEEE802.11a and 2dBi for... - Page 44 TAP-3120-M12 User’s Manual 2) Green On: Power is on and functioning normally. ETH1(2) Link / ACT: Orange ON/Blinking: 10 Mbps Ethernet Green ON/Blinking: 100 Mbps Ethernet WLAN Link/ACT: Green for WLAN 1 and Red for WLAN 2 Fault indicator: Red On: Ethernet link down or power down...
-
Page 45: How To Configure Snmp Mib And Use Snmp In The Pcs
TAP-3120-M12 User’s Manual PPENDIX How to configure SNMP MIB and use SNMP in the PCs? Step 1 Set Enable about the SNMP in the web of Advanced SettingEmail/SNMP/Syslog, and input the IP address of the PC used for SNMP trap server. - Page 46 TAP-3120-M12 User’s Manual 2. After the installation, click into MIB Compile to add the MIB files (for example, the ORing 802.11a/b/g and no PoE FW), and save the configuration. 3. Open MIB Brower and select the list of MIB; then select the ORING-ABG-2PORT-AP-MIB in the MIB Modules to add in the Loaded MIB modules.
- Page 47 4. Click into Query list in the MIB Brower, and input the IP address of the AP in the Remote SNMP agent click “Apply”, there is an alarm box which let you enter the right community. 5. After all the settings, you can see the information about the ORing AP in the MIB Tree. ORing Industrial Networking Corp.
- Page 48 TAP-3120-M12 User’s Manual Step 3 Be familiar with SNMP information 1. The apNotifs list will show the trap box. To modify password as an example select the SNMP Trap option in the Advanced Setting System Event page modify the password in the page of Administrator ...
- Page 49 TAP-3120-M12 User’s Manual 2. The apInfo shows the basic information of the AP. To apSignalStrengthInfo as an example, right-click and select "Get" on access to the Signal Strength information. Shown in SNMP Shown in the web page Response binding: Signal Strength: 100% 1: apSignalStrengthInfo.0...
