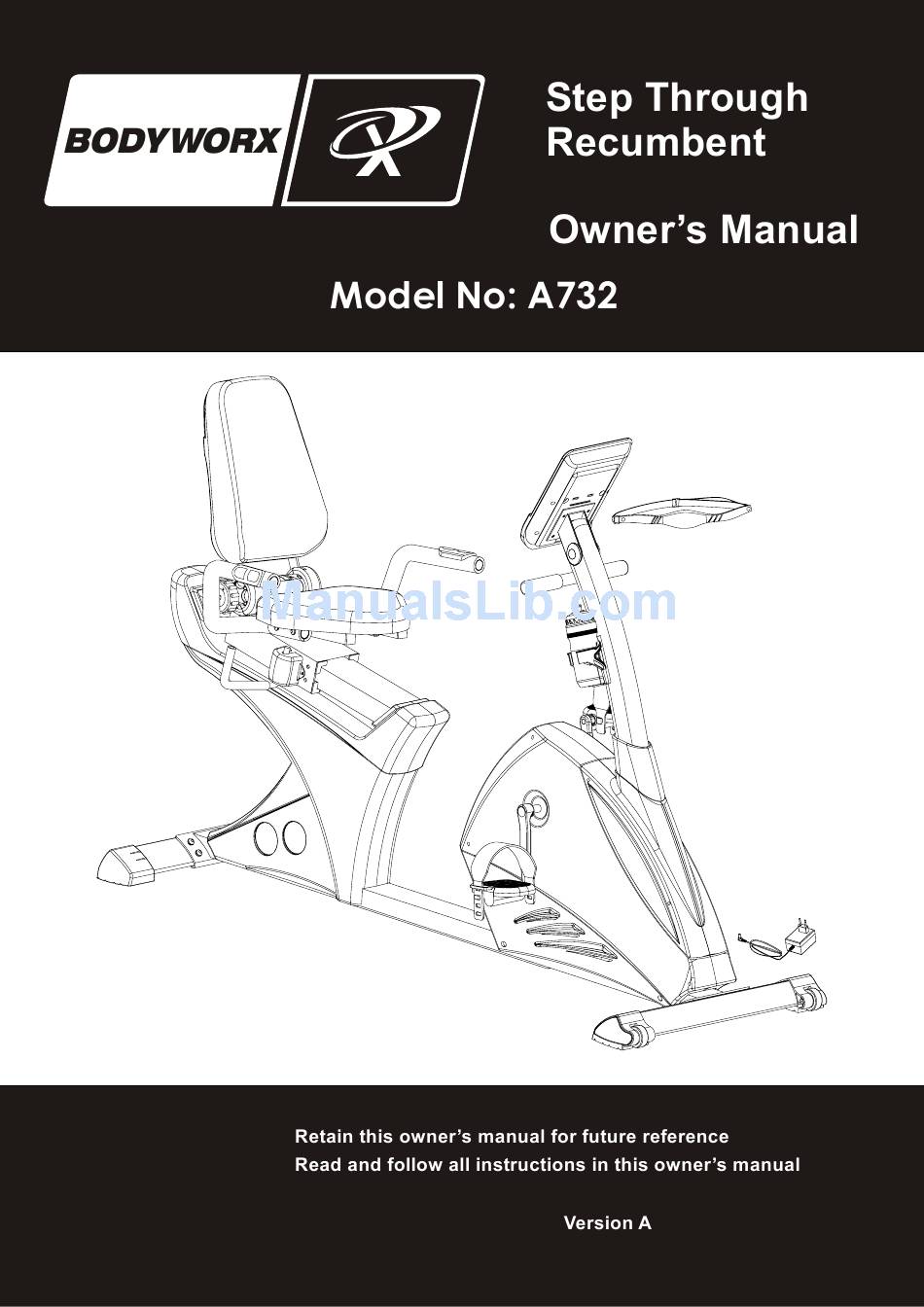

Bodyworx A732 Owner's Manual

Bodyworx A732 Owner's Manual

Step through recumbent
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the A732 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bodyworx A732

Summary of Contents for Bodyworx A732

  • Page 2: Safety Instructions

    Safety Instructions • To ensure the best safety of the exerciser, regularly • Make sure there is sufficient free space around the check it on damages and worn parts. exerciser when you set it up. • To avoid possible accidents, do not allow children •...
  • Page 3 Important Notes • Assemble the exerciser as per assembly instructions and be sure to only use the structural parts provided with the exerciser and designed for it. Prior to the assembly, make sure the contents of the delivery are complete by referring to the parts list of the assembly and operating instructions.

  • Page 4: Exploded Drawing

    Exploded drawing: 57 97 59 55 20 53 67...

  • Page 5: Part List

    Part list: Part No. Description Part No. Description Main frame End cap D25.4x31L Rear stabilizer Idle fixing plate Front stabilizer Spring D3*D17*65L Left rear foot cap (triangle) Idle D23.8xD38x24 Right rear foot cap (triangle) Nylon nut M10x1.5x10T Handlebar post Spacer D22.5*D17.2*6.4T Sliding beam Nylon nut M8*1.25*8T Spring washer...
  • Page 6 Round magnet Plastic flat washer D50*D10*1.0T Computer SM-2780 Axle cover D60*13.5L Flat washer D24xD16x1.5T Side cover D29.1*13L Foam D23*4T*560L Nylon nut M8*1.25*8T Semi-ball end plug D25.4x28L Bolt M8*1.25*60L Upper protective cover C ring S-17(1T) Screw ST4*1.41*15L Flat washer D23*D17.2*1.5T Cross bolt M5*10L Decorative cover for backrest Cross bolt M5*0.8*10L Cross bolt M6*1.0*25L...
  • Page 7 STEP 1 FIG.1 M8*20L D15.4*D8.2*2T D16*D8.5*1.2T 1. Fix the front stabilizer (3) and rear stabilizer (2) onto the main frame by using Bolt (9), spring washer (7) and flat washer (13). 2. Adjust the balance by turning the wheel of rear foot cap.
  • Page 8 STEP 2 ( x1) M8*15L D22*D8.5*1.5T FIG.2 ( x2) M8*15L D16*D8.5*1.2T 1. Pick up the upper protective cover (64) 2. Join with 2 sets of cables: upper computer cable (52A) and lower computer cable (52B), upper & middle hand pulse cable (46 & 50) 3.
  • Page 9 STEP 3 (C)x4 FIG.3 M5*0.8*10L 1. Connect with the upper pulse cable (46) & upper computer cable (52A) with computer (60) 2. Fix the computer by screw (66). 3. Assemble the left & right pedal (16L&16R) with left & right crank (15R & 15L).
  • Page 10 STEP 4 (D)x4 FIG.4 M8*70L D22*D8.5*1.5T D16*D8.5*1.2T M8*8T 1. Fix the left & right handlebar (48L&48R) to the main frame by using bolt (17), curved washer (11), flat washer (13) and domed nut (10). 2. Connect the pulse cable (54) with lower pulse cable (47).
  • Page 11 STEP 5 ( x4) M8*20L D16*D8.5*1.2T FIG.5 ( x4) M8*40L D16*D8.5*1.2T 1. Fix the seat pad (42) onto the support tube by using bolt (8), flat washer (13) 2. Attached the backrest (38) onto support tube (68) by using bolt (9), flat washer (13) .
  • Page 12 STEP 6 FIG.6 ( x4) D19*17 M6*1*25L ( x2) M5*0.8*15L 1. Fix the decorative cover (99) on the back of back pad (38) by bolt (100) 2. Plug the round end cap (84). 3. Fix the bottle (109) to the holder of bottle (108) by using screw (110).
  • Page 13 STEP 7 1. Adjust the position of seat pad front and back. 2. Turning the knob to get the comfortable back pad position.
  • Page 14 Computer Operation Instructions SM-2780-71 BUTTON FUNCTION: In stop mode, the mode is to confirm all exercise data setting, and enter into MODE/ENTER : program. RESET : In stop mode, press the button back to main menu. START/STOP : To start or stop exercise. RECOVERY : To test hear rate recovery status.
  • Page 15 OPERATION PROCEDURE 1. Connect power supply and computer will power on with a long beep sound, LCD display all segments (drawing A) for 2 seconds and enter into personal data setting mode (gender, age, height and weight) for U1~U4. (drawing B~C) 2.
  • Page 16 6. H.R.C. : Before exercise, computer will ask for user AGE first to calculate TARGET pulse. User may still press UP and DOWN to change target pulse from 30 to 240. 7. USER PROGRAM : User may press UP, DOWN and then press MODE to create his own profile. (from column 1 to column 20) User may hold on pressing MODE button for 2 seconds to quit profile setting.
