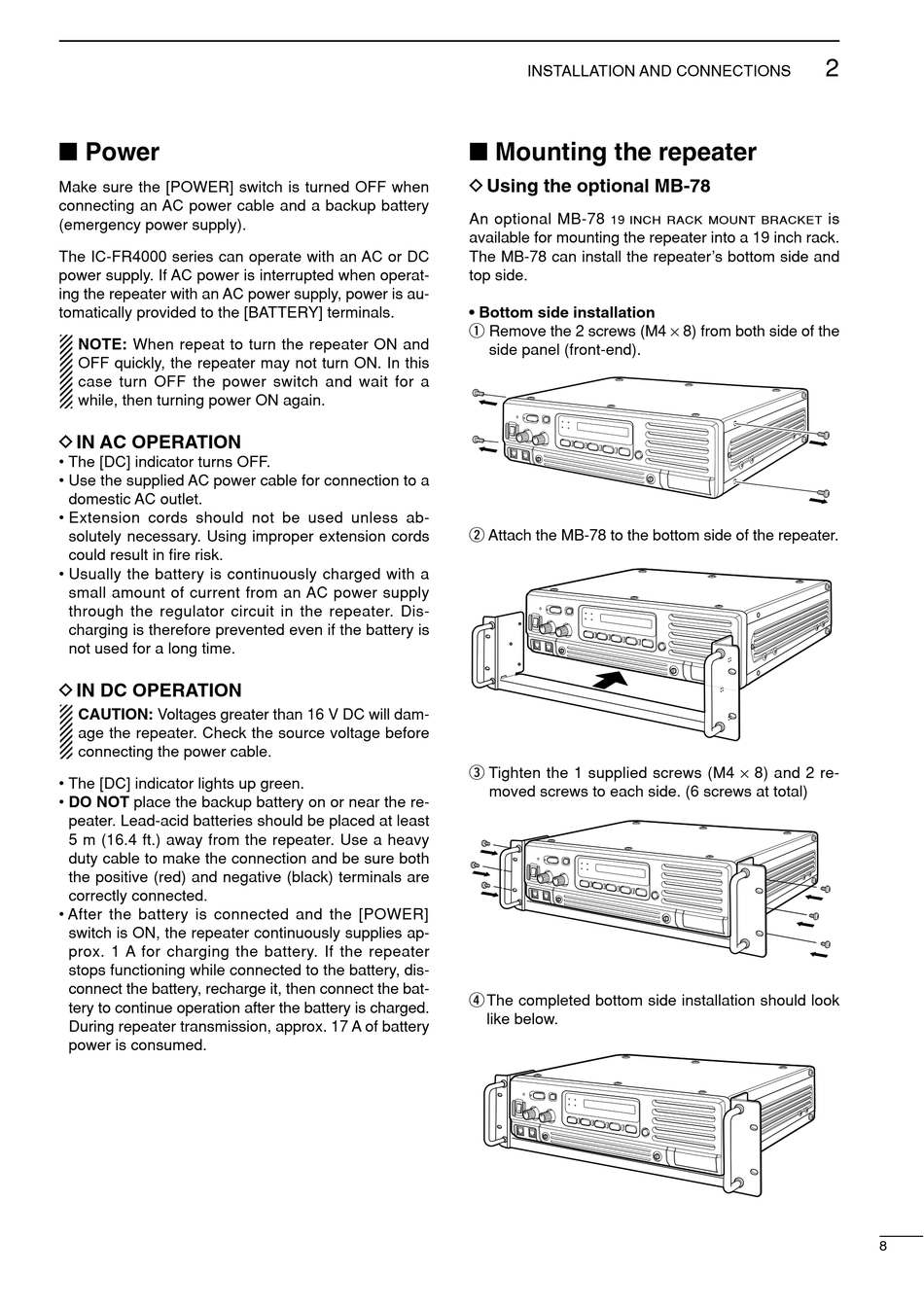

I Power; I Mounting The Repeater - Icom ic-FR4000 Instruction Manual

I Power

Make sure the [POWER] switch is turned OFF when
connecting an AC power cable and a backup battery
(emergency power supply).
The IC-FR4000 series can operate with an AC or DC
power supply. If AC power is interrupted when operat-
ing the repeater with an AC power supply, power is au-
tomatically provided to the [BATTERY] terminals.
NOTE: When repeat to turn the repeater ON and
OFF quickly, the repeater may not turn ON. In this
case turn OFF the power switch and wait for a
while, then turning power ON again.
D IN AC OPERATION
• The [DC] indicator turns OFF.
• Use the supplied AC power cable for connection to a
domestic AC outlet.
• Extension cords should not be used unless ab-
solutely necessary. Using improper extension cords
could result in fire risk.
• Usually the battery is continuously charged with a
small amount of current from an AC power supply
through the regulator circuit in the repeater. Dis-
charging is therefore prevented even if the battery is
not used for a long time.
D IN DC OPERATION
CAUTION: Voltages greater than 16 V DC will dam-
age the repeater. Check the source voltage before
connecting the power cable.
• The [DC] indicator lights up green.
• DO NOT place the backup battery on or near the re-
peater. Lead-acid batteries should be placed at least
5 m (16.4 ft.) away from the repeater. Use a heavy
duty cable to make the connection and be sure both
the positive (red) and negative (black) terminals are
correctly connected.
• After the battery is connected and the [POWER]
switch is ON, the repeater continuously supplies ap-
prox. 1 A for charging the battery. If the repeater
stops functioning while connected to the battery, dis-
connect the battery, recharge it, then connect the bat-
tery to continue operation after the battery is charged.
During repeater transmission, approx. 17 A of battery
power is consumed.
INSTALLATION AND CONNECTIONS

I Mounting the repeater

D Using the optional MB-78
An optional MB-78
19
INCH RACK MOUNT BRACKET
available for mounting the repeater into a 19 inch rack.
The MB-78 can install the repeater's bottom side and
top side.
• Bottom side installation
q Remove the 2 screws (M4 × 8) from both side of the
side panel (front-end).
w Attach the MB-78 to the bottom side of the repeater.
e Tighten the 1 supplied screws (M4 × 8) and 2 re-
moved screws to each side. (6 screws at total)
r The completed bottom side installation should look
like below.
