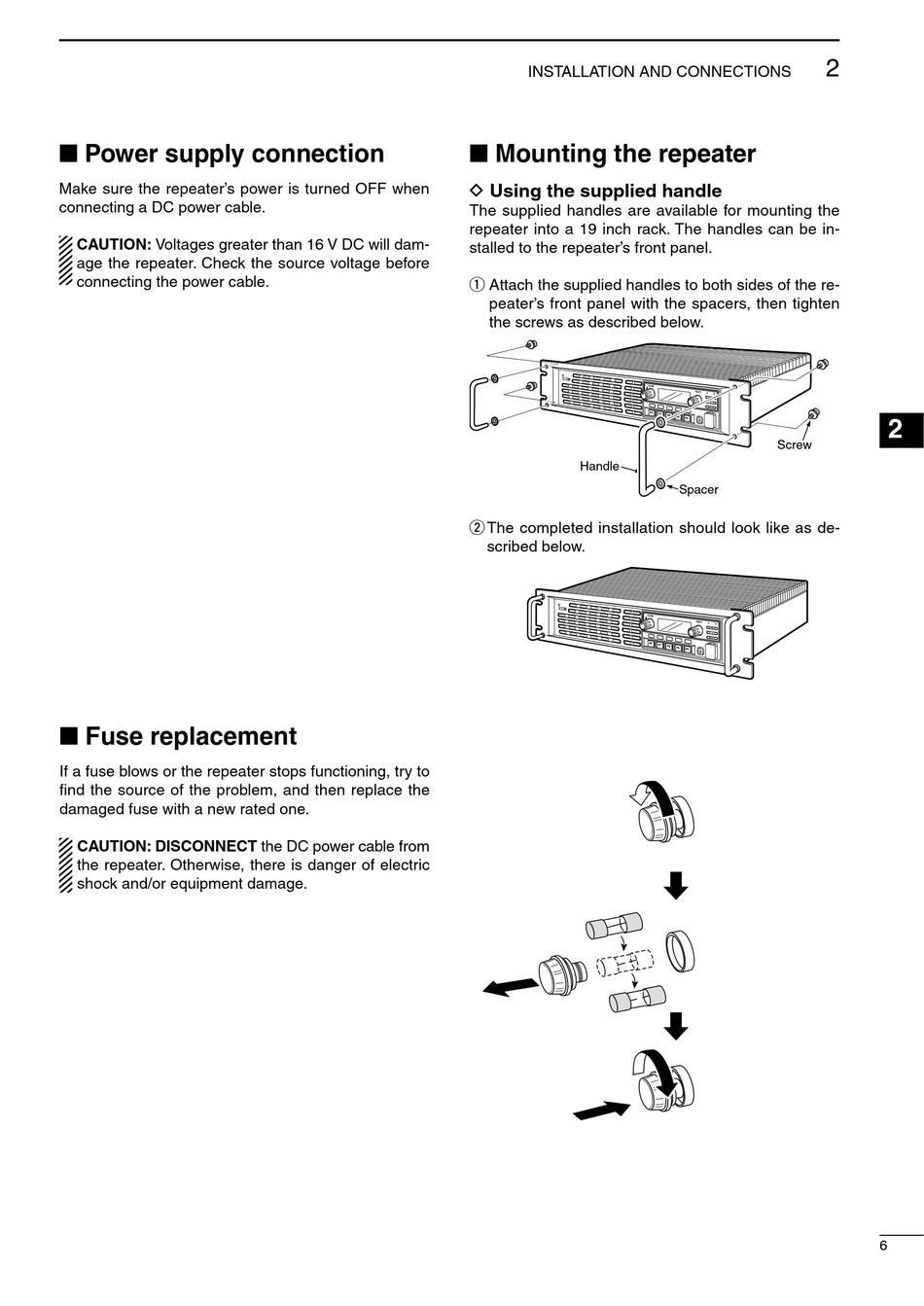

n Power supply connection
Make sure the repeater's power is turned OFF when
connecting a DC power cable.
CAUTION: Voltages greater than 16 V DC will dam-
age the repeater. Check the source voltage before
connecting the power cable.
n Fuse replacement
If a fuse blows or the repeater stops functioning, try to
find the source of the problem, and then replace the
damaged fuse with a new rated one.
CAUTION: DISCONNECT the DC power cable from
the repeater. Otherwise, there is danger of electric
shock and/or equipment damage.
INSTALLATION AND CONNECTIONS
n Mounting the repeater

D Using the supplied handle

The supplied handles are available for mounting the
repeater into a 19 inch rack. The handles can be in-
stalled to the repeater's front panel.
q Attach the supplied handles to both sides of the re-
peater's front panel with the spacers, then tighten
the screws as described below.
Handle
w The completed installation should look like as de-
scribed below.
P 0
P 1
P 2
P 3
P 4
Screw
Spacer
P 0
P 1
P 2
P 3
P 4
2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
6
