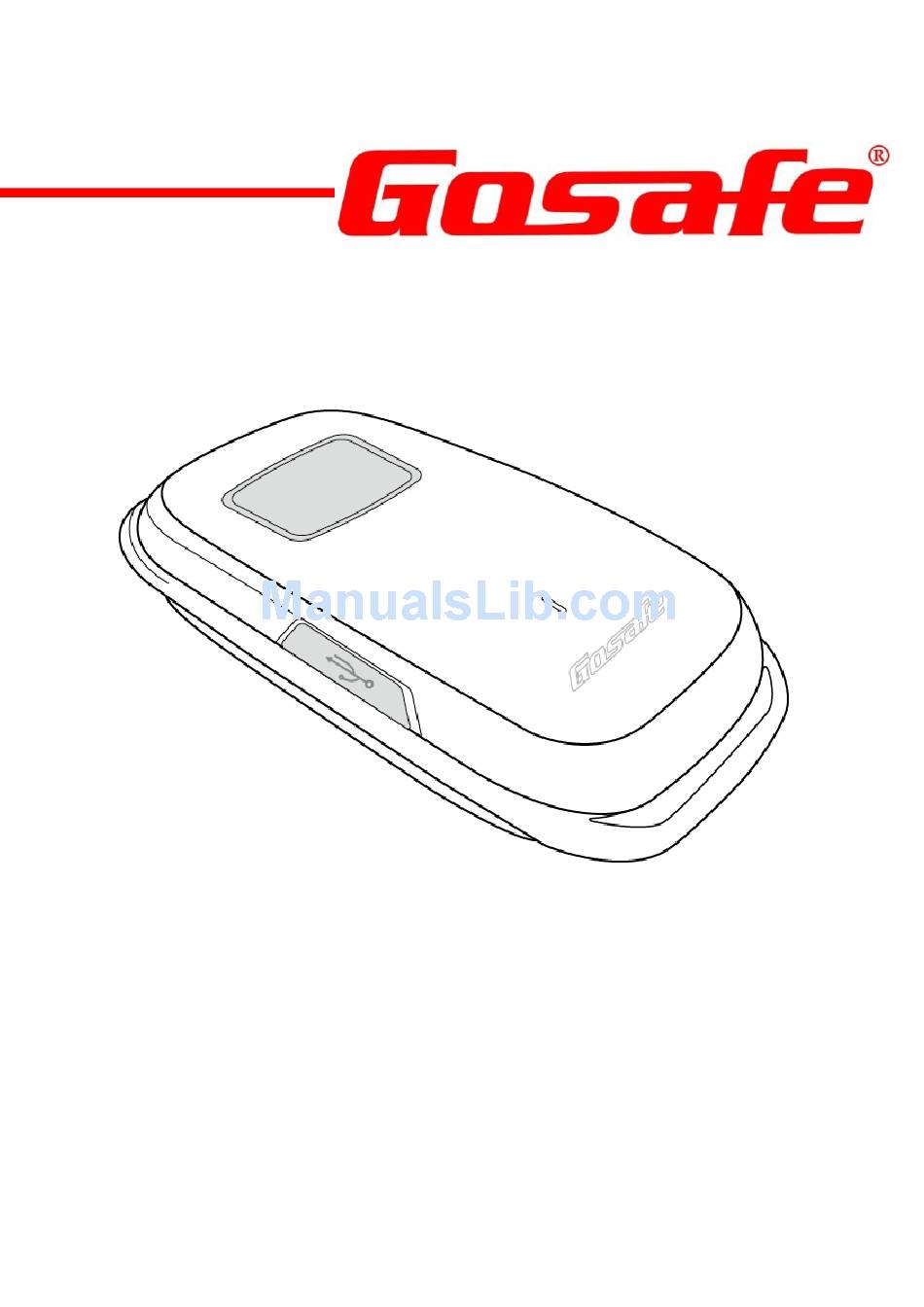

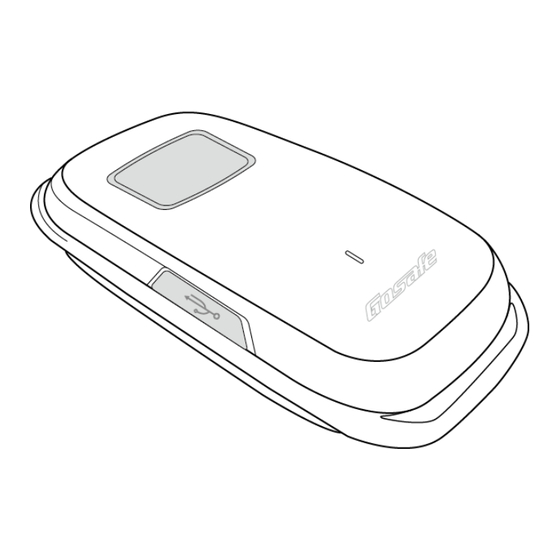

G2P User Manual
v1.0
Copyright © 2014 Gosafe

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G2P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gosafe G2P

  • Page 1 G2P User Manual v1.0 Copyright © 2014 Gosafe...
  • Page 2: Legal Notice

    Explosive atmospheres Do not charge or use G2P in any area with a potentially explosive atmosphere, such as a fueling area, or in areas where the air contains chemicals or particles (such as grain, dust, or metal powders). Obey all signs and instructions.
  • Page 3: Table Of Contents

    Contents 1. Packing list ..................................1 2. Specifications ................................1 3. Features and event ............................... 2 3.1. Features ................................. 2 3.2. Supported event list ............................... 2 4. Overview ..................................3 4.1. Front ..................................3 4.2. Rear ..................................3 5. Getting started ................................4 5.1.
  • Page 4: Packing List

    1. Packing list 2. Specifications Dimension 66.5(L)*35.5(W)*12.5(H)mm Physical Weight Environment Operating temperature -20℃ to +50℃ (with backup battery) Bluetooth NOT Supported Micro USB SC6531 LED indicator 1 LED indicators GSM & GPS & POWER External Power supply Lithium battery Type Rechargeable, Li-Po 3.7V, 600mAh Power consumption Standby: 2.5mA@3.7V, Operating: 130mA@3.7V Antenna...
  • Page 5: Features And Event

    3. Features and event 3.1. Features  SOS button to trigger instant SOS message  Daily life water proof standard  A-GPS supported  Private activity hour mode  Circular Geo fence supported  Dynamic report interval on preset conditions ...
  • Page 6: Overview

    Pressing over 1 second to trigger SOS event LED indicator Please refer chapter 6 Micro USB interface For charging battery & PC configuration utility 4.2. Rear Power switch Pressing over 2 seconds to power ON/OFF G2P Battery cover Remove battery cover by flipping it from this crack...
  • Page 7: Getting Started

    5. Getting started 5.1. Install SIM card Remove cover at the shown direction from here. Flip up battery from here to find the SIM card holder. Step1: Release SIM holder at shown direction. Step2: Insert SIM card to SIM holder, Metal part of SIM card facing to PCB board.
  • Page 8: Led Behavior

    6. LED behavior LED behavior is determined by command LED, by default (LED;300;10) it will acting as below, please refer command LED in chapter 7 for further information.
  • Page 9: User Command

    This command is to set user phone number#1 that has authority to interact with tracker. Example: Phone number: 13800138000, country code: +86 1234,UNO0;+8613800138000 Tracker User SMS G2P V1.00 UNO0:+8613800138000 BAT 60% 2.Command UPW0 This command is to change the default password 1234 for user phone number#1, 4 digits fixed. 1234,UPW0;5678...
  • Page 10: Command Uno1

    This command is to set user phone number#2 that has authority to interact with tracker. Example: Phone number: 13800138000, country code: +86 1234,UNO1;+8613800138000 Tracker User SMS G2P V1.00 UNO1:+8613800138000 BAT 60% 6.Command UPW1 This command is to change the default password 1234 for user phone number#2, 4 digits fixed. 1234,UPW1;5678...
  • Page 11: Command Usp1;1

    8.Command USP1;1 This command is to set report mode1 for user phone number#2 1234,USP1;1;30M;G;W Tracker Remark User SMS G2P V1.00 USP1;1;<Report interval>;<Paramter1>;<Paramter2> USP1:1;30M;G;W BAT 60% <Report interval>: Range is from 30S to 900S, 15M to 59M, 1H to 720H. S = Second...
  • Page 12: Command Tzn

    11.Command TZN This command is to set local time. 1234,TZN;08:00 Tracker Remark User SMS G2P V1.00 TZN;<Time zone> TZN:08:00 BAT 60% <Time zone>: Format is HH;MM, range from -13:00 to 13:00. 12.Command DNU This command is to set switching condition for report mode0 and report mode1.
  • Page 13: Command Svp;0

    15.Command SVP;0 This command is to set report mode0 to GPRS host server. 1234,SVP;0;30S;G;T Tracker Remark User SMS G2P V1.00 SVP;0;<Report interval>;<Paramter1>;<Paramter2> SVP:0;30S;G;T BAT 60% <Report interval>: Range is from 30S to 900S, 15M to 59M, 1H to 720H. S = Second...
  • Page 14: Command Bmc

    18.Command BMC This command is to set threshold percentage for battery low event. 1234,BMC;30 Tracker Remark User SMS G2P V1.00 BMC;<Percentage> BMC:30 BAT 60% <Percentage>: Low than this value will switch to low voltage status and trigger battery low event, range is from 5 to 99.
  • Page 15: Command Led

    6. 60 to 65535 = Any value between will enable LED power saving mode. If battery is under “Normal” status, after power on G2P LED will only work for such duration and stop working (power saving purpose), until battery is under “Charging/Charged/Low voltage” status LED will work again as chapter 6 shown.
  • Page 16: Message Sample

    8. Message sample Content of message Explanation G2P V1.00 Device name/Firmware version LTM 2013-06-06 14:17:12 Date/Time http://maps.google.com/maps?q=%n(,%e&t=m&z=16 Google map hyper link SPD:0km/h 0 Speed/Heading GSM -52dBm GSM network signal strength BAT 60% Built-in battery voltage Consumed messages Content of message Explanation G2P V1.00...
