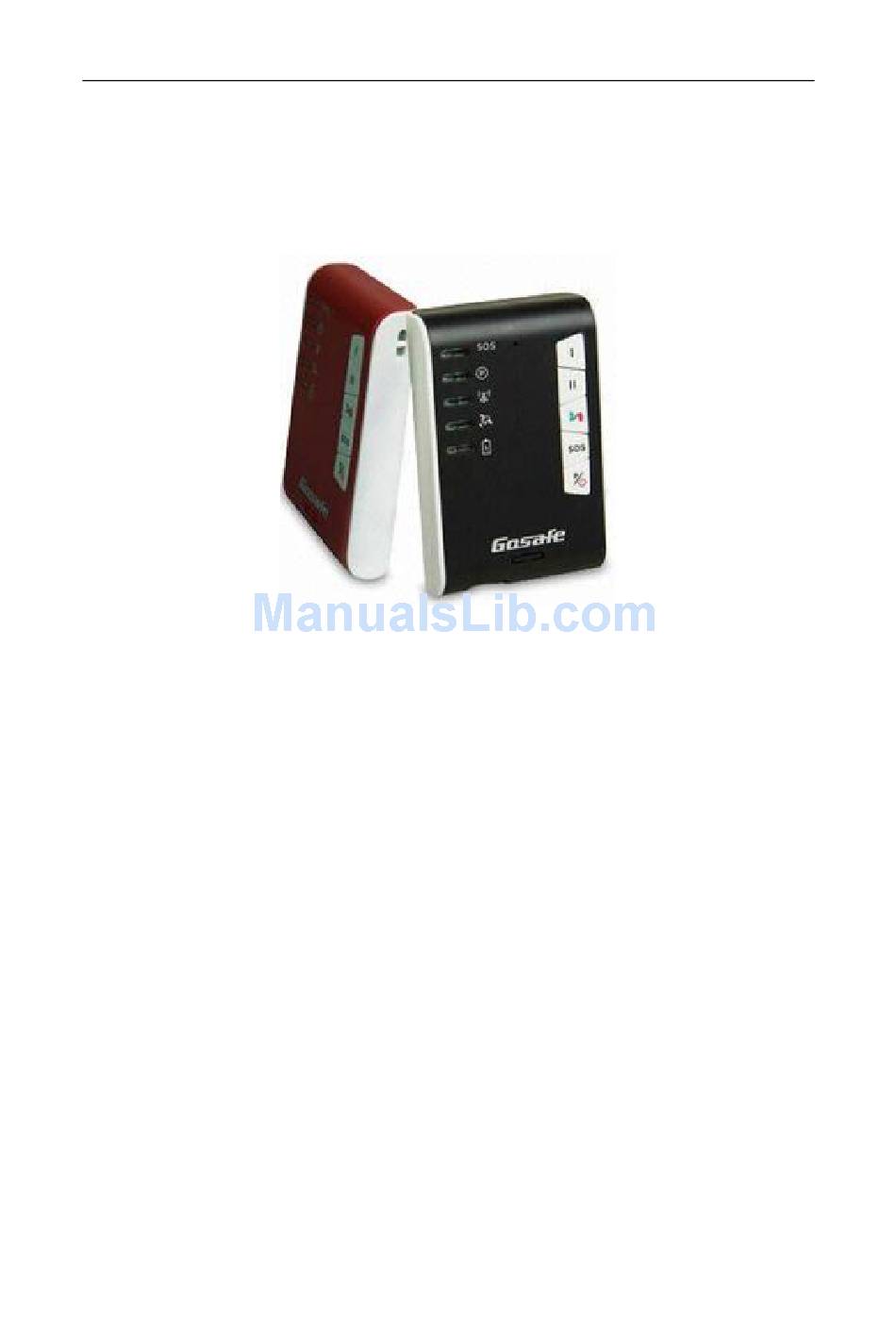

- Page 1 Configuration Software User Manual Gosafe G606 Configuration Software User manual...
-
Page 2: Table Of Contents
2.2Software operation ......................5 2.3Structure of the software ....................5 2.4installation of the USB driver for the software ..............6 3. G606 user interface overview ....................9 The tool is composed of these tabs: ................9 “Communication” explanation： ................10 “Function”... - Page 3 Configuration Software User Manual 4.7.1 Debug-Command ......................29 4.7.2 Debug-Debug ......................30...
-
Page 4: General Note
1.2Copyright This document is a confidential document, Gosafe reserves all rights to this document and the information contained herein. Any individual or organization is strictly prohibited to reproduction, use or disclosure to the third party without permission. Otherwise, we hold the right to investigate the legal responsibility. -
Page 5: Software Overview
Configuration Software User Manual 2. Software Overview 2.1Software usage The Intended audiences of this document are the distributor and reseller of G606. Who use the G606 device, this document also provides a fast configuration tool. 2.2Software operation This software can be operated on both the PC and the compatible machine, it can be used... -
Page 6: Installation Of The Usb Driver For The Software
Configuration Software User Manual 2.4installation of the USB driver for the software Please connect our device to your computer, you will see the below picture: Then choose the options as the below picture show you... - Page 7 Configuration Software User Manual Then click the ‘next’ button to go to the below picture, and we choose as the below picture show you. Please note that when you are choosing the ‘Browse’ button, you should choose the configuration file folder. You should choose the configuration file folder which has the “Anytracking USB.inf”...
- Page 8 Configuration Software User Manual Then press ‘next’ button, you will see the below picture. Finally the installation is finish and we get the below picture.
-
Page 9: G606 User Interface Overview
If you have not do the installation of the USB driver, the device will cannot be connected to your computer. 3. G606 user interface overview Once “G606” is started, and connect to the computer correctly, the tool will start up as shown in Figure 1. —Figure 1—... -
Page 10: Communication" Explanation
Port No. 10 ( computer can automatic identification); 2. “Device Model”→G606 Product model: G606; Click the button, can choose the model; 3. “Password “→ default password is“0123456789”（the only one password which can automatic login the configuration status）. -
Page 11: Device Info
6. “Read All”: means to read all the parameters which were chose. 7. “Write All”: means to write all the parameters which were chose. 3.4 “Device info” Device Name:G606 Device ID: 358696042235351 (Device ID) Hardware version:3.000 Hardware version ... -
Page 12: Device Configuration
Configuration Software User Manual 4. Device Configuration 4.1.1．Device-Software When read or write the parameter, the operation status information will show on the right of the page. Please see figure 2. —Figure 2—... - Page 13 Configuration Software User Manual 1. Change PC Config Password (OPW): The device contain OEM password and the default password is 0123456789. This password can be changed by selecting this parameter. It is recommended that don’t change the OEM password. 2. Time Zone (TZN): The device can be set for the time zone. This time zone setting is only for the user.
-
Page 14: Device-Hardware
Configuration Software User Manual 6. Power Save Mode (PSM): only when the upload time is larger than 15mins, device goes into power save. 7. Power Save Setting (PSP): Setting the threshold. There are GPS and GSM two ways. 4.1.2．Device-Hardware 1. Enable/Disable Movement Sensor (MOT): The system can enable disable the movement sensor. -
Page 15: Server-Main
Configuration Software User Manual Vibrate Threshold: Moving Last Time: This is time in seconds mean if the device moves for set time. Value range (1 ~ 255) Vibrate Duration: This number of movement in the set time. Value range (1~255) ... - Page 16 Configuration Software User Manual 1. APN List (APL): The APN list can be edit by pressing the Edit APN button. It will open a text file which contain all the APN list if set country APN is not available it can be added as follows: [ yyyy ] MCC=xxx;...
-
Page 17: Server-Sms Sever
Configuration Software User Manual 4.2.2 Server-SMS Sever 1. Manager SMS Sever No. (SSN): You can get this NO. From your SIM card provider. This must be right, or you cannot get any messages from the device. 2. Manager SMS Sever Upload Mode 0 (SSM0): By this you decide disable or enable the SMS upload mode0. -
Page 18: Server-Tcp/Udp Upload
Configuration Software User Manual Parameter 3 It is the interval of uploading the SMS. The value can be 30~900S, 15~59M, 1~240H. 3. Manager SMS Sever Upload Mode 1 (SSM1): By this, disable or enable the SMS upload mode0. 4.2.3 Server-TCP/UDP Upload 1. - Page 19 Configuration Software User Manual Hyperlink: the location’s format will be hyperlink. Parameter 3 Data upload interval and voice monitor interval can be set. The value is 30~900S, 15~59M, 1~240H. 2. TCP Upload Mode 1 (TPM1): Same explain as the user upload0. This another user upload mode to choose 3.
-
Page 20: User-Main
Configuration Software User Manual 4.3.1 User-Main 1. User Phone No. (UNO): Set the user phone No. If you want to send some command to the device by the user phone, you have to set the same user phone No.. User Password (UPW): Set the user password and confirm it. When the user needs to send the command to the device, the password is the essential part of the command. - Page 21 Configuration Software User Manual Parameter 2 T: Text: the location datas’ format is text. Parameter 3 It is the interval of uploading the SMS. The value can be 30~900S, 15~59M, 1~240H. 4. User Upload Mode 1 (UUM1): Same explain as the user upload0. This another user upload mode to choose 5.
-
Page 22: User-Sms Forwarding & Shortcut Key
Configuration Software User Manual 4.3.2 User-SMS Forwarding & Shortcut Key 1. SMS Forwarding (SMT): Our device can transfer the SMS from certain No. to certain No. it is usually used to set transferring the SMS from the telecommunication company to the user, for example, the payment reminder SMS. -
Page 23: User-Monitor & Communication
Configuration Software User Manual 4.3.3 User-Monitor & Communication 1. Voice Monitor NO. List (VML) (VMM): Only the voice monitor No. can get the call from the device that can call automatically when it gets voice monitor command. And only when these numbers call the device, the device can automatically pick up the call to let you monitor. -
Page 24: Dynamic Upload
Configuration Software User Manual 4.4 Dynamic Upload 1. Shift To Upload Mode 1 Condition Select: (DNU): You can set Dynamic upload mode 0 or mode1 for each status. There are six statuses to choose. If you set the front pages, that are the SMS Server page, the TCP and UDP page and user page, with different mode. -
Page 25: Geo-Fence-Main
Configuration Software User Manual 4.5.1 Geo-Fence-Main 1. Geo-Fence Enable/Disable (GOF): On the Geo-fence page, you can set enable/disable geo-fence and user mask of geo-fence. We have total 28 Geo-fences can store in the device memory. Then you can choose some of them or all to let them work. If you choose it like the below picture, then only number 8, 9,17,18,26 and 27 will work. -
Page 26: Geo-Fence-Geo-Fence Setting
Configuration Software User Manual 4.5.2 Geo-Fence-Geo-Fence Setting 1， Geo-Fence Setting: you can draw the Geo-fence here. Parameter 1, Draw type: select the draw type, there are round, rectangle and polygon type. Parameter 2, No.: name of the geo-fence. ... -
Page 27: Alarm-Setting
Configuration Software User Manual 4.6.1 Alarm-Setting 1. Enable/Disable Over-Speed Alarm (SPO): Enable disable Over-speed alarm feature. 2. Over-Speed Parameter (SOP): setting the parameter of the over-speed alarm. 3. Enable/Disable Anti-Jamming Alarm (JAM): Enable and disable anti-jamming mask. Enable and disable immobilizing the car when anti-jamming. -
Page 28: Alarm-Alarm Mask
Configuration Software User Manual 4.6.2 Alarm-Alarm Mask 1. With the below picture, that means Auto Clear alarm will be sent to the user. 2. With below picture, that means the Auto Clear alarm will be sent to the SMS server only. It will not be sent to the user, the TCP server, the UDP server. - Page 29 Configuration Software User Manual 4.7.1 Debug-Command Input the command to set the configuration parameter directly here.
- Page 30 Configuration Software User Manual 4.7.2 Debug-Debug Read the GPS and GSM original data here.
