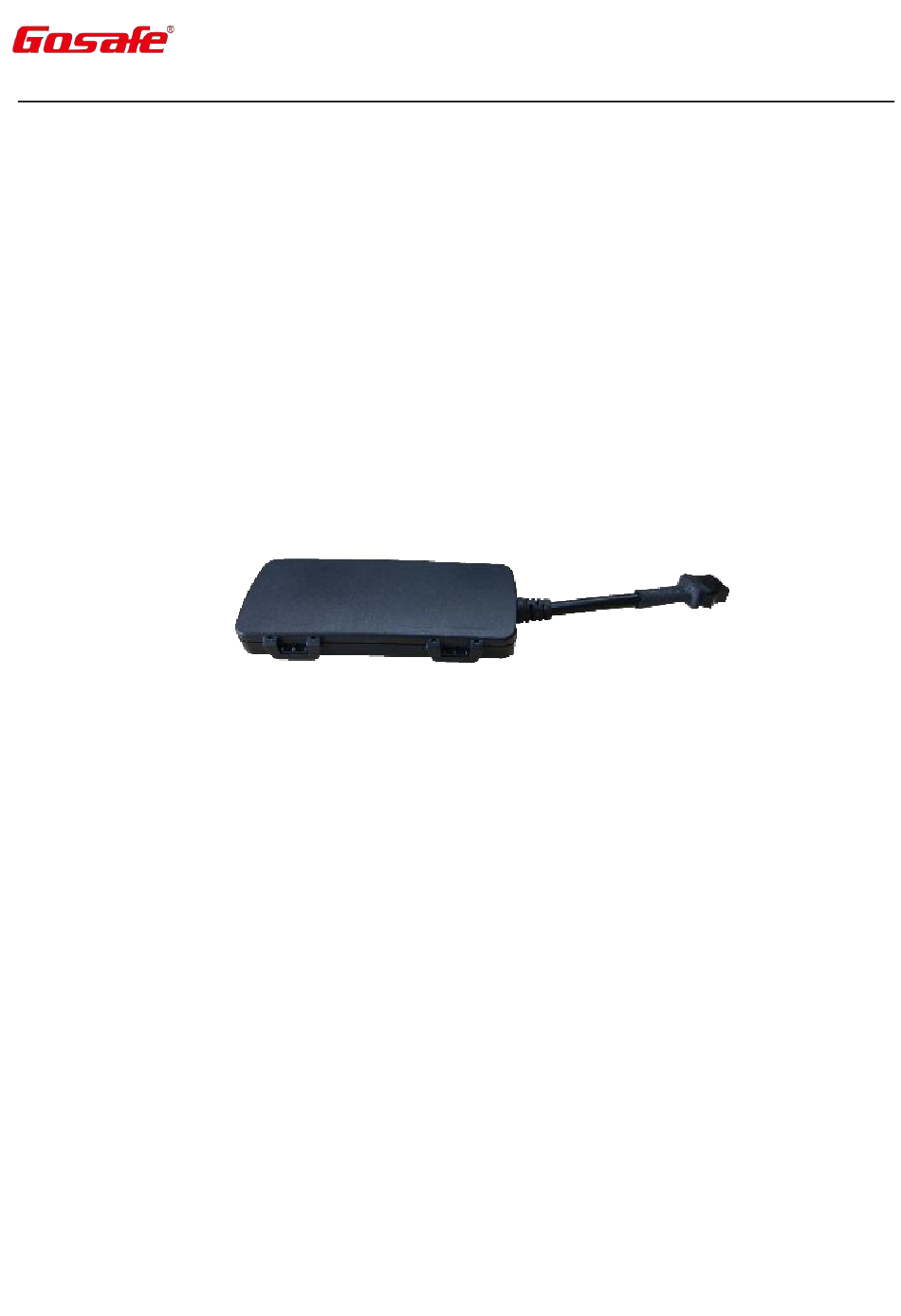

- Page 1 GPS Vehicle Tracker User Manual (G1C) This user manual has been specially designed to guide you through the functions and features of your GPS vehicle tracker.
-
Page 2: Table Of Contents
Content 1. Products Components and Port Definition ..............3 1.1 Product Introduction ....................3 1.2 Product Configuration List ..................3 1.3 Device wiring diagram ....................4 1.4 Indicating Led Light ....................4 2. Specifications and functions ..................5 2.1 Specifications ......................5 2.2 Functions ........................6 2.3 Setup and Operation .................... -
Page 3: Products Components And Port Definition

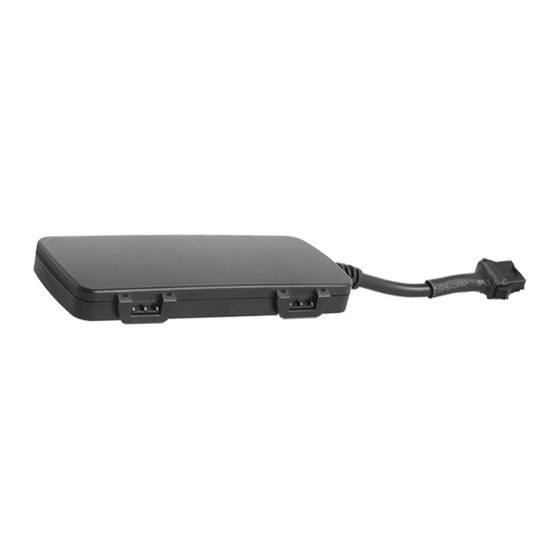

Size 86*41*12 mm G1C Vehicle GPS Tracker is a practical and easy-to-use GPS tracker with small size and accurate location specially designed for vehicle tracking. It combines GPS+LBS communication technology. With EPO technology, this device can easily achieve extreme fast positioning. -
Page 4: Device Wiring Diagram
1.3 Device wiring diagram Yellow Relay Orange Black Power 1.4 Indicating Led Light GPS Indicator GSM Indicator Yellow GSM Indicator (Red) Flash GSM in the initialization Slow flash GSM signals is normal... -
Page 5: Specifications And Functions
Long bright GPRS online Not light Not yet received the GSM signal/not insert SIM card/GSM dormancy GPS Indicator (Yellow) Flash GPS signal in the search Long bright GPS has been positioning Not light GPS dormancy/not working 2. Specifications and functions 2.1 Specifications Item Specifications... -
Page 6: Functions
2.2 Functions Functions Function details Description According to the stetted time update the Long Tracking Real time tracking and Lat information. Tracking Fix distance tracking According to the stetted distance update the Long and Lat information. In static status, when ACC is off and static status is lasting for at least 1 Vibration alarm minute, if vibration is exceed the... - Page 7 Harsh acceleration: if acceleration value exceed the threshold in 1s, then generate Harsh acceleration,brake, cornering alarm; Harsh brake: If acceleration value exceed the threshold in 1s, then generate alarm; Harsh cornering: If the angle and speed exceed the threshold for 2S, then generate alarm...
-
Page 8: Setup And Operation
2.3 Setup and Operation Unit Setup (1) Check unit Please check whether the equipment is in good appearance & whether accessories are completed. (2) Set In SIM Card Please press out the SIM card slot and put SIM card in. Please not put SIM card in or out when the equipment is connecting power. - Page 9 SMS Command for Online Tracking Setup Command format is: Set IP online:<SPGS*P:GSGPS*T: 120.076.068.123,7788*A:CMNET*N:13288888888*C:30> SPGS: is Header P: Password (default password is: GSGPS) T: 120.076.068.123,7788 is TCP IP and Port Q: domain name and port A: CMNET is APN N: 13288888888 is Device ID printed on the device. C: Report interval , UNIT:second c) Set upload interval Exactly format is:...
-
Page 10: Common Problem Analysis And After-Sales Services
f) Command for Set Time zone The device is set to China time zone by default +8. When device upload the data to server it uses default time zone. In order to receive the data in UTC time please set the time zone to 0. Set Time zone: zone 0:00 Reply: zone 0 3. -
Page 11: Attention
3.2 Attention Stay away from water Please keep the car battery fully charged Device working current is 6-90V, recommended 12V and 24V. Tracker will damage if the current is over this range. Working temperature is -20 to 75 centigrade, please cut off power if the temperature is over this range. - Page 12 (47 CFR §2.1091)— Radio Frequency (RF) Exposure guidelines, this equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. Gosafe Company Limited Office: 1105,C1-11,Chuanxin Bldg,No.182, Kexue Avenue, Kexue City, Huangpu,Guangzhou Website: www.gosafesystem.com Email: info@gosafesystem.com；...
