G79/G77 User Manual
v1.1
Copyright © 2014 Gosafe

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G79 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gosafe G79

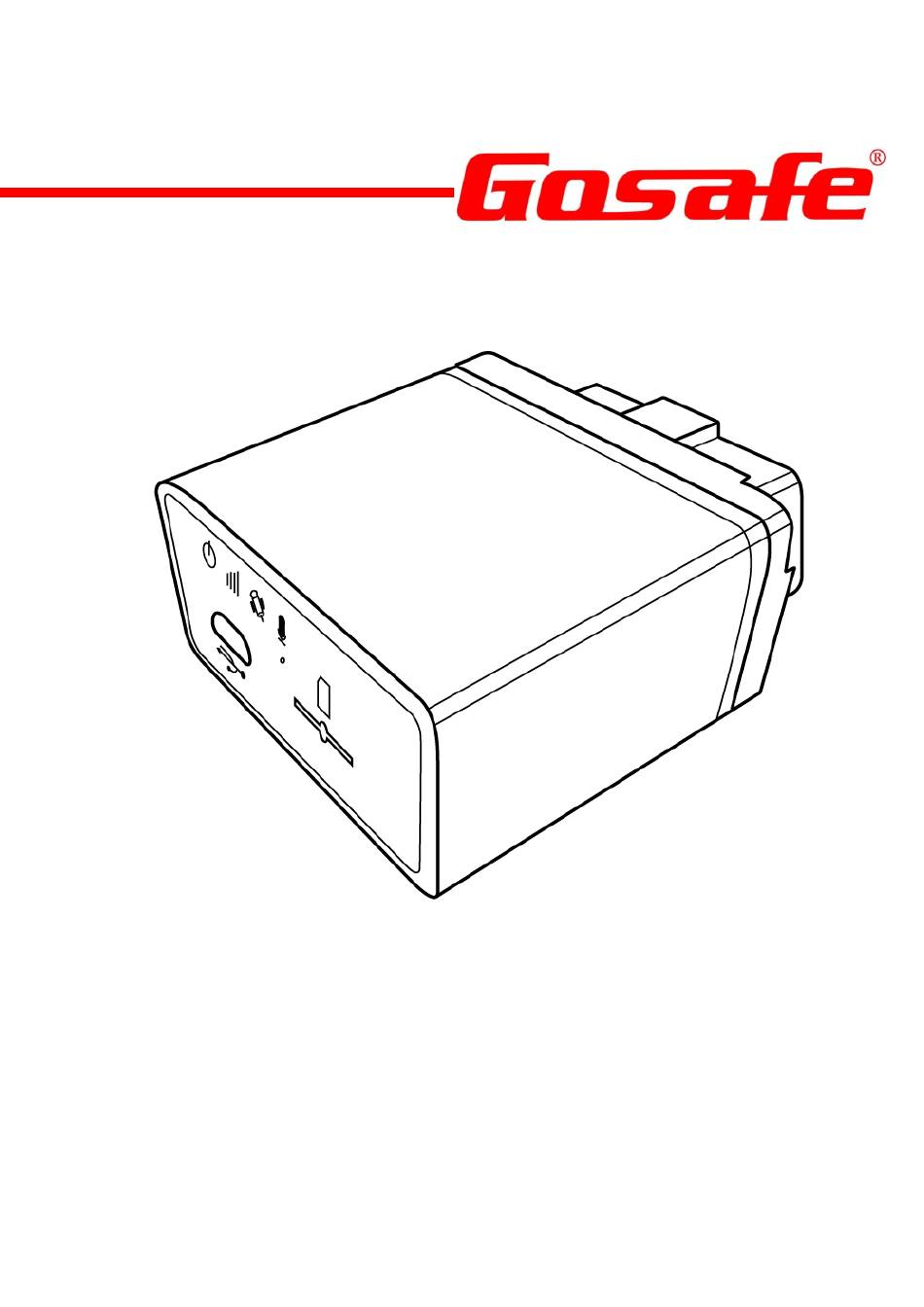

  • Page 1 G79/G77 User Manual v1.1 Copyright © 2014 Gosafe...
  • Page 2 All rights reserved. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Gosafe is prohibited. Other products and company names mentioned herein may be trademarks or trade names of their...
  • Page 3: Table Of Contents

    Conents 1. Packing list ...................... 4 2. Specifications ....................4 3. Features and event ..................5 4. Overview ......................6 4.1. Front ...................... 6 4.2. Rear ....................... 6 5. Installation ....................... 7 5.1. SIM card ....................7 5.2. Sensor calibration .................. 7 6.
  • Page 4: Packing List

    TCP/IP over PPP SIM card 1.8V & 3.3V Internal antenna 25*25mm with amplifier External antenna Not supported Model u-Blox NEO 6M Channel 50 Parallel Channels Accuracy Autonomous<2.5M Sensitivity -162dBm Sensor Accelerate sensor Built-In, 3 axis Flash storage 16Mbits Built-In *Only for G79/G79W...
  • Page 5: Features And Event

    3. Features and event Features OBDII interface Built-in 3 axis acceleration sensor A-GPS supported GSM jamming detection Private activity hour mode Multiple user profiles switching automatically on preset conditions Dynamic report interval on preset conditions Fixed distance and fixed angle cornering report Flexible report packet size on demand Various single events report and combination event report supported Hardware based Geo-fence supported up to 156...
  • Page 6: Overview

    4. Overview 4.1. Front GPS antenna side Power LED indicator GSM status LED indicator GPS status LED indicator Microphone Mini USB 2.0 interface SIM card holder 4.2. Rear ODBII interface, protocol supported such as: SAE J1850-PWM SAE J1850-VPW ISO 9141-2 ISO 14230-4 ISO 14230-4 ISO 15765-4...
  • Page 7: Installation

    5. Installation 5.1. SIM card Step1: Metal part of SIM card facing down. Step2: Insert and push SIM card to the button of SIM holder to lock it firmly. 5.2. Sensor calibration This procedure is important for proper “harsh behavior” detection. 1.
  • Page 8: Led Behavior

    6. LED behavior 6.1. GSM LED: Green Server socket connected: Flash once quickly every 3 seconds GSM network registered: Flash twice quickly in a row every 3 seconds GSM network unregistered: Flash 3 times quickly in a row every 3 seconds SIM card error: Flash 4 times quickly in a row every 3 seconds GSM module OFF: Never flash 6.2.
  • Page 9: User Command

    Command UNO0 This command is to set user phone number#1 that has authority to interact with tracker. Example: Phone number: 13800138000, country code: +86 1234,UNO0;+8613800138000 Tracker G79 V1.00 User SMS UNO0:+8613800138000 EXT_PWR=11.94V BAT=3.90V Command UNO1 This command is to set user phone number#2 that has authority to interact with tracker.
  • Page 10 User SMS G79 V1.00 MEI:351535053999389 EXT_PWR=11.94V BAT=3.90V Command BLS This command is to set low balance notification/query current balance of tracker SIM card. 1234,BLS;*125 Tracker G79 V1.00 User SMS BLS:*125 EXT_PWR=11.94V BAT=3.90V Command PRQ This command is to query current position of tracker.
  • Page 11 *Command IMM This command is to force immobilizing vehicle via wireless immobilizer. 1234,IMM;1;0;0 Tracker Remark User SMS G79 V1.00 IMM;0;0;0 is command to restore from IMM:1;0;0 immobilizing. EXT_PWR=11.94V BAT=3.90V Note: This command is for G79W only. Command CAL This command is to ask tracker to call specific phone number, tracker will call back after receiving command.
  • Page 12 “9” ISO 15765-4 CAN (29 bit ID, 250 kbaud) Command VER This command is to query current hardware and firmware version of tracker. 1234,VER Tracker Remark User SMS G79 V1.00 VER:<Hardware version>;<Firmware version> VER:V1.02-US;V1.00 EXT_PWR=11.94V BAT=3.90V Command FWU This command is to activate OTA firmware upgrade via GPRS.
  • Page 13: Message Sample

    8. Message sample Content of message Explanation G79 V1.00 Device name/Firmware version LTM 2013-06-06 14:17:12 Date/Time http://maps.google.com/maps?q=%n(,%e&t=m&z=16 Google map hyper link GSM -52dBm GSM network signal strength EXT_PWR=12.08V External power voltage BAT=3.86V Built-in battery voltage Consumed messages Content of message Explanation G79 V1.00...
  • Page 14 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment.

This manual is also suitable for:

G77
