- Page 1 Gosafe Company Limited GOSAFE SYSTEM G777 Tracking Device User Manual Version 2.01 Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18...
-
Page 2: Table Of Contents
6.9 Command Table ...................... 2 3 6. LED Flashes & Relevant Device Status ................... 2 7 7. Appendix.......................... 2 9 Characters for Commands ..................... 2 9 Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18... - Page 3 First Published 2011.04.27 V1.01 V1.01 V1.01 1． Upload mode add to ”S” 2011.05.16 V2.01 V2.10 V1.01 mode （UUM/SSM/TPM/UPM command） 2． Server port default：3032 （SIP command） 3． Server address domain default: empty (SDM command) Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18...
-
Page 4: Device Introduction
Gosafe Company Limited. Connect & Go concept, G777 can connect with OBDII diagnostic port and can get necessary power from the same port. Inside G777, there are GSM modem, GPS receiver, control PCBA, microprocessor, power circuit, and so on. Before starting G777 installation, please one SIM card which works based on GSM network that is offered by GSM mobile operating agency and can work with GPRS. G777 is easy to install device even nonprofessionals can install this device. You only need to get the valid data SIM Card. Insert the SIM card in the G777 and connect he device to the OBDII port ... -
Page 5: Physical Appearance

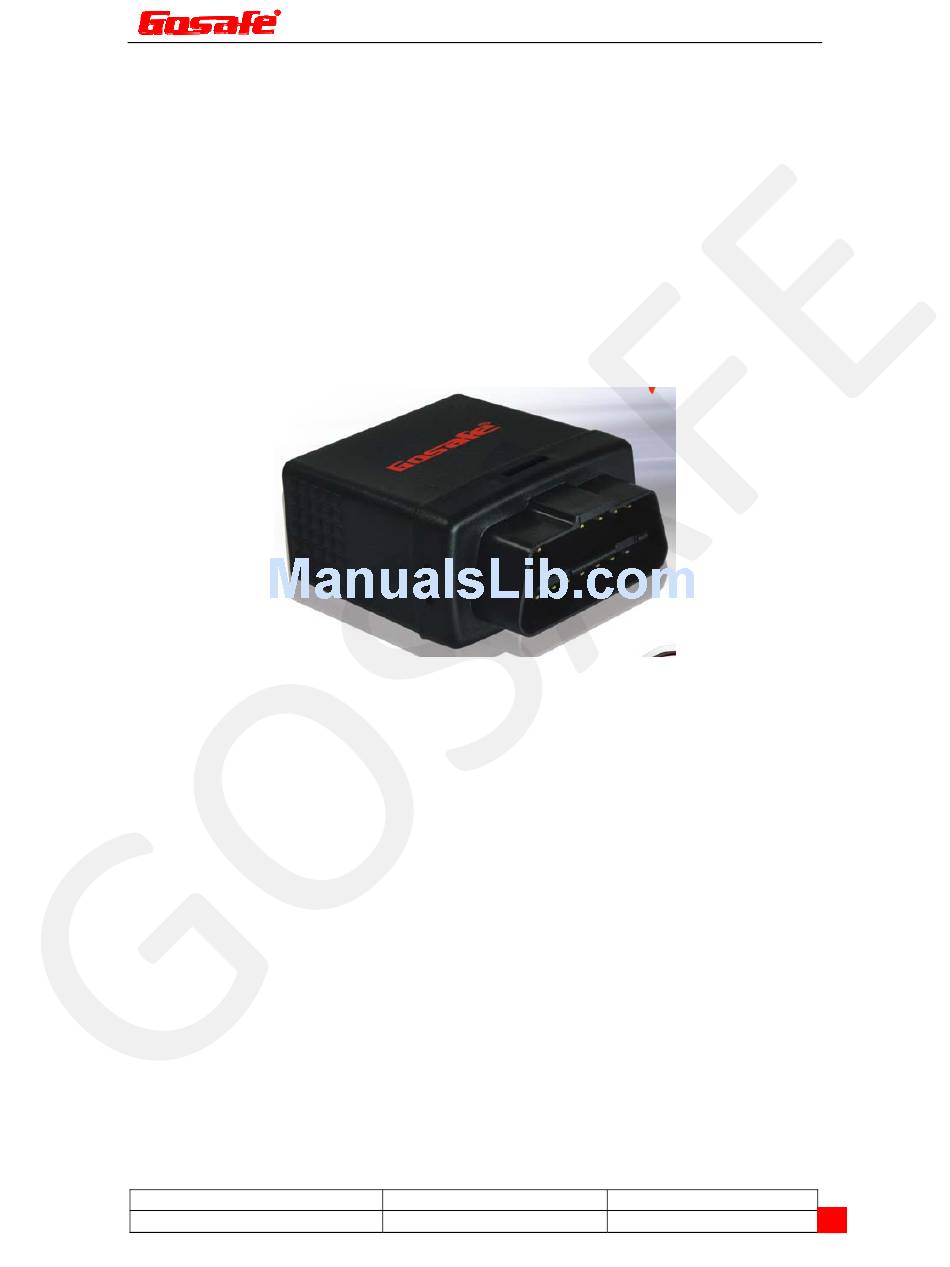

1.1 Physical Appearance Description Pictures Device OBDII Plug connect with Vehicle Front View Rear View Complete Set with USB Cable Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18... -
Page 6: Specification
2.5 to 10meters (Strong Signals) Location Accuracy 500 meters (Weak Signals) Sensor 3D G‐Force Sensor Onboard Memory Flash 10,000 Locations Operating Temperature ‐40 to +70 Environmental Storing Temperature ‐40 to +85 Conditions Humidity 95% Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18... -
Page 7: Features
Gosafe Company Limited 3. Features Real Time Location Mobile Map Location Latitude and Longitude Location GSM Base Station Location（LBS Technology） Convenient GSM Mobile Control Easy‐to‐use SMS Communication Mode Internal Movement Sensor for better power management Internal backup battery for Device disconnection notification Internal memory for the data buffer Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18... -
Page 8: Quick Install Instructions
After downloading the USB driver update the USB driver and establish the connection between G777 and your computer. Use the configuration software to configure: 4.2 Insert SIM card The user must arrange a SIM card with valid data plan. Before inserting the SIM card it must be tested with your own mobile. Insert the SIM card in your own mobile and try to send out SMS and receive SMS if it works fine then try to connect to internet by opening any website in mobile browser. Now you can remove the black cover from the G777 SIM card jack hole. After removing the black cover you can insert the SIM card in the jack. Please note the following pictures for the direction of the SIM card. Direction Press the SIM card inside the SIM card jack completely. Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18... -
Page 9: Locating Obdii Port
Each time before taking SIM card out of or inserting SIM card into the device, device power supply remove the device from the OBDII connector, or it would damage device and/or your SIM card. 4.3 Locating OBDII Port Normally ODBII port is available in all the vehicles manufactured after the 1996 and 2000. This port is located under the dash near the driving side of the vehicle. Normally this port is covered with some cover. Some common images of OBDII port location. Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18... -
Page 10: Set User No
To protect device, if there is any error in this command, device will not send back any error warning. Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18... -
Page 11: Modify Password
4.6 Set Work Mode There are 4 different work modes configurable for device according to user’s need: O, S, G, and L. Detailed information on 4 work modes, please go to “Commands for Device Setting” in this User Manual. Example: To set device in G Work Mode, you should send the following SMS command to the SIM card No.: ****,UUM;30M;G;T Explanation: ****: password UUM: Command Control Word G: the Work Mode user wants to configure T: the type of message Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18... -
Page 12: Commands For Device Setting
UNO:13912345678 Or G777 V0.12 UNO:+8613912345678 5.2 Modify User Password Command Format: **** , UPW ; xxxx Explanations: ****: user old password (4‐digit) Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18... -
Page 13: Set Upload Mode, Interval And Type
;: command delimiter T: Type of upload (Text, with hyperlink) After receipt of this command, device will reply you a piece of message in UUM: 30M:G:T SMS Format. At each wakeup, device would send you a location report message in this format. If device is in positive real‐time work mode(upload operating cycle 00S or 00M or 00H), only one piece of location report message will be sent by device; if updated location report is in demand thereafter, please send another command then device will response accordingly. Operating Cycle: xxxS: Seconds upload range (30 ~ 900 seconds) xxxM: Minute upload range (15 ~ 59 minutes) xxxH: Hour upload range (1 ~ 240 hours) Work Modes: O: Cancel Upload G: GPS based location S: Always update with GSM base station (LBS) L: Device calls back after set interval of time for voice monitoring. Message Types: Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18... -
Page 14: Set Message Center Number
After receipt of this command the device will reply with message APN:access point name:APN user name:APN password, the device will connects with GPRS after receiving this command. Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18... -
Page 15: Enable/Disable Over Speed Alarm
Gosafe Company Limited The G777 is equipped with many APN (Access Point Name) from many countries. If device automatically connects with GPRS then user no need to send above command. If the device doesn’t connect with GPRS then user may need to use APN command. Example： APN: cmnet, APN user name: internet, APN password: internet, command is: 1234,APN;cmnet;internet;internet Reply: ... -
Page 16: Enable/Disable Over Speed Alarm Parameter
the SMS to user mobile when movement is sensed by movement sensor. Note: The device will automatically send location SMS to the user once it will sense any movement. The device will send only one SMS at the start of the movement. Device will wait for the vehicle to stop and will start the counter to 60 min. If the movement is after 60 min. device will again send the SMS to the user mobile. Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18... -
Page 17: Set Voice Monitoring Number
1. By sending PRQ SMS to device: **** , PRQ ****: user password (4‐digit) , : command delimiter PRQ: Command Control Word Example: 1234,PRQ Reply: G777 V0.17 PRQ The device will send back the location information after getting the latest GPS data. G777 V0.17 Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18... -
Page 18: Set Time Zone
After receipt of this command the device will send back TZN:Time zone. After receiving this command the device will send the local time in the SMS if the gps data is valid. If there is not GPS data device will not send the time. Example： Time zone= +8 1234,TZN;8:00 Reply: G777 V0.12 TZN:8:00 Time Zone= ‐5 Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18... -
Page 19: Clear Alarm
5.14 Alarms The device sends alarm immediately it triggers. The message receive when device is in alarm as follows: G777 V0.12 GPS 6/77 UTC 11‐05‐14 05:33:47 N23.164479 E113.428606 SPD:0km/h 0 Alarm: Power Off Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18... - Page 20 N23.164479 E113.428606 SPD:0km/h 0 Alarm: Geo‐Fence G777 V0.12 Anti‐Jamming (This alarm appear if the anti‐jamming feature GPS 6/77 is enable and the someone use GSM jammer near the device) UTC 11‐05‐14 05:33:47 N23.164479 E113.428606 SPD:0km/h 0 Alarm: Anti‐Jamming Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18...
-
Page 21: Default Parameters
0:00 Vibration sensor parameter 10；10；30 Anti‐jamming parameter 30；20 Baud rate of extend serial port 9600 Transmit mode of extend serial port Common mode USB port mode Common mode http://maps.google.com/staticmap?zoom=1 Supper link (0) GPS Link 4&size=300x300&markers=%n,%e&sensor=f alse Supper link (1) (LBS Link) (empty) Phone list of SMS forwarding (empty) Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18... -
Page 22: Combine Command
E113 25.7149 Longitude in degree‐minute format Speed: 1km/h 39 Device speed and Move Direction TMP=25.6C Temperature PWR=12.5 Power (Located Unsuccessful) Gosafe G777 V0.10 Device Name and Version MCC=460 Mobile Country Code MNC=1 Mobile Network Code LAC=517A Location Area Code CID=1FB1 Cell Identity TMP=25.6C Temperature Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18... -
Page 23: Hyperlink Sms Format (W Mode)
6.5 Password Modification Successful Confirmation Gosafe G777 V0.10 UPW:5678 6.6 User No. Setting Successful Confirmation Gosafe G777 V0.10 UNO:+8613912345678 6.7 Command Table The user command is shown in table7. The whole command format is “PSW,CMDXX;Para” . command format. Table 7 only show the second part “CMDXX;Para “ in the column of “ Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18... - Page 24 PRQ information function can also be done by calling to the device and hang up after first ring. Total is 20 bits”86”is national code, must have. Leave factory set: setting the SMS SCN;+86138002 SCN:+8613 6 SCN empty center number 00500 800200500 Default: usually, no need to set SMS center number, when user use SIM Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18...
-
Page 25: Set Apn 1
11 MOT MOT;0 MOT:0 disable 1：open ,can Use related functions of movement sensor Set local time zone parameter from ‐12:00 to 12:00, Time zone Negative represent western time 12 TZN TZN;8：00 TZN:8：00 setting zone, positive represent east eastern time zone Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18... - Page 26 Gosafe Company Limited Default ：0：00 "0" : close Immobilizer "1”: open device send power cut 13 IMM IMM;0 IMM:0 Output command or the device is disconnection, cut power of vehicle. Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18...
-
Page 27: Led Flashes & Relevant Device Status
Gosafe Company Limited 7. LED Flashes & Relevant Device Status There is an external LED light to reflect device status in G777. In order to check device status through this LED light flashes, LED is located right next to the USB port. When device is at work, LED will flash at 8‐sec cycle constantly to show related GSM and GPS ... - Page 28 To check whether the APN is correct and SIM has GPRS function or not TCP connection Error 7 flashes To check if the server is normal Unknown Error 8 flashes Power OFF then Power ON, if there is still the error, please contacts us. Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18...
-
Page 29: Appendix
= > ? @ $ Sp _ ^ { } \ [ ~ ] | Gosafe Company Limited G777 User Manual Version 2.01 Prepared By Mr. Chen Approved by Mr. Yang Dated: 2011-05-18...
