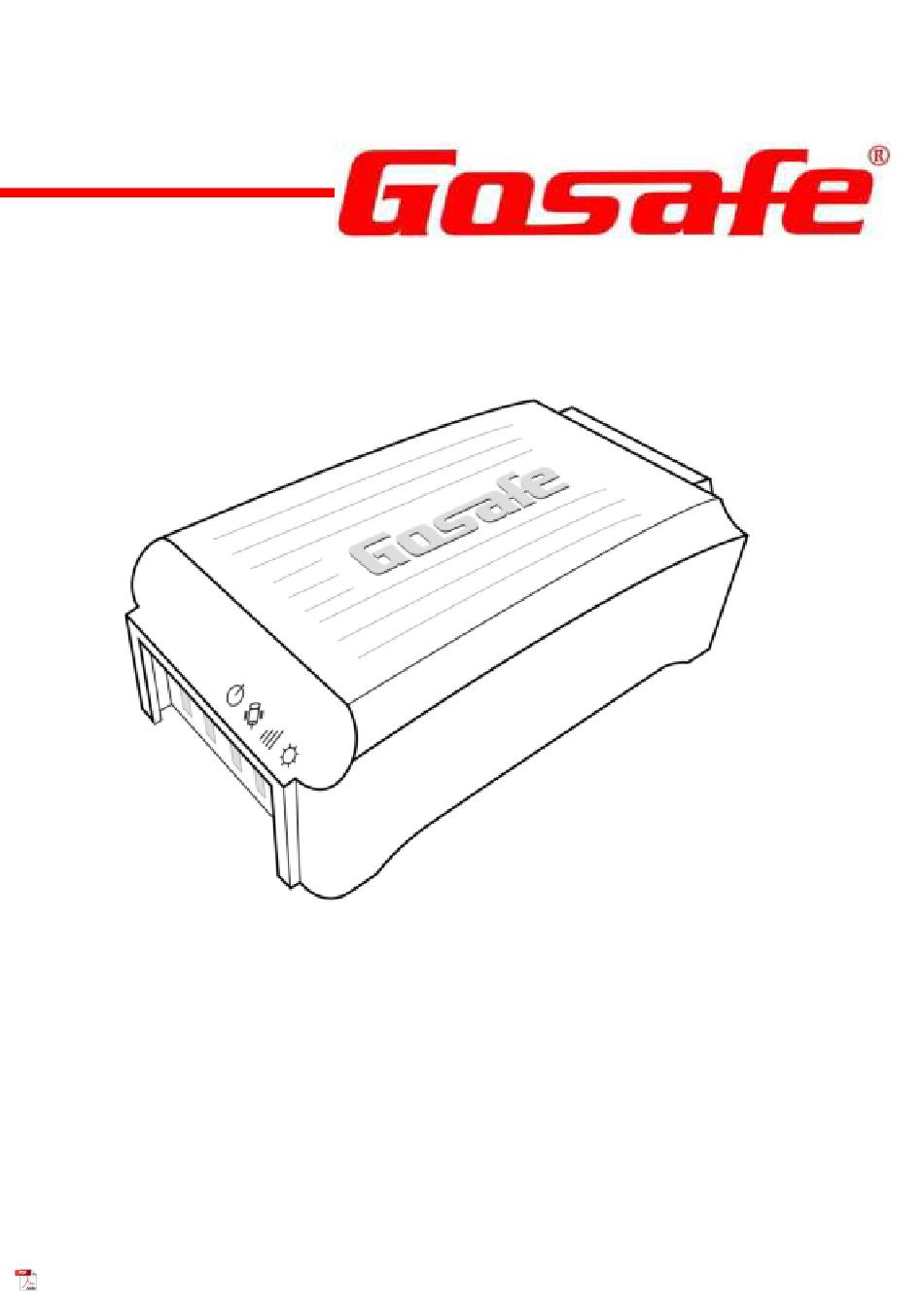

  • Page 1 G1S User Manual v1.0 Copyright © 2015 Gosafe https://manual-hub.com/...

  • Page 2: Instructions Of Safety

     All rights reserved. Reproduction, transfer, distribution or storage of part or all of the contents in this document in any form without the prior written permission of Gosafe is prohibited.  Other products and company names mentioned herein may be trademarks or trade names of their respective owners.

  • Page 3: Table Of Contents

    Contents 1. Specifications ..................4 2. Packing list ..................4 3. Features and event ................5 4. Overview..................... 6 5. How to ....................7 6. LED behavior ..................9 7. User command ................. 10 8. Message sample ................14 https://manual-hub.com/...

  • Page 4: Specifications

    1. Specifications Dimension Physical Weight Environment Operating temperature -20℃ to +50℃ (with battery) Micro USB 2.0, on board LED indicator 3 LED indicators GSM & GPS & POWER External Battery pack/Power supply adapter Power supply Internal 3V battery*4, size:Φ17×34.5mm 1 GPIO Configurable for Analog input/Digital input/Digital output multiple purposes Power consumption ---...

  • Page 5: Features And Event

    3. Features and event 3.1. Features  IP67 rating which provides protection against temperature/dust/water spray  Bluetooth connectivity, for wireless configuration and periodical report.  Endurable battery life for long term deployment, and external battery pack supported  Built-in 3 axis G-sensor for motion detection ...

  • Page 6: Overview

    4. Overview Here gives a brief mechanical structure introduction for G1S Locker GPS antenna direction  LED indicator  Light sensor window (Translucent) Please refer Chapter 6 Back cover with magnet Contact PIN for accessory panel (detachable)  Battery pack ...

  • Page 7: How To

    5. How to Install SIM card Remove cover locker at the shown direction Release 6 screws to remove back cover, it is possible that back cover attaches with magnet panel, and it can be removed Remove batteries to unveil SIM card holder and USB Jack Install SIM card by referring guide mark on the SIM card...
  • Page 8 Battery pack is using similar case as Align contact PIN of each other well to lock battery pack with G1S Install Charger with I/O wire (Optional) USB Bluetooth dongle https://manual-hub.com/...

  • Page 9: Led Behavior

    6. LED behavior GSM state indicator (GREEN) GPRS OK GSM REGISTER OK GSM REGISTER FAIL SIM CARD ERROR MODULE OFF LED will blink once LED will LED will blink 3 LED will blink 4 LED is every 3 seconds blink twice in a times in a row times in a row constantly OFF...

  • Page 10: User Command

    This command is to set user phone number#1 that has authority to interact with tracker. Example: Phone number: 13800138000, country code: +86 1234,UNO0;+8613800138000 Tracker User SMS G1S V1.00 UNO0:+8613800138000 BAT=3.90V  Command UNO1 This command is to set user phone number#2 that has authority to interact with tracker.
  • Page 11 User SMS G1S V1.00 GVR:AGS2-W,REVISION 00.020 BAT=3.90V  Command PRQ This command is to query current position of tracker. 1234,PRQ Tracker User SMS G1S V1.00 LTM 2013-06-06 14:17:12 http://maps.google.com/maps?q=23.164374,113.428576&t=m&z=16 BAT=3.90V Note: Position information in return message may vary depending on setting/current status, it could be map link/current coordinate/cell tower info.
  • Page 12  Command GPS This command is to query current GPS coordinate of tracker (if available). 1234,GPS Tracker G1S V1.00 User SMS GPS: 1.55/0.50/3/4 N23.164302 E113.428456 SPD: 0km/h 0 GSM: -52dBm BAT=3.90V  Command GSM This command is to query current cell tower status.
  • Page 13  Command DOO This command is to control output leave of digital output. 1234,DOO;0 Tracker Remark G1S V1.00 User SMS DOO;<Parameter> DOO:0 <Parameter>: BAT=3.90V 0: Low level 1: High level 2: Rising edge 3: Failing edge 4: Square wave 1...

  • Page 14: Message Sample

    8. Message sample Content of message Explanation G1S V1.00 Tracker name/Firmware version LTM 2013-06-06 14:17:12 Date/Time http://maps.google.com/maps?q=%n(,%e&t=m&z=16 Google map hyper link GSM -52dBm GSM network signal strength BAT=3.86V Built-in battery voltage Consumed messages Content of message Explanation G1S V1.00 Tracker name/Firmware version...
