Gosafe G91I User Manual

Tracking device
Hide thumbs
Table of Contents

Advertisement

Quick Links

G91I Tracking Device
User Manual | Version 2.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G91I and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gosafe G91I

Summary of Contents for Gosafe G91I

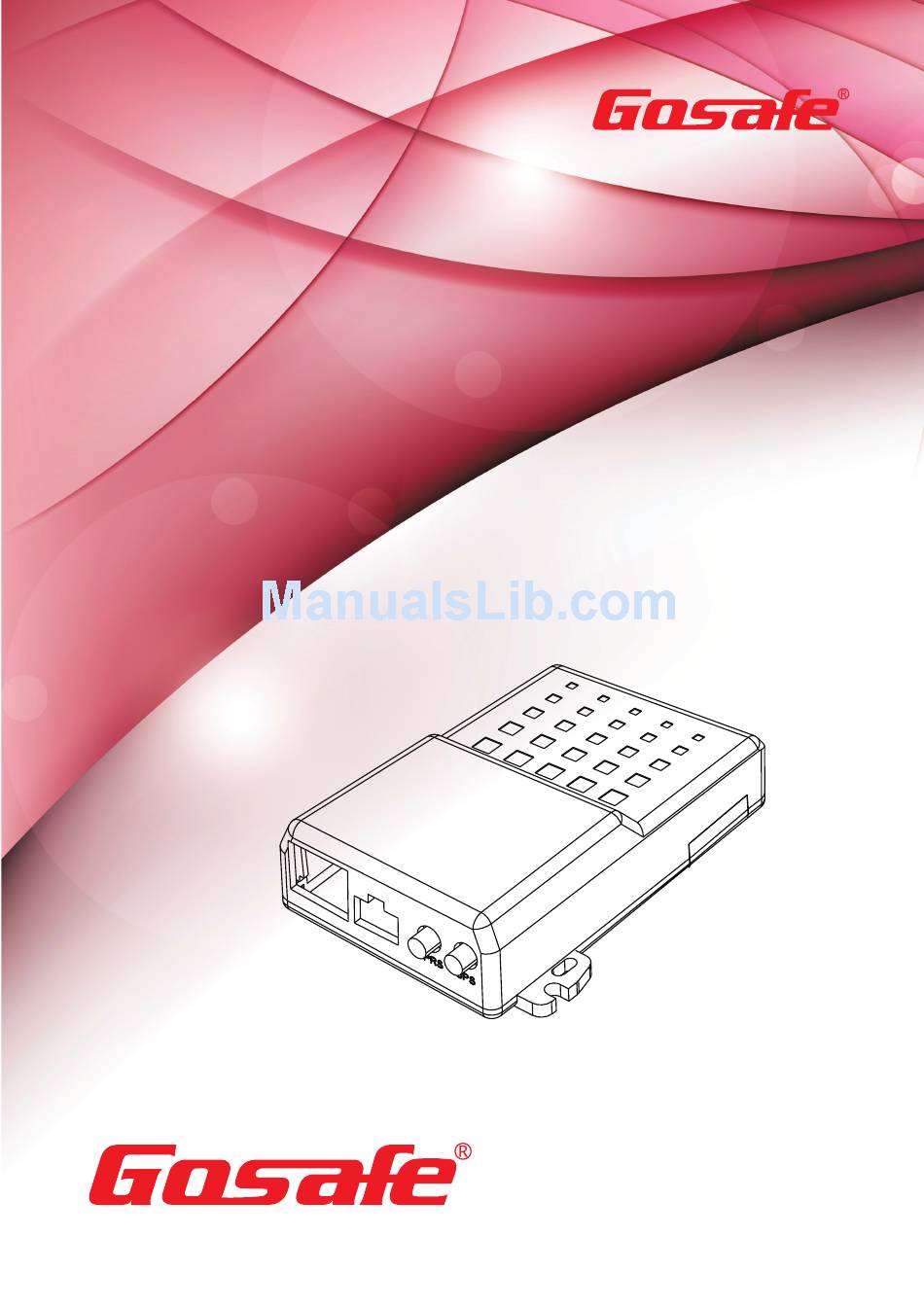

  • Page 1 G91I Tracking Device User Manual | Version 2.00...

  • Page 2: Table Of Contents

    6.2 Installation points to remember..................6 6.3 Disassemble components....................6 6.4 Measure vehicle connection....................7 6.5 Deciding on Components Location Control Module..........7 6.6 Finding the wires you need....................8 7. Control Module G91I 7.1 Wiring Details........................10 7.2 Side View..........................13 7.3 Bottom View...........................13 7.4 Connection Diagram of Installation................14 8.

  • Page 3: Preface

    1.Preface This installation guide is used for related people from distributor, agent or factory to understand the correct wire connection of our GOS-G91I series so that user can save time and avoid problems. 2. Packing List 1. Control Module 2. General Wiring Harness 3.

  • Page 4: Features And Functions

    External (SMA) Internal (Optional) Antenna uBlox NEO 6M (GPS, Galileo & Sbase) Receiver engine Channels 50 Parallel Channels Position Accuracy Autonomous <2.5M Sensitivity -162dBm Navigation update 1sec Time to first fix (TTFF) Snap Start 0.3 sec, Hot Start 1 sec Warm Start 15 sec, Cold Start 27 sec Backup Battery Type...

  • Page 5: Features

    5.4 Features: Remote Configuration: there are remote configuration functions in this system, users can send command to vehicles by SMS or GPRS Real time tracking: Users can track their vehicles in real time. Intelligent power Management. Gradual Immobilizer. Record Buffer: Data buffer to transfer the data after GPRS connectivity. Backup Battery: rechargeable battery 350mAH LiON Zone management: 64 Hardware based Geo-fences are available to manage the zone freely.

  • Page 6: Installation Steps And Ways Check Vehicle State Before Installation

    6.1 Installation steps and ways Check vehicle state before installation a. Get key from owner and enter car to check appearance and all the systems including ignition, sound, air-condition, door switch, trunk control or original alarm system. If there are some problems, confirm with owner and fill the result in the access network form and after you get signature from owner then start installation.

  • Page 7: Measure Vehicle Connection

    6.4 Measure vehicle connection a. Roll down the windows. b. Find the proper position for control module, and check the length of input wires and power wires. c. Make sure input wires will not interfere with original wires. And before you cut connection wire of fuel pump or ignition power wires, be sure it is required.

  • Page 8: Finding The Wires You Need

    6.6Finding the wires you need IMPORTANT: Do not use a 12V test light to find these wires! All testing is described using a digital multimeter. 6.6.1Obtaining Constant 12V We recommend two possible sources of 12V constant: the (+) terminal of the battery, or the constant supply to the ignition switch.
  • Page 9 Once you have determined the wire color, the easiest place to connect to the wire is often at the kick panel, at the windshield pillar, or in the running board. When an easy location is not available, running a wire to the dome light itself is often the best solution. 6.6.6How to find a door pin switch trigger wire with your multi-meter: i.

  • Page 10: Control Module G91I

    7. Control Module G91I 7.1 Wiring Details Speaker GSM Antenna Receiving Module GPS Antenna J204 Connector for Camera/CanBus 红2 黑1 Panic Button Input+ 白4 灰3 Green Positive 2 Input+ Grey Negative 2 Input- 空6 空5 Yellow Positive 1 Input+ Purple Negative 1 Input- 空8...
  • Page 11 Wire Number Wire Color Description Connector 1 Wire 1 Black (-) Input Ground Wire 2 (+)12V constant power supply Grey Wire 3 (+) Output for the siren Wire 4 White (-) Output Engine/Fuel cut Wire 5 (Immobilizer) Wire 6 Wire 7 Brown Wire 8 (+) Input Engine Sensor...
  • Page 12 Speaker GSM Antenna Handset GPS Antenna Wireless Module Panic Button J204 Turning Light Yellow High Voltage Wire Blue Green Brown Alternator Door Switch Door Light Orange Blue START Yellow Green Purple Grey...

  • Page 13: Side View

    GPRS services are already 9641111995 activated, SIM can send and receive the short messages. Device ID: Sticker on the bottom of the unit mentioned the device ID. This ID is a unique Device ID IMEI Number number issued by Gosafe. SIM Card Jacket...

  • Page 14: Connection Diagram Of Installation

    IMEI: Sticker on the bottom of the unit mentioned the IMEI number of the Modem used in the device. 7.4 Connection diagram of installation Connector RJ 45 Input The RJ45 connector is a multipurpose connector. This can be used for the following: 7.4.1 Configuration Handset or Cable Connect the configuration handset of the cable as per following picture.

  • Page 15: Connector J204 For Camera Cm9600I Or

    7.4.3 Connection for MDT-9600 Power Connector Speaker Rj45 8. Connector J204 f or Camera CM9600I or AD 9600 or HUB Ghub-232 This is RS232 connector which can be used to connect the camera or CAN interface or Analog device or RS232 hub. 8.1 J204 Connections for the Camera Connect the camera directly with the J204 connector.

  • Page 16: J204 Connection F Or Ad 9600 (Analog Interface)

    Please follow the configuration of the cameras manual for further details. 8.2 J204 Connection f or AD 9600 (Analog interface) There are three kind of AD-9601 available and the installation of those are as follows: Normal AD 9600 4 Yellow Gosafe 9 Grey 8 Brown Control Unit AD-9600 7 Orange V-8.0...

  • Page 17: J204 Connection For Can 9600 J1939/J1708 (Can Interf Ace)

    J1708 CAN B J1708 CAN A Data availability is depended on the truck or bus you are connecting the interface. Gosafe can’t predict which data is available on J1939/71 and which data is available on J1708/J1587. The truck manufacturers are changing the data in different regions. Please contact your local truck or bus dealer to get the more information about the data availability.

  • Page 18: Common Phenomena

    b. Flash fast, 0.5 second is on while 1 second is off and it has GPS signal from one to three satellites. b. Keep on flashing. It means it has received GPS signal from four or more than four satellites and successfully GPS position.
  • Page 19 Send: 000000, IMB, 1 Reply of successful Implementation: IMMOBILIZER SET SUCCESSFUL Example Reply of failure Implementation: SET UNSUCCESSFUL Send: 000000, IMB, 0 Reply of successful Implementation: IMMOBILIZER RESUME SET SUCCESSFUL Sending command old_password, UPW, M, New_password Changing User Parameter • password is the user's password Password description •...

  • Page 20: Default Parameter

    3. Port: control center GPRS server monitor port NO; Redial_Times: The total times device will continuously redial Control Center if previous dial failed. Value range:5-255 4. Redail_Times<5, default setting is 5, Redail_ Times=255 means unlimited times Remark example send: 467233,TIP,1,114,142,154,28,1212,5 answer: IP&PORT:114.142.154.28:1212 Sending command Password,APN,M,apn_name, pap_name,pap_...

  • Page 21: Vehicular Device Configuration & Setting

    13.VEHICULAR DEVICE CONFIGURATION & SETTING 13.1 Configuration Handset display area Record Nonuse temporarily Choose menu upwards Dial or increase number call or answer Hang-up Hang up incoming call or enter menu or confirm finish operation and back to standby state Down Choose menu downwards Volume adjustment...

  • Page 22: Use Configuration Handset To Configure

    3. It will display as following after receiving GPS signal from more than 4 satellites: " " shows it can position. 00:00 GSM service provider 00:00 Time 2011-01-01 Date Have GPS Signals Have GSM Signals 13.3 Use configuration handset to configure 13.3.1 SMS Center Number (Message Center Number): Press the "set"...
  • Page 23 Remark: 1. Case-sensitive. For example the "HQ" and "S" must be capital. 2. All the separator of the command must be comma. 3. SMS coding method: PDU mode. 4. The command is composition of digital. It must be 7 bit coding, other command is invalid. 13.4 Use software to configuration 1.
  • Page 24 3. From the device manager, we can find the right port number. We get this information like the below picture shows. 4. Setting 1. Fill in the APN, IP address, Port, Redial time, SMS center no., Management no. and Sub management no...
  • Page 25 assisting to control the device. The Sub Management Number should be set as "013423562356". 2. Single click program button 1) If it pop-up "com port fail!" means the COM port is used by other software or not exist. 2) If it pop-up "Send data failed!" means program fail. 3) If it pop-up "Send finish!"...
