G7S User Manual
v1.0
Copyright © 2014 Gosafe

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G7S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gosafe G7S

Summary of Contents for Gosafe G7S

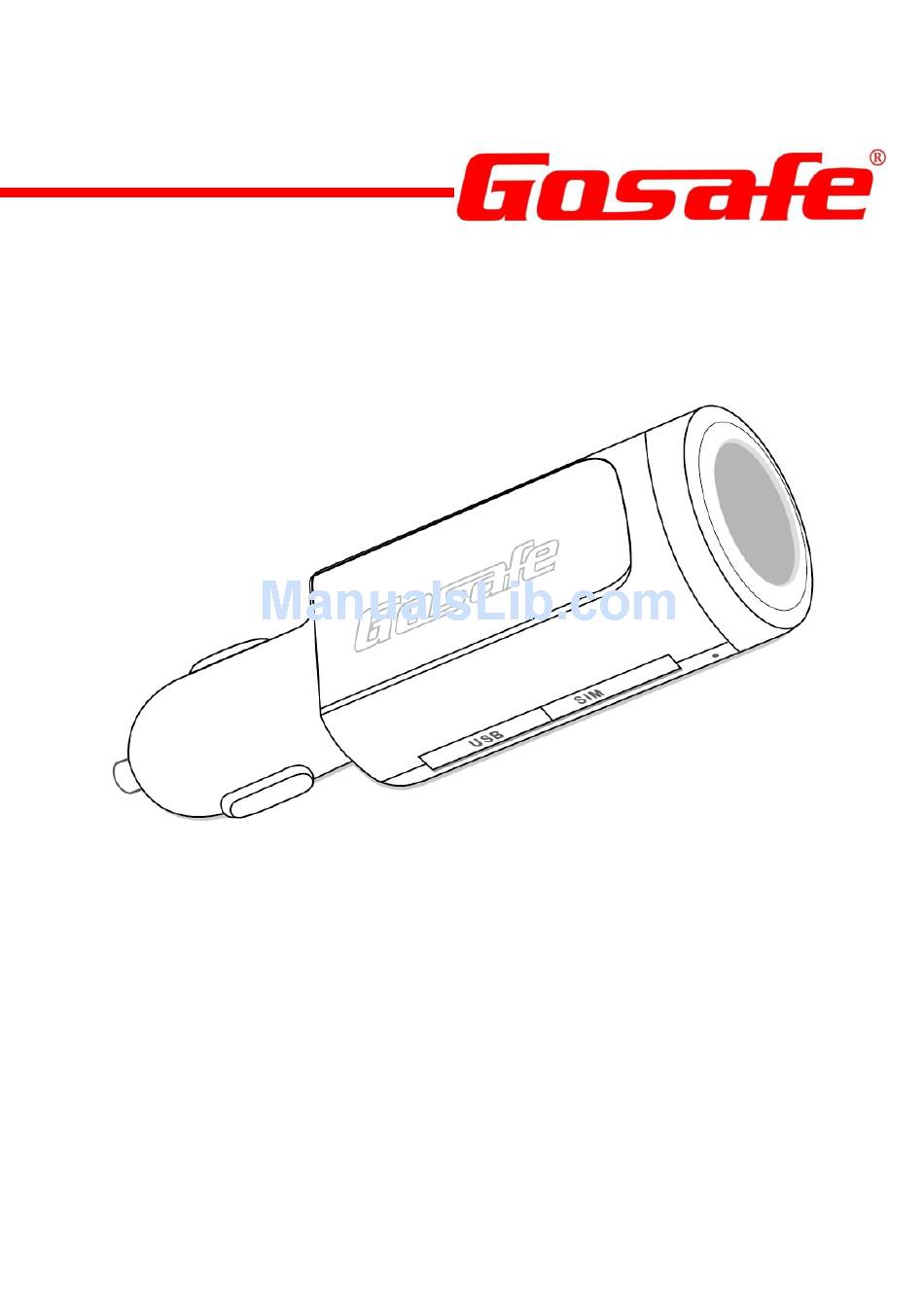

  • Page 1 G7S User Manual v1.0 Copyright © 2014 Gosafe...

  • Page 2: Instructions Of Safety

    INTRODUCTION  With accurate GPS location performance, a robust programmable rules engine, 3 axis accelerometer for measuring driver behavior and vehicle impacts, geo-fencing, messaging and much more, the G7S is designed for powerful solution deployment.  The G7S is powered by over-the-air device management and maintenance system, (Programming, Updates, and Logistics System).

  • Page 3: Table Of Contents

    Contents 1. Packing list ................4 2. Specifications ................4 3. Features and event ..............5 4. Overview ................. 6 5. Installation ................6 5.1. SIM card ................6 5.2. Sensor calibration ............... 6 6. LED behavior ................7 7. User command ................ 8 8.

  • Page 4: Packing List

    1. Packing list 2. Specifications Dimension 108(L)*32(W)*32(H)mm Physical Weight ~60g (With backup battery) -40℃ to +80℃ (without backup battery) Environment Operating temperature -10℃ to +50℃ (with backup battery) Interface Cigarette lighter Nominal 12VDC Mini USB STM32F103 LED indicator 3 LED indicators GSM &...

  • Page 5: Features And Event

    3. Features and event  Features  Built-in 3 axis acceleration sensor  A-GPS supported  GSM jamming detection  Private activity hour mode  Multiple user profiles switching automatically on preset conditions  Dynamic report interval on preset conditions ...

  • Page 6: Overview

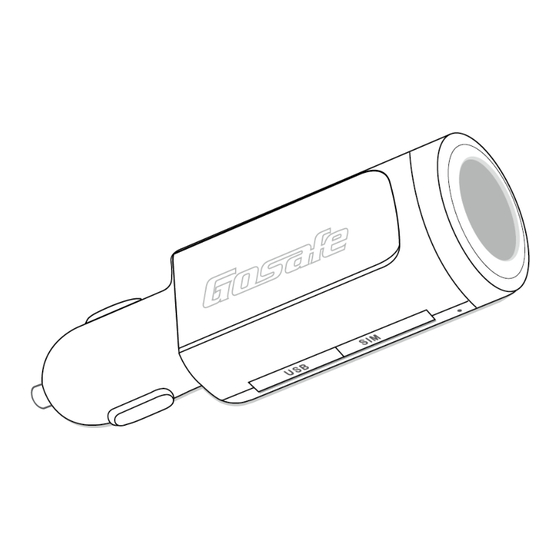

    4. Overview GPS antenna side, facing to open sky as possible SOS button & External power supply - LED indicator Microphone Mini USB interface & SIM card holder External power supply + 5. Installation  5.1. SIM card Please remove rubber cover for SIM card holder at first. Step1: Metal side of SIM card is facing down.

  • Page 7: Led Behavior

    6. LED behavior  Below shown how a LED “cycle” works: 1. At the beginning of each cycle, Red LED will blink first quickly to indicate current power status. 2. Then all LED OFF for 3 seconds, Blue LED starts to blink quickly to indicate current GSM status. 3.

  • Page 8: User Command

    This command is to set user phone number#1 that has authority to interact with tracker. Example: Phone number: 13800138000, country code: +86 1234,UNO0;+8613800138000 Tracker User SMS G7S V1.00 UNO0:+8613800138000 EXT_PWR=11.94V BAT=3.90V  Command UNO1 This command is to set user phone number#2 that has authority to interact with tracker.
  • Page 9 1234,MEI Tracker User SMS G7S V1.00 MEI:351535053999389 EXT_PWR=11.94V BAT=3.90V  Command BLS This command is to set low balance notification/Query current balance of tracker SIM card. 1234,BLS;*125 Tracker User SMS G7S V1.00 BLS:*125 EXT_PWR=11.94V BAT=3.90V  Command PRQ This command is to query current position of tracker.
  • Page 10  Command CAL This command is to ask tracker to call specific phone number, it will call back after receiving command. 1234,CAL;+8613800138000 Tracker User SMS G7S V1.00 CAL:+8613800138000 EXT_PWR=11.94V BAT=3.90V  Command VER This command is to query current hardware and firmware version of tracker.

  • Page 11: Message Sample

    8. Message sample Content of message Explanation G7S V1.00 Device name/Firmware version LTM 2013-06-06 14:17:12 Date/Time http://maps.google.com/maps?q=%n(,%e&t=m&z=16 Google map hyper link GSM -52dBm GSM network signal strength EXT_PWR=12.08V External power voltage BAT=3.86V Built-in battery voltage Consumed messages Content of message Explanation G7S V1.00...
