G6S User Manual
V1.2
Copyright © 2013 Gosafe

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G6S and is the answer not in the manual?

Questions and answers

Summary of Contents for Gosafe G6S

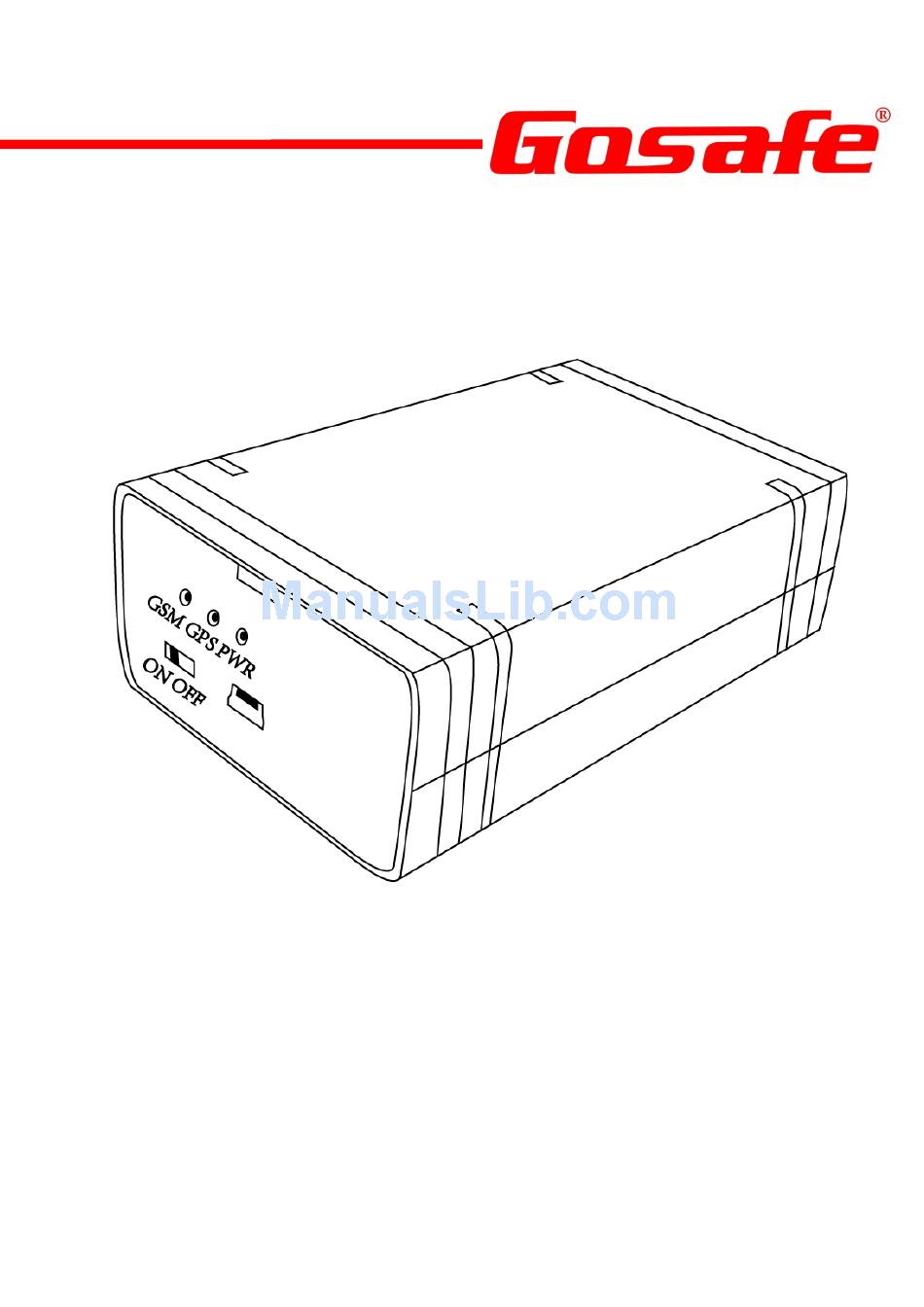

  • Page 1 G6S User Manual V1.2 Copyright © 2013 Gosafe...
  • Page 2: Instructions Of Safety

    ⃞The device is susceptible to water and humidity. INSTRUCTIONS OF SAFETY ⃞This chapter contains information on how to operate “G6S” safely. ⃞BY following these requirements and recommendations you will avoid dangerous situations. You must read these instructions carefully and follow the strictly before operating the device! ⃞The device uses a 8V-32V DC power supply.
  • Page 3: Legal Notice

    Other products and company names mentioned herein may be trademarks or trade names of their respective owners. INTRODUCTION The G6S Feature Rich Powerful GPS Tracker is the latest solution for track and trace applications and extreme level fleet management. G6S is designed for service providers, integrators, and enterprise customers to enhance mobile resources and improve their dispatch system;...
  • Page 4: Table Of Contents

    G6S User Manual Contents ATTENTION! ................. 2 INSTRUCTIONS OF SAFETY ..........2 LEGAL NOTICE ..............3 INTRODUCTION ..............3 1. Packing List ..............4 2. Specifications ..............5 3. Overview ................. 6 4. Installation ............... 8 5. I/O Connector ..............10 6.
  • Page 5: Packing List

    G6S User Manual 1. Packing List ■Standard The G6S box is packaged with all the components that is necessary for operation, it contains: ⃞G6S device x1 ⃞2*8 PIN I/O connector cable x1 To connect with external power To the back panel of...
  • Page 6: Specifications

    G6S User Manual 2. Specifications Dimension 80(L)x51.5(W)x26(H)mm Physical Weight ~75g (With battery) -40℃~+80℃ (not using backup battery) Environment Operating temperature -10℃~+50℃ (using backup battery) ACC input 1 channel Digital input 2 channels Analog/Digital 2 channels selectable Digital output 3 channels...
  • Page 7: Overview

    G6S User Manual 3. Overview 3.1. Device Capabilities  FOTA (Firmware Update OTA)  Flexible Programming Rules  Garmin® FMI (Fleet Management Interface) enable  1-Wire® Interface  GSM Jamming Detection  Quad Band GSM Modem  HDOP for Precise Location ...
  • Page 8 G6S User Manual 3.2. Mechanical construction ■Front panel view This side towards to the sky, Cover remove slot LED indicator Battery power supply switcher USB cable port ■Rear panel view 2*8 sockets I/O connector GPS external antenna connector...
  • Page 9: Installation

    G6S User Manual 4. Installation 4.1. Remove the cover 1, On the front panel of the device, there is a small slot at the top of it. 2, Find a screwer or sticker, insert it to the slot a little bit.
  • Page 10 G6S User Manual 4.3. Install direction ■G6S has accident detecting functionality that based on hardware G-sensor. Its accuracy will be affected by install direction of device, please find the sticker on housing of device for recommended direction。 By default you need to point side “0” to the engine, which is the direction of vehicle heading.
  • Page 11: I/O Connector

    G6S User Manual 5. I/O Connector ■On the rear panel of device PIN definition PIN# Color PIN name Definition Positive (+), range 8V-32V DC. Black Negative (-), Ground. White ACC wire of vehicle OUT1 Digital output channel 1. Blue Green AD1/IN3 Analog/Digital input channel.
  • Page 12: Led Indicator Behavior

    G6S User Manual 6. LED Indicator Behavior ■GSM LED: Color: Green Socket connected: Flash once GSM registered: Flash 2 times GSM unregistered: Flash 3 times SIM card error: Flash 4 times Serial port communication error: Flash 5 times GSM module OFF: LED off ■GPS LED:...
  • Page 13: User Command

    G6S User Manual 7. User Command ■Set User Phone Number There are 2 users phone supported by G6S, they have the same authorization. User1’s command words are UNO, UPW, USP. User2’s command words are UNO1, UPW1, USP1. Below will take user1 as example: To set your cell phone number as USER number to control and receive messages from device, please send UNO command to the device, e.g.:...
  • Page 14 G6S User Manual USP: Command control word 30S: Report interval S: Second, range from 30 to 900. M: Minute, range from 15 to 59. H: Hour, range from 1 to 240. G: Working mode O: Disable periodically report to USER.
  • Page 15: Message Explanation

    G6S User Manual 8. Message Explanation ■Periodical SMS report Below are the different kinds of message will be received by user periodically according to the setting of command USP. “W” mode 1. GPS is fixed Content of message Explanation G6S V1.00...
  • Page 16 G6S User Manual “T” mode 1. GPS is fixed Content of message Explanation G6S V1.00 Device name/Firmware version LTM 2013-06-06 09:41:22 Date/Time GPS 1.55/0.50/3/4 HDOP/ALTITUDE in meter/Fixed satellite number/Time of first fixed N23.164302 N means north/S means south E113.428456 E means east/W means west...
  • Page 17 G6S User Manual 3. GPS is not fixed Map hyper link will be LBS (URL1) instead of GPS Content of message Explanation G6S V1.00 Device name/Firmware version LTM 2013-06-06 14:17:12 Date/Time http://maps.google.com/maps?q... Google map hyper link ETD:6/ACC ON Event ID/User defined event name/Data...
  • Page 18: Appendix

    G6S User Manual Appendix Optional accessory ■USB cable To the computer that To the front panel of runs configuration device tool ■GPS external antenna Item Parameter Antenna Center Frequency 1575.42±1MHz Band Width CF±5MHz Polarization RHCP 5dBic(Zenith) Gain V.S.W.R <1.5 50Ω...
  • Page 19 G6S User Manual Expose this To the rear panel of device, terminal under the GPS antenna connector ■Microphone Item Parameter Length 3 meters Material Al-Si Output impedance 2.2Kohm Sensitivity -30db to 60db Frequency 50HZ to1600HZ Channel Stereo PIN2 Black wire: To PIN2...
  • Page 20 G6S User Manual ■1-Wire PIN2 White wire: To PIN2 Driver ID PIN12 Red wire: To PIN12 application PIN2 1 & 3: To PIN2 PIN12 2: To PIN12 ■Panic button PIN7 or PIN9 Black & White wire: To PIN7 or PIN9...
  • Page 21 G6S User Manual ■RS232 to GARMIN interface PIN1 Power cable: To GARMIN PND PIN2 Black: To PIN2 PIN14 Red: To PIN1 PIN16 Data cable: Brown: To PIN2 White: To PIN14 Yellow: To PIN16 ■Immobilizer Immobilizer is an electronic security device fitted to an automobile that prevents the engine from running.
