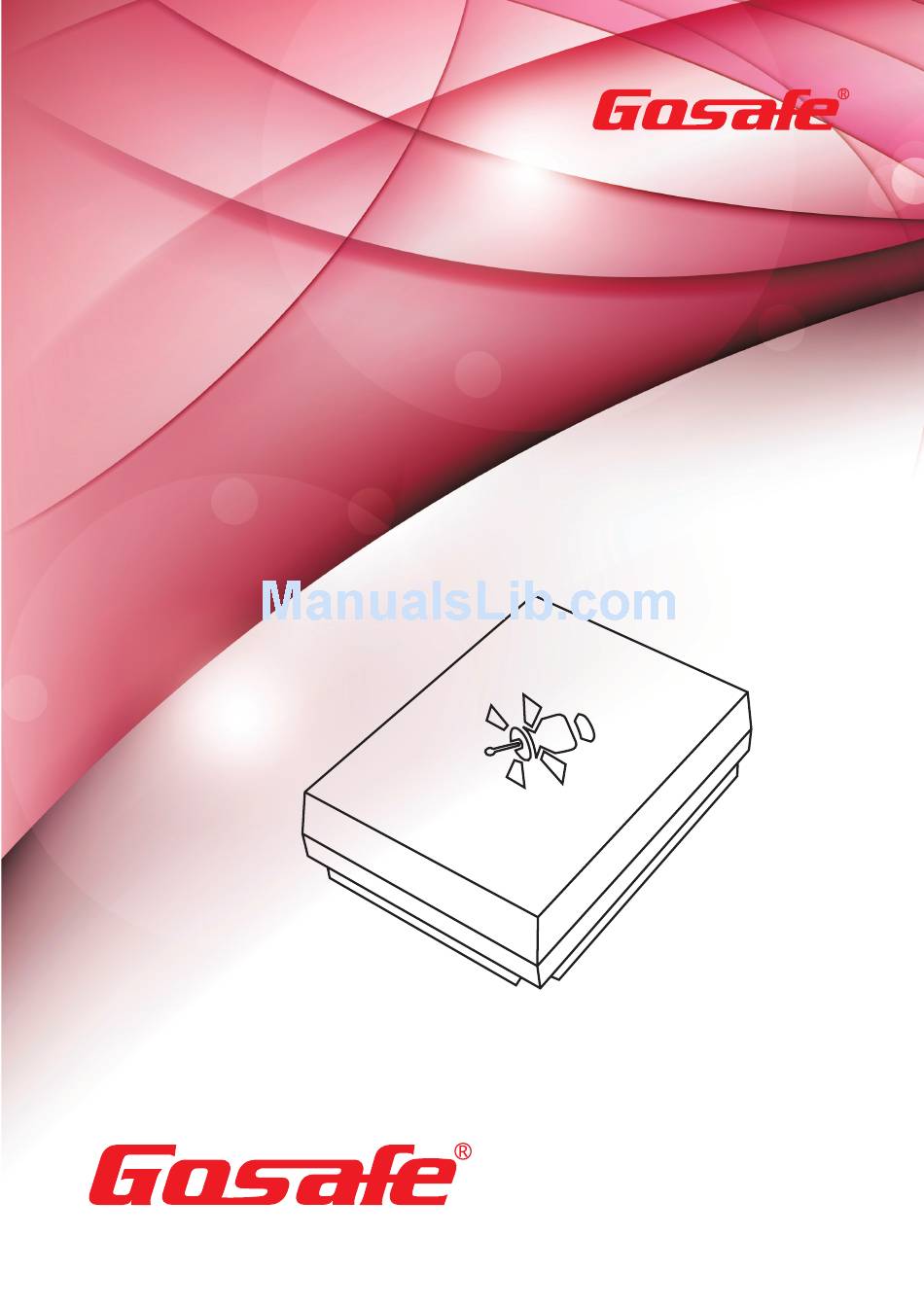

- Page 1 G626 Tracking Device User Manual | Version 2.00...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Device Introduction 1.1 Physical Appearance....................3 1.2 Specification.........................4 1.3 Features..........................4 2. Quick Install Instructions 2.1 Configuration.......................5 2.2 Insert SIM card......................5 2.3 Power on........................6 2.4 Installation Diagram....................6 2.5 Set User No........................6 2.6 Modify Password......................6 2.7 Set Work Mode......................7 3.Commands for Device Setting 3.1 Set User No. -
Page 3: Device Introduction
G626 is a great tracking device which is designed by Gosafe Company Limited. It combines GSM and SMS with GPS to locate your belongs. As its compact size and long life battery, G626 can be easily installed at somewhere concealed in your vehicle motorcycle and boat to track and locate them. -
Page 4: Specification
1.2 Specification Size 86(L) x 60(W) x 25(H) mm Physical Specification Weight 160g (Including Battery) IP Rating IP65 Rechargeable Battery 5V DC; Li-Ion 3.7V 3200mAh Power Power Consumption Sleep Mode <700uA Active Mode <300mA TI MSP430 12KB RAM, 256KB Flash Antenna Internal Modem... -
Page 5: Quick Install Instructions
2.Quick Install Instructions 2.1Configuration The G626 is supplied with USB cable. Connect the USB cable to the device and connect it with the computer. The computer may require USB driver. It can automatically update the USB driver if not then please download the USB driver from http://www.gosafesystem.com/downloads.asp... -
Page 6: Power On
2.3 Power on Connect the battery to the device, like the below picture show you: 2.4 Installation Diagram for G626I 2.5 Set User No. To set user No., you can use any mobile phone to send the following SMS command to the SIM card No.: 1234,UNO;+8613912345678 or 1234,UNO;13912345678 Explanations: +8613912345678: user No. -
Page 7: Set Work Mode
Note: Please memorize your New Password and wait for confirmation SMS for password modification from device. Only if this command is sent by user No., the system can process this command. 2.7 Set Work Mode There are 3 different work modes configurable for device according to user's need: O, S and G Detailed information on 3 work modes, please go to "Commands for Device Setting"... -
Page 8: Modify User Password
Example: Setting command without country code in telephone No.: 1234,UNO;13912345678 Setting command with country code in telephone No.: 1234,UNO;+8613912345678 Reply: G626 V1.05 UNO: 13912345678 G626 V1.05 UNO: +8613912345678 3.2 Modify User Password Command Format:... -
Page 9: Set Message Center Number
S: Always update with GSM base station (LBS) Message Types: T: Text format (SMS) W: Text format with hyperlink (SMS with hyperlink) Example: 1234,UUM;30S;G;T Reply: G626 V1.05 UUM:30S;G;T 3.4 Set Message Center Number Command format **** +XXXYYYYYYYYYYYYY Explanations: ****: user password (4-digit) -
Page 10: Power Saving Mode Setting
After receipt of this command the device will reply with message APN:access point name:APN user name: APN password, the device will connects with GPRS after receiving this command. The G626 is equipped with many APN (Access Point Name) from many countries. If device automatically connects with GPRS then user no need to send above command. - Page 11 Composition of GPS mode bits: 0: Always on GPS (GPS ECO mode); 1: undefined, functions as GPS mode 0; 2: open GPS on demand, in reservation setting of GPS search time after 3D location , delay GPS work time until reservation time is over; 3: open GPS module on demand, closing 3D location in reservation setting of GPS reach time, there is no 3D location when GPS research time is over, closing module.
-
Page 12: Setting Uploading Tcp Server Mode
After receipt of this command the device will reply with message to confirm the work mode and work as the setting. Example: Command is: 1234,PSM;32 Reply: G626 V1.05 PSM: 32 3.7 Setting uploading TCP server mode Command format **** Explanations:... -
Page 13: Movement Sensor Setting
If disable it will not detect the over speed limit. Example： Enable over speed alarm, command is: 1234,SPO;1 Disable over speed alarm, command is: 1234,SPO;0 Reply: G626 V1.05 SPO:1 G626 V1.05 SPO:0 3.9 Movement sensor setting... -
Page 14: Enable/Disable Over Speed Alarm Parameter
, : command delimiter SOP: Command Control Word ; : command delimiter Alert Speed: set the speed in KM/H (80 km/h) (G626 can't provide this function at this moment) ; : command delimiter Alarm Speed: set the speed in KM/H (100 km/h) After receipt of this command the device will reply with message SOP:Alert speed;... -
Page 15: Location Poll
****: user password (4-digit) , : command delimiter PRQ: Command Control Word Example: 1234,PRQ Reply: G626 V0.17 The device will send back the location informat-ion after getting the latest GPS data. G626 V0.17 GPS 5/67 UTC 11-05-11 06:47 N23.164367 E113.428548 SPD:0km/h TMP:37.8C... -
Page 16: Clear Alarm
SMS if the gps data is valid. If there is not GPS data device will not send the time. Example: Time zone= +8 1234,TZN;8:00 Reply: G626 V1.05 TZN:8:00 Time Zone= -5 1234,TZN;-5:00 Reply: TZN:-5:00 3.14 Clear Alarm... -
Page 17: Alarms
3.17 Alarms The device sends alarm immediately it triggers. The message receive when device is in alarm as follows: G626 V1.05 GPS 6/77 UTC 11-00.5-14 05:33:47 N23.164479 E113.428606 SPD:0km/h 0 Alarm: Low inter_Batt List of Alarms: SMS Received Description G626 V1.05... -
Page 18: Default Parameters
Note: The user can use the UAC command to clear user based alarm. 3.18 Default Parameters Device is set with the following default param-eters. When device power up first time the device will use the following parameters to connect and wait for user commands or server commands. Description Parameter User number... -
Page 19: Structures Of Sms From Device
Example: 1234,UUM;30M;G;T,UPW;1234 4.Structures of SMS from Device 4.1Normal Location SMS Format (G Mode) (Located Successful) Gosafe G626 V1.05 Device Name and Version GPS 3/56 Satellites Connected &Time used for Location (secs) LTM08:00 11-24-10 02:54 Specific time zone and Location time based on specific time zone N23 9.8329... -
Page 20: Error Command Alert
(Located Successful）Yandex link Gosafe G626 V1.05 Device Name and Version http://m.maps.yandex.ru/?ll=116.3875,39. 949328&pt=116.3875, Yandex Link 39.949328&z=12 TMP=25.6C Temperature PWR=12.5V Power (Located Unsuccessful) Gosafe G626 V1.05 Device Name and Version MCC=460 Mobile Country Code MNC=1 Mobile Network Code LAC=517A Location Area Code... - Page 21 on base station information "S"/Always upload with LBS location T: data format, it can be： //text W, // super link One Can set two modes. TPM is the same as TPM0, these two both are mode 0.TMP1 is mode 1. 30M: Data save interval, M is time unit, it can be(5~900S)、...
- Page 22 information is included for the SIM card used, no need to configure, if APN is wrong, GPRS connection will be wrong enable/disable 0: close over Speed SPO;0 SPO:0 1: open Default: SPO;1 Speeding alarm 100: prompt parameters SOP; 100;120 SOP:100;120 120: alarm Default: SPO;80;100 The range of three parameters is the same: that...
- Page 23 of GPS search time after 2D location, delay GPS work time until reservation time is over; 5: open GPS module on demand, closing 3D location in reservation setting of GPS reach time, there is no 2D location when GPS research time is over, closing module.
-
Page 24: Led Flashes & Relevant Device Status
5. LED Flashes & Relevant Device Status There are some internal LED lights to reflect device status and the charging state in G626. Generally, only we have some problems about the G626, we will disassemble it and check the LED lights for status. -
Page 25: Appendix
Error Details LED Flashes Solutions GSM module Communication 1 flash Power OFF then check GSM module power Error supply and communication SIM card Error 2 flashes Power OFF then check whether SIM installation is good and PIN is disabled Cannot register at GSM network 3 flashes To check whether SIM card is overdue and/ or device in an area there is no GSM signal...
