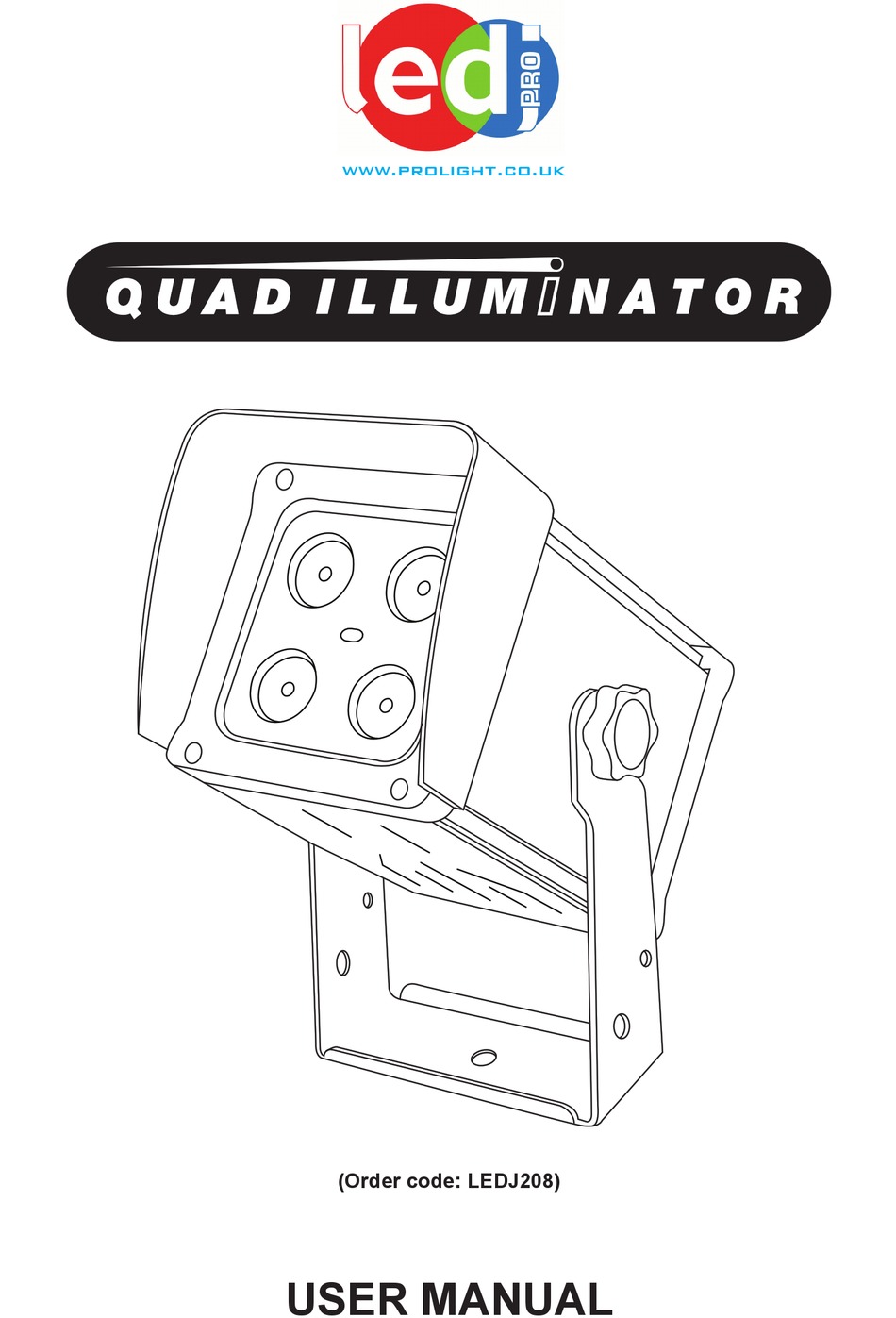

Page 1: User Manual
www.prolight.co.uk (Order code: LEDJ208) USER MANUAL... - Page 2 Quad illuminator Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! INPUT VOLTAGE OF 110~240V SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent...
- Page 3 Quad illuminator Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
- Page 4 Setup Operating Instructions The Quad illuminator is a DMX-512 controllable unit made up of high efficiency RGBW LEDs and will operate in stand alone, master/slave, or DMX control modes. NOTE: This unit has a password and locks after being unused for several minutes, to unlock the unit again press the buttons in the following order, “UP”, “DOWN”, “UP”, “DOWN”...
- Page 5 Example: If you set R, G, B and W all to zero, the Quad illuminator will have no LEDs showing (blackout). If you set R to 99 and G, B and W to zero the Quad illuminator will be 100% Red.
- Page 6 Quad illuminator DMX Programme Charts 3 channel mode DMX chart Channel Value Function 0-255 Red 0-100% 0-255 Green 0-100% 0-255 Blue 0-100% 4 channel mode DMX chart Channel Value Function 0-255 Red 0-100% 0-255 Green 0-100% 0-255 Blue 0-100% 0-255...
- Page 7 Quad illuminator Optional I.R. Remote Functions I.R Remote (purchased separately: LEDJ90C) Functions: The “BLACKOUT” button is used to set the LEDs into the power on or off modes. The “S PR” button is used to run the built-in programmes. To go though the built-in programmes, press the “+”...
-
Page 8: Dmx Linking
DATA Cable (DMX cable) requirements (for DMX operation): • The Quad illuminator can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a 3-pin connector for data input/output.
