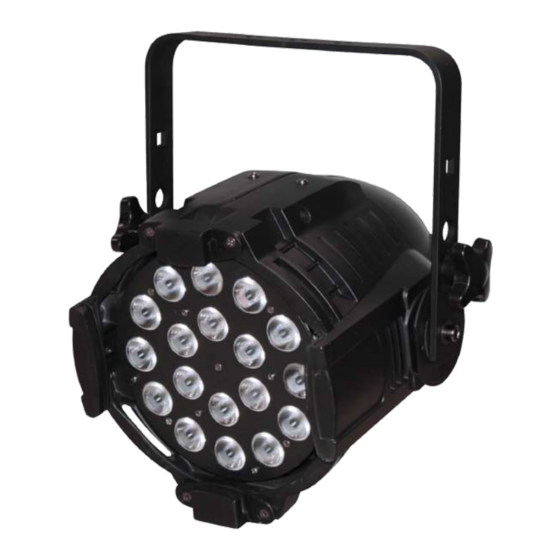

Ledj ALU QUAD PAR 64 User Manual
Alu quad par 64
Hide thumbs
Also See for ALU QUAD PAR 64:
- User manual (9 pages) ,
- User manual (9 pages) ,
- User manual (9 pages)
Subscribe to Our Youtube Channel
Related Manuals for Ledj ALU QUAD PAR 64
Summary of Contents for Ledj ALU QUAD PAR 64
-

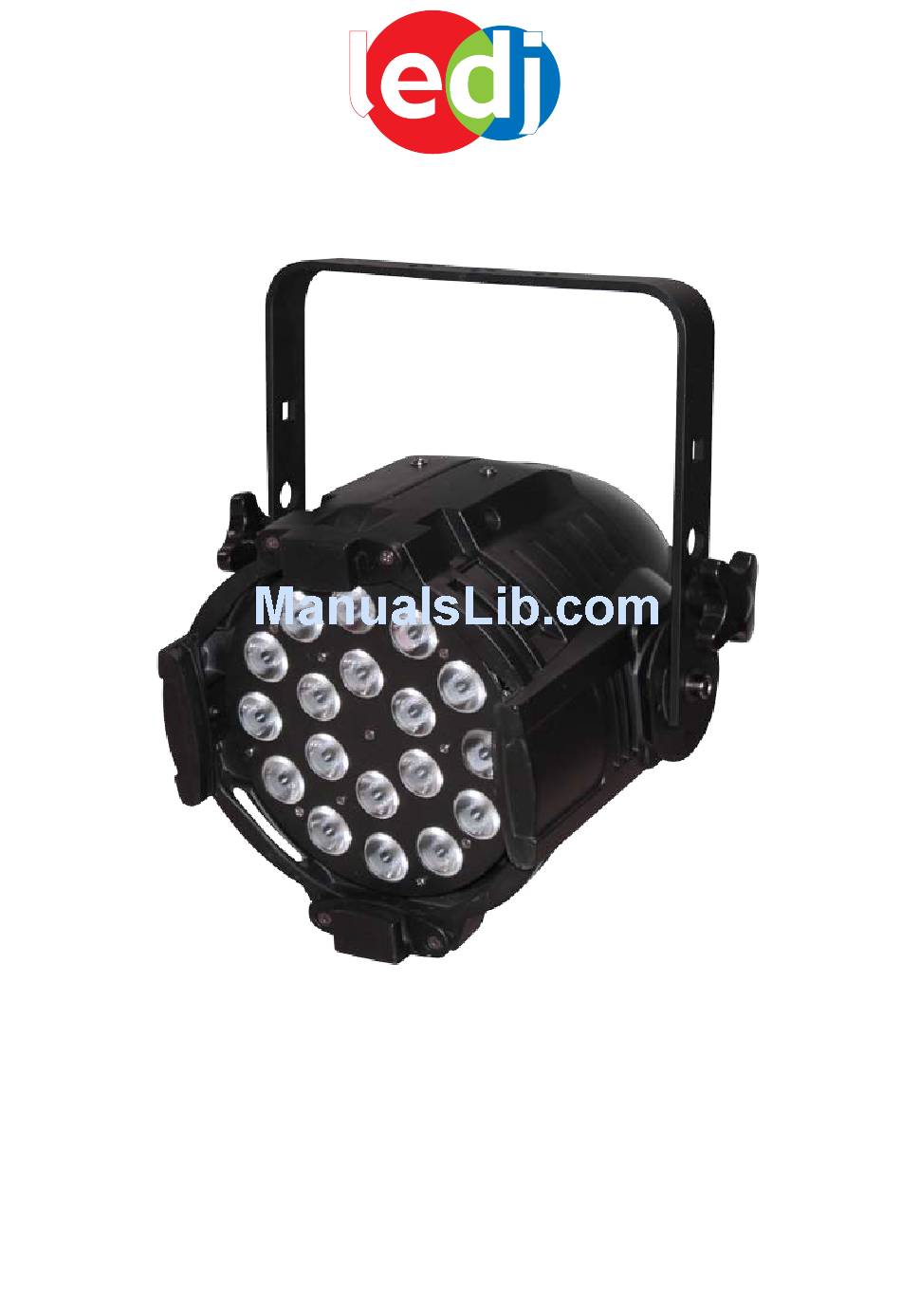

Page 1: User Manual
. p r o l i g h t . c o . u k ALU QUAD PAR 64 Order code: LEDJ113 USER MANUAL... -
Page 2: Safety Instructions
Alu Quad Par 64 Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this... -
Page 3: Operating Determinations
Alu Quad Par 64 Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... - Page 4 Alu Quad Par 64 Technical specifications You should find inside the LEDJ carton the following items: 1, Alu Quad Par 64 Unit 2, Instruction manual Technical Specifications: DMX channels: 3/5/7 or 8 selectable Power supply: 240V 18 Ultra Bright 8W Quad colour LEDs (12 x RGBW, 6 x RGBA)
-
Page 5: Operating Instructions
Setup Operating Instructions The Alu Quad Par 64 is a DMX-512 controllable, full RGBW/RGBA colour mixing Par Can made up of high efficiency and super bright 8W LEDs. There are two four colour groups (RGBW and RGBA) whose intensity can be controlled individually allowing the creation of an unlimited range of colours. - Page 6 Alu Quad Par 64 DMX Charts DMX Charts 3 channel DMX chart FUNCTION CHANNEL VALUE Blackout 8-255 30 preset static colours 0-255 Master dimmer 0-100% Sound mode 6-10 Strobe (slow to fast) 11-255 5 channel DMX chart FUNCTION CHANNEL VALUE...
-
Page 7: Operation
Alu Quad Par 64 DMX Charts DMX Charts 8 channel DMX chart FUNCTION CHANNEL VALUE 0-255 Red 0-100% 0-255 Green 0-100% 0-255 Blue 0-100% 0-255 Amber 0-100% 0-255 Red 0-100% 0-255 Green 0-100% 0-255 Blue 0-100% 0-255 White 0-100% Built-in programme chart... - Page 8 DATA Cable (DMX cable) requirements (for DMX operation): • The Alu Quad Par 64 can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
- Page 9 Alu Quad Par 64 DMX setup Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
- Page 10 Alu Quad Par 64 Specifications Technical Specifications Weight & Dimensions • Length…..........................300mm • Width............................270mm • Height………..............………...…………………………..220mm • Weight………………………………………................4.3kgs Power • AC input……………………………………..........AC 120V/240V, 50/60Hz Fuse • Main………………………………………………........20mm Glass 2A Fast Blow Control & Programming • Data input…………………………………......……...Locking 3-pin XLR male socket •...
