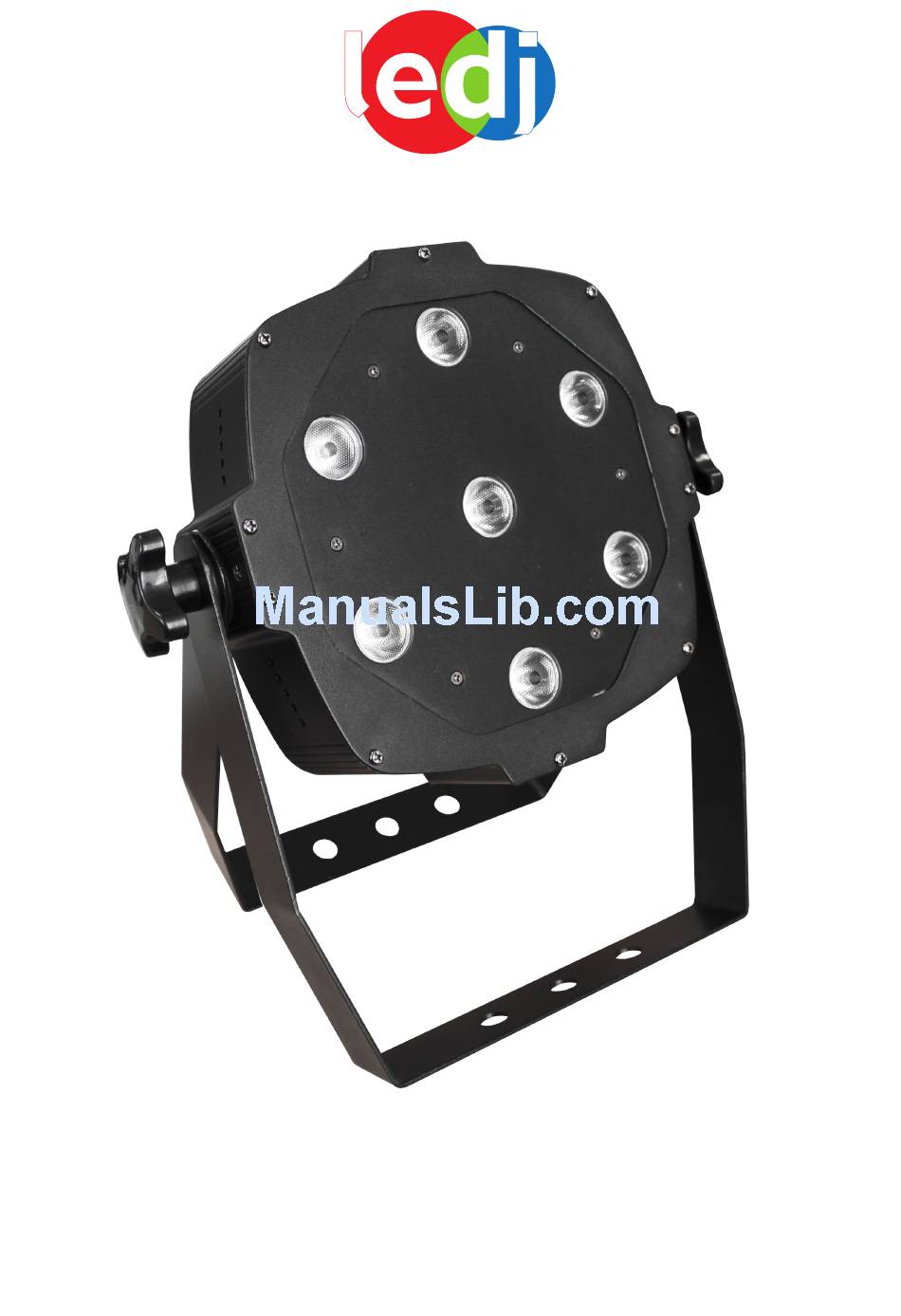

Page 1: User Manual

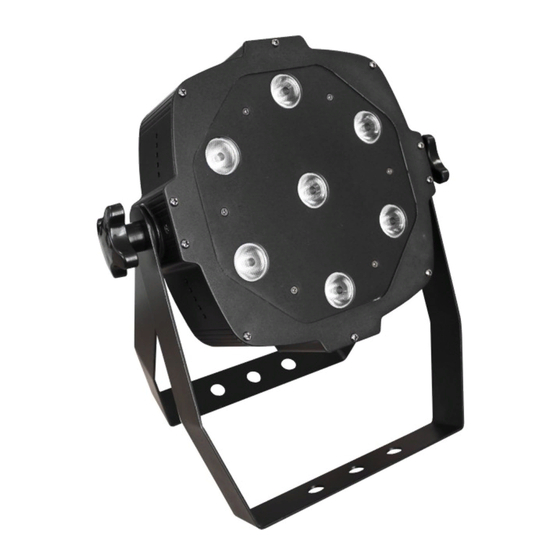

. p r o l i g h t . c o . u k Slimline 7T3 (Order code: LEDJ52) USER MANUAL... - Page 2 LEDJ Slimline 7T3 Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this...
- Page 3 LEDJ Slimline 7T3 Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
- Page 4 LEDJ Slimline 7T3 Technical specifications You should find inside the LEDJ carton the following items: 1, Slimline 7T3 Unit 2, Instruction manual Technical Specifications: DMX channels: 6 400Hz flicker free LEDs Power supply: AC 100-240V ~ 50/60Hz 7 x 3W Ultra Bright tri-colour LEDs...
- Page 5 LEDJ Slimline 7T3 Operation Operation: There are 6 different operation modes to choose from: 1) Static colour mode 2) Colour change mode 3) Colour fade mode 4) Sound active mode 5) DMX mode 6) Slave mode 1, Static colour mode Mode button - Press the “MODE”...
- Page 6 LEDJ Slimline 7T3 Operation 5, DMX Addressing mode To access the DMX address mode, press the MODE button until the LED display shows “A001”, then follow the DMX channel assignment and function table below. 6. Master/Slave mode Link the units together using a 3-pin DMX cable, then press the MODE button to select one of the above modes.
- Page 7 DATA Cable (DMX cable) requirements (for DMX operation): • The Slimline 7T3 can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
- Page 8 LEDJ Slimline 7T3 DMX Setup Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
