Summary of Contents for Ledj LEDJ Slimline 5Q5
-

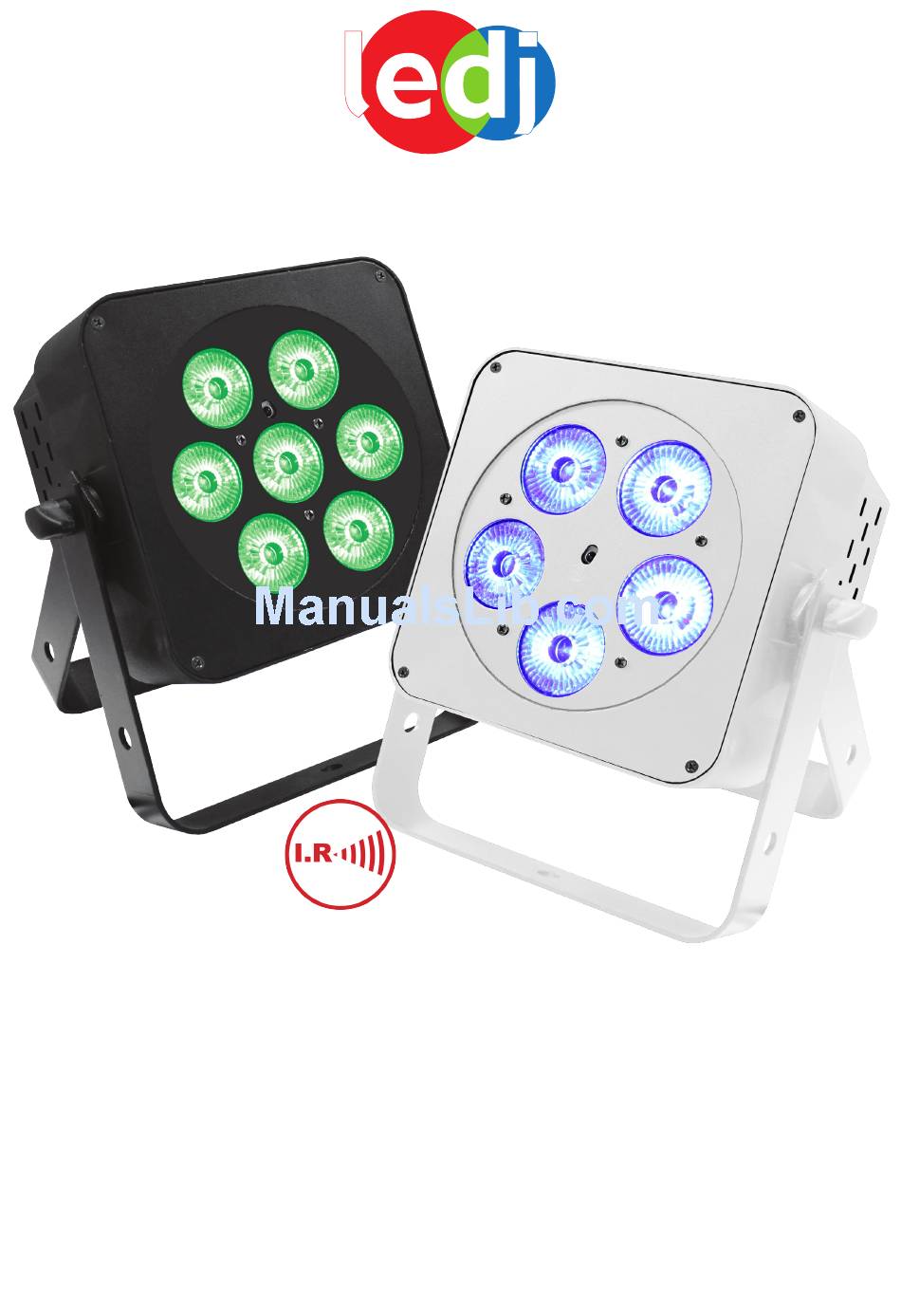

Page 1: User Manual
w w w . p r o l i g h t . c o . u k Slimline 5Q5 Order code: LEDJ58 - Black (RGBW) Order code: LEDJ58A - White (RGBW) Slimline 7Q5 Order code: LEDJ59 - Black (RGBW) Order code: LEDJ59A - White (RGBW) Order code: LEDJ59B - Black (RGBA) Order code: LEDJ59C - White (RGBA) -
Page 2: Safety Instructions
LEDJ Slimline 5Q5, 7Q5 Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this... -
Page 3: Operating Determinations
LEDJ Slimline 5Q5, 7Q5 Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... - Page 4 LEDJ Slimline 5Q5, 7Q5 Technical specifications You should find inside the LEDJ carton the following items: 1, Slimline 5Q5 or 7Q5 2, Instruction manual 3, Power cable Technical Specifications: DMX channels: 2, 3, 4 or 7 selectable 400Hz refresh rate...
- Page 5 LEDJ Slimline 5Q5, 7Q5 Operations 1a, RGBW colour mix mode In this mode you can set the 5Q5 or 7Q5 to any colour and any brightness. Press the “MODE” button to show “r- - -” with three digits after it.
- Page 6 LEDJ Slimline 5Q5, 7Q5 Operations 5), DMX Addressing mode To access the DMX address mode, press the “MODE” button until the LED display shows “A001”, then using the “UP” and “DOWN” buttons you can set the DMX address. Please follow the DMX channel assignment and function table overleaf.
- Page 7 LEDJ Slimline 5Q5, 7Q5 I.R. Remote Optional I.R remote functions (LEDJ90C) Button functions: The “BLACKOUT” button is used to set the LEDs into the power on or off modes. The “S PR” button is used to run the built-in programmes. To go though the built-in programmes, press the “+”...
- Page 8 LEDJ Slimline 5Q5, 7Q5 RGBW DMX Charts Slimline 5Q5 and 7Q5 RGBW DMX Charts 2 channel DMX chart 3 channel DMX chart 4 channel DMX chart 7 channel DMX chart...
- Page 9 LEDJ Slimline 5Q5, 7Q5 RGBA DMX Charts Slimline 7Q5 RGBA DMX Charts 2 channel DMX chart 3 channel DMX chart 4 channel DMX chart 7 channel DMX chart DMX-512: • DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers.
- Page 10 LEDJ Slimline 5Q5, 7Q5 DMX Setup DMX Linking: • DMX is a language allowing all makes and models of different manufactures to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant.
- Page 11 LEDJ Slimline 5Q5, 7Q5 Notes Notes:...
