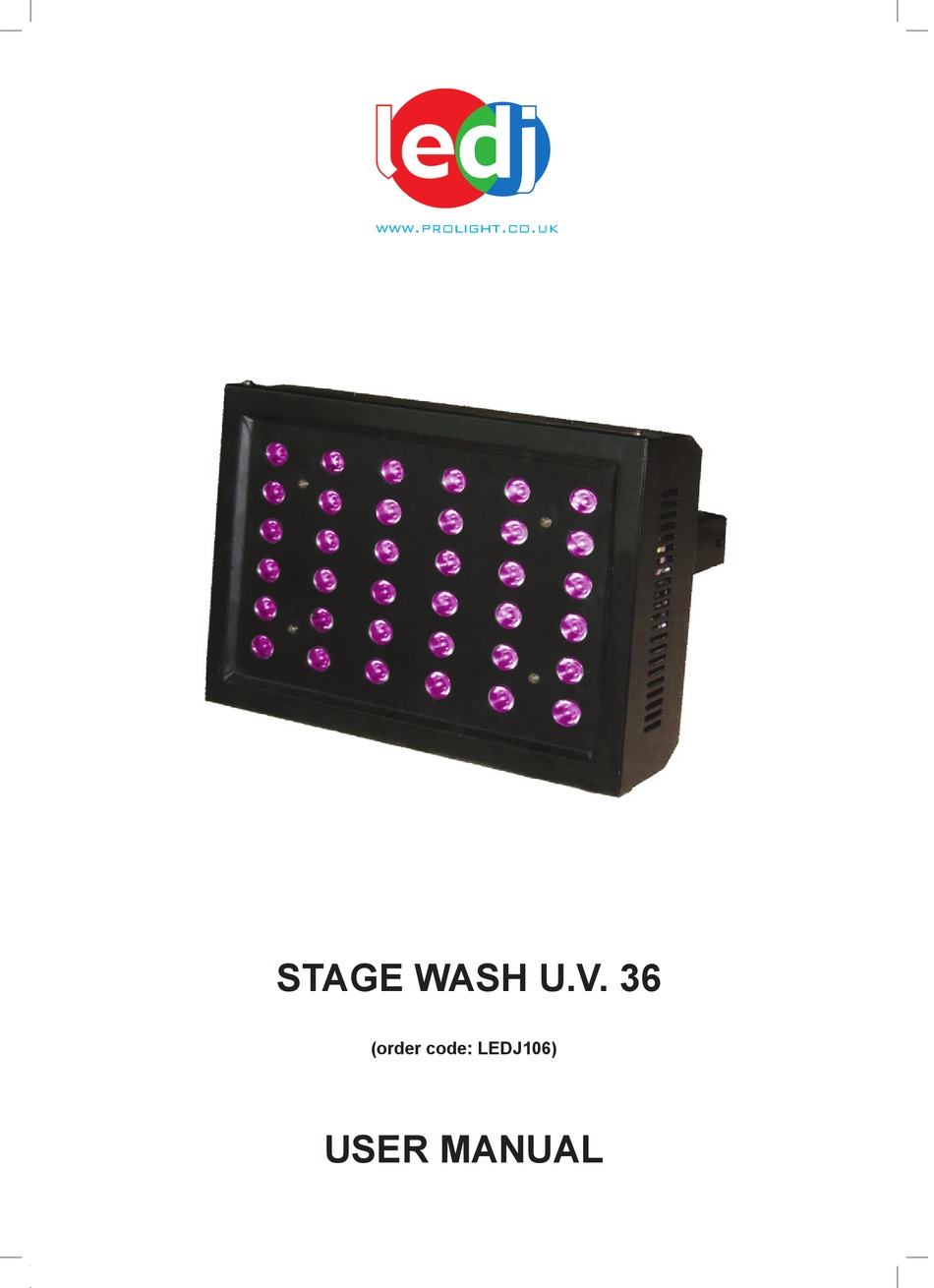

Page 1: User Manual
www.prolight.co.uk STAGE WASH U.V. 36 (order code: LEDJ106) USER MANUAL... -
Page 2: Safety Instructions
STAGE WASH U.V. 36 Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual... -
Page 3: Operating Determinations
STAGE WASH U.V. 36 Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... -
Page 4: Control Features

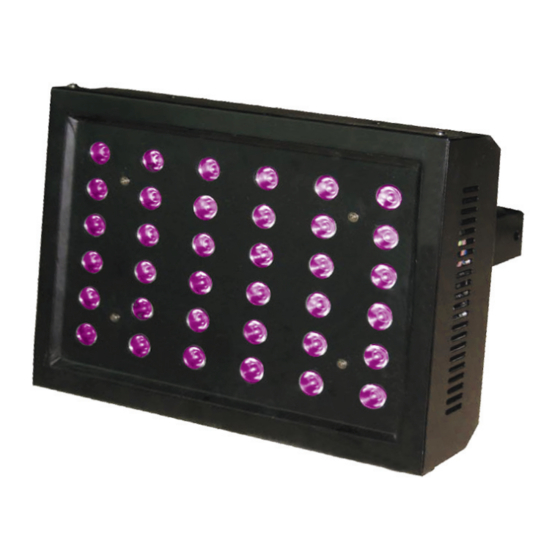

STAGE WASH U.V. 36 Introduction Introduction CONTROL FEATURES • 2-channel DMX • Blackout/Dimmer/Strobe Features • 36 Ultra Bright 1W Ultra Violet LEDs • Master/Slave functions • Sound activated • Rugged compact housing • Consumption: 42W • Beam 40 degrees • Long life LEDs DMX Channel Summary... - Page 5 STAGE WASH U.V. 36 Overview Product Overview LED Display DMX IN DMX OUT DMX IN DMX OUT DMX IN Mode Down Enter Button Button Button Button Setup Operating Instructions The Stage Wash U.V. 36. is a DMX-512 controllable, unit made up of high efficiency and super bright Ultra Violet LEDs.
- Page 6 STAGE WASH U.V. 36 Operation Modes Operating modes: Brightness Mode: To set the unit in brightness mode, press the mode button to show the last brightness setting between “C-00 - C-99” on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the brightness output from 00-99.
- Page 7 DATA Cable (DMX cable) requirements (for DMX operation): • The LEDJ Stage Wash U.V. 36 can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
- Page 8 STAGE WASH U.V. 36 DMX Set Up Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
- Page 9 STAGE WASH U.V. 36 Specifications Technical Specifications Weight & Dimensions • Length…............300mm • Width..............255mm • Height…………………………………………….. 125mm • Weight………………………………………..3.7 kgs Power • AC input……………………………………..240V/50hz Fuse • Main………………………………………………. 20mm Glass 2A Fast Blow Control & Programming • Data input………………………………………... Locking 3-pin XLR male socket •...
