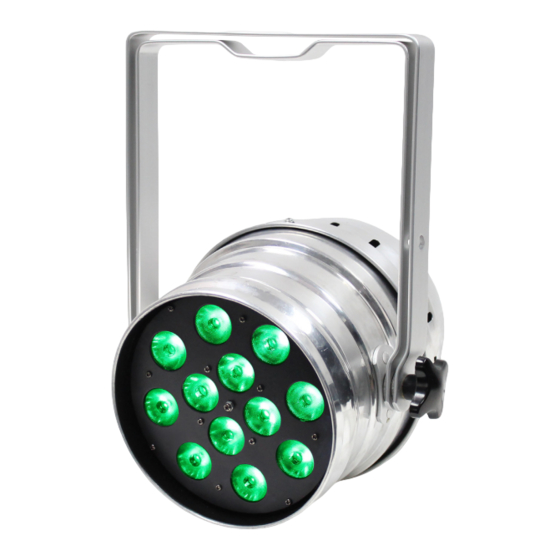

- Page 1 Stage Par Quad MKII 8W quad-colour LEDs (RGBW) User Manual Order codes: Stage Par 12 Quad - LEDJ180 (Black Housing) Stage Par 12 Quad - LEDJ180P (Polished Housing) Stage Par 18 Quad - LEDJ181 (Black Housing) Stage Par 18 Quad - LEDJ181P (Polished Housing)
-
Page 2: Safety Advice
NO USER SERVICEABLE PARTS. pulling the power-cable. • This lighting fixture is for professional use only - it is • Make sure that the available mains supply voltage is not designed for or suitable for household use. The between 100~240V AC, 50/60Hz. product must be installed by a qualified technician in accordance with local territory regulations. The safety of • Make sure that the power cable is never crimped or the installation is the responsibility of the installer. The damaged. Check the equipment and the power cable fixture presents risks of severe injury or death due to fire periodically. hazards, electric shock and falls. • If the equipment is dropped or damaged, disconnect the • Warning! Risk Group 2 LED product according to mains power supply immediately and have a qualified EN 62471. Do not view the light output with optical engineer inspect the equipment before operating again. instruments or any device that may concentrate the beam. • WARRANTY: One year from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Stage Par Quad MKII User Manual... - Page 3 MENU DOWN ENTER Stage Par 18 Quad - LEDJ181P (Polished housing) FUSE: T2.5A 250V 345mm DMX IN DMX OUT POWER INPUT: 100-240V~50/60Hz 01 - LED display 02 - Function buttons 03 - 3-Pin XLR input In the box: 1 x fixture, 04 - 3-Pin XLR output 1 x power cable 05 - Captive power connection & 1 x user manual 06 - Fuse T2.5A 250V www.prolight.co.uk Stage Par Quad MKII User Manual...
- Page 4 0 00~b. 2 55 B u. 0 00~u. 2 55 W modes, please set the unit(s) into 4 channel DMX mode first. Colour change mode CC00~CC99 Colour fade mode CP00~CP99 Auto mode dE00~dE99 Sound active mode bEbE DMX mode 4CH, 8CH Address setting d001~d512 www.prolight.co.uk Stage Par Quad MKII User Manual...
-
Page 5: Master/Slave Mode
“ENTER” button and repeat for green ( ), blue ( ) and white ( Value: 000 - 255 (000 = low brightness, 255 = high brightness) To exit out of any of the above options, press the “MENU” button. Master/slave mode: To set the master unit, press the “MENU” button on the rear of the master unit to select your desired program (sound active, auto, static colour or colour fade). d001 To set the other units in slave mode, press the “MENU” button on the rear of the unit to show on the LED display and press the “ENTER” button to confirm the setting. The units will now run in sequence with the master unit. To exit out of any of the above options, press the “MENU” button. Please ensure that all slave units are set to the same DMX channel mode as the master unit. Sound active mode: bEbE To access the sound active mode, press the “MODE” button on the rear of the unit to show on the LED display. The unit will now respond to sound. To exit out of any of the above options, press the “MODE” button. www.prolight.co.uk Stage Par Quad MKII User Manual... -
Page 6: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Stage Par Quad MKII User Manual... -
Page 7: Line Termination
3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Stage Par Quad MKII User Manual... -
Page 8: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Stage Par Quad MKII User Manual...
