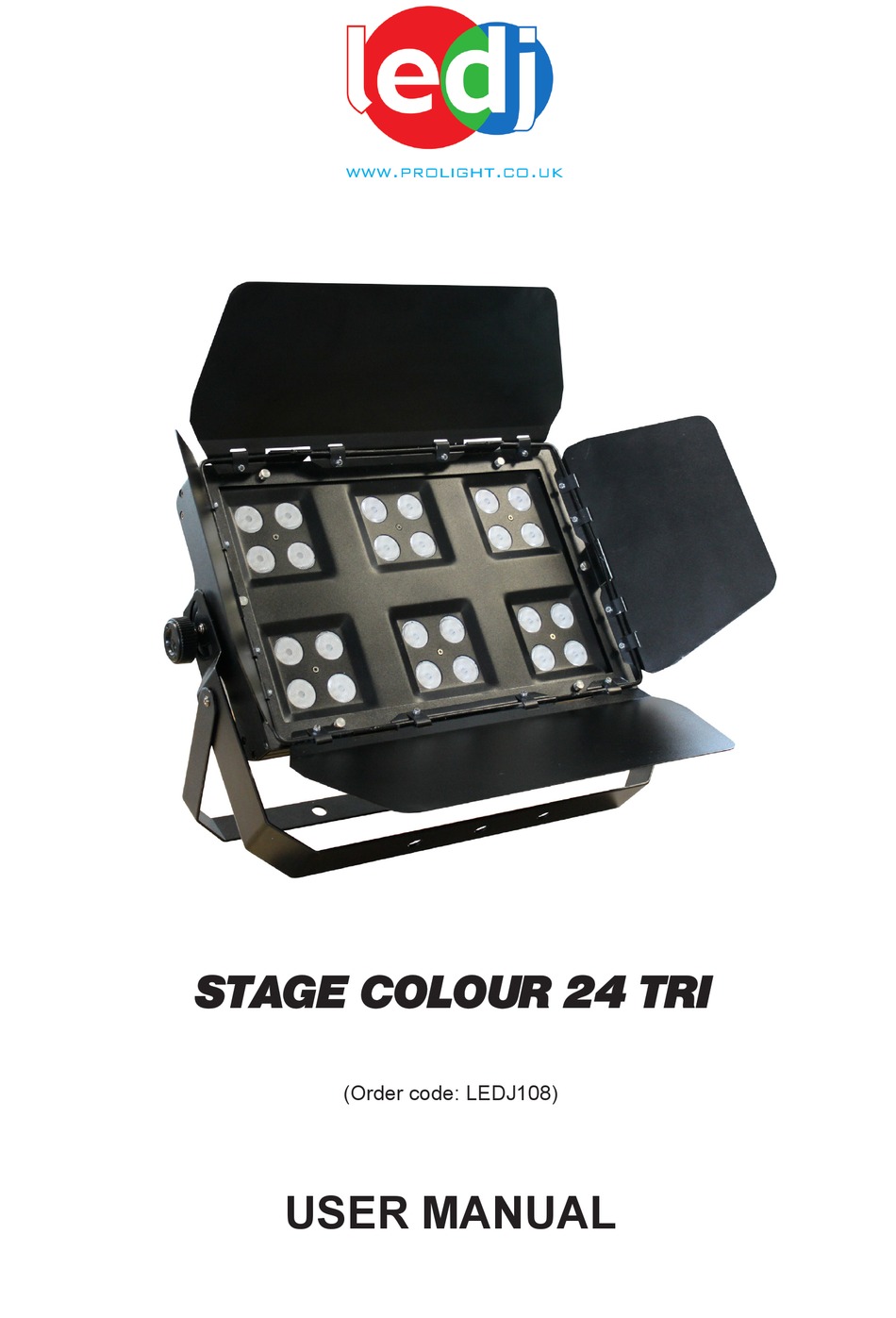

Page 1: User Manual
www.prolight.co.uk (Order code: LEDJ108) USER MANUAL... -
Page 2: Safety Instructions
STAGE COLOR 24 TRI SAFETY WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual... -
Page 3: Operating Determinations
STAGE COLOR 24 TRI SAFETY IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... - Page 4 To operate the Stage Colour 24 Tri via the (optional) LEDJ MB-2 foot controller (LEDJ124), ensure that the Stage Colour 24 Tri has been set into “SLAVE MODE”, Now connect the foot con- troller into the 5-pin footswitch socket of the rear of the unit.
-
Page 5: Operation Modes
STAGE COLOR 24 TRI OPERATION MODES Operation modes Sound Active mode: To activate the unit in sound active mode, press the “MODE” button to show “SOUND MODE” on the LCD screen. Now press the “ENTER” button to select the desired sensitivity level by using the “UP”... - Page 6 STAGE COLOR 24 TRI BUILT-IN PROGRAMME CHART 14 Built-in programme chart BLA=Blackout, R=Red, RG=Yellow, G=Green, STATIC COLOR GB=Cyan, B=Blue, BR=Purple, RGB=White BLACKOUT - RGB Flash speed adjustable. Flash00-99 Seven colour fade DREAM Speed & Flash adjustable Speed 00-99 Flash 00-99 Seven colour flow METEOR Speed &...
- Page 7 STAGE COLOR 24 TRI DMX PROGRAMME CHARTS 6 channel mode DMX chart CH 1 CH 2 0-10 Blackout Blackout Blackout Blackout Blackout 11-21 Master dimmer Flash All Red All Green All Blue (0-255) (0-255) LEDs LEDs LEDs (0-255) (0-255) (0-255) 22-32 Flash(0-255) 33-43 Yellow...
- Page 8 STAGE COLOR 24 TRI DMX PROGRAMME CHARTS Note: For 9, 12 and 21 channel modes, please follow the 6 channel DMX chart for channels 1, 2 and 3. 9 channel mode DMX chart 12 channel mode DMX chart CH10 CH11 CH12 11-21 Master...
- Page 9 STAGE COLOR 24 TRI DMX SET UP DMX-512: • DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN”...
- Page 10 STAGE COLOR 24 TRI DMX SET UP Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
-
Page 11: Technical Specifications
STAGE COLOR 24 TRI TECHNICAL SPECIFICATIONS Technical Specifications Weight & Dimensions • Length…............390mm • Width..............165mm • Height……………………………………………...160mm • Weight………………………………………..9Kgs Power • AC input……………………………………..240V/50hz • Power consumption.........100W • Fuse • Main……………………………………………….F2A Control & Programming • Data input………………………………………...Locking 3-pin XLR male socket •... - Page 12 www.prolight.co.uk...
