w w w . p r o l i g h t . c o . u k

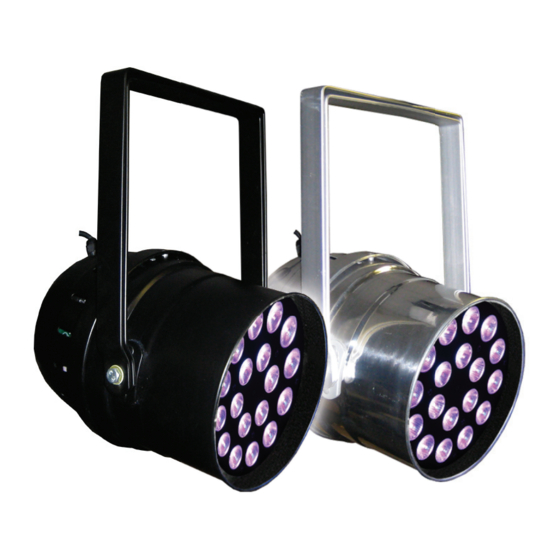

Quad Par 64
(Order code: LEDJ46 - Black)
(Order code: LEDJ47 - Polished)
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quad Par 64 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ledj Quad Par 64

Summary of Contents for Ledj Quad Par 64

  • Page 1: User Manual

    . p r o l i g h t . c o . u k Quad Par 64 (Order code: LEDJ46 - Black) (Order code: LEDJ47 - Polished) USER MANUAL...
  • Page 2 LEDJ Quad Par 64 Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this...
  • Page 3 LEDJ Quad Par 64 Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
  • Page 4 LEDJ Quad Par 64 Technical specifications You should find inside the LEDJ carton the following items: 1, Quad Par 64 Unit 2, Instruction manual, 3, Power cable Technical Specifications: DMX channels: 7 400Hz flicker free LEDs Power supply: AC 240 ~ 50Hz...
  • Page 5 Operation 1, RGBW colour mix mode In this mode you can set the Quad Par 64 to any colour and any brightness. Press the “MODE” button to show “C1” with two digits after it. The “C1” represents Red, “C2” = Green, “C3” = Blue, “C4” = White and “CF” = strobe.
  • Page 6 LEDJ Quad Par 64 Operation 7 Channel DMX chart Channel Value Function 000-255 Master dimmer 000-255 Strobe 000-255 Red (0 - 100%) 000-255 Green (0-100%) 000-255 Blue (0-100%) 000-255 White (0-100%) No function 5-80 Colour Macro 81-150 Colour change 151-255...
  • Page 7 DATA Cable (DMX cable) requirements (for DMX operation): • The Quad Par 64 can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
  • Page 8 LEDJ Quad Par 64 DMX Setup Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
