- Page 1 Order code: LEDJ210 USER MANUAL...
- Page 2 Q COLOUR SAFETY WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this...
- Page 3 Q COLOUR SAFETY IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
-
Page 4: Operating Instructions

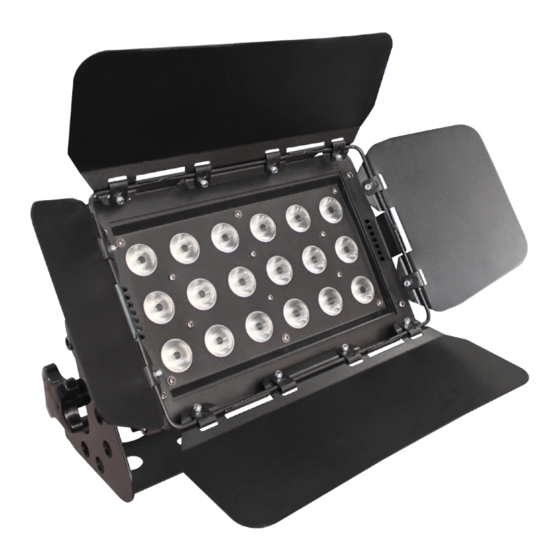

DOWN Operating Instructions The Q Colour is a DMX-512 controllable, full RGBW colour mixing wash made up of high efficiency and super bright LEDs. There are four colour groups (red, green, blue and white) whose intensity can be controlled individually allowing the creation of an unlimited range of colours. - Page 5 Q COLOUR OPERATIONS Operations: Static colour mode: Press the mode button to show “C01” on the LED display and use the “UP” and “DOWN” buttons to select one of the 15 colours. (see overleaf for the built-in colour chart). Built-in programme mode Press the mode button to show “P01”...
- Page 6 Q COLOUR CHARTS Built-in colour chart Built-in programme chart 4 channel DMX chart 6 channel DMX chart...
- Page 7 DATA Cable (DMX cable) requirements (for DMX operation): • The Q Colour can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
- Page 8 Q COLOUR DMX SET UP Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
