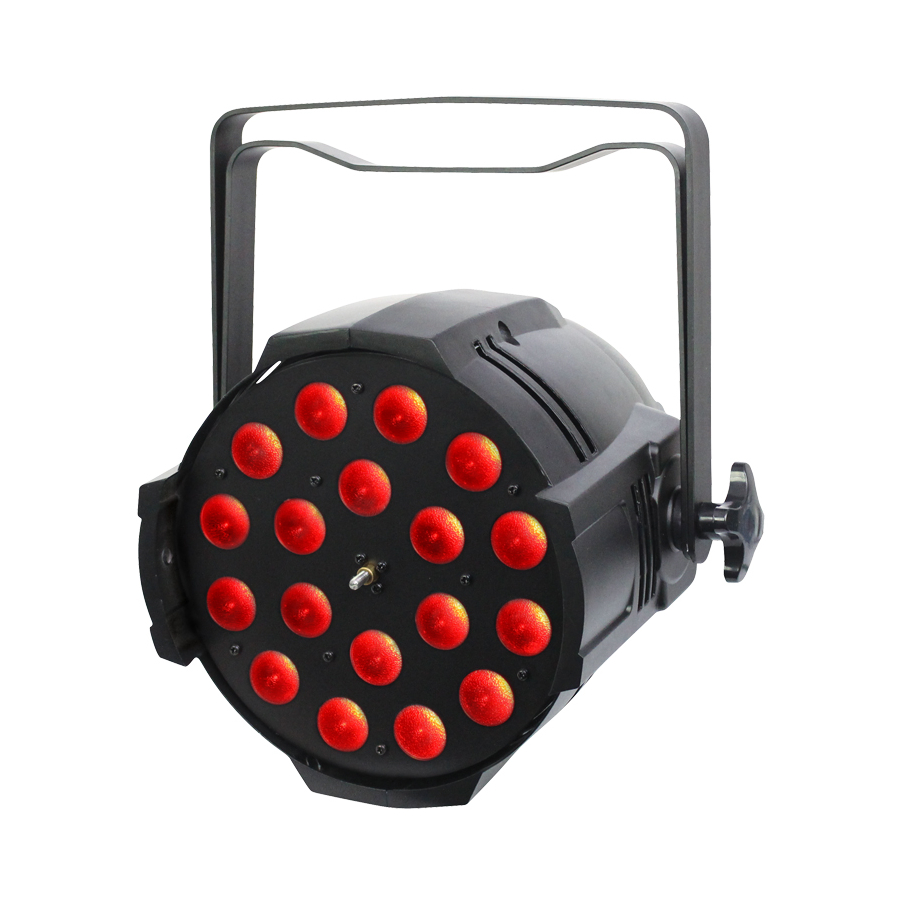

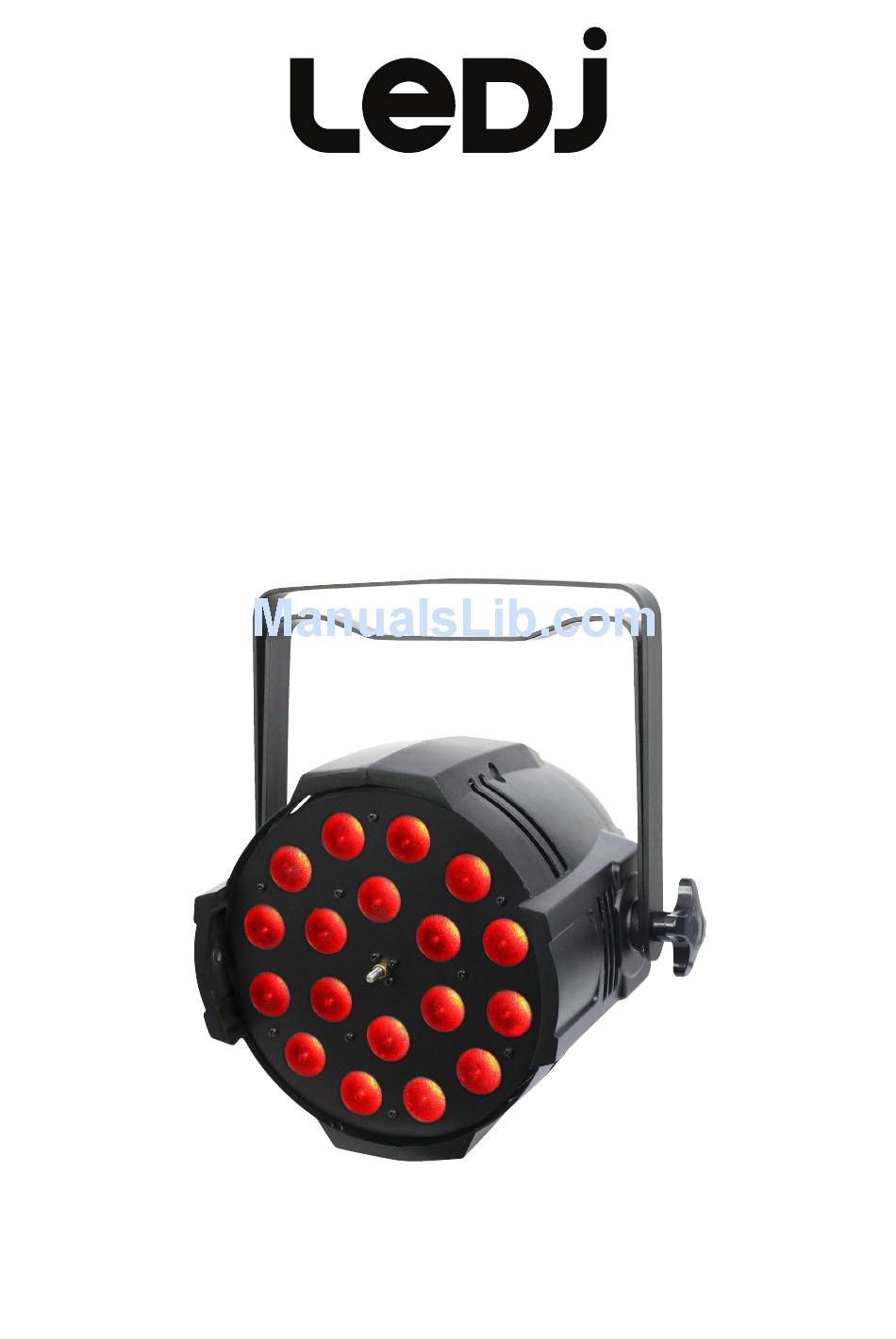

- Page 1 Performer 18 Quad Zoom 18 x 8W quad-colour LEDs (RGBW) User Manual Order code: LEDJ252D...
-
Page 2: Safety Advice
NO USER SERVICEABLE PARTS. pulling the power-cable. • This lighting fixture is for professional use only - it is • Make sure that the available mains supply voltage is not designed for or suitable for household use. The between 100~240V AC, 50/60Hz. product must be installed by a qualified technician in accordance with local territory regulations. The safety of • Make sure that the power cable is never crimped or the installation is the responsibility of the installer. The damaged. Check the equipment and the power cable fixture presents risks of severe injury or death due to fire periodically. hazards, electric shock and falls. • If the equipment is dropped or damaged, disconnect the • Warning! Risk Group 2 LED product according to mains power supply immediately and have a qualified EN 62471. Do not view the light output with optical engineer inspect the equipment before operating again. instruments or any device that may concentrate the beam. • WARRANTY: One year from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Performer 18 Quad Zoom User Manual... - Page 3 270mm DMX IN DMX OUT POWER: 100-240V~50/60Hz FUSE: T2.5A 250V MENU DOWN ENTER PERFORMER 18 QUAD ZOOM 01 - Earth point www.prolight.co.uk 02 - LED display 03 - Function buttons 04 - 3-Pin XLR input 05 - 3-Pin XLR output In the box: 1 x fixture 06 - Captive power connection & 1 x user manual 07 - Fuse F2A 250V www.prolight.co.uk Performer 18 Quad Zoom User Manual...
-
Page 4: Operating Instructions
101-120 Sound active 121-140 Sound active (blackout when no sound) 141-160 Colour change with zoom movement 161-180 Colour fade with zoom movement 181-200 Colour fade in/out with zoom movement 201-220 Sound active with zoom movement 221-255 Sound active with zoom movement (blackout when no sound) 000-255 Chase/fade speed (slow to fast) 000-255 Master dimmer (0-100%) 000-255 Zoom Colour change mode: CC-- To access colour change mode press “MENU” until the display shows on the LED display. Press “ENTER” to confirm the setting. Use the “UP” and “DOWN” buttons to ajust the speed between CC00 CC99 . Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Performer 18 Quad Zoom User Manual... -
Page 5: Master/Slave Mode
“MODE” button on the rear of the unit to show b. 0 00~b. 2 55 B bEbE on the LED display. The unit will now u. 0 00~u. 2 55 W t. 0 00~t. 2 55 Manual Zoom respond to sound. Colour change mode CC00~CC99 To exit out of any of the above options, Colour fade mode CP00~CP99 press the “MODE” button. Auto mode dE00~dE99 Sound active mode bEbE DMX mode 6CH, 8CH Address setting d001~d512 www.prolight.co.uk Performer 18 Quad Zoom User Manual... -
Page 6: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Performer 18 Quad Zoom User Manual... -
Page 7: Line Termination
3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Performer 18 Quad Zoom User Manual... -
Page 8: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Performer 18 Quad Zoom User Manual...
