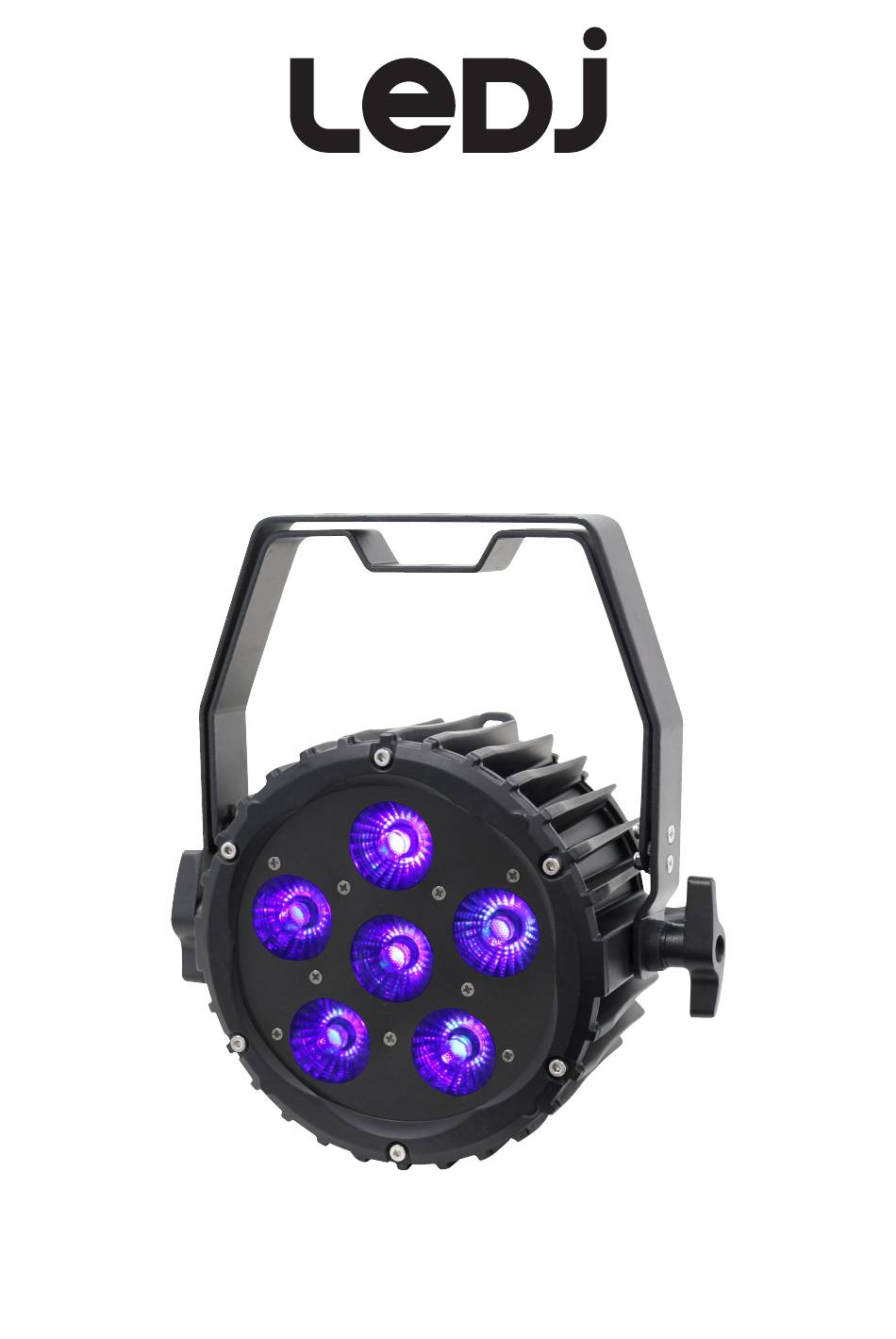

- Page 1 Spectra Par 6HEX10 Exterior Fixture User Manual Order code: LEDJ282...
-
Page 2: Safety Advice

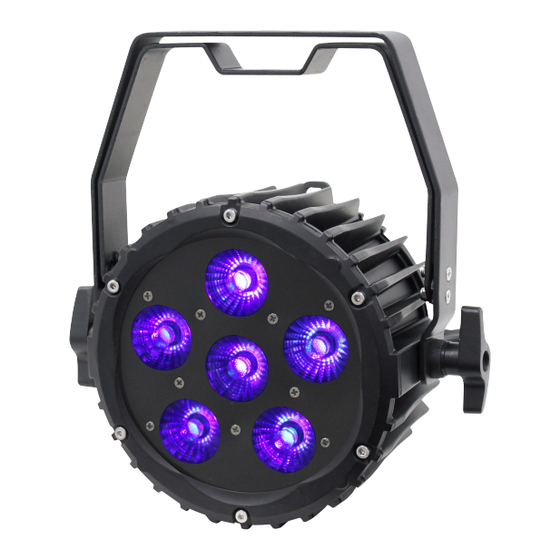

Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Spectra Par 6HEX10 User Manual... - Page 3 Product overview & technical specifications Spectra Par 6HEX10 The exterior Spectra Par 6HEX10 features 6 x 10W six-colour LEDs, delivering a smooth wash of colour, IP65 ranging from intense, rich saturated hues through to pastel shades. Controllable via the onboard 4 button LED menu system for auto, static colour or master/slave modes, with the option of DMX control for larger installations.
- Page 4 000-255 Red (0-100%) 204-220 Pastel Green 000-255 Green (0-100%) 221-237 Pastel Blue 000-255 Blue (0-100%) 238-254 Warm White 000-255 White (0-100%) Cool White 000-255 Amber (0-100%) 000-255 Strobe (slow-fast) 000-255 UV (0-100%) 000-255 Strobe (slow-fast) www.prolight.co.uk Spectra Par 6HEX10 User Manual...
-
Page 5: Master/Slave Mode
“SETUP” button to confirm the setting. The units will now run in sequence with the master unit. To exit out of any of the above options, press the “MODE” button. Please ensure that all slave units are set to the same DMX channel mode as the master unit. www.prolight.co.uk Spectra Par 6HEX10 User Manual... - Page 6 0 00~u. 2 55 White A. 0 00~A. 2 55 Amber I. 0 00~I. 2 55 UV Auto mode AUTO Slave mode SLAu DMX mode 6CH, 8CH, 10CH Address setting d. 0 01~d. 5 12 www.prolight.co.uk Spectra Par 6HEX10 User Manual...
-
Page 7: Dmx Setup
LEDJ 5m Exterior LEDJ 10m Exterior LEDJ Spectra Series Power cable Power cable Power cable Power cable End Cap Set Order code: LEDJ146 Order code: LEDJ147 Order code: LEDJ148 Order code: LEDJ149 Order code: LEDJ93 www.prolight.co.uk Spectra Par 6HEX10 User Manual... -
Page 8: Line Termination
5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Spectra Par 6HEX10 User Manual... -
Page 9: Weee Notice
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Spectra Par 6HEX10 User Manual... - Page 10 Spectra Par 6HEX10 User Manual...
- Page 11 Spectra Par 6HEX10 User Manual...
- Page 12 Spectra Par 6HEX10 User Manual...
