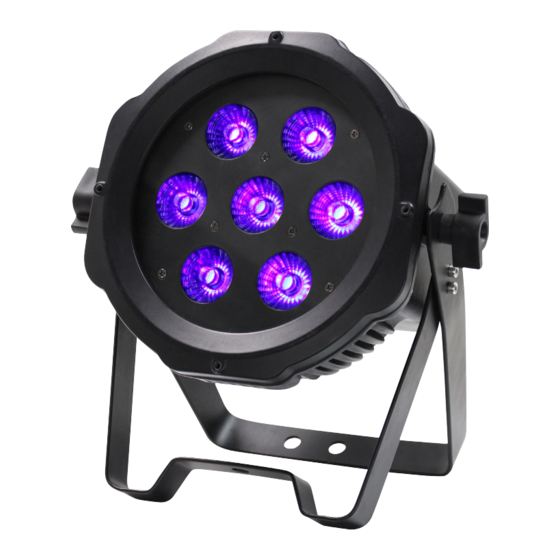

Ledj HEX Par 7 User Manual
  1. Manuals
  2. Brands
  3. Ledj Manuals
  4. Flood Light
  5. HEX Par 7
  6. User manual

Ledj HEX Par 7 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
HEX Par 7
Exterior Fixture
User Manual
Order code: LEDJ228

Advertisement

loading
Need help?

Need help?

Do you have a question about the HEX Par 7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ledj HEX Par 7

Summary of Contents for Ledj HEX Par 7

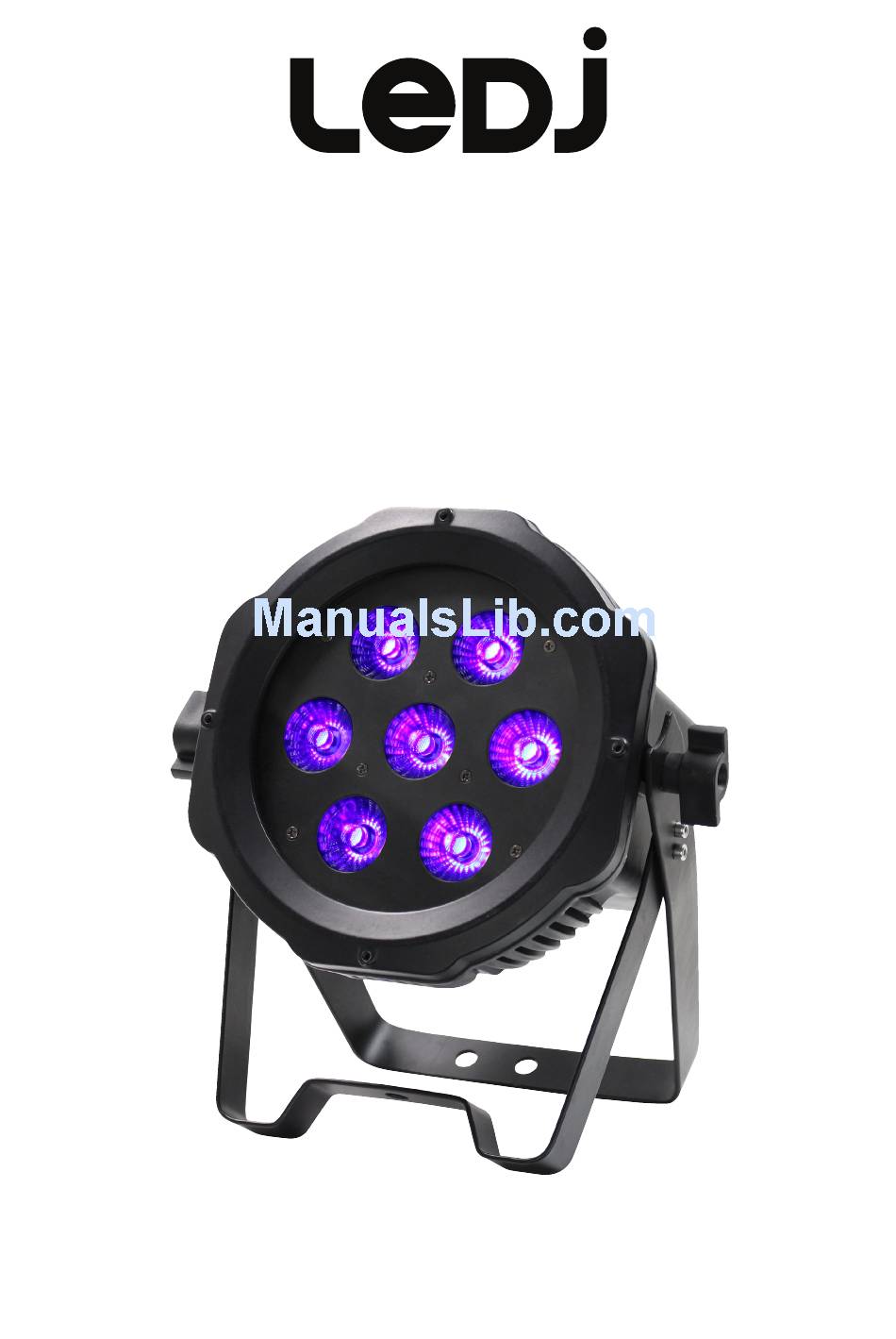

  • Page 1 HEX Par 7 Exterior Fixture User Manual Order code: LEDJ228...

  • Page 2: Safety Advice

    • Always disconnect the power from the mains when product must be installed by a qualified technician in equipment is not in use or before cleaning! Only handle accordance with local territory regulations. The safety of the power-cable by the plug. Never pull out the plug by the installation is the responsibility of the installer. The pulling the power-cable. fixture presents risks of severe injury or death due to fire • Make sure that the available mains supply voltage is hazards, electric shock and falls. between 100~240V AC, 50/60Hz. • Warning! Risk Group 2 LED product according to • Make sure that the power cable is never crimped or EN 62471. Do not view the light output with optical damaged. Check the equipment and the power cable instruments or any device that may concentrate the beam. periodically. • WARRANTY: One year from date of purchase. • If the equipment is dropped or damaged, disconnect the mains power supply immediately and have a qualified engineer inspect the equipment before operating again. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk HEX Par 7 User Manual...
  • Page 3 1 x fixture, 1 x power cable & 1 x user manual 01 - Hanging bracket 245mm 150mm 02 - Hanging bracket adjustment knobs 03 - LED display 04 - Function buttons 05 - IP rated power input 06 - IP rated power output 07 - IP rated DMX input 08 - IP rated DMX output Specifications HEX Par 7 Power consumption Power supply 100~240V, 50/60Hz Dimensions 280 x 245 x 150mm Weight 3.8kg Order code LEDJ228 www.prolight.co.uk HEX Par 7 User Manual...
  • Page 4 5 1 2 1 0 o F ENTER d I s P Display timeout 3 0 o F DOWN 6 0 o F ENTER u e r u - - - Software version www.prolight.co.uk HEX Par 7 User Manual...
  • Page 5 Channel Value Function 000-255 Master dimmer (0-100%) 000-016 Red 017-033 Green 034-050 Blue 051-067 White 068-084 Amber 085-101 UV 102-118 Yellow (R: 255, G: 200, A: 255) 119-135 Cyan (G: 255, B: 255) 136-152 Lavender (R: 170, B: 210) 153-169 Bright green (G: 255, A: 180) 170-186 Magenta (R: 255, B: 90, UV: 255) 187-203 Turquoise (G: 255, B: 180, UV: 255) 204-220 Orange (R: 200, A: 200) 221-237 Cool white (R: 70, G: 190, B: 255, A: 200) 238-255 Warm white (R: 230, G: 255, B: 255, A: 255, W: 255) www.prolight.co.uk HEX Par 7 User Manual...
  • Page 6 081-170 Colour change (slow-fast) Channel Value Function 171-255 Colour fade (slow-fast) 000-255 Red (0-100%) 000-255 Green (0-100%) 000-255 Blue (0-100%) 000-255 White (0-100%) 000-255 Amber (0-100%) 6 channel mode: Channel Value Function 000-255 Red (0-100%) 000-255 Green (0-100%) 000-255 Blue (0-100%) 000-255 White (0-100%) 000-255 Amber (0-100%) 000-255 UV (0-100%) www.prolight.co.uk HEX Par 7 User Manual...
  • Page 7 081-170 Colour change (slow-fast) 171-255 Colour fade (slow-fast) Colour change mode: JUNP To access colour change mode press “MENU” until the display shows on the LED display. Press “ENTER” to and use the “UP” and “DOWN” buttons to adjust the speed between J500 J599 . Press “ENTER” to and use the “UP” and “DOWN” buttons to adjust the flash JF00 JF99 speed between . Press the “ENTER” button to confirm the setting. Value: 0 - 99 (0 = slow speed, 99 = fast speed) To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk HEX Par 7 User Manual...
  • Page 8 Press the “ENTER” button and use the “UP” and “DOWN” buttons to select the brightness between r. 0 00 r. 2 55 . Press the “ENTER” button and repeat for green ( ), blue ( ), white ( ), amber ( and UV ( ). Press “ENTER” to and use the “UP” and “DOWN” buttons to adjust the flash CF00 CF99 speed between . Press the “ENTER” button to confirm the setting. Value: 000 - 255 (000 = low brightness, 255 = high brightness) To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk HEX Par 7 User Manual...

  • Page 9: Hold Mode

    ), hoLd StoP Hold mode ( ) and Stop mode ( ). Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Display timeout: Display timeout allows the user to choose after what period of time the display goes off. dISP To change the display timeout press “MENU” until the display shows on the LED display. Press “ENTER” to and use the “UP” and “DOWN” buttons to choose between on ( ), 10 second 10oF 30oF 60oF timout ( ), 30 second timout ( ) and 60 second timout ( ). Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. Software version: To see what version the fixture is press “MENU” until the display shows on the LED display. Press “ENTER” to and the fixture version will be displayed. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk HEX Par 7 User Manual...

  • Page 10: Dmx Setup

    DMX cable DMX cable DMX cable DMX cable Order code: LEDJ91 Order code: LEDJ141 Order code: LEDJ142 Order code: LEDJ143 Order code: LEDJ144 Also remember LEDJ 1m Exterior LEDJ 2m Exterior LEDJ 5m Exterior LEDJ 10m Exterior Power cable Power cable Power cable Power cable that DMX cable must be daisy chained and cannot be split. Order code: LEDJ146 Order code: LEDJ147 Order code: LEDJ148 Order code: LEDJ149 www.prolight.co.uk HEX Par 7 User Manual...
  • Page 11 5-pin XLR (socket) 3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk HEX Par 7 User Manual...

  • Page 12: Weee Notice

    WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk HEX Par 7 User Manual...
