Page 1: Installation Guide
KGC-310 / KGC-310M Web Smart Gigabit Ethernet Media Converter F/W v1.03 up Installation Guide DOC.111205... - Page 2 KTI Networks Inc. KTI Networks Inc. reserves the right to revise this documentation and to make changes in content from time to time without obligation on the part of KTI Networks Inc. to provide notification of such revision or change.
- Page 3 The information contained in this document is subject to change without prior notice. Copyright (C). All Rights Reserved. TRADEMARKS Ethernet is a registered trademark of Xerox Corp. WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 4: Table Of Contents
Table of Contents 1. Introduction ....................6 1.1 Features ........................7 1.2 Product Panels ......................8 1.3 Specifications ......................8 2. Installation ....................11 2.1 Unpacking ....................... 11 2.2 Safety Cautions ...................... 11 2.3 Mounting the Media Converter ................. 12 2.4 Applying Power ...................... - Page 5 4.8 Reboot System ....................... 40 4.9 Restore Default ....................... 40 4.10 Update Firmware ....................41 4.11 Logout ........................41 Appendix A. Factory Default Settings ............42 Appendix B. Models & Optical Specifications ..........44...
-
Page 6: Introduction
1. Introduction The KGC-310 is Gigabit Ethernet media converter series which provide the following features: Data Conversion between different Media types and Speed The media converter supports the following conversions: 1000Mbps (1000BASE-T) copper to/from 1000Mbps (1000BASE-X) fiber 100Mbps (1000BASE-TX) copper to/from 1000Mbps (1000BASE-X) fiber... -
Page 7: Features
Quality of Service For conversion between two different speeds, the device is featured with powerful Quality of Service (QoS) function which can classify the priority for received network frames based on the ingress port and frame contents. Furthermore, many service priority policies can be configured for egress operation. Web Management The device is embedded with an Http server which provides management functions for advanced network functions including Port Control, Quality of Service, and Virtual LAN functions. -
Page 8: Product Panels

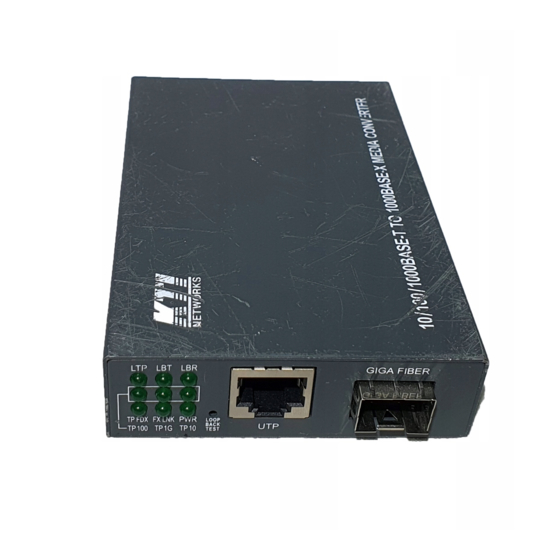

1.2 Product Panels The following figure illustrates the front panel and rear panel of the device: 1.3 Specifications 10/100/1000 Twisted-pair Copper Port (TP, RJ-45) Compliance IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3u 1000Base-T Connectors Shielded RJ-45 jacks Pin assignments Auto MDI/MDI-X detection Configuration Auto-negotiation, manual settings or software control... - Page 9 LED Indicators Power status Local or remote TP indication on TP LEDs Loopback test in-progress LED Loopback test result LED FXLNK Fiber port link and activity status TP1G Twisted-pair copper port 1000Mbps and link status TP100 Twisted-pair copper port 100Mbps and link status TP10 Twisted-pair copper port 10Mbps and link status TPFDX...
- Page 10 Environmental Operating Temperature Typical -5 C ~ 55 Storage Temperature C ~ 85 Relative Humidity 10% ~ 90% Electrical Approvals Part 15 rule Class B EMC, CISPR22 Class B C-Tick AS/NZS Software Management Functions Interfaces Web browser Management objects System configuration - IP settings, Name, Password Port configuration control and status 802.1Q control settings QoS settings...
-
Page 11: Installation
2. Installation 2.1 Unpacking The product package contains: • The media converter unit • One product CD-ROM 2.2 Safety Cautions To reduce the risk of bodily injury, electrical shock, fire, and damage to the product, observe the follow- ing precautions. •... -
Page 12: Mounting The Media Converter
2.3 Mounting the Media Converter The media converter can be mounted on a desktop or shelf or a wall. Make sure that there is proper heat dissipation from and adequate ventilation around the device. Do not place heavy objects on the device. -
Page 13: Applying Power
Center rack mounting The media converter can also be installed in KC-1300 center chassis. The center chassis provides the power supply to the converter also with optional power redundancy. Up to 16 units can be installed in one chassis. Unscrew and remove the cover of the center connector before inserting the converter into the chassis. -
Page 14: Making Utp Connections
2.5 Making UTP Connections The 10/100/1000 twisted-pair copper (TP) port supports the following connection types and distances: Network Cables 10BASE-T: 2-pair UTP Cat. 3,4,5 , EIA/TIA-568B 100-ohm 100BASE-TX: 2-pair UTP Cat. 5, EIA/TIA-568B 100-ohm 1000BASE-T: 4-pair UTP Cat. 5 or higher (Cat.5e is recommended), EIA/TIA-568B 100-ohm Link distance: Up to 100 meters Auto MDI/MDI-X Function This function allows the port to auto-detect the twisted-pair signals and adapts itself to form a valid... -
Page 15: Making Fiber Connection
2.6 Making Fiber Connection The mini-GBIC SFP (FX) port must be installed with an SFP fiber transceiver for making fiber connection. Your device unit may come with an SFP transceiver pre-installed when it is shipped. Installing SFP Fiber Transceiver To install an SFP fiber transceiver into mini-GBIC SFP port, the steps are: 1. -
Page 16: Loopback Test Push Button
2.7 Loopback Test Push Button The push button is used to perform loopback test between two media converters connected with fiber cable as shown below: It allows installer to perform diagnostic to the fiber link during installation and check the test result displayed on the LED indicators. -
Page 17: Configuration Dip Sw
2.8 Configuration DIP SW The configuration DIP SW (switches) are used for setting operation configuration manually. The functions of each DIP SW states are: SW1 SW2 SW3 SW4 SW5 SW6 Function ------ ------ ------ Ignore DIP SW6 SW5 SW4 settings (Use software configuration for managed model) ------ ------ ------ Set TP Port in non-auto, 10Mbps, Full duplex mode... -
Page 18: Led Indication
2.9 LED Indication Function State Interpretation Power status The power is supplied to the unit. The power is not supplied to the unit. Local TP status Local TP port status displayed on TPxxx LEDs Remote TP port status displayed on TPxxx LEDs Blink Fail to display remote TP port status Remark: 1. -
Page 19: Configuring Ip Address And Password For The Device
2.10 Configuring IP Address and Password for the Device For managed model, the device unit is shipped with the following factory default settings for software management : Default IP address of the device : 192.168.0.2 / 255.255.255.0 The IP Address is an identification of the device unit in a TCP/IP network. Each unit should be desig- nated a new and unique IP address in the network. -
Page 20: Functions
3. Functions To help a better understanding about the software management interfaces, this chapter describes some advanced functions provided by the media converter. 3.1 Abbreviation TP Port : The twisted-pair copper port of the media converter device. FX Port : The optical fiber port of the media converter device. Ingress Port : Ingress port is the input port on which a packet is received. -
Page 21: Link Fault Pass Through Function
3.3 Link Fault Pass Through Function Description When the Link Fault Pass Through (LFPT) function is enabled and the media converter detects a link fault on one port segment, it will force the other port segment link down. It looks like that a link fault is passed from one port to the other. -
Page 22: Remote Tp Status Monitoring Function
3.4 Remote TP Status Monitoring Function Description The local media converter can monitor the TP port link status of its remote link partner connected on the fiber cable. The status are displayed on the local LED indicators as follows: Methods to enable the function Hardware setting: DIP SW5 is set to ON position Software setting:... -
Page 23: 802.1Q Control Function
3.5 802.1Q Control Function 802.1Q Control function allows to perform 802.1Q VLAN related operation to the packets passing through the media converter according packet contents as follows: [Ingress Drop] setting The setting is the first filtering mechanism to filter all incoming untagged packets or to filter all incoming VLAN-tagged packets. - Page 24 [Default Tag -VID], [Default Tag - CFI], [Default Tag - Priority] settings These settings compose one ingress port Default Tag. This tag is used when a tag insertion is required for untagged packets. 802.1Q Filtering 802.1Q VID Filtering function allows to admit or reject certain VID tagged packets. Up to 16 allowed (positive list) or rejected (negative list) VIDs can be configured.
-
Page 25: Qos Function
3.6 QoS Function The device provides a powerful Quality of Service (QoS) function to guide the packet forwarding in four priority classes. The versatile classification methods can meet most of the application needs. The function is useful for guiding the incoming traffic on high data rate port into low data rate port in priority. -
Page 26: Packet Priority Classification
3.6.1 Packet Priority Classification Each received packet is examined and classified into one of four priority classes, Class 3, Class 2, Class 1 and Class 0 upon reception. The device provides the following classification methods: 802.1p classification : use User Priority tag value in the received IEEE 802.1Q packet to map to one priority class DSCP classification : use DSCP value in the received IP packet to map to one priority class Port-based classification : used when 802.1p and DSCP are disabled or fail to be applied... -
Page 27: Snmp Trap Function
3.7 SNMP Trap Function SNMP trap function allows the device to send trap message to an SNMP trap host over SNMP protocol when the associated trap event occurs. SNMP Trap settings The settings are used to configure a trap host who can receive the SNMP trap message issued from a media converter device unit. -
Page 28: Web Management
4. Web Management The media converter features an http server which can serve the management requests coming from any web browser software over TCP/IP network. Web Browser Compatible web browser software with JAVA script support Microsoft Internet Explorer 4.0 or later Netscape Communicator 4.x or later Set IP Address for the System Unit Before the device unit can be managed from a web browser software, make sure a unique IP address... -
Page 29: Main Management Menu
4.3 Main Management Menu The following information describes the basic functions of the main menu. Configuration System Device information, system and IP related settings Ports Port link status, operation mode configuration and other per port settings Monitoring Statistics List statistics for the local ports and remote TP port link status Maintenance Loopback Test Command to perform loopback test on fiber link... -
Page 30: System
4.4 System Configuration Description MAC Address The MAC address factory configured for the unit It can not be changed in any cases. S/W Version The firmware version currently running H/W Version The hardware version currently operating Management VLAN Set management VLAN information (See next section) - VID VLAN ID configured for web management to the device - CFI... - Page 31 SNMP Trap SNMP trap function configuration Disable - the device is disable to send SNMP trap messages. Enable - the device is enable to send SNMP trap messages. Community Name Set community string to be bound with trap packets Trap IP Address Set IP address of the SNMP trap host 802.1Q Control 802.1Q Control function main configuration...
-
Page 32: Management Vlan
4.4.1 Management VLAN Management VLAN settings allow administrator to access the device and perform the web manage- ment over a dedicated VLAN only. The following rules are applied with the Management VLAN: 1. If the 802.1Q Control function is disabled, Management VLAN settings are ignored and no VLAN limitation is applied in accessing the web management interface. -
Page 33: Ports
4.5 Ports Ports Configuration has three major parts as follows: Port Configuration Port link status, port operating mode, port flow control 802.1Q Control 802.1Q Control per port settings QoS Control QoS Control per port settings -33-... - Page 34 Port Configuration Function Port TP - Twisted-Pair copper port FX - Fiber port Link Port link status Speed and duplex status with green background - port is link on Down with red background - port is link down Mode Select port operating mode Disabled - disable the port operation TP Mode Auto-negotiation...
- Page 35 QoS Control Description QoS 802.1p 802.1p priority classification Enable - set to enable this classification to the port for priority-tagged and VLAN-tagged packets Disable - 802.1p classification is not applied to the port QoS DSCP DSCP classification Enable - set to enable DSCP classification to the port for IP packets Disable - DSCP classification is not applied to the port.
-
Page 36: 802.1Q Filtering
4.5.1 802.1Q Filtering Configuration Description VID TABLE Specify the characteristic of the VID table. Disable - set to disable 802.1Q filtering function. Allowed VID - the VID table specifies the allowed VIDs rejected VID - the VID table specifies the rejected VIDs Entry of VID table - up to 16 VIDs can be configured in VID table 1 ~ 4095 - decimal 12-bit VID value [Apply]... -
Page 37: 802.1P Mapping
4.5.2 802.1p Mapping Configuration Description Port TP - Twisted-Pair copper port FX - Fiber port tag m 3-bit User priority tag value m ( range : 0 ~ 7 ) Priority class Mapped priority class for tag m on Port Class 3 ~ Class 0 [Apply] Click to apply the configuration change... -
Page 38: Dscp Mapping
4.5.3 DSCP Mapping Configuration Description DSCP [0-63] Seven user-defined DSCP values which are configured with a priority class 0 ~ 63 - 6-bit DSCP value in decimal Priority The priority class configured for the user-defined DSCP value Class 3 ~ Class 0 All others The other DSCP values not in the seven user-defined values are assigned a default priority class... -
Page 39: Statistics
4.6 Statistics Configuration Description Port TP - Twisted-Pair copper port on local unit FX - Fiber port on local unit Remote TP - TP port of the remote unit connected on the fiber link Link Port link status Speed and duplex status with green background - port is link on Down with red background - port is link down Tx Bytes Total of bytes transmitted on the port... -
Page 40: Loopback Test
4.7 Loopback Test This menu is used to start a loopback test operation with the link partner unit over the fiber link. The message displayed during test is: The result message displayed after a test finished is: The test result is also displayed on LEDs - LBT and LBR. 4.8 Reboot System This menu is used to reboot the device unit remotely with current configuration. -
Page 41: Update Firmware
4.10 Update Firmware This menu is used to perform in-band firmware (software) upgrade. Enter the path and file name of new firmware image file for uploading. Configuration Description Filename Path and filename (warp format) [Browse] Click to browse your computer file system for the firmware image file [Upload] Click to start upload 4.11 Logout... -
Page 42: Appendix A. Factory Default Settings
Appendix A. Factory Default Settings Configuration DIP SW Unmanaged Model Managed Model SW3 SW2 SW1 ON ON ON OFF OFF OFF Auto,10/100/100,Full/Half Web configuration (SW4-6 ignored) OFF (Enable flow control) OFF (Disable remote TP auto report) OFF OFF (Disable link fault pass through) OFF System Configuration Management VLAN - VID Management VLAN - CFI... - Page 43 Ingress Keep Tag Enable Egress Insert Tag Disable Default Tag - VID (PVID) Default Tag - CFI Default Tag - Priority QoS 802.1p Disable QoS DSCP Disable QoS Default Priority Class 3 QoS Egress Service Strict priority 802.1Q Filtering VID TABLE Disable VID n (n=1-16) 802.1p Mapping...
-
Page 44: Appendix B. Models & Optical Specifications
Appendix B. Models & Optical Specifications Model Definition KGC-310 Unmanaged model with no pre-installed SFP transceiver KGC-310-xxxx Unmanaged model with pre-installed SFP transceiver KGC-310M Managed model with no pre-installed SFP transceiver KGC-310M-xxxx Managed model with pre-installed SFP transceiver Model Ext.
