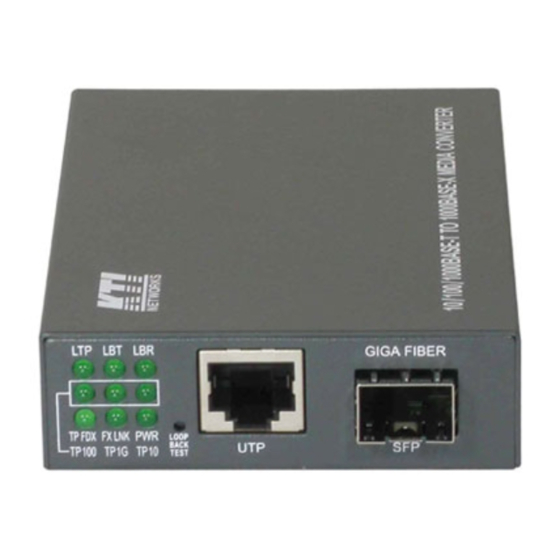

- Page 1 10/100/1000BASE-T to Dual-speed Fiber Ethernet Media Converter KGC-301 Installation Guide DOC.200408...
- Page 2 (C) 2020 KTI Networks Inc. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to make any directive work (such as translation or transformation) without permission from KTI Networks Inc.
- Page 3 The information contained in this document is subject to change without prior notice. Copyright (C) All Rights Reserved. TRADEMARKS Ethernet is a registered trademark of Xerox Corp. FCC WARNING AND NOTICE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
-
Page 4: Table Of Contents
Table of Contents 1. Introduction ........................... 5 1.1 Features ......................6 1.2 Product Panels ....................6 1.3 Specifications ...................... 6 2. Installation ............................. 9 2.1 Unpacking ......................9 2.2 Safety Cautions ....................9 2.3 Mounting the Media Converter ................10 2.4 Applying Power .................... -
Page 5: Introduction
1. Introduction The KGC-301 is Gigabit Ethernet media converter series which provide the following features: Data Conversion between different Media types and Speed The media converter supports the following conversions: 1000Mbps (1000BASE-T) copper to/from 1000Mbps (1000BASE-X) fiber 100Mbps (100BASE-TX) copper to/from 1000Mbps (1000BASE-X) fiber ... -
Page 6: Features
1.1 Features Basic functions Tri-speed 10/100/1000Mbps copper to dual-speed 1G/100Mbps fiber conversion Support full wire speed conversion Support jumbo frame conversion Provide direct conversion with shortest latency between two links at same line rate Support transparent conversion of any packet types with no packet modification ... - Page 7 Transmission rate 10Mbps, 100Mbps, 1000Mbps Duplex support Full/Half duplex Network cable Cat.5 UTP SFP - Dual-speed Fiber Port Compliance IEEE 802.3z 1000Base-X, IEEE 802.3u 100BASE-FX Connectors SFP for optional SFP type fiber transceivers Configuration Auto speed detection, Fixed on auto-negotiation 1000Mbps Full duplex Transmission rate 1000Mbps, 100Mbps (Dual-speed support) Network cables...
- Page 8 All packet types except PAUSE packets under store and forward mode Maximum packet length Jumbo frame support up to 16Kbytes Flow control Active under store and forward mode IEEE 802.3x pause frame base for full duplex operation Back pressure for half duplex operation DC IN - DC Power Input Interfaces DC Jack ( -D 6.3mm / + D 2.0mm)
-
Page 9: Installation
2. Installation 2.1 Unpacking The product package contains: The device unit One AC power adapter QR code label linking to product documentation cloud 2.2 Safety Cautions To reduce the risk of bodily injury, electrical shock, fire and damage to the product, observe the following precautions. -
Page 10: Mounting The Media Converter
2.3 Mounting the Media Converter The media converter can be mounted on a desktop or shelf or a wall. Make sure that there is proper heat dissipation from and adequate ventilation around the device. Do not place heavy objects on the device. - Page 11 Din-Rail mounting For a Din-Rail chassis, the device can support mounting on a Din-Rail. An optional Din-Rail bracket, KC-3DR can be purchased separately. The following figure shows an example after bracket installation: Center rack mounting The media converter can also be installed in KC-1300 center chassis. The center chassis provides the power supply to the media converter also with optional power redundancy.
-
Page 12: Applying Power
2.4 Applying Power Before you begin the installation, check the AC voltage of your area. The AC power adapter which is used to supply the DC power for the unit should have the AC voltage matching the commercial power voltage in your area. Steps to apply the power to the device are: 1. -
Page 13: Making Utp Connections
2.5 Making UTP Connections The 10/100/1000 twisted-pair copper port supports the following connection types and distances: Network Cables 10BASE-T: 2-pair UTP Cat. 3,4,5 , EIA/TIA-568B 100-ohm 100BASE-TX: 2-pair UTP Cat. 5, EIA/TIA-568B 100-ohm 1000BASE-T: 4-pair UTP Cat. 5 or higher (Cat.5e is recommended), EIA/TIA-568B 100-ohm Link distance: Up to 100 meters Auto MDI/MDI-X Function This function allows the port to auto-detect the twisted-pair signals and adapts itself to form a valid... -
Page 14: Making Fiber Connection
2.6 Making Fiber Connection The mini-GBIC SFP port must be installed with an SFP fiber transceiver for making fiber connection. Your device may come with an SFP transceiver pre-installed when it was shipped. Installing SFP Fiber Transceiver To install an SFP fiber transceiver into the SFP port, the steps are: 1. -
Page 15: Sfp Configuration Dip Switch (Sw4)
2.6.1 SFP Configuration DIP Switch (SW4) Mode 1000Mbps, Full duplex, Auto-negotiation enabled (Factory default) Auto detection Full duplex Line rate, 1000Mbps or 100Mbps is determined by detecting the data rate information embedded in the installed SFP transceiver Note: The setting change of SW4 takes effect after next device power-up. 2.7 LED Indication State Interpretation... -
Page 16: Media Converter Functions
3 Media Converter Functions 3.1 Line Rate Conversion The device supports the following data conversions between fiber cable and twisted-pair Cat.5 (copper) cable: The data line rate on twisted-pair copper segment depends on the link speed finally established with the link partner. However, the line rate can be fixed at one specific line rate by setting UTP configuration DIP switches (SW1 ~ SW3). -
Page 17: Link Fault Pass Through Function
3.3 Link Fault Pass Through Function When the Link Fault Pass Through (LFPT) function is enabled. When the media converter detects a link fault on one port segment, it will force the other port segment link down. It looks like that a link fault is passed from one port to the other. -
Page 18: Lfpt Configuration Dip Switch (Sw5)
3.3.1 LFPT Configuration DIP Switch (SW5) The LFPT function can be enabled by setting SW5 as below: LFPT Disabled (Factory default) Enabled Note: The setting change of SW5 takes effect after next device power-up. Under certain condition, LFPT function is not supported. See the following table: SFP Port Mode LFPT Function 1000Mbps, Full duplex,... -
Page 19: Appendix A. Models & Optical Specifications
Appendix A. Models & Optical Specifications Model Definition KGC-301 Managed model with no pre-installed SFP transceiver KGC-301-xxxx Managed model with pre-installed SFP transceiver SFP with 1000BASE-X fiber transceiver Model Ext. FiberCon. Reference Fiber Distance (Typ.) 1000M LC Duplex MMF 500m... - Page 20 -W3410S T1310/R1490 -9~ -3 -W4310S T1490/R1310 -9~ -3 Tx Power : Transmitter power (min. ~ max., unit: dBm) Rx Sen. : Receiver sensitivity (unit: dBm) Max.Rx. : Maximal Received power (unit.: dBm) Note: The media converter also can support typical 100M SFP transceivers.
