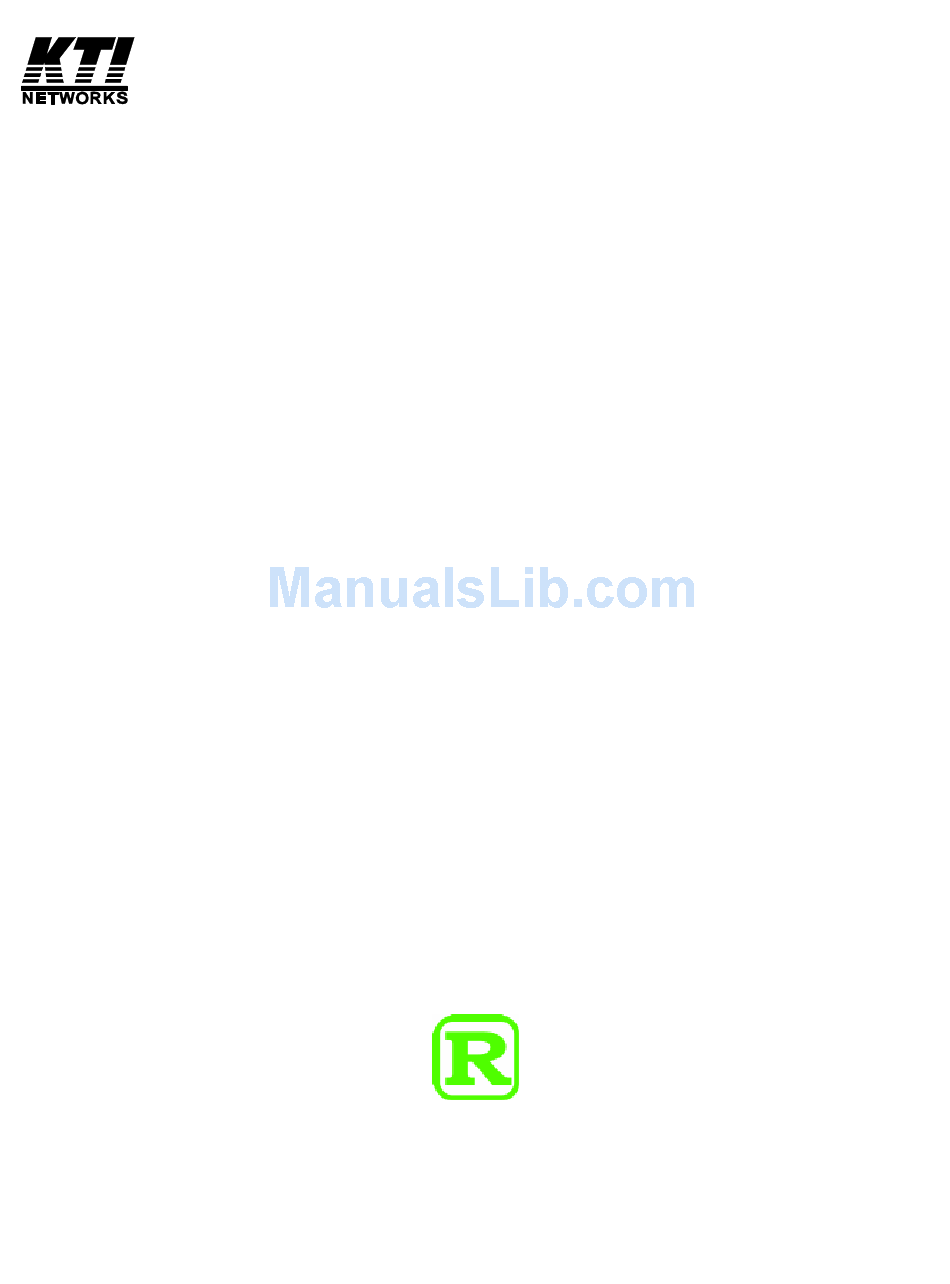

Page 1: Installation Guide
KFC-200 10/100BASE-TX to 100BASE-FX Media Converters Installation Guide DOC.110530... - Page 2 (C) 2011 KTI Networks Inc. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to make any directive work (such as translation or transformation) without permission from KTI Networks Inc.
- Page 3 The information contained in this document is subject to change without prior notice. Copyright (C) All Rights Reserved. TRADEMARKS Ethernet is a registered trademark of Xerox Corp. FCC NOTICE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including the interference that may cause undesired operation.
-
Page 4: Table Of Contents
Table of Contents 1. Introduction..............................5 1.1 Features ..........................5 1.2 Product Panels........................6 1.3 Specifications ......................... 7 2. Installation................................8 2.1 Unpacking ..........................8 2.2 Safety Cautions........................8 2.3 Mounting the Device ......................9 2.4 Applying Power with Power Adapter ..................12 3. -
Page 5: Introduction
1. Introduction The 10/100BASE-TX to 100BASE-FX media converter series provides a media conversion allowing high-speed integration of fiber optic and twisted-pair segments. With 10BASE-T and 100BASE-TX support, the converters provide seamless translation between Ethernet and Fast Ethernet networks. A complete set of LEDs allows for quick status verification. -
Page 6: Product Panels

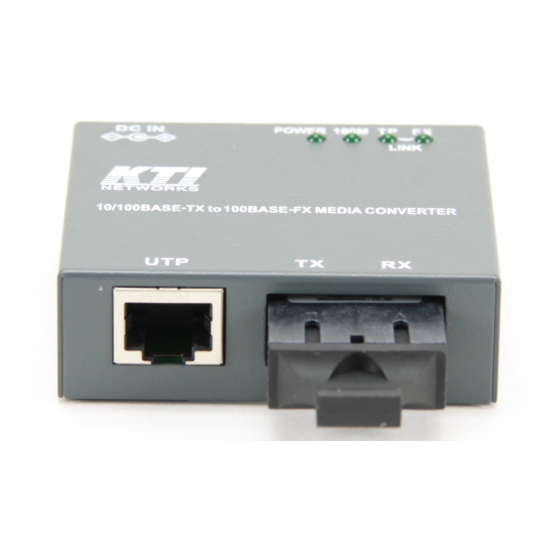

1.2 Product Panels The following figure illustrates the panels of the media converters: Media Converter with duplex SC connector Media Converter with duplex ST connector... -
Page 7: Specifications
1.3 Specifications TP Port IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX Shielded RJ-45 jacks with Auto MDI/MDI-X detection Auto-negotiation for speed and duplex auto detection Speed for 10Mbps or 100Mbps Full-duplex or half-duplex support FX Port IEEE 802.3u 100BASE-FX compliant Forced 100Mbps, Full duplex Far end fault Function Options: Duplex SC for MMF, Duplex ST for MMF, Duplex SC for SMF, BiDi SC for SMF... -
Page 8: Installation
2. Installation 2.1 Unpacking The product package contains: The media converter unit One AC power adapter One product CD-ROM 2.2 Safety Cautions To reduce the risk of bodily injury, electrical shock, fire and damage to the product, observe the following precautions. -
Page 9: Mounting The Device
2.3 Mounting the Device Desktop Mounting The media converter can be mounted on a desktop or shelf. Make sure that there is proper heat dissipation from and adequate ventilation around the device. Do not place heavy objects on the device. Wall Mounting To mount the device on a wall, one wall mounting hole is provided on the bottom of the device. - Page 10 Optional Din-Rail Mounting To mount the media converter on a Din-Rail, one optional Din-Rail mounting bracket is required. Screw the bracket onto the bottom of the device with M3x0.5 screws as follows: Dimension with installed bracket -10-...
- Page 11 Optional Panel Mounting To mount the media converter on a plane face, wood board or panel, one optional panel mounting bracket is required. Screw the bracket onto the bottom of the device with M3x0.5 screws as follows: Dimension with installed bracket -11-...
-
Page 12: Applying Power With Power Adapter
2.4 Applying Power with Power Adapter The device provides a DC power jack for receiving DC power input from an external AC-DC power adapter. One power adapter is packed in each product package. Consult your purchasing agency for the right part number which matching the operating rating you require. -
Page 13: Making Fx Port Connection
3.2 Making FX Port Connection FX port operates on 100Mbps and full duplex. The following figures illustrate a connection example between two fiber ports: Duplex Connection Make sure the Rx-to-Tx connection rule is followed on the both ends of the fiber cable. Bi-Di Connection (Bi-Directional) Far End Fault Function The FX port is facilitated with this function, which conforms to IEEE 802.3u 100BASE-FX specifications. - Page 14 A variety of fiber options is provided as follows: Model Connector Wavelength Fiber Tx Power Rx Sensitivity Max. distance Duplex ST 1310nm -20 ~ -14dBm -32dBm Duplex SC 1310nm -20 ~ -14dBm -31dBm -SL3 Duplex SC 1310nm -15 ~ -8dBm -34dBm 30km -W3520...
-
Page 15: Led Indication
3.3 LED Indication Function State Interpretation POWER Power status The power is supplied to the switch. The power is not supplied to the switch. TP Speed Port speed status A speed of 100Mbps is selected. A speed of 10Mbps is selected. TP Link/Act.
