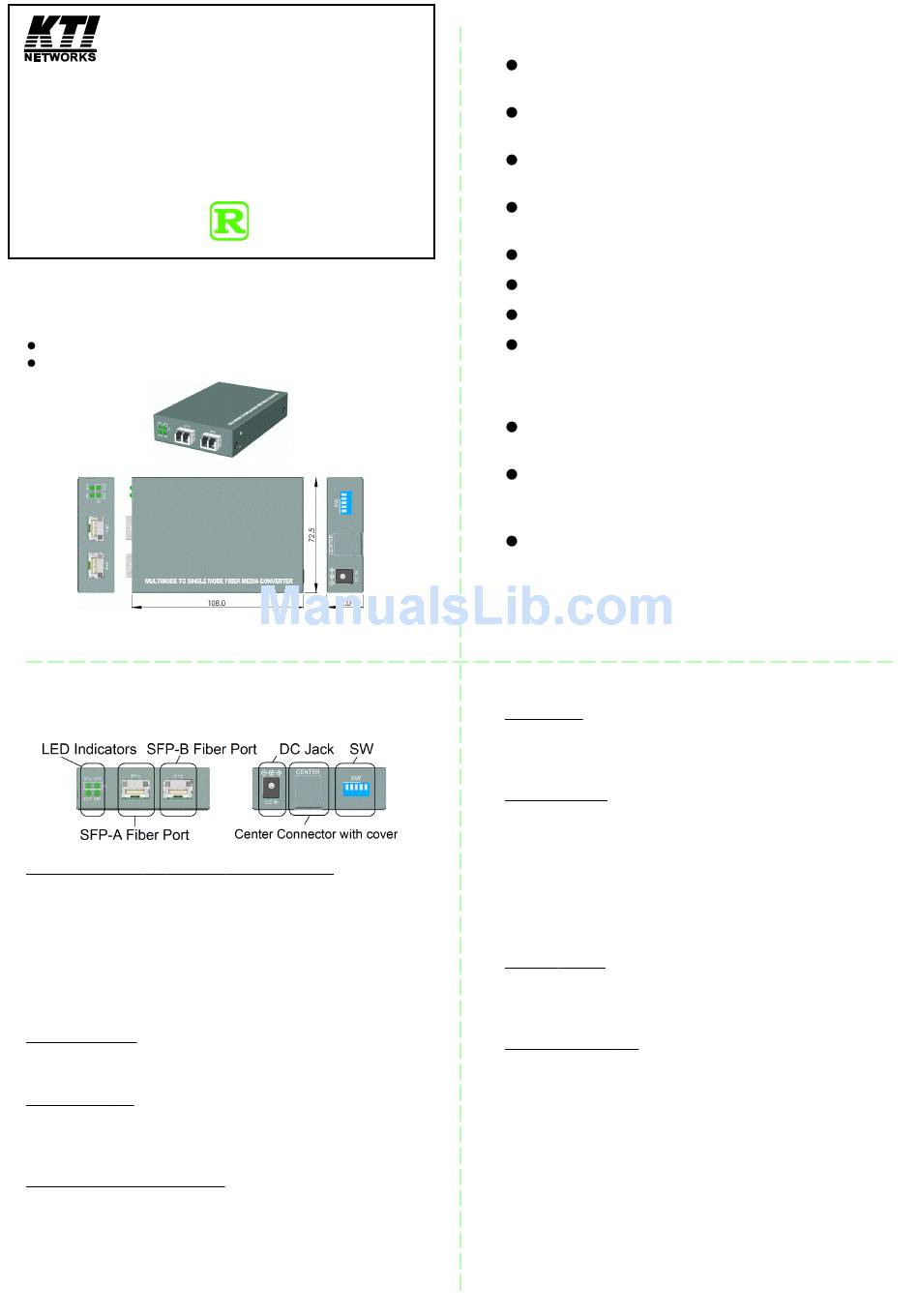

KTI Networks KGC-311 Series Installation Manual

Multimode to Single Mode
Optical Fiber Media Converters
KGC-311 Series

Installation Guide

General

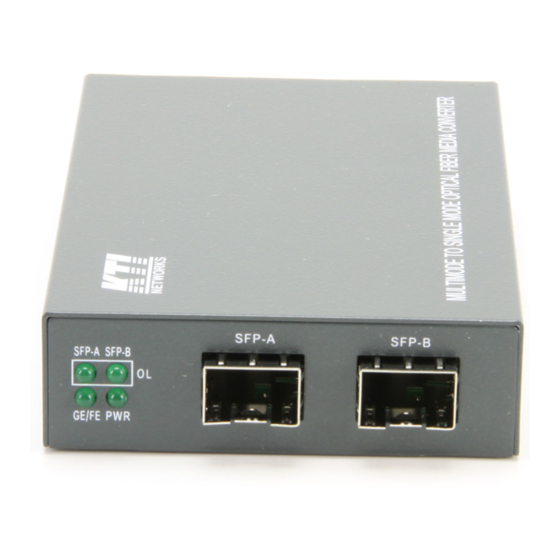

The KGC-311 is a mode to mode optical fiber converter se-
ries which provide the following conversions:
1000BASE-SX MM fiber to/from 1000BASE-LX SM fiber
100BASE-FX MM fiber to/from 100BASE-FX SM fiber

Specifications

Fiber Optic Interfaces (SFP-A & SFP-B Ports)
Compliance IEEE 802.3z 1000BASE-SX/LX std.
IEEE 802.3u 100BASE-FX std.
Connectors SFP for pluggable fiber transceiver
Data Speed 1000Mbps, full duplex (SW1-3: Off)
100Mbps. full duplex (SW1-3: On)
SFP-A MMF - 50/125, 62.5/125 µm
Cable Types
SFP-B SMF - 9/125 µm
Eye Safety compliance IEC825 Class 1
Center Interface
Interface For center chassis mounting
Connector FutureBus
DC Power Input
Interface DC Jack (-D6.3mm/+D2.0mm)
Operating Voltages DC input +5V ~ +12V
Power consumption max 2W @+7.5VDC input
SW (Configuration Switches)
SW1 ON - Gigabit Ethernet MM to SM
OFF - Fast Ethernet MM to SM
SW2 ~ SW5 Reserved
Features
DOC.070808-KGC311
1 2
3 4
Mechanical
Dimension (base)
Housing
Weight
LED Indicators
PWR
GE/FE
SFP-A OL
SFP-B OL
Environmental
Operating Temperature -5 ~ 55
Storage Temperature
Relative Humidity
Design Compliance
FCC Part 15 Class B, CE / CISPR 22 Class B, IEC60950 Safety
Desktop Mounting
The device can be mounted on a desktop or shelf. Make sure
that there is proper heat dissipation from and adequate venti-
lation around the device. Do not place heavy objects on the
device.

Wall Mounting

The device provides a mounting hole on the bottom case as
shown in the figure. Use the hole for a wall mounting.
Complies with IEEE 802.3z 1000Base-SX/LX and IEEE
802.3u 100Base-FX standard
Provides media conversion between single mode and
multimode optical fiber media types
Supports both 1000Mbps Gigabit Ethernet fiber and
100Mbps Fast Ethernet fiber applications
Provides two SFP slots to support standard SFP fiber
transceivers
Transparent conversion to any type of packet frame
No packet length limitation
Provides LEDs for easy network monitoring
Center chassis installation : support installation in a
center chassis rack with benefits of central software
management, central power and redundant power
backup.
Diversified mounting support : desktop mounting, wall
mounting, optional Din-Rail support
Support wide range of single mode fiber options: short
reach up to long reach, Bi-directional single fiber, and
CWDM
Low power consumption
W 108mm x D 72.5mm x H 23mm
Enclosed metal with no fan
206g
ON Power on
OFF Power off
ON GE MM to GE SM
OFF FE MM to FE SM
ON SFP-A port optical signal detected
OFF No optical signal
ON SFP-B port optical signal detected
OFF No optical signal
-20 ~ 85
10% ~ 70%
o
C
o
C
