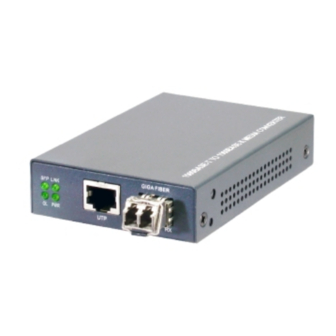

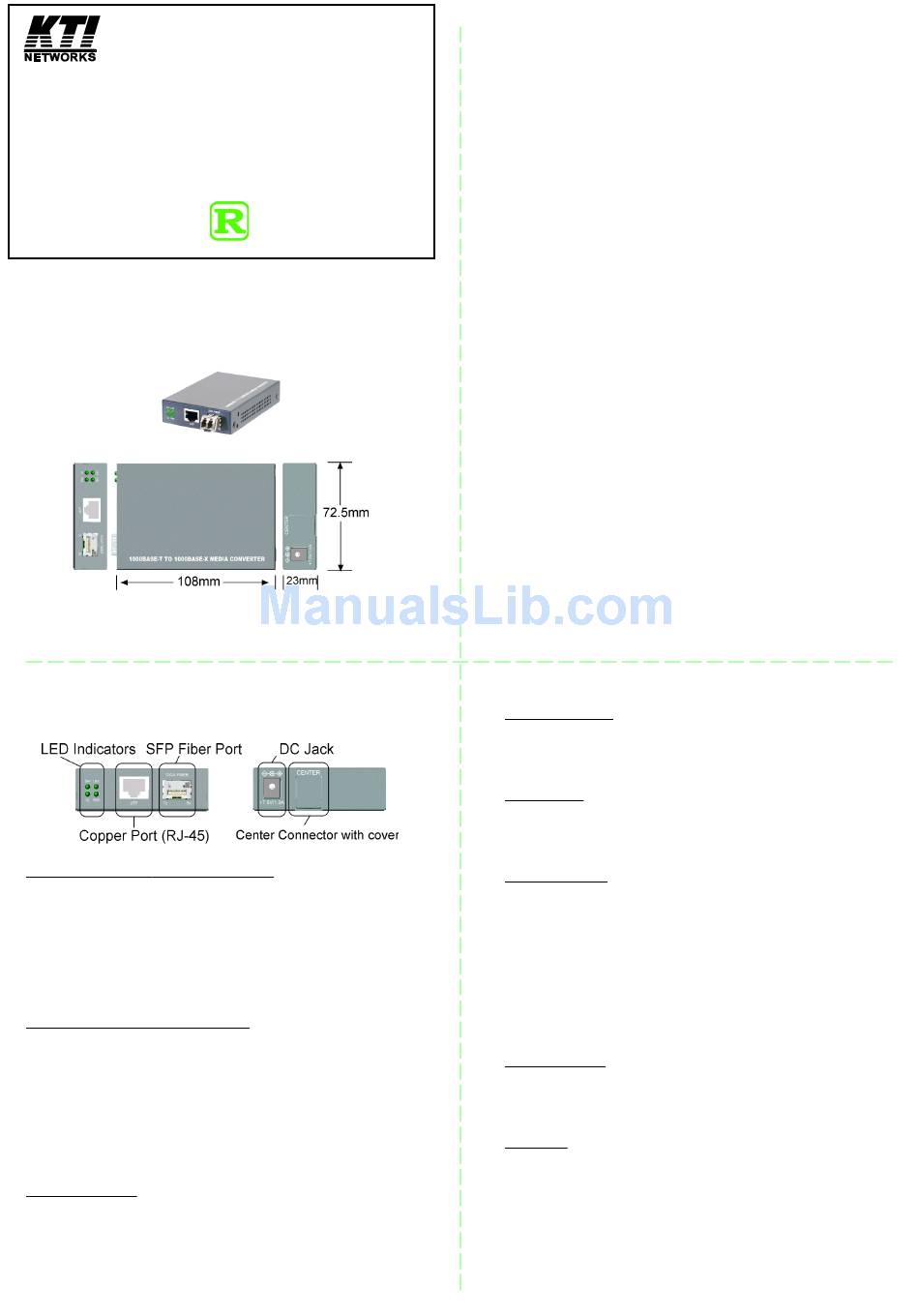

KTI Networks KGC-300 Series Installation Manual

Gigabit Ethernet Media Converters
1000BASE-T TO 1000BASE-SX/LX
KGC-300 Series
Installation Guide

General

The 1000BASE-T to 1000BASE-SX/LX media converter se-
ries provides 1000Mbps Gigabit Ethernet copper-to-fiber me-
dia conversion, allowing for 1000Base-T-1000Base-X over
multimode or optional single-mode fiber optical media.

Specifications

Twisted-Pair Interface (Copper Port)
Connector Shielded RJ-45
Signal Compliance IEEE 802.3ab 1000BASE-T std.
Pin Assignments Auto MDI/MDI-X detection
Data Speed 1000Mbps
Configuration Auto-negotiation support
Cable Types Category 5 or higher UTP
Link Distance Up to 100 meters
Fiber Optic Interface (Fiber Port)
Signal Compliance IEEE 802.3z 1000BASE-SX/LX std.
Connector SFP for pluggable fiber transceiver
Data Speed 1000Mbps, full duplex
MMF - 50/125, 62.5/125 µm
Cable Types
SMF - 9/125 µm
Link Distance MMF up to 500m
SMF -model dependent
Eye Safety compliance IEC825 Class 1
Center Interface
Interface For center chassis mounting
Connector FutureBus

Features

•
•
•
•
•
•
•
DOC.060227-KGC300
•
•
•
•
•
•
•
1 2
3 4
DC Power Input
Interface
Operating Voltages
Power consumption
Mechanical
Dimension (base)
Housing
Weight
LED Indicators
PWR
SFP
LINK
OL
Environmental
Operating Temperature -5 ~ 55
Storage Temperature
Relative Humidity
Approval
FCC Part 15 Class B
CE / CISPR 22 Class B
IEC60950 Safety
Refer to Model Optical Specification sheet for model de-
tails. The documentation describes the detailed fiber configu-
ration, rated operating temperature, and optical specification
of each model.
Gigabit copper to fiber conversion: 1000Base-T-to-
1000Base-SX/LX over multimode or single-mode fiber
SFP design : For flexibility, an SFP (Mini-GBIC) connector
is provided for the fiber port to accommodate any type of
SFP fiber transceiver when needed.
Support full wire speed copper to fiber conversion
Auto MDI/MDI-X detection function on the copper port
Auto-negotiation support
Plug and play : no configuration settings is required
Link Fault Pass Through : this function allows link fault
status passes through between copper link and fiber link
transparently.
Far End Fault function on fiber port
Transparent conversion to any type of packet frame
No packet length limitation
Diversified mounting support : desktop mounting, wall
mounting, optional Din-Rail support
Center chassis installation : support installation in an cen-
ter chassis rack with benefits of central software manage-
ment and redundant power backup.
Support wide range of fiber options : multimode fiber, single
mode fiber (short reach up to long reach), Bi-directional
single fiber, and CWDM optical
Low power consumption
DC Jack (-D6.3mm/+D2.0mm)
DC input +4.75V ~ +12.6V
max 2W @+7.5VDC input
W 108mm x D 72.5mm x H 23mm
Enclosed metal with no fan
205g
ON Power on
OFF Power off
ON SFP transceiver is installed.
OFF No SFP transceiver is installed.
ON Copper-fiber link up
OFF Copper-fiber link down
BLINK Copper-fiber link with data traffic
ON Fiber port optical signal detected
OFF Fiber port no optical signal
-40 ~ 85
5% ~ 90%
o
C
o
C
