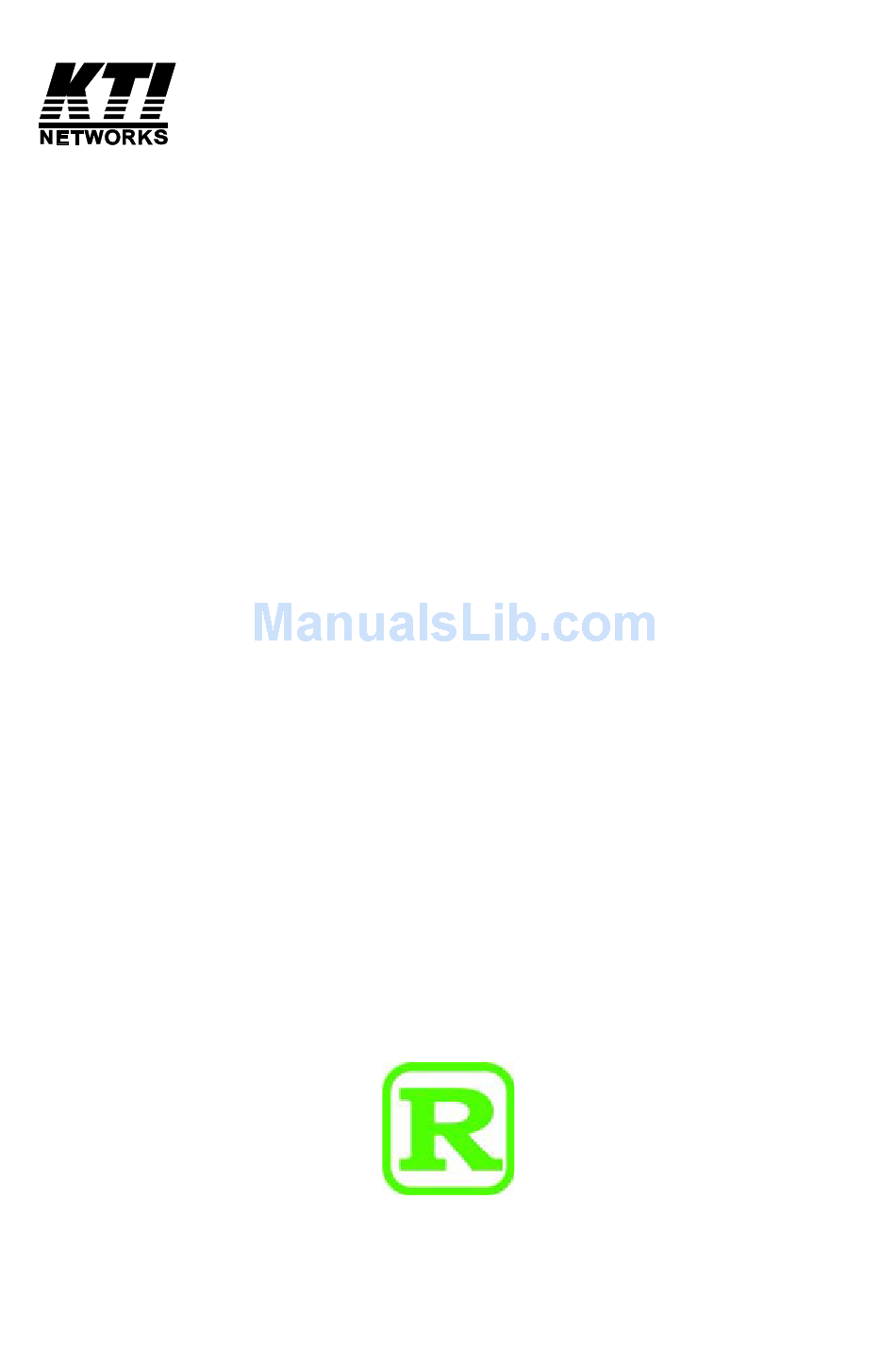

- Page 1 PoE Powered Gigabit Ethernet Media Converters 1000BASE-T TO 1000BASE-SX/LX KGC-352 Series Installation Guide DOC.120424-KGC-352...
- Page 2 (C) 2012 KTI Networks Inc. All rights reserved. No part of this documen- tation may be reproduced in any form or by any means or used to make any directive work (such as translation or transformation) without per- mission from KTI Networks Inc.
- Page 3 The information contained in this document is subject to change without prior notice. Copyright (C) All Rights Reserved. TRADEMARKS Ethernet is a registered trademark of Xerox Corp. FCC NOTICE This device complies with Class B Part 15 the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received including the interference that may cause.
-
Page 4: Table Of Contents
Table of Contents 1. Introduction ............5 1.1 Key Features ................. 6 1.2 Specifications ................7 1.3 Model Definition ................9 1.4 Optical Specifications ..............10 2. Installation ............11 2.1 Unpacking ..................11 2.2 Safety Cautions ................11 2.3 Mounting the Device ..............12 2.4 Powered by PoE over Cat.5 ............ -
Page 5: Introduction
1. Introduction The 1000BASE-T to 1000BASE-SX/LX media converter series provides 1000Mbps Gigabit Ethernet copper-to-fiber media conversion, allowing for 1000Base-T-1000Base-X over multimode or optional single-mode fi- ber optical media. Because of 802.3af compliance, the converters can draw the power via Cat.5 cable connected to a PoE PSE switch or mis-span injector in addi- tion to being powered by typical external power adapter,. -
Page 6: Key Features
1.1 Key Features • Gigabit copper to fiber conversion: 1000Base-T-to-1000Base-SX/LX over multimode or single-mode fiber • SFP design : For flexibility, an SFP (Mini-GBIC) connector is provided for the fiber port to accommodate any type of SFP fiber transceiver when needed. •... -
Page 7: Specifications
1.2 Specifications Twisted-Pair Interface (Copper Port) Connector Shielded RJ-45 Signal Compliance IEEE 802.3ab 1000BASE-T std. Pin Assignments Auto MDI/MDI-X detection Data Speed 1000Mbps Configuration Auto-negotiation support Cable Types Category 5 or higher UTP Link Distance Up to 100 meters Fiber Optic Interface (Fiber Port) Signal Compliance IEEE 802.3z 1000BASE-SX/LX std. - Page 8 DC Power Input Interface DC Jack (-D6.3mm/+D2.0mm) Operating Voltages DC input +7V ~ +57V Power consumption max 2W @+7.5VDC input Power Supply Options External AC-DC power adapters Input options: AC 100V/120V/230V/240V Rated output: DC7.5V 500mA min. Mechanical Dimension (base) W 108mm x D 72.5mm x H 23mm Housing Enclosed metal with no fan Weight...
-
Page 9: Model Definition
1.3 Model Definition Model Series: KGC-352-X Duplex fiber FiberCon. Fiber Distance (Typ.) none Free SFP no SFP transceiver Duplex MMF 500m Duplex MMF 550m, SMF 10km LX20 Duplex SMF 20km LX30 Duplex SMF 30km LX50 Duplex SMF 50km LX70 Duplex SMF 70km Bi-directional WDM over single SMF W3510 Simplex SMF 10km... -
Page 10: Optical Specifications
1.4 Optical Specifications Model Series : KGC-352-X Duplex Fiber Series Wavelength Tx Power* Rx Sen.* Max.Rx* 850nm -9.5~ -4 1310nm -9.5~ -3 LX20 1310nm -8~ -2 LX30 1310nm -4~ +1 LX50 1550nm -4~ +1 LX70 1550nm 0~ +5 Bi-Direction WDM over single SMF W3510 T1310/R1550 -9~ -3 W5310... -
Page 11: Installation
2. Installation 2.1 Unpacking Check that the following components have been included: • Installation guide (or contained in the product CD) • The Media Converter If any item is found missing or damaged, please contact your local reseller for replacement. 2.2 Safety Cautions To reduce the risk of bodily injury, electrical shock, fire, and damage to the product, observe the following precautions. -
Page 12: Mounting The Device
2.3 Mounting the Device Desktop Mounting The media converter can be mounted on a desktop or shelf. Make sure that there is proper heat dissipation from and adequate ventilation around the device. Do not place heavy objects on the device. Wall Mounting The media converter also can be mounted on a wall. -
Page 13: Powered By Poe Over Cat.5
2.4 Powered by PoE over Cat.5 Power supply by a Mid-Span PoE Injector The following figure illustrates the converter is powered by the PoE delivered from a remote mid-span PoE injector over Cat.5. Power supply by a PoE PSE Switched Port The following figure illustrates the converter is powered by the PoE delivered from a remote PoE PSE switch over Cat.5. -
Page 14: Notice When Installing Sfp Transceiver
2.5 Notice When Installing SFP transceiver It is suggested to use the recommended SFP transceivers for being in- stalled in this media converter. Consult your dealler for the details. Some SFP transceivers in the market have improper design that the metal case of the transceiver connected internal circuiitry of the transceiver. -
Page 15: Powered By External Power Adapter
2.6 Powered by External Power Adapter The converter can support being powered by an external power adapter as an alternative when PoE power is not available on Cat.5. Before you begin the installation, check the AC voltage of your area. The AC power adapter which is used to supply the DC power for the unit should have the AC voltage matching the commercial power voltage in your area. -
Page 16: Applications
3. Applications 3.1 Extending Connection Distance Use two media converters connected with an appropriate fiber cable to extend the connection distance between two Gigabit copper devices as shown below: 3.2 Connecting to a Fiber Gigabit Ethernet Port The converter can also connect to a remote fiber Gigabit Ethernet port over a fiber cable.
