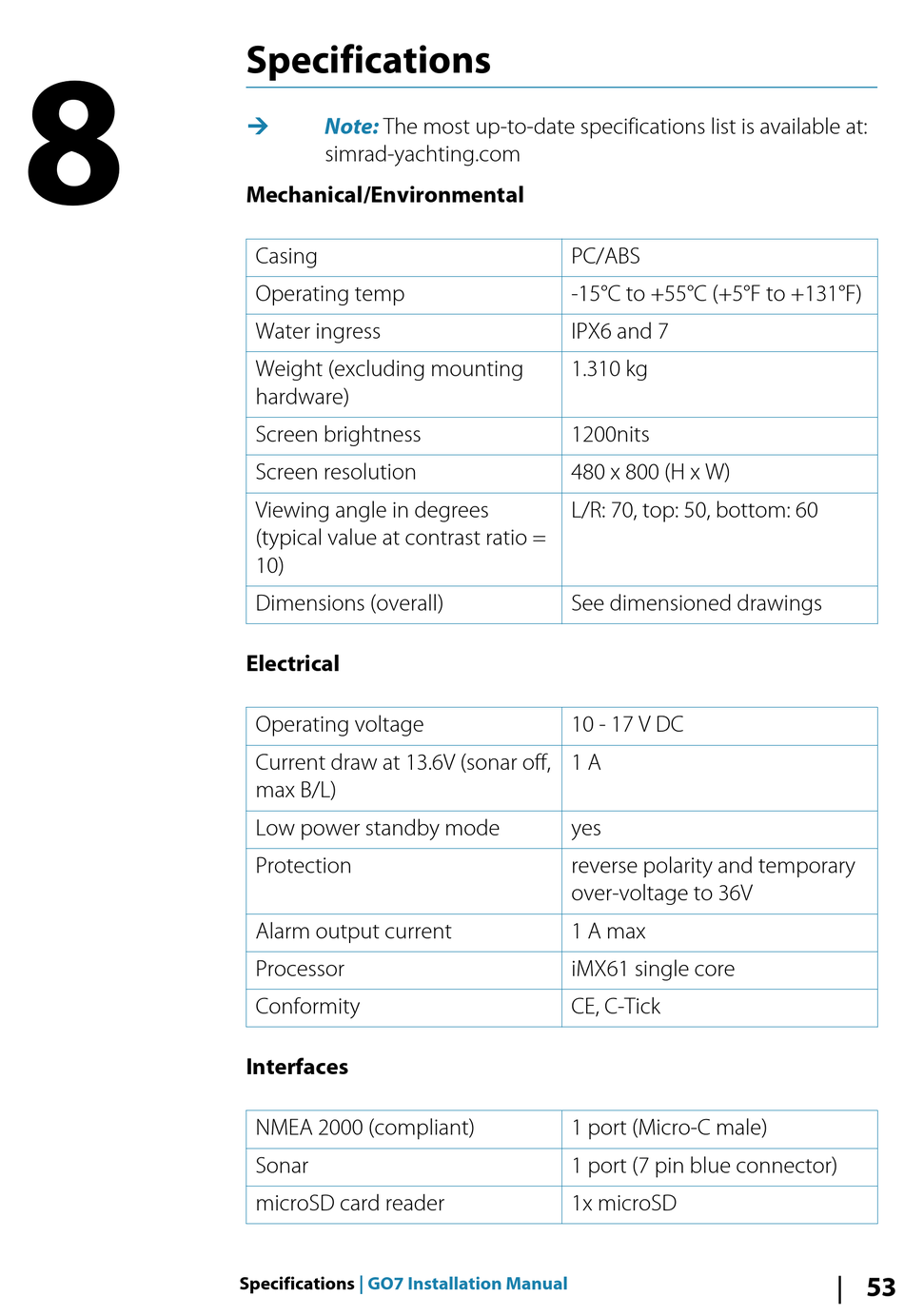

Specifications

Note:
Ú The most up-to-date specifications list is available at:
simrad-yachting.com
Mechanical/Environmental
Casing
Operating temp
Water ingress
Weight (excluding mounting
hardware)
Screen brightness
Screen resolution
Viewing angle in degrees
(typical value at contrast ratio =
10)
Dimensions (overall)
Electrical
Operating voltage
Current draw at 13.6V (sonar off,
max B/L)
Low power standby mode
Protection
Alarm output current
Processor
Conformity
Interfaces
NMEA 2000 (compliant)
Sonar
microSD card reader
Specifications | GO7 Installation Manual
PC/ABS
-15°C to +55°C (+5°F to +131°F)
IPX6 and 7
1.310 kg
1200nits
480 x 800 (H x W)
L/R: 70, top: 50, bottom: 60
See dimensioned drawings
10 - 17 V DC
1 A
yes
reverse polarity and temporary
over-voltage to 36V
1 A max
iMX61 single core
CE, C-Tick
1 port (Micro-C male)
1 port (7 pin blue connector)
1x microSD
