M A N U A L
Simrad CP34/44/54
Chartplotter
183-3402-102 English 05082.20
Note!
Insert or remove C-MAP cartridges ONLY through SETUP menu or when
unit is off. All electronic navigation equipment is subject to external factors
beyond the control of the manufacturer. Therefore such equipment must be
regarded as an aid to navigation. The prudent navigator will, for that reason,
never rely on a single source for position fixing and navigation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP34 and is the answer not in the manual?

Questions and answers

Related Manuals for Simrad CP34

Summary of Contents for Simrad CP34

  • Page 1 M A N U A L Simrad CP34/44/54 Chartplotter 183-3402-102 English 05082.20 Note! Insert or remove C-MAP cartridges ONLY through SETUP menu or when unit is off. All electronic navigation equipment is subject to external factors beyond the control of the manufacturer. Therefore such equipment must be regarded as an aid to navigation.
  • Page 2 MOB ‘MAN OVERBOARD’ function In case someone falls overboard, press the [MOB] key and hold for 2 seconds (or activate an external MOB switch - hold for 5 seconds). Press [CLR] to confirm and reset the alarm if activated by mistake. Before pressing [ENT] to start MOB navigation: •...

  • Page 3: Table Of Contents

    CP34/44/54 Chartplotter Table of contents MOB ‘MAN OVERBOARD’ function ......back of front cover Chapter 1 Introduction and safety summary Introduction and system familiarization ........1-1 Safety summary ................1-2 How to get started ................ 1-3 1.3.1 Dedicated function keys ............... 1-4 1.3.2...
  • Page 4 Table of contents CP34/44/54 Chartplotter Chart setup ..................3-17 3.5.1 Display modes in the chart setup ..........3-18 3.5.2 Description of chart features ............3-21 Chapter 4 Echo menu Echo menu ..................4-1 Depth & temperature diagram ............. 4-1 Custom screen ................4-3 Chapter 5 Pilot menu &...
  • Page 5 CP34/44/54 Chartplotter Table of contents Chapter 7 Waypoint / route menu Waypoint / route menu ..............7-1 Waypoints stored in the memory ..........7-1 7.1.1 Delete waypoints via menu ............7-2 Routes stored in the memory............7-3 7.2.1 Delete route via menu..............7-6 7.2.2...
  • Page 6 Appendix A Glossary of terms ..............A-1 Appendix B List of datum ................B-1 Appendix C C-MAP attributes..............C-1 Index ................end of manual Declarations of conformity ............end of manual International warranty .............. end of manual List of Simrad distributors............end of manual...

  • Page 7: Introduction And System Familiarization

    GPS and SDGPS receiver technology and optional built-in differential receiver for accurate positioning, plus: detailed cartogra- phy; all in a unique slim-line design with a bright 7” TFT (CP34), 10” ATFT/ TFT (CP44) or 15” TFT (CP54) color display.

  • Page 8: Safety Summary

    The lifetime of the internal battery is minimum 5 years. If not exchanged before it goes flat, all data in the unit’s memory will be lost. We strongly recommend that you frequently store your data on a Simrad DataCard. For exchange of battery, call your local Simrad workshop.

  • Page 9: How To Get Started

    CP34/44/54 Introduction and safety summary Chapter 1-3 1.3 How to get started When starting up for the very first time, the first time after loading a new software or after a master reset: Make sure that all hardware installation and electrical connections are completed in accordance to the installation instructions.

  • Page 10: Dedicated Function Keys

    Chapter 1-4 CP34/44/54 Introduction and safety summary Heading is only available if a compass was detected at start-up. Your present position will automatically be updated within a few min- utes. When ready, the ship symbol on the chart will flash, the position coordinates will stop flashing, and the *** will be replaced by actual course and speed figures.
  • Page 11 CP34/44/54 Introduction and safety summary Chapter 1-5 Short press will toggle between: PILOT Highway Position Dual Speed Set & Drift When navigation mode is active, these two displays will be included: ETA & AVN Trim & Highway Long press will toggle between:...

  • Page 12: Chart And Chart Functions

    Chapter 1-6 CP34/44/54 Introduction and safety summary 1.3.2 Chart and chart functions Press the [CHART] key to call up a chart display. Press again to CHART toggle between the chart shortcut series - see chart examples in section 1.3.1. C-MAP cartridges (standby) Press [MENU], [6], [CHART] whenever inserting or removing a C-MAP card.
  • Page 13 CP34/44/54 Introduction and safety summary Chapter 1-7 • With cursor activated on the chart you also have access to: Plot waypoint - cursor position. Plot cursor position as target. How to make a route on the chart 1. Place the cursor on the position for the first routepoint.
  • Page 14 Chapter 1-8 CP34/44/54 Introduction and safety summary • Without placing cursor on the symbol of the WP you wish to go to: 1. Press [GOTO], [2]. 2. Use the +/- keys to select the WP you wish to go to.

  • Page 15: Fundamentals Of The Display And

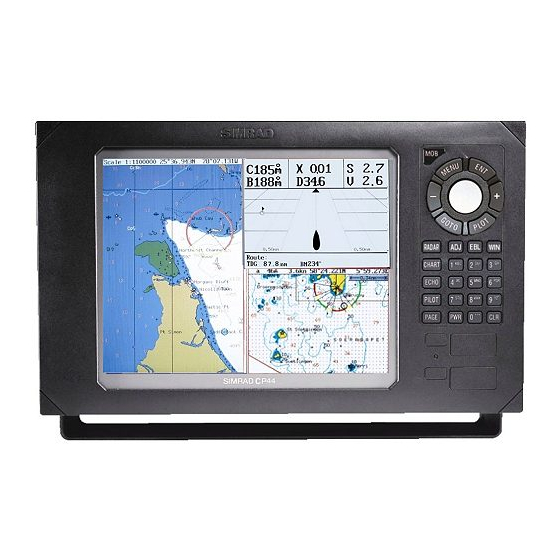

    SIMRAD CP44 2.1 Fundamentals of the display and page system The CP34/44/54 Chartplotter has a multi-function screen and data presentation system with full screen and different types of split screens. The series of pages under the function keys (situated in a vertical row to the right of the display) will in most situations be suf- ficient information for the operator.

  • Page 16: Example Of How To Exchange A Page In The

    Chapter 2-2 CP34/44/54 Fundamentals & initial start-up Long press on the [PAGE] key will start a rotation of the three pages in intervals of 5 seconds (increase/decrease the time in [MENU], [6], [1]). Press any key to stop rotation. 2.1.1 Example of how to exchange a page in the PAGE system...

  • Page 17: Key Functions

    CP34/44/54 Fundamentals & initial start-up Chapter 2-3 Highlight a function e.g. Route calculation in the WP/RTE menu. Press [WIN] several times to check the screen image (situated to the far right in the top line of the menu bar) which windows the function...
  • Page 18 Chapter 2-4 CP34/44/54 Fundamentals & initial start-up Shortcut to Chart function. Short press will toggle between differ- CHART ent data fields on chart. Long press will toggle between Chart in full screen, Dual Chart, and two custom screens. Shortcut to Depth and temperature diagram, and a custom screen.

  • Page 19: Menu Bar

    CP34/44/54 Fundamentals & initial start-up Chapter 2-5 2.3 Menu bar Toggles the menu bar on/off MENU To fit the complete menu bar across the screen, some of the menus have been abbreviated. However, the last selected menu will be high- lighted, and if it’s an abbreviation of the menu, then the complete...

  • Page 20: Menu Layout

    Chapter 2-6 CP34/44/54 Fundamentals & initial start-up 2.4 Menu layout CHART ECHO PILOT Chart Depth & temp.diagram Highway Dual Chart Custom screen Position Dual Speed Custom screen 1 Custom screen 2 ETA & AVN Trim & Highway Set & Drift...

  • Page 21: Choice Of Symbols

    CP34/44/54 Fundamentals & initial start-up Chapter 2-7 2.5 Choice of symbols Waypoints and other points appearing on the screen can be marked by one of 18 symbols + 8 event marks in small or large symbols: 2.6 Naming of routes, points etc.
  • Page 22 Chapter 2-8 CP34/44/54 Fundamentals & initial start-up Automatic input source setup ∆ Interface has not been set up! To start automatic input source setup, make sure that all connected products are turned ON, and press ENT. Start After making sure that all connected products are turned ON: Press [ENT] to start automatic input source setup, - if a new product is connected later on, refer to section 8.4 Interface setup.

  • Page 23: Turn Power On

    CP34/44/54 Fundamentals & initial start-up Chapter 2-9 Select display language: Call up the menu bar, and... MENU press [6], [1] to call up the language display Press up on the cursor to go to the bottom line in the display...
  • Page 24 Chapter 2-10 CP34/44/54 Fundamentals & initial start-up...

  • Page 25: Chart Menu

    CP34/44/54 Chart menu and INFO windows Chapter 3-1 3. Chart menu CHART Chart The displays obtained from this menu can easily be accessed from the main Dual Chart function key [CHART] - Custom screen 1 see section 3.1. Custom screen 2 For safety reasons, navigation with electronic charts should always be combined with authorized paper charts.

  • Page 26: Data Field On Chart

    Chapter 3-2 CP34/44/54 Chart menu and INFO windows From any display: CHART Long press on the [CHART] key will toggle between: Chart Dual Chart Custom screen 1 Custom screen 2 From full chart display: CHART Short press on the [CHART] key will toggle between different pres- entations of the data field on the chart e.g.:...

  • Page 27: Ship Symbol

    CP34/44/54 Chart menu and INFO windows Chapter 3-3 long, compass and depth indication, bearing and distance to either approach- ing point or cursor position; together with time and date in local or UTC. *)Refer to section 5.3 Status indicator and accuracy.

  • Page 28: Range Or Zoom Function

    Chapter 3-4 CP34/44/54 Chart menu and INFO windows 3.1.4 Range or zoom function With chart display active: Press one of the numeric keys to quickly change the chart scale: [1] = 1:600 [2] = 1:2,000 [3] = 1:6,000 [4] = 1:20,000...

  • Page 29: Dual Chart Display

    CP34/44/54 Chart menu and INFO windows Chapter 3-5 3.2 Dual Chart display It is possible to have two charts in different scales on the screen at the same time, one for detail and one for overview. Each chart can be operated individually, and each will have its own cursor and indi- vidual chart setup.

  • Page 30: Chart Custom Screens

    Chapter 3-6 CP34/44/54 Chart menu and INFO windows 3.3 Chart custom screens The two custom screens in the chart menu consist of multiple window combinations e.g.: The displays, which are not related to the chart function, can be exchanged with a different one. It is also possible to change the right half of the screen from two quarter windows to half screen window, and vice versa.

  • Page 31: Chart Quick Menu

    CP34/44/54 Chart menu and INFO windows Chapter 3-7 3.4 Chart quick menu Access the chart quick menu from active chart display. The func- tions available depends on the actual situation - refer to sections 3.4.1 to 3.4.7. 3.4.1 Cursor inactive...

  • Page 32: Cursor Active But Not Placed On Any Object Or Data

    Chapter 3-8 CP34/44/54 Chart menu and INFO windows 3.4.2 Cursor active but not placed on any object or data With chart in active window, and cursor active but not placed on any object or user data, press [ENT] to call up the quick menu with the...

  • Page 33: Cursor Placed On Waypoint

    CP34/44/54 Chart menu and INFO windows Chapter 3-9 3.4.3 Cursor placed on waypoint With chart in active window, and cursor placed on a waypoint, press [ENT] to call up the quick menu with the following to choose from: WP found Name: WP 1 LAT 57°15.504N...

  • Page 34: Cursor Placed On Route Leg Or Line Section

    Chapter 3-10 CP34/44/54 Chart menu and INFO windows 3.4.4 Cursor placed on route leg or line section With chart in active window, and cursor placed on a route leg or line section, press [ENT] to call up the quick menu with the following to...

  • Page 35: Cursor Placed On Routepoint Or Linepoint

    CP34/44/54 Chart menu and INFO windows Chapter 3-11 3.4.5 Cursor placed on routepoint or linepoint With chart in active window, and cursor placed on a routepoint or linepoint, press [ENT] to call up the quick menu with the following to choose from:...

  • Page 36: Cursor Placed On Trackpoint

    Chapter 3-12 CP34/44/54 Chart menu and INFO windows 3.4.6 Cursor placed on trackpoint Trackpoints are not as easily recognized as Routepoints, you may have to move the cursor along on the track to locate a trackpoint. With chart in active window, and cursor placed on a trackpoint,...

  • Page 37: Cursor Placed On Target

    CP34/44/54 Chart menu and INFO windows Chapter 3-13 3.4.7 Cursor placed on target With chart in active window, and cursor placed on a target symbol, press [ENT] to call up the quick menu with the following to choose from: Target found Name: TARGET 1 LAT 57°02.825N...

  • Page 38: Goto Menu

    Chapter 3-14 CP34/44/54 Chart menu and INFO windows 3.4.8 GOTO menu Call up the GOTO menu with access to navigation modes: GOTO Select NAV mode To select “Cursor” navigation will require that the chart cursor is active. Cursor “Waypoint”, “Route” and “Track” navi-...

  • Page 39: Plot Menu

    CP34/44/54 Chart menu and INFO windows Chapter 3-15 3.4.9 PLOT menu The CPXX is designed to make navigation easy and safe. Waypoints can easily be plotted with a single keystroke, or be inserted via the keypad. Making routes and drawing lines are done directly on the chart.
  • Page 40 Chapter 3-16 CP34/44/54 Chart menu and INFO windows changes made will be new presets for plotting/insertion of the cursor position. - From active chart display with cursor on: Same options as above, except that the zeroes in the position coordinates have been exchanged with the cursor position.

  • Page 41: Chart Setup

    CP34/44/54 Chart menu and INFO windows Chapter 3-17 3.5 Chart setup The settings are dedicated to the chart in the active window and does not affect the second chart in dual chart mode. Load chart setup related to active chart ◄...

  • Page 42: Display Modes In The Chart Setup

    Chapter 3-18 CP34/44/54 Chart menu and INFO windows Toggle between available settings Confirm changes and return to chart, or... Abandon Chart setup and return to chart without making any MENU changes 3.5.1 Display modes in the chart setup There are 6 different display modes to choose from: FULL (default), CUSTOM, SIMPLE, FISHING, LOW, and GRID mode.
  • Page 43 CP34/44/54 Chart menu and INFO windows Chapter 3-19 ..continued from previous page..C-MAP features Full *Custom Simple Fishing Land: Natural features rivers Natural features Cultural features Landmarks Chart: Grid AUTO AUTO AUTO AUTO AUTO Boundary lines AUTO AUTO AUTO Mixing levels Declutter Group: Depth - specifies the presentation of depth lines, levels, etc.
  • Page 44 Chapter 3-20 CP34/44/54 Chart menu and INFO windows Group: Areas - defines the presentation of different areas on chart. The default settings in this group are the same for all display modes, except GRID, which do not include C-MAP features. The features can be changed...

  • Page 45: Description Of Chart Features

    CP34/44/54 Chart menu and INFO windows Chapter 3-21 3.5.2 Description of chart features Auto chart select - When sailing with ‘Auto chart select’ ON and cursor turned off, the range will automatically change to match the chart which is available. But when set to OFF, then the selected range will remain, also when sailing ‘out of the chart’.
  • Page 46 Chapter 3-22 CP34/44/54 Chart menu and INFO windows Land areas - can be set to FILLED or CONTOUR. FILLED= The land areas will be filled with a preset color in the Palette setup. CONTOUR= The land areas will be shown with a contour line only and the landfill will be the same as the background/water color on the chart.
  • Page 47 CP34/44/54 Chart menu and INFO windows Chapter 3-23 Show range - can be set to WITH BACKGROUND, ON or OFF: WITH BACKGROUND - will add a small line to the chart display indicating that the length of the line equals a certain number of nautical miles/km - the indication is highlighted with a background color.
  • Page 48 Chapter 3-24 CP34/44/54 Chart menu and INFO windows...

  • Page 49: Echo Menu

    CP34/44/54 Echo menu Chapter 4-1 4. Echo menu ECHO Depth & temperature diagram Custom screen 4.1 Depth & temperature diagram MENU Call up the menu bar, and... activate Depth & temperature diagram Present water temperature and depth. Depth over time or dis- tance.
  • Page 50 Chapter 4-2 CP34/44/54 Echo menu Setup for Depth: Scale for depth: 0 -> Color for depth: Scale for temperature: 0 -> 20 °C Color for temperature: Interval of screen: TIME Time interval: 5 MIN. Go to the function you wish to change Key in new figures, or...

  • Page 51: Custom Screen

    CP34/44/54 Echo menu Chapter 4-3 4.2 Custom screen MENU Call up the menu bar, and... call up the custom screen from Echo menu The displays, which are not related to the Echo function i.e. all dis- plays except the Depth & temperature diagram in the top left quarter of the screen, can be exchanged with a different one.
  • Page 52 Chapter 4-4 CP34/44/54 Echo menu...

  • Page 53: Pilot Menu

    CP34/44/54 Pilot menu & navigation examples Chapter 5-1 5. Pilot menu PILOT Highway - see section 5.2 & 5.2.1 Position - see section 5.3 Dual Speed - see section 5.4 ETA & AVN - see section 5.5 Trim & Highway - see section 5.6...
  • Page 54 Chapter 5-2 CP34/44/54 Pilot menu & navigation examples Press the [PILOT] key from any display to call up a display in the pilot-series, and: PILOT Long press on the [PILOT] key will toggle between (default): Highway Custom screen 1 Custom screen 2 From one of the pilot displays i.e.

  • Page 55: Highway Display And Navigation Setup

    CP34/44/54 Pilot menu & navigation examples Chapter 5-3 5.2 Highway display and Navigation setup MENU Call up the menu bar, and... load Highway display When there is no navigation mode active, you will receive the legend: NAVIGATION IS OFF. Before starting out in one of the navigation modes, it may be a good idea to check out the Navigation setup display and see if the default settings will suit your need.
  • Page 56 Chapter 5-4 CP34/44/54 Pilot menu & navigation examples The waypoint alarm will be activated when you reach the circle or the perpendicular line - WP line alarm - crossing through the waypoint. When “Auto waypoint shift” is set to “WP-circle” it will override the “WP circle alarm”...

  • Page 57: Highway Display When Navigation Mode Is Active

    CP34/44/54 Pilot menu & navigation examples Chapter 5-5 5.2.1 Highway display when navigation mode is active MENU Call up the menu bar, and... load Highway display With navigation mode active, the highway display will provide a graphical steering display: Intended...

  • Page 58: Position Display

    Chapter 5-6 CP34/44/54 Pilot menu & navigation examples 5.3 Position display MENU Call up the menu bar, and... load the Position display Datum currently selected. Trip log 1 and 2. Position with three decimals in minutes. Speed over ground. Course, magnetic or true.
  • Page 59 CP34/44/54 Pilot menu & navigation examples Chapter 5-7 Status indicator and accuracy Small letters (a,b,c,) indicate that SA is active, and the position accuracy is expected to be better than 100 meters in 95% of the time. Capital letters indicate that SA is OFF, and the position accuracy is then expected to be 15 meters or better in 95% of the time.
  • Page 60 Chapter 5-8 CP34/44/54 Pilot menu & navigation examples Key in new values, or... Toggle between available values Confirm editing and return to the Position display Datum - is preset to WGS 1984 (World Geodetic System 1984), but can be changed to any of the 118 datums listed in Appendix B e.g.

  • Page 61: Dual Speed Display (Trawling Speed Display)

    CP34/44/54 Pilot menu & navigation examples Chapter 5-9 5.4 Dual speed display (trawling speed display) The analogue differential speed indicator will show how much the present speed varies from the average speed. If the difference exceeds +/- 3 knots (or km/h or miles/h), an arrow will appear which will be pointing out of the scale.

  • Page 62: Eta & Avn Display

    Chapter 5-10 CP34/44/54 Pilot menu & navigation examples 5.5 ETA & AVN display MENU Call up the menu bar, and... load the ETA & AVN display -to receive any data will require that navigation mode is active. ETA - Estimated Time of Arrival - refers to the inserted local time, and can be calculated to any point used for navigation.

  • Page 63: Trim & Highway Display

    CP34/44/54 Pilot menu & navigation examples Chapter 5-11 Go to AVN, and... Insert time and date Confirm entry 5.6 Trim & Highway display Some of the readings rely on data from external log and compass. The Trim & Highway display will provide information on actual and mean speed, velocity and water speed - see also section 5.7 Set &...

  • Page 64: Set & Drift Display

    Chapter 5-12 CP34/44/54 Pilot menu & navigation examples 5.7 Set & Drift display The readings rely on data from external log and compass. MENU Call up the menu bar, and... load the Set & Drift display Relative direction. True direction.

  • Page 65: Pilot Custom Screens

    CP34/44/54 Pilot menu & navigation examples Chapter 5-13 5.8 Pilot custom screens The two custom screens in thepilot menu consist of multiple window combinations e.g.: The displays presented in the example above are the default displays for Custom screen 1 under the PILOT menu.

  • Page 66: Navigation Examples

    Chapter 5-14 CP34/44/54 Pilot menu & navigation examples 5.9 Navigation examples 5.9.1 Chart/cursor navigation. 5.9.2 Waypoint navigation. 5.9.3 Route navigation. 5.9.4 Track navigation. Relevant for all navigation modes are: - the highway display with graphical steering - section 5.2.1. - the ETA & AVN display with Estimated Time of Arrival and Approximate Velocity Necessary to reach a given point at a specific time - section 5.5.

  • Page 67: Waypoint Navigation

    CP34/44/54 Pilot menu & navigation examples Chapter 5-15 Next destination: While on the way, you can easily move the cursor to the next destination, and when ready to change navigation leg... GOTO Call up the GOTO menu Restart to approaching point - a new course line will be drawn from ship’s position to destination.

  • Page 68: Route Navigation

    Chapter 5-16 CP34/44/54 Pilot menu & navigation examples 5.9.3 Route navigation To start Route navigation will require that at least one route is stored in the memory. Refer to section 3.4.9 PLOT menu. There are two ways to start Route navigation: •...

  • Page 69: Track Navigation

    CP34/44/54 Pilot menu & navigation examples Chapter 5-17 routepoint. Pressing [GOTO] from chart display during navigation will activate GOTO an INFO window with the following functions to choose from: 1. Advance (to next routepoint) 2. Restart to approaching point (in case you have drifted off course) 3.
  • Page 70 Chapter 5-18 CP34/44/54 Pilot menu & navigation examples This will activate the pop-up window “Navigate in track” from where you can choose which track you wish to select for navigation: Scroll up/down in the track list until the correct track number / name...

  • Page 71: Anchor Guard

    CP34/44/54 Pilot menu & navigation examples Chapter 5-19 5.10 Anchor guard GOTO Call up the GOTO menu, and... activate the anchor guard function -the chart display will provide an impression of the vessel’s position in relation to the alarm circle.
  • Page 72 Chapter 5-20 CP34/44/54 Pilot menu & navigation examples...

  • Page 73: Miscellaneous Menu

    CP34/44/54 Miscellaneous menu Chapter 6-1 6. Miscellaneous menu MISC Wind - see section 6.1 Speed diagram - see section 6.2 Decca lanes - see section 6.3 Loran C - see section 6.4 Satellites - see section 6.5 DGPS - see section 6.6 SDGPS - see section 6.7...
  • Page 74 Chapter 6-2 CP34/44/54 Miscellaneous menu Load Setup for Wind display Setup for Wind: Damping level: MEDIUM Apparent wind scale: NORMAL Wind angle offset: 000° Show wind speed as: APPARENT Wind speed unit: METERS/SECOND Go to the function you wish to change Toggle between settings, or...

  • Page 75: Speed Diagram

    CP34/44/54 Miscellaneous menu Chapter 6-3 6.2 Speed diagram MENU Call up the menu bar, and... load “Speed diagram” S= Speed over ground. V= Velocity towards waypoint. W*= Speed through water. SD (Set and drift)*= Speed and direction, true or relative.
  • Page 76 Chapter 6-4 CP34/44/54 Miscellaneous menu The scale for the speed diagram can be adjusted in this display. Time interval can be set in 8 intervals from 1 minute to 3 hours and freeze. Go to the function you wish to change...

  • Page 77: Decca Lanes

    CP34/44/54 Miscellaneous menu Chapter 6-5 6.3 Decca lanes MENU Call up the menu bar, and... load decca chain display Open for change Leaf through the available chains - see below. Confirm entry To change the position readouts to decca mode, see section 8.2 under Pilot/Position setup, where ‘Display position as’...

  • Page 78: Loran C

    Chapter 6-6 CP34/44/54 Miscellaneous menu 6.4 Loran C MENU Call up the menu bar, and... load Loran C chain display Open for change Leaf through the available chains - see listing below. If required, go to the slaves, and... Toggle between available slaves (not all chains have more than one slave) ...and it is possible to alter the figures in the time delay...

  • Page 79: Satellite Status

    CP34/44/54 Miscellaneous menu Chapter 6-7 6.5 Satellite status MENU Call up the menu bar, and... load satellite status display The display will show which satellites are currently being used for computation of data. It will show their position together with SNR - Signal to Noise Ratio.
  • Page 80 Chapter 6-8 CP34/44/54 Miscellaneous menu Position update alarm “Alarm” in the satellite status display is preset to “OFF”. If the received position data is invalid, the position shown in the position display will start to flash. A position update alarm can be set ON/...

  • Page 81: Dgps Information

    CP34/44/54 Miscellaneous menu Chapter 6-9 6.6 DGPS information (optional) The DGPS - differential position corrections - can be provided from a built-in module, which is preset to full automatic operation, or from connected DGPS receiver - see “Status indicator” in position display.
  • Page 82 Chapter 6-10 CP34/44/54 Miscellaneous menu Status - can either be: LOCKED = locked on a beacon and receiving differential data. NOT LOCKED = not locked on a becon and receiving no differen- tial data. NOT INSTALLED = there is no built-in DGPS module in unit.

  • Page 83: Sdgps Information

    CP34/44/54 Miscellaneous menu Chapter 6-11 6.7 SDGPS information The SDGPS - satellite differential GPS - is preset to full automatic operation, which means that the system will utilize the position cor- rections from either differential GPS stations (refer to section 6.6) or satellite differential GPS signals from WAAS, EGNOS or MSAS (refer to section 6.7.1).
  • Page 84 Chapter 6-12 CP34/44/54 Miscellaneous menu Uses corrections from - indicates which differential corrections (DGPS or SDGPS) are currently used for position determination. CHANNEL 1: sat.no. - indicates which satellite number and name is currently tracked/searched by channel 1, and what is the tracking state.

  • Page 85: Satellites In Sdgps System

    CP34/44/54 Miscellaneous menu Chapter 6-13 6.7.1 Satellites in SDGPS system The SDGPS system consist of eight orbiting geostationary satel- lites and is designed to form a seamless global augmentation system consisting of Waas (USA), EGNOS (Europe) and MSAS (Japan). If all three parts would become operative at the same time, there would be no performance problem.

  • Page 86: Dsc Vhf Info

    6.8 DSC VHF info To receive an iDSC Alarm and Message from VHF will require that the CPXX is connected to a compatible Simrad VHF radiotelephone. The data is transmitted via NMEA or SimNet. The message from the VHF will appear in a pop-up window together with an acoustic alarm.

  • Page 87: Waypoints Stored In The Memory

    CP34/44/54 Waypoint / route menu Chapter 7-1 7. Waypoint / route menu WP/RTE Waypoints - see section 7.1 Routes - see section 7.2 Route calculation - see section 7.3 Lines - see section 7.4 Tracks - see section 7.6 Targets - see section 7.7...

  • Page 88: Delete Waypoints Via Menu

    Chapter 7-2 CP34/44/54 Waypoint / route menu Insert name of waypoint you wish to edit, or... Leaf through waypoints with +/- keys or up/down cursor Open for editing Place the cursor on the function you wish to change Key in new figures, or...

  • Page 89: Routes Stored In The Memory

    CP34/44/54 Waypoint / route menu Chapter 7-3 7.2 Routes stored in the memory The route list will keep a record of all the saved routes in the system. It will provide information on number of waypoints in the route etc.
  • Page 90 Chapter 7-4 CP34/44/54 Waypoint / route menu This display provides information on course line, XTE line, route legs, routepoints etc. Call up the Edit route display - if you wish to make any changes. (Editing a route currently used for navigation is not possible) Setting the Course line to OFF in this display will make the route invisible on the screen.
  • Page 91 CP34/44/54 Waypoint / route menu Chapter 7-5 If the XTE distance is not the same in all legs, the value will be *.* instead of the 00.10nm. Navigation mode can be either RHUMB- LINE or GREAT CIRCLE, or... if not set to the same in all legs in a route, the mode will be: COMPOSITE.

  • Page 92: Delete Route Via Menu

    Chapter 7-6 CP34/44/54 Waypoint / route menu 7.2.1 Delete route via menu MENU Call up the menu bar, and... load route list display Select the route you wish to delete Call up the details on highlighted route Open for editing...
  • Page 93 CP34/44/54 Waypoint / route menu Chapter 7-7 the +/- keys and then press [CLR] to remove the point from the route. Display example: Save the route with [ENT] and go to the Edit display - or leave the function with [MENU] to abandon the route.

  • Page 94: Route Calculation

    Chapter 7-8 CP34/44/54 Waypoint / route menu 7.3 Route calculation To stay well informed during navigation, the Route calculation display will provide information on how long it takes to go from one point to another, total distance, arrival time etc.

  • Page 95: Lines Stored In The Memory

    CP34/44/54 Waypoint / route menu Chapter 7-9 7.4 Lines stored in the memory The line list will keep a record of all the saved lines in the system. It will provide information on number of line sections in line etc.

  • Page 96: Delete Lines Via Menu

    Chapter 7-10 CP34/44/54 Waypoint / route menu Leaf through the line points by moving cursor up/down Call up the Edit line display - if you wish to make changes. Turning “Line” OFF will make the line drawing invisible on the screen.

  • Page 97: Start / Stop Track

    CP34/44/54 Waypoint / route menu Chapter 7-11 7.5 Start / stop track The track function will provide a track trailing the movement of your ship. As default from the factory, the first track is stored as TRACK 1, the next as TRACK 2 etc.

  • Page 98: Tracks Stored In The Memory

    Chapter 7-12 CP34/44/54 Waypoint / route menu Type of track line i.e. full, dotted, etc. has 9 different types to choose from in 15 different colors. To stop track: TRACK Load Stop track pop-up window Stop the highlighted track 7.6 Tracks stored in the memory All tracks (of more than 1 trackpoint) will automatically be stored in the memory.

  • Page 99: Delete Tracks Via Menu

    CP34/44/54 Waypoint / route menu Chapter 7-13 Open for change “Display track” can be set ON/OFF, where OFF will make it invis- ible on the screen. Turn ON to put it back on the screen. Toggle between available values Confirm changes...

  • Page 100: Targets Stored In The Memory

    Chapter 7-14 CP34/44/54 Waypoint / route menu 7.7 Targets stored in the memory The CPXX can display the bearing and distance of up to three targets at a time in relation to the vessel e.g. harbors or important navigational points. A target is a fixed point on the chart which can be plotted by the cursor or from the ship’s position - refer to section...

  • Page 101: Delete Target Via Menu

    CP34/44/54 Waypoint / route menu Chapter 7-15 Toggle between available values Confirm entry 7.7.1 Delete target via menu MENU Call up the menu bar, and... load target display Select the target you wish to delete Open for editing Delete target Confirm that you want to delete the selected target, if not sure: press [MENU] to exit the display without having made any changes.

  • Page 102: Data Transfer Via Datacard Or Disc

    How to perform data transfers via TL50 (including data from Ship- mate RS2500 Trackplotter) is described in the TL50 manual. Use the Simrad DataCard or TL50 Turbo Loader to make backup files of all the user data you have created plus the current setups in the internal memory of the unit.
  • Page 103 CP34/44/54 Waypoint / route menu Chapter 7-17 DataCard status Press [1] to find out what data (if any) is stored on the DataCard The capacity is divided into two databanks: DATABANK 1 and 2 which can hold approx. 2 x 450 Kb data. Toggle between the two databanks with the +/- keys.
  • Page 104 CP34/44/54 unit via the Data transfer system. However, it is not immediately accessible to transfer data via Data- Card from the new model CP34/44/54 to the older model CP42, etc., as this would require an update of the CP42. - For more information, please contact an authorized Simrad dealer.

  • Page 105: List Of Criteria For Data Transfer In The Action Column

    CP34/44/54 Waypoint / route menu Chapter 7-19 Press [MENU] to exit and *reboot (only if loading “Setup”) MENU *) When the system makes a ‘reboot’ the screen will turn black for a brief moment, then the system will re-start and automatically return to the active display which was on the screen before you made the transfer.

  • Page 106: Data Transfer Via Pc Interface

    Chapter 7-20 CP34/44/54 Waypoint / route menu 7.10 Data transfer via PC interface Data transfer to and from a route planning program on a Personal Computer can be made via NMEA connection (Refer to Optional connections in the Installation manual) by means of the standard NMEA0183 sentences WPL and RTE.
  • Page 107 CP34/44/54 Waypoint / route menu Chapter 7-21 CP34 example: WARNING! Normal NMEA communication will be interrupted. MENU Exit Accept Press [ENT] to accept warning and continue. NMEA (1) connection Transmit WPs Transmit routes Receive WPs and routes MENU Exit Transmit WPs...
  • Page 108 Chapter 7-22 CP34/44/54 Waypoint / route menu Receive WPs and routes Press [7] to enable reception of waypoints and routes from the plan- ning program The transmission of waypoints and routes can now be activated from the PC program. The info window below will inform you of the progress of the reception of data by keeping an eye on the counter.

  • Page 109: Setup Menu

    CP34/44/54 Setup menu Chapter 8-1 8. Setup menu SETUP CHART C-MAP cartridges - see section 8.1 PILOT Pilot/Position setup - see section 8.2 Speed alarm, units & language - see section 8.3 Interface setup - see section 8.4 Palette setup - see section 8.5...
  • Page 110 Chapter 8-2 CP34/44/54 Setup menu towards the unit, and push the drawer back in place - make sure it is closed tight, so it remains watertight. Press [ENT] to test the data on the C-MAP C-card If a C-card is defect, it must be removed before you can exit the display.

  • Page 111: Pilot / Position Setup

    CP34/44/54 Setup menu Chapter 8-3 8.2 Pilot / Position setup MENU Call up the menu bar, and... open the SETUP menu, and... load Pilot/Position setup display PILOT Pilot/Pos setup: Display position as: LAT/LON Start position: 56°57.000N 010°25.000E Speed and course filter level:...
  • Page 112 Chapter 8-4 CP34/44/54 Setup menu Course and bearing as - readings of course and bearing can be made in either MAGNETIC or TRUE. Toggle with +/-. COG vector length - (default to 6 minutes) - indicates own course and speed. The length of the COG vector reflects a distance run during the specified number of minutes at the immediate speed.

  • Page 113: Speed Alarm, Units & Language

    CP34/44/54 Setup menu Chapter 8-5 8.3 Speed alarm, units & language MENU Call up the menu bar, and... load Speed alarm, units & language display Setup for speed: The display example Speed alarm maximum (SOG):000.0kn sections are Speed alarm minimum (SOG):000.0kn...
  • Page 114 AT44 version (CP44/54) - indicates if an AT44 SimNet converter is connected and which revision hardware and software is implemented. Serial number (CP34) - indicates the unit’s internal serial number. Interface software version (CP34) - indicates which version is installed in the CP34 unit (for technicians only).

  • Page 115: Interface Setup

    CP34/44/54 Setup menu Chapter 8-7 8.4 Interface setup CP34 has a connector for SimNet control or NMEA2000 plus one NMEA in/out port. CP44/54 has two NMEA in/out ports: 1. NMEA1 contains both an NMEA port and connection for the dual station. The NMEA1 data from the main unit is available from NMEA2 port on the dual station i.e.
  • Page 116 Chapter 8-8 CP34/44/54 Setup menu Searching interface channels for valid sources and data. Please wait till the first page appears on the screen which will show the nodes (products) operating on the SimNet bus. See below example: ◄ Nodes ►...
  • Page 117 CP34/44/54 Setup menu Chapter 8-9 Group selection can be set to: SIMRAD - auto-selected SimNet units from the Simrad group. STAND-ALONE - manually selected data source and third party units. Source: - depending on which products (sources) are connected, the legend will indicate: ‘none available’, ‘one available’, ‘multiple avail-...
  • Page 118 Chapter 8-10 CP34/44/54 Setup menu chapter 5. The ship symbol will now ‘sail’ to the point of destination directly or via the route you have selected and you can see how the alarms and automatic waypoint shift all work, as if you were sailing yourself.
  • Page 119 CP34/44/54 Setup menu Chapter 8-11 PLOT Go to Water interface - step back with [GOTO] ◄ ► GOTO PLOT Navigation Compass Water ∆ Water depth input: Group selection: SIMRAD Source (multiple available): Simrad EQ44-2 ,Sn:100003 Water temperature input: Group selection:...
  • Page 120 Exit Accept MENU Source - indicates that there is one source available: Simrad RC35. Use COG as internal heading - if no compass is connected, you can use the course (COG) from the built-in GPS module by changing NO to YES.
  • Page 121 CP34/44/54 Setup menu Chapter 8-13 PLOT Go to Waypoint interface - step back with [GOTO] ◄ ► GOTO PLOT Waypoint Compass Wind ∆ Waypoint location input: Source (none available): NONE Target Lat/Lon input: Source (none available): NONE NMEA0183 output: Waypoint location:...
  • Page 122 Chapter 8-14 CP34/44/54 Setup menu ► Example: ◄ GOTO PLOT SimNet diagnostic Alarm CP44/54 ∆ Alarm: Output (pin 1,2): Alarm stand-by level: Pos-status: Output (pin 4,6): Pos-status stand-by level: HIGH Log: Output (pin 5,6): MOB-input: (pin 3,6) Long press (5 sec.):...
  • Page 123 CP34/44/54 Setup menu Chapter 8-15 PLOT Go to SimNet diagnostic interface - step back with [GOTO] ◄ ► GOTO PLOT Alarm SimNet diagnostic ∆ SimNet error frame counter: Receive que full: Transmit que full: Atmel receive not ready: Exit Accept...
  • Page 124 Chapter 8-16 CP34/44/54 Setup menu PLOT Go to the next interface - step back with [GOTO] The interfaces: SimNet input, SimNet output, NMEA0183 input and NMEA0183 output are for technicians only. PLOT Go to the next and last interface: Identification - step back with [GOTO] ◄...

  • Page 125: Description Of Sentences

    CP34/44/54 Setup menu Chapter 8-17 8.4.1 Description of sentences Description of NMEA0183 version 3.0 output sentences APB Autopilot sentence ‘B’. BWC Bearing and distance to waypoint (Great circle). BWR Bearing and distance to waypoint (Rhumbline). GGA Global Positioning System fix data.
  • Page 126 Chapter 8-18 CP34/44/54 Setup menu Description of NMEA0183 external position, heading and speed input GLL Geographic position, latitude/longitude. RMA Recommended minimum specific Loran C data. RMC Recommended minimum specific GPS data. GGA Global Positioning System fix data. VTG Track made good (course) and ground speed.

  • Page 127: Palette Setup

    CP34/44/54 Setup menu Chapter 8-19 8.5 Palette setup Quick change of preset color palettes via the [PWR] key. MENU Call up the menu bar, and... load the Palette setup Palette 1 to 4 are preset to 1:Bright (sunshine), 2:Day (normal day- light), 3:Dusk and 4:Night settings.

  • Page 128: Factory Settings

    Chapter 8-20 CP34/44/54 Setup menu Key in a name for the new palette setup - max. 29 characters, -refer to “Naming of routes, points, etc.” in section 2.6. Toggle between available color settings Confirm new setup 8.6 Factory settings DELETE MEMORY: It will be possible to erase a single category...
  • Page 129 CP34/44/54 Setup menu Chapter 8-21 first of all generate a WARNING display to inform you that you are about to erase some or all data/settings. If you are absolutely sure, press [ENT] to complete the job If not absolutely sure, press [MENU] to exit function without having...

  • Page 130: Quickguide

    Chapter 8-22 CP34/44/54 Setup menu MASTER RESET (will return all settings to factory presets) If the Power off - reset does not solve the problem, you may have to perform a master reset by disconnecting the power supply, and then...

  • Page 131: Troubleshooting

    CP34/44/54 Troubleshooting, Service and Specifications Chapter 9-1 9.1 Troubleshooting For all fault finding, first check that the supply voltage is between 10-32 VDC Symptom Check Remedy No picture on display Check that the unit is Press the [PWR] key on...

  • Page 132: Preventive Maintenance

    The CPXX is sealed and does not contain any user serviceable parts. Opening of this unit will void its warranty. If the CPXX requires servicing or repair, call your authorized SIMRAD dealer, but first check Troubleshooting in sec- tion 9.1.

  • Page 133: Specifications

    CP44: H:220 mm (8.7”) W:365 mm (14.6”) D:75 mm (3”) CP54: H:330 mm (13”) W:460 mm (18.1”) D:95 mm (3.7”) Weight: CP34: 3.2 kg (7 lbs), CP44: 3.7 kg (8.1 lbs), CP54: 6.6 kg (14.5 lbs) Environment: 0° to +50°C, waterproof USC 46 CFR and IP55 Housing:...
  • Page 134 Chapter 9-4 CP34/44/54 Troubleshooting, Service and Specifications Dynamics: Velocity: 600 km/h Acceleration: 10 m / s GPS antenna RS5640 DGPS antenna MGL-3 Type: Quadrifilar Helix Patch and H-field Dimensions: L:230 mm H:75 mm D:38 mm D:127 mm Weight: 150 g (0.33 lbs) 600 g (1.3 lbs)
  • Page 135 CP34/44/54 Troubleshooting, Service and Specifications Chapter 9-5 Options for CP34/44/54 Simrad DataCards C-MAP NT+ electronic charts 6-channel NMEA Buffer RS5345 Antenna cable 15 m RG223 PC data cable, 1.5 m (153-3002-024) DS34 Dual Station*, 7” TFT LCD color screen DS44 Dual Station*, 10” TFT/ATFT LCD color screen DS54 Dual Station*, 15”...
  • Page 136 Chapter 9-6 CP34/44/54 Troubleshooting, Service and Specifications...
  • Page 137 CP34/44/54 Glossary of terms Appendix A-1 Almanac – a satellite’s almanac data, is data which determines an approxi- mate lane for satellites in orbit. The almanac data is used by the GPS receiver to find and lock onto the satellite signal. CPXX has a built-in basic almanac.
  • Page 138 Appendix A-2 CP34/44/54 Glossary of terms navigation in ‘off season’. Navigation to cursor or waypoint, in route or in track is started as described in chapter 5. The navigation simulator is started via the NMEA interface setup: Press [MENU],[6],[2],[PLOT]; under index tab ‘Position’ use the cursor to go to ‘Position mode’...
  • Page 139 CP34/44/54 Glossary of terms Appendix A-3 Velocity – speed towards approaching waypoint. Waypoint name – a name can be added to each waypoint for easy identification. XTE – Cross-Track-Error (-Distance), measured magnitude of the position error perpendicular to the intended track line.
  • Page 140 Appendix A-4 CP34/44/54 Glossary of terms...
  • Page 141 CP34/44/54 List of datum Appendix B-1 Select the appropriate datum by 037 Guam 1963 inserting the number prefix: 038 GUX 1 Astro Press [MENU], [3], [2], [ADJ], and 039 Hjorsey 1955 key in the desired number by means 040 Hong Kong 1963...
  • Page 142 Appendix B-2 CP34/44/54 List of datum 081 Southwest Base 082 Timbalai 1948 083 Tokyo 084 Tristan Astro 1968 085 Viti Levu 1916 086 Wake-Eniwetok 1960 087 Wake Island Astro 1952 088 Zanderij 089 Finnish Datum 090 Swedish Datum 091 World Geodetic System 1984...
  • Page 143 CP34/44/54 C-MAP attributes Appendix C-1 The optional detailed C-MAP NT+ cards can provide numerous of functions which are accessible via symbols presented on the electronic chart. Place the cursor on a C-MAP object e.g. a buoy or light to call up a small data window with details on the object.
  • Page 144 Appendix C-2 CP34/44/54 C-MAP attributes Press [ENT] to Open/Close for additional information available for the object next to ⌧ symbols. Use the cursor to move up/down in the list of objects in the left column - details on the object will appear in the right column. In case the details overflows the window, use the +/- keys to move up/down in the text lines.
  • Page 145 CP34/44/54 C-MAP attributes Appendix C-3 The facility information will stay on the screen for about 10 seconds. With the cursor left on the Port/Marina symbol, press [ENT], and [2] to call up the details on the facilities at this location...
  • Page 146 Appendix C-4 CP34/44/54 C-MAP attributes Tide information Press [ENT] from the chart display to call up the Info window Press [3] to call up the C-MAP symbols with available facilities Use the +/- keys to select the location where you want to know the...
  • Page 147 CP34/44/54 C-MAP attributes Appendix C-5 Use the cursor (right side) to go to the year. Toggle to a different year Year with the +/- keys. The last four lines in the tide display will inform of Begin and End Twilight, Sunrise and Sunset for the selected date.
  • Page 148 Appendix C-6 CP34/44/54 C-MAP attributes Objects organized in categories The purpose of the C-MAP functions is to select objects, which are to be dis- played on the screen (chart). The objects are organized in categories and each category can be selected as one, without having to decide upon almost 300 objects separately.
  • Page 149 CP34/44/54 C-MAP attributes Appendix C-7 Ports: Restaurant Tracks, routes: Berthing facility-up area Bank/Exchange office Deep water route part Causeway Pharmacy Deep water route centrel. Checkpoint Port/Marina Fairway Crane Boat hoist Ferry route Fuel station Navigation line Distance mark Water Precautionary area...
  • Page 150 Appendix C-8 CP34/44/54 C-MAP attributes Attention Areas/ Contiguous zone Military practice area Caution Areas: Continental shelf area National territorial area Fishing facility Custom zone Restricted area Marine farm/culture Dumping ground Sea-plane landing area Cable, submarine Exclusive economic zone Spoil ground...
