Assembly/Disassembly
 Accessing Internal Components
Before opening your system, make sure to turn it off and disconnect the power
sources to prevent electric shock or system damage. And wait 3 to 5 minutes to let the
computer cool before removing the computer cover.
Follow the procedure described below to access the system's internal components.
1) Place the system front-side-down on a soft material to prevent marking or
scratching of the front panel. Remove the screws securing the rear panel of the
chassis as shown.
KPC-1590/ 1790 User's Manual
Chapter 2
WARNING

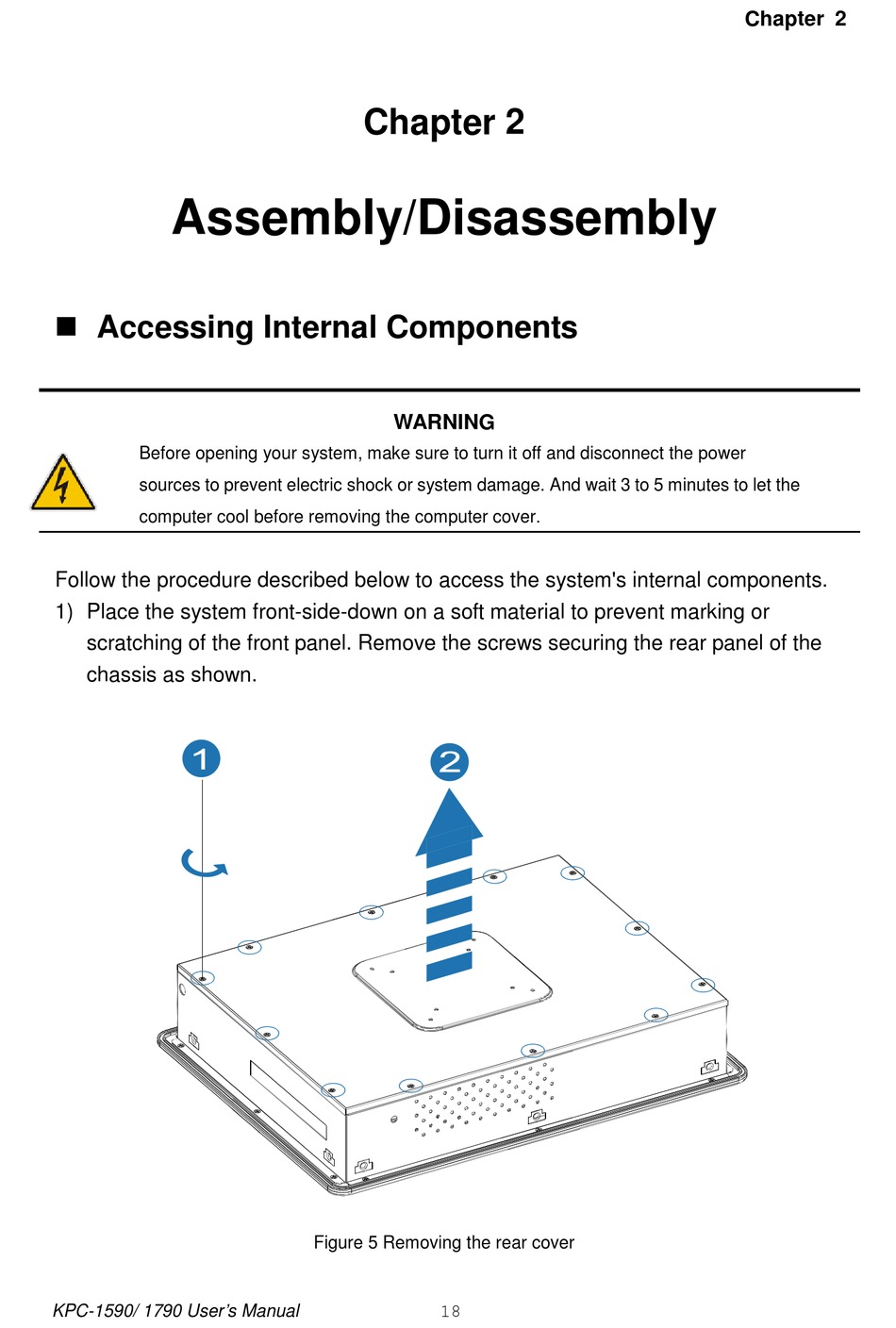

Figure 5 Removing the rear cover
