- Page 1 KUBE-8050/8051 Embedded Box PC with Intel® Atom N270 Processor User’s Guide KUBE-8050/8051 User’s Manual...
- Page 2 © 2009 Quanmax Inc. All rights reserved. The information in this user’s guide is provided for reference only. Quanmax does not assume any liability arising out of the application or use of the information or products described herein. This user’s guide may contain or reference information and products protected by copyrights or patents and does not convey any license under the patent rights of Quanmax, nor the rights of others.
-
Page 3: Table Of Contents
HDD Installation .................. 21 Installation PCI Card ................22 Wall Mounting ..................23 Chapter 3 Getting Started ..................24 Power Connection ................24 Operating System and Drivers............24 Maintenance and Prevention .............. 25 KUBE-8050/8051 User’s Manual... -
Page 4: Figures
Figure 6 HDD Installation ................21 Figure 7 PCI card height restrictions............22 Figure 8 Install a PCI card................22 Figure 9 Secure the L-brackets for wall mounting........23 Figure 10 Wall mount holes spacing ............23 KUBE-8050/8051 User’s Manual... -
Page 5: Tables
Tables Tables Table 1 KUBE-8050/8051 product specifications ........15 KUBE-8050/8051 User’s Manual... -
Page 6: Safety Instructions
Use extreme caution when installing or removing components. Refer to the installation instructions in this user’s guide for precautions and procedures. If you have any questions, please contact Quanmax Post-Sales Technical Support. Access can only be gained by service persons or by users who have been instructed about the reasons for the restrictions applied to the location and about any precautions that shall be taken;... -
Page 7: Preventing Electrostatic Discharge
Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. Quanmax strongly encourages you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment. -
Page 8: Instructions For Lithium Battery
Do not dispose of lithium batteries in domestic waste. Dispose of the battery according to the local regulations dealing with the disposal of these special materials (e.g. to the collecting points for disposal of batteries KUBE-8050/8051 User’s Manual... -
Page 9: Preface
Remove all items from the box. If any items listed on the purchase order are missing, notify Quanmax customer service immediately. Inspect the product for damage. If there is damage, notify Quanmax customer service immediately. Refer to “Warranty Policy” for the return procedure. -
Page 10: Warranty Policy
Quanmax or its authorized agent; or if the failure is caused by accident, acts of God, or other causes beyond the control of Quanmax or the manufacturer. Neglect, misuse, and abuse shall include any installation, operation, or maintenance of the product other than in accordance with the user’s guide. -
Page 11: Maintaining Your Computer
Quanmax. Limitation of Liability In no event shall Quanmax be liable for any defect in hardware, software, loss, or inadequacy of data of any kind, or for any direct, indirect, incidental, or consequential damages in connection with or arising out of the performance or use of any product furnished hereunder. - Page 12 The greatest threats to a system’s supply of power are power loss, power spikes, and power surges caused by electrical storms, which interrupt system operation and/or damage system components. To protect your system, always properly ground power cables and one of the following devices. KUBE-8050/8051 User’s Manual...
- Page 13 Surge protectors should be used with all UPS systems, and the UPS system should be Underwriters Laboratories (UL) safety approved. CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS KUBE-8050/8051 User’s Manual...
-
Page 14: Chapter 1 Introduction

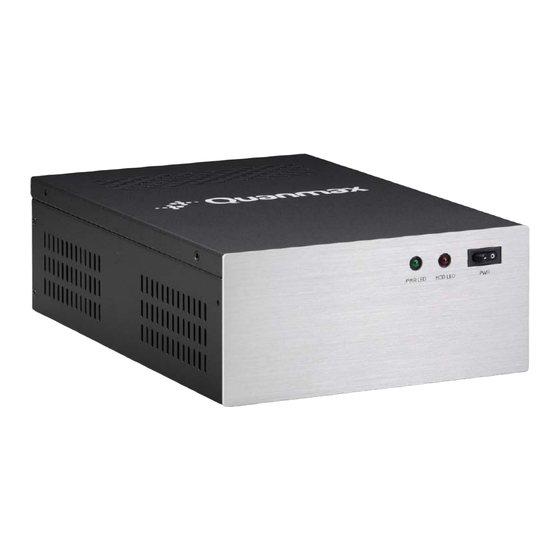

Chapter 1 Introduction Overview The KUBE-8050/8051 is a compact Box PC ideal for space-critical applications. This powerful embedded hardware platform is designed with Intel® Atom N270 Processor which provides with excellent performance enabled by 45nm Process Technology. The system is supported with Intel® 945GSE / ICH7-M chipset, and DDR2 DIMM up to 2GB. -
Page 15: Product Specifications
1x Mic-in & 1x Line-out (HD audio) 1x PS/2 Keyboard connector 1x PS/2 Mouse connector 1x COM with 5V/12V power selection, RS-232/422/485 (COM1) 1x DB-9 female connector, 4x Digital I/Os (KUBE-8050) 9x COMs with 5V/12V power selection, RS-232 (KUBE-8050) 1x PCI slot (KUBE-8051) Drive Bays 1x 2.5"... -
Page 16: Front View Of The Computer
Chapter 1 Front view of the computer Rear view of the computer KUBE-8050 KUBE-8051 KUBE-8050/8051 User’s Manual... -
Page 17: Mechanical Layout
Chapter 1 Mechanical Layout Figure 1 Mechanical Dimensions KUBE-8050/8051 User’s Manual... -
Page 18: Chapter 2 Assembly/Disassembly
Follow the procedure described below to access the system's internal components Loosen the 4 flathead screws from right and left side of the computer. Remove the chassis cover off the chassis base. Figure 2 Remove Chassis Cover KUBE-8050/8051 User’s Manual... -
Page 19: Figure 3 Mechanical Layout - Internal Components
Chapter 2 See figure below for the locations of the internal components of the system. Figure 3 Mechanical Layout - Internal Components KUBE-8050/8051 User’s Manual... -
Page 20: Memory Module Installation
If the DIMM does not go in smoothly, do not force it. Pull it all the way out and try again. Make sure the DIMM is properly installed and locked by the tabs on both sides of the socket. KUBE-8050/8051 User’s Manual... -
Page 21: Removing A Dimm
HDD Installation Secure the hard drive to the brackets using the 4 short screws provided. Connecting the SATA data & power cables to the HDD and motherboard then secure the bracket to the chassis. Figure 6 HDD Installation KUBE-8050/8051 User’s Manual... -
Page 22: Installation Pci Card
Figure 7 PCI card height restrictions Fully insert the PCI card into the PCI raiser card. Secure the PCI card with the screw. Figure 8 Install a PCI card KUBE-8050/8051 User’s Manual... -
Page 23: Wall Mounting
Refer to figure below for wall mount holes spacing. The shape of the screw holes allows the KUBE-8050/8051 to be mounted and provides for easy removal of the chassis for repair of maintenance. Use four standard M4 screws to mount the KUBE-8050/8051. -
Page 24: Chapter 3 Getting Started
You can download the drivers for the product from the Quanmax website at www.quanmax.com and install as instructed there. For other operating systems, please contact Quanmax. - Page 25 5-7 Short Pin 1 = +5V 7-9 Short Pin 1 = DCD@RS232 (default) 2-4 Short RI Pin = +12V 4-6 Short RI Pin = +5V 6-8 Short RI Pin = +5V 8-10 Short RI Pin = RI (default) KUBE-8050/8051 User’s Manual...
-
Page 26: Maintenance And Prevention
Make sure the ventilation holes are clear of debris. CAUTION Do NOT do any of the following: Allow water to enter the computer Use a heavily dampened cloth Spray water directly inside of computer KUBE-8050/8051 User’s Manual...
