Activating components out of the vehicle's electrical system
By using the Power Probe tip together with the auxiliary ground lead, components can be activated, thereby testing
their function.
Connect the negative auxiliary clip to the negative terminal of the component being tested.
Contact the probe to the positive terminal of the component, the LED indicator should light GREEN indicating
continuity through the component.
While keeping an eye on the green LED indicator, quickly depress and release the power switch forward (+). If the
green indicator changed instantly from GREEN to RED you may proceed with further activation. If the green indicator
went off at that instant or if the circuit breaker tripped, the Power Probe has been overloaded. This could happen for
the following reasons:
· The contact is a direct ground or negative voltage.
· The component is short-circuited.
· The component is a high amperage component (i.e., starter motor).
If the circuit breaker is tripped, reset it by depressing the reset button.
Activando Componentes Fuera Del Sistema Eléctrico del Vehículo
Por medio de uso de la punta del Power Probe combinada con el cable de masa auxiliar, componentes pueden ser
probados y activados, verificando su funcionamiento.
Conecte el clip del cable auxiliar a la terminal negativa del componente a probar.
Contacte la punta de prueba a la terminal positiva del componente. El LED deberá encenderse VERDE, indicando
continuidad dentro del componente.
Mientras observa el LED VERDE, presione y suelte rapidamente el interrutor hacía adelante (+). Si el LED, cambió
instantaneamente de VERDE a ROJO, puede proceder a reactivarlo. Si el LED VERDE se apagó y saltó el fusible,
se produjo un corto circuito. Esto pudo ocurrir por las siguientes razones:
· El contacto es masa directa o voltaje negativo.
· El componente está en corto circuito.
· El componente es de muy alto amperaie (ei.. motor arranque).
Si el fusible térmico saltó, reseteelo presionando el botón en la parte lateral del Power Probe.
Connect the
negative auxiliary
clip
Conecte el Clip
Auxiliar Negativo
POWER PROBE I & II
7
Activate fuel pumps, magnetic clutches,
starter solenoids, cooling fans,
blower motors, lights etc.
Activa Bombas de Combustilbe, Embragues
Magnéticos, Ventiladores, Luces, Motores, etc.

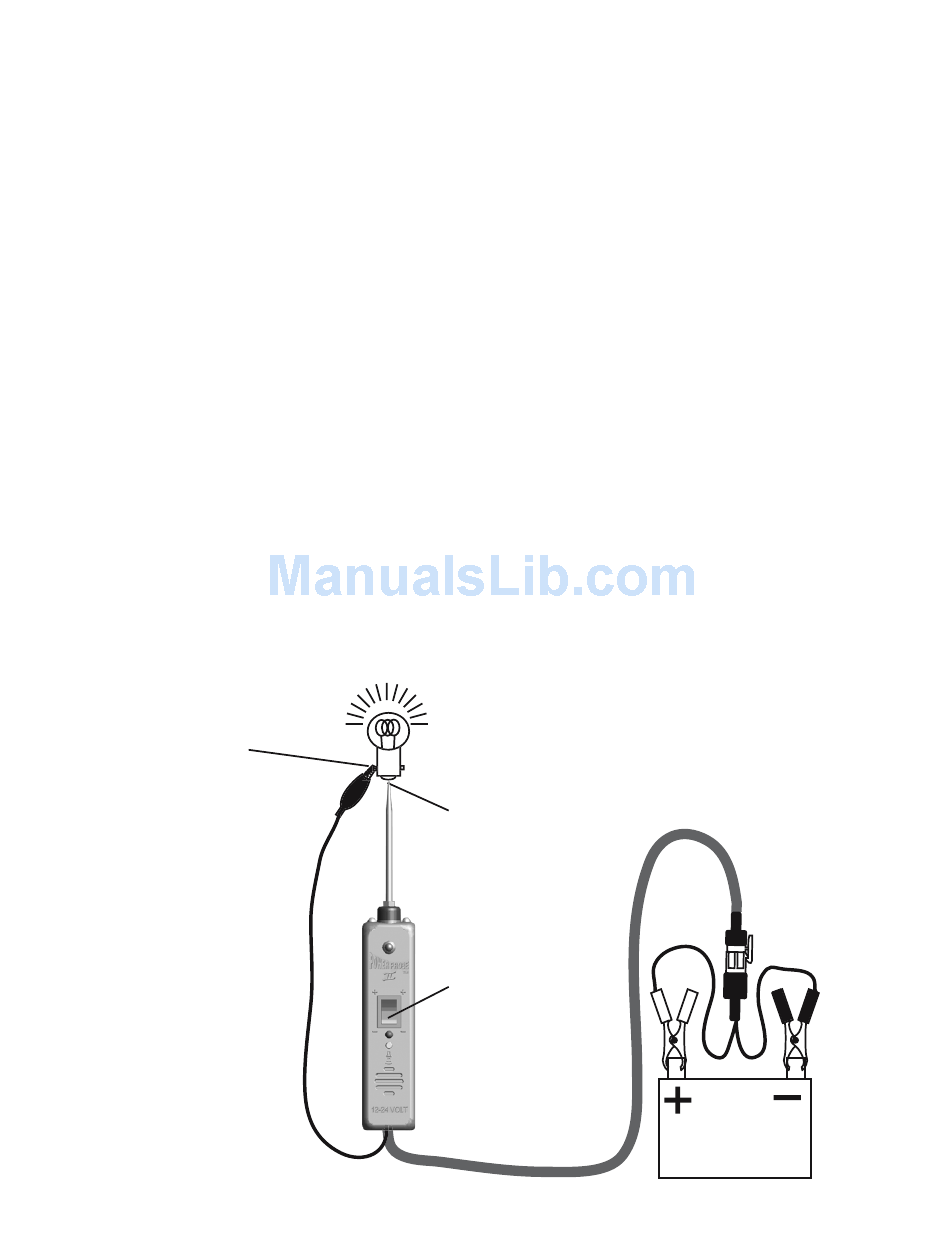

Contact the tip
to the positive
terminal of the bulb
Contacte la Punta
al terminal Positivo
del Bulbo
Press the power switch
forward to activate the
bulb
Presione el interruptor
hacía adelante para
activar el Bulbo
