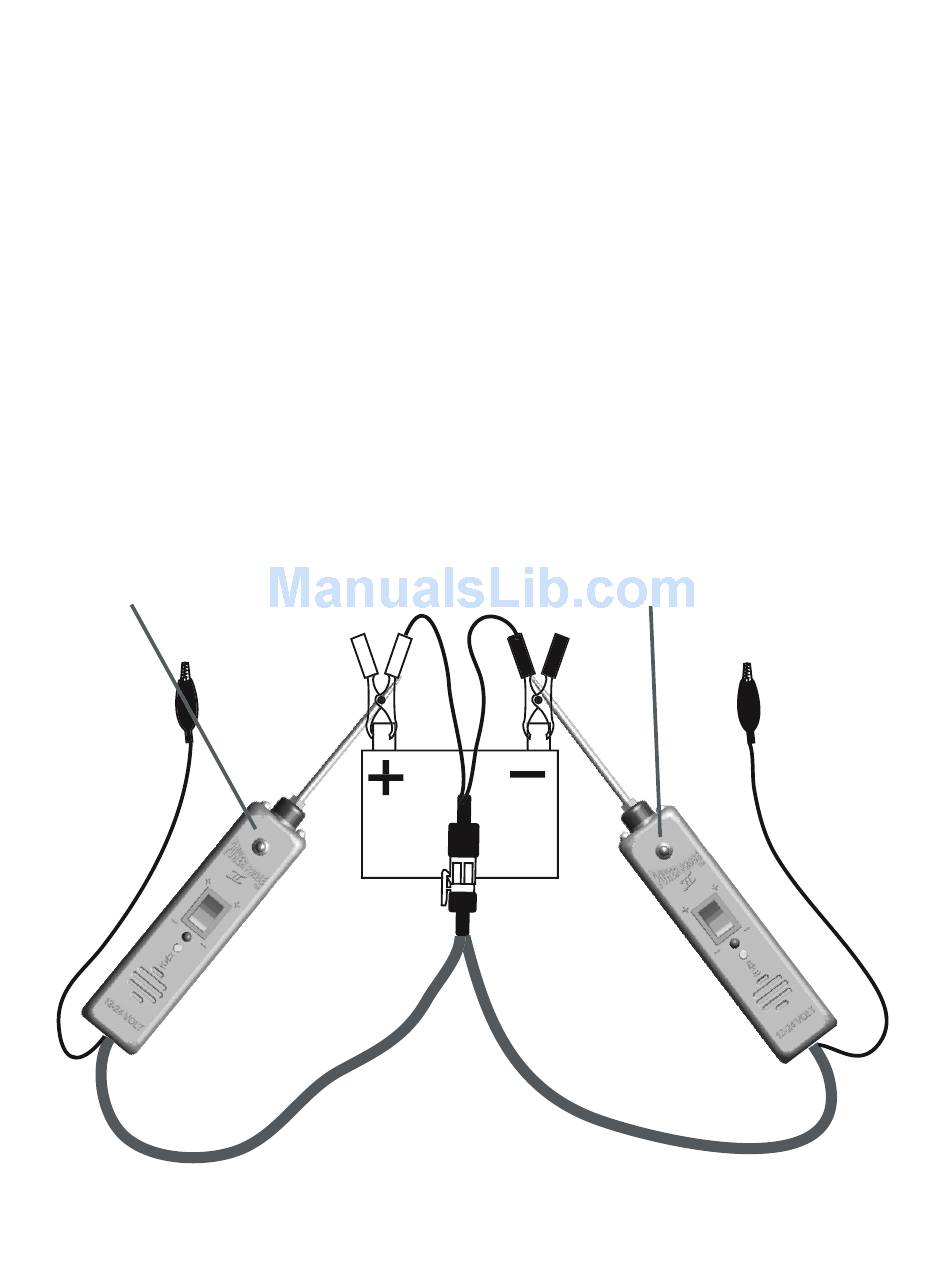

Contacting the Power Probe tip to a POSITIVE (+) circuit will light the LED indicator RED.
(The Power Probe 2 audio feature will sound a high pitched tone when contacting positive)
Contacting the Power Probe tip to a NEGATIVE (-) circuit will light the LED indicator GREEN.
(The Power Probe 2 audio feature will sound a low pitched tone when contacting negative)
Contacting the Power Probe tip to an OPEN circuit will be indicated by the LED indicator not lighting.
Contactando la Punta del Power Probe a un circuito POSITIVO (+) se encenderá el LED indicador ROJO.
Contactando la Punta del Power Probe a un circuito NEGATIVO (-) se encenderá el LED indicador VERDE.
Contactando la Punta del Power Probe a un circuito ABIERTO, el LED no será encencendido.
Red = positive
Rojo = positivo
5

Polarity testing

Probando Polaridad
Green = negative
Verde = negativo
POWER PROBE I & II
