Wirepath WPS-365-BUL-A Installation Manual page 6

WPS-365-BUL-A Installation Manual

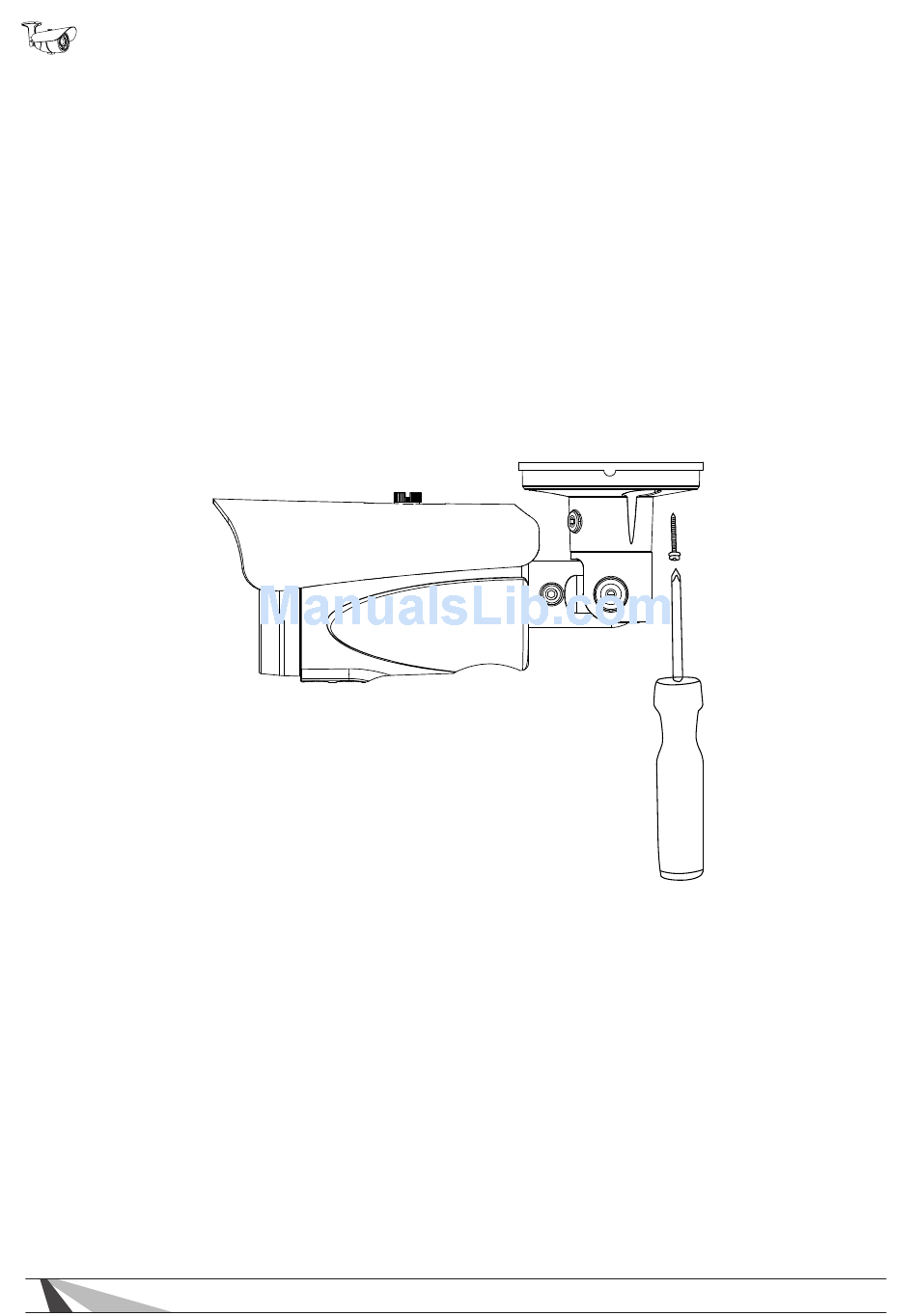

Step 3. Mount the Camera
A. Mounting directly to a wall or eve:Use the camera base as a template
to mark screw locations.
A.1. Pre-drill holes in the marked locations.
A.2. Connect the wires from the wall to the camera's pigtail and
A.3. Place the included foam gasket over the base if desired, and
A.4. Secure the camera with the provided screws.
B. Mounting to a single gang junction box:
We recommend the use of the WPS-MNT-FLUSH-BUL flush mount
plate when mounting to a single gang junction box. This plate is
available in gray or white to match the color of the camera being
used. Follow the instructions in the WPS-MNT-FLUSH-BUL manual for
using this mounting method and then proceed to step 4.
6
insert them into wall.
position the camera base over the marked holes from step
A.1.
