VJ-1638/1638W OPERATION MANUAL
2.2.2

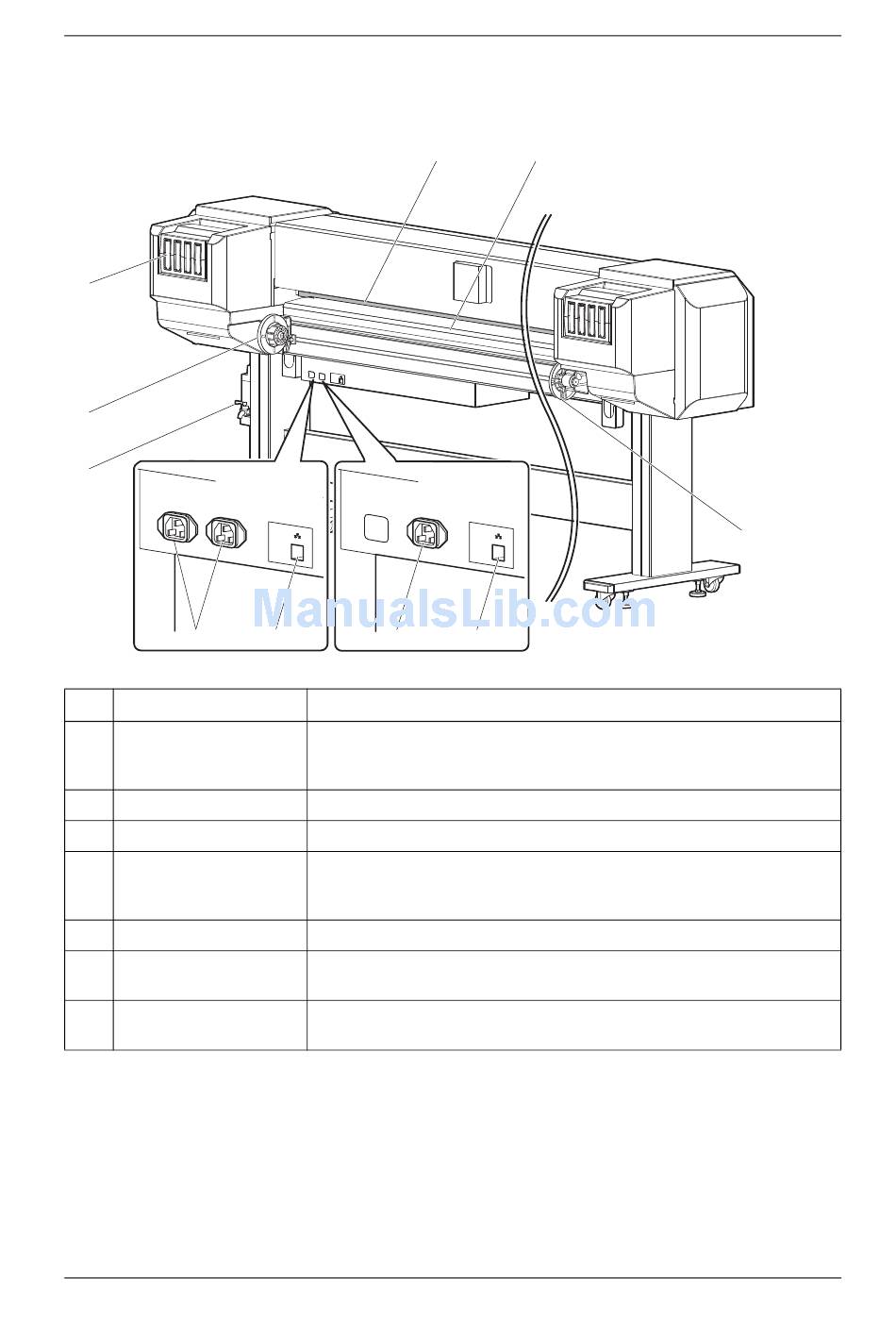

Rear section

3
1
7
5
No. Name
1 Roll media holder
2 Media feed slot
3 Ink cartridge slot
4 Media guide
5 AC inlet
6 Network interface cable
connector
7 Waste fluid valve
VJ-1638
6 5
Load the roll media.
Equipped with Flanges to attach the roll media and Fixing levers to fix Roll media
holders.
Used for feeding media.
Insert Ink cartridges.
Used to feed the media smoothly when loading or printing on the media.
• Heater (Pre-heater) to dry ink is installed inside VJ-1638.
• VJ-1638W is not equipped with Heaters.
Used for connecting the power cord set.
Connects a network interface cable.
Open/close when discharging the waste fluid from Waste fluid tank.
It is normally closed.
2 4
VJ-1638W
6
Function
2-5
2 Product overview
