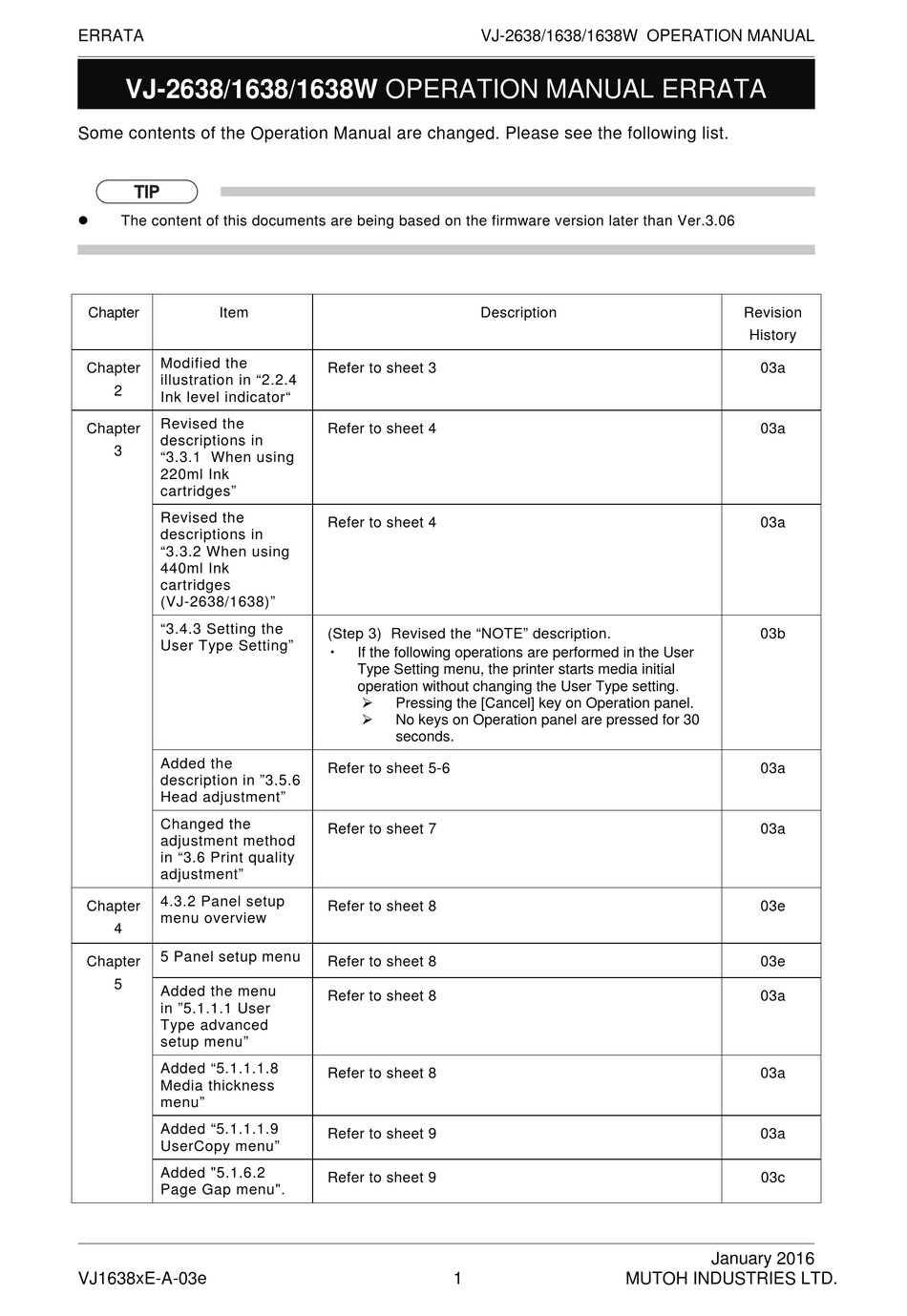

ERRATA

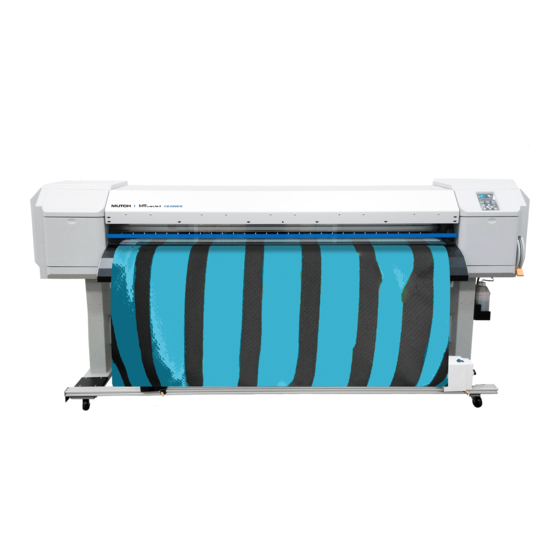

VJ-2638/1638/1638W OPERATION MANUAL ERRATA
Some contents of the Operation Manual are changed. Please see the following list.
TIP
TIP
The content of this documents are being based on the firmware version later than Ver.3.06
Chapter
Item
Modified the
Chapter
illustration in "2.2.4
2
Ink level indicator"
Revised the
Chapter
descriptions in
3
"3.3.1 When using
220ml Ink
cartridges"
Revised the
descriptions in
"3.3.2 When using
440ml Ink
cartridges
(VJ-2638/1638)"
"3.4.3 Setting the
User Type Setting"
Added the
description in "3.5.6
Head adjustment"
Changed the
adjustment method
in "3.6 Print quality
adjustment"
4.3.2 Panel setup
Chapter
menu overview
4
5 Panel setup menu
Chapter
5
Added the menu
in "5.1.1.1 User
Type advanced
setup menu"
Added "5.1.1.1.8
Media thickness
menu"
Added "5.1.1.1.9
UserCopy menu"
Added "5.1.6.2
Page Gap menu".
VJ1638xE-A-03e
VJ-2638/1638/1638W OPERATION MANUAL
Description
Refer to sheet 3
Refer to sheet 4
Refer to sheet 4
(Step 3) Revised the "NOTE" description.
・
If the following operations are performed in the User
Type Setting menu, the printer starts media initial
operation without changing the User Type setting.
Pressing the [Cancel] key on Operation panel.
No keys on Operation panel are pressed for 30
seconds.
Refer to sheet 5-6
Refer to sheet 7
Refer to sheet 8
Refer to sheet 8
Refer to sheet 8
Refer to sheet 8
Refer to sheet 9
Refer to sheet 9
1
Revision
History
03a
03a
03a
03b
03a
03a
03e
03e
03a
03a
03a
03c
January 2016
MUTOH INDUSTRIES LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VJ-2638 and is the answer not in the manual?

Questions and answers

Related Manuals for MUTOH VJ-2638

Summary of Contents for MUTOH VJ-2638

  • Page 1 ERRATA VJ-2638/1638/1638W OPERATION MANUAL VJ-2638/1638/1638W OPERATION MANUAL ERRATA Some contents of the Operation Manual are changed. Please see the following list.  The content of this documents are being based on the firmware version later than Ver.3.06 Chapter Item Description...
  • Page 2 ERRATA VJ-2638/1638/1638W OPERATION MANUAL “5.1.17.1 Roll Changed the maximum roll length. Chapter Length menu” ・ 1m to <30m> to 200m Added "5.1.17.2 Refer to sheet 10 Print Stop menu". “5.1.20 CR Added the following operation. Maintenance menu” ・ Perform the pumping operation (start/stop) by pressing the "-"...

  • Page 3: Ink Level Indicator

    ERRATA VJ-2638/1638/1638W OPERATION MANUAL 2.2.4 Ink level indicator The following illustration is modified. Name LCD display Ink level indicator Ink color January 2016 VJ1638xE-A-03e MUTOH INDUSTRIES LTD.

  • Page 4: Replacing Ink Cartridges

    3.3.2 When using 440ml Ink cartridges (VJ-2638/1638X) 6.1.1 Replacing Ink cartridges See the following changes. • You can use four-color or seven-color ink cartridges for VJ-2638. • When using seven colors, you need the following cartridges. • Magenta (M): 1 cartridge •...

  • Page 5: Head Adjustment

    ERRATA VJ-2638/1638/1638W OPERATION MANUAL 3.5.6 Head adjustment The following descriptions are added to the operation manual. You can print out the adjustment pattern in this menu to check the misalignment between the print heads, and then adjust it. Adjustment Description...
  • Page 6 ERRATA VJ-2638/1638/1638W OPERATION MANUAL Example of Custom adjustment pattern 4. Check the print results that looks most aligned between one and seven. ・when the line is aligned, the bold line on its left side does not have a white vertical line.

  • Page 7: Print Quality Adjustment

    ERRATA VJ-2638/1638/1638W OPERATION MANUAL 3.6 Print quality adjustment See the following changes. ・ The function to enter the media thickness is added. Select “ **>2: Adjust Print>” and press the [>] key. “Thickness 170µm” will be displayed. Press the [+] or [-] key to enter the media thickness from 80μm to 2800μm and then press the [Enter] key.

  • Page 8: Panel Setup Menu Overview

    ERRATA VJ-2638/1638/1638W OPERATION MANUAL 4.3.2 Panel setup menu overview The following menu is added to the list. Setup item Description CR Maintenance Performs maintenance. (Displayed only when using Ultra Value ink) 5 Panel setup menu The following menu is added to the list.
  • Page 9 ERRATA VJ-2638/1638/1638W OPERATION MANUAL 5.1.1.1.9 UserCopy menu Copies the setting values of the user type currently selected to a different user type collectively. The following setting values are copied. ・ Print mode ・ Effect ・ Adjustment value for the adjustment print ・...
  • Page 10 ERRATA VJ-2638/1638/1638W OPERATION MANUAL 5.1.17.2 Print Stop menu You can set whether or not to display “Roll Remain Error” and pause printing when the length of the roll media that is counted inside the printer becomes 0.  Normally you can set this as “Off” as the rear sensor detects when the roll paper is finished.

  • Page 11: Status Messages

    ERRATA VJ-2638/1638/1638W OPERATION MANUAL 5.1.29 Start Feed Menu When Start Feed is set, before printing, the printer rewinds or feeds the media the amount specified by the set value. Setup Item Setting Description Start Feed -10mm to <0mm> to 500mm Sets the amount to rewind or feed the media before printing starts.
  • Page 12 ERRATA VJ-2638/1638/1638W OPERATION MANUAL Setup menu diagram (Ready to Print) (1/4) The following diagram is modified. January 2016 VJ1638xE-A-03e MUTOH INDUSTRIES LTD.
  • Page 13 ERRATA VJ-2638/1638/1638W OPERATION MANUAL Setup menu diagram (Ready to Print) (2/4) The following diagram is modified. January 2016 VJ1638xE-A-03e MUTOH INDUSTRIES LTD.
  • Page 14 ERRATA VJ-2638/1638/1638W OPERATION MANUAL Setup menu diagram (Ready to Print) (3/4) The following diagram is modified. January 2016 VJ1638xE-A-03e MUTOH INDUSTRIES LTD.
  • Page 15 ERRATA VJ-2638/1638/1638W OPERATION MANUAL Setup menu diagram (Ready to Print) (4/4) The following diagram is modified. January 2016 VJ1638xE-A-03e MUTOH INDUSTRIES LTD.
