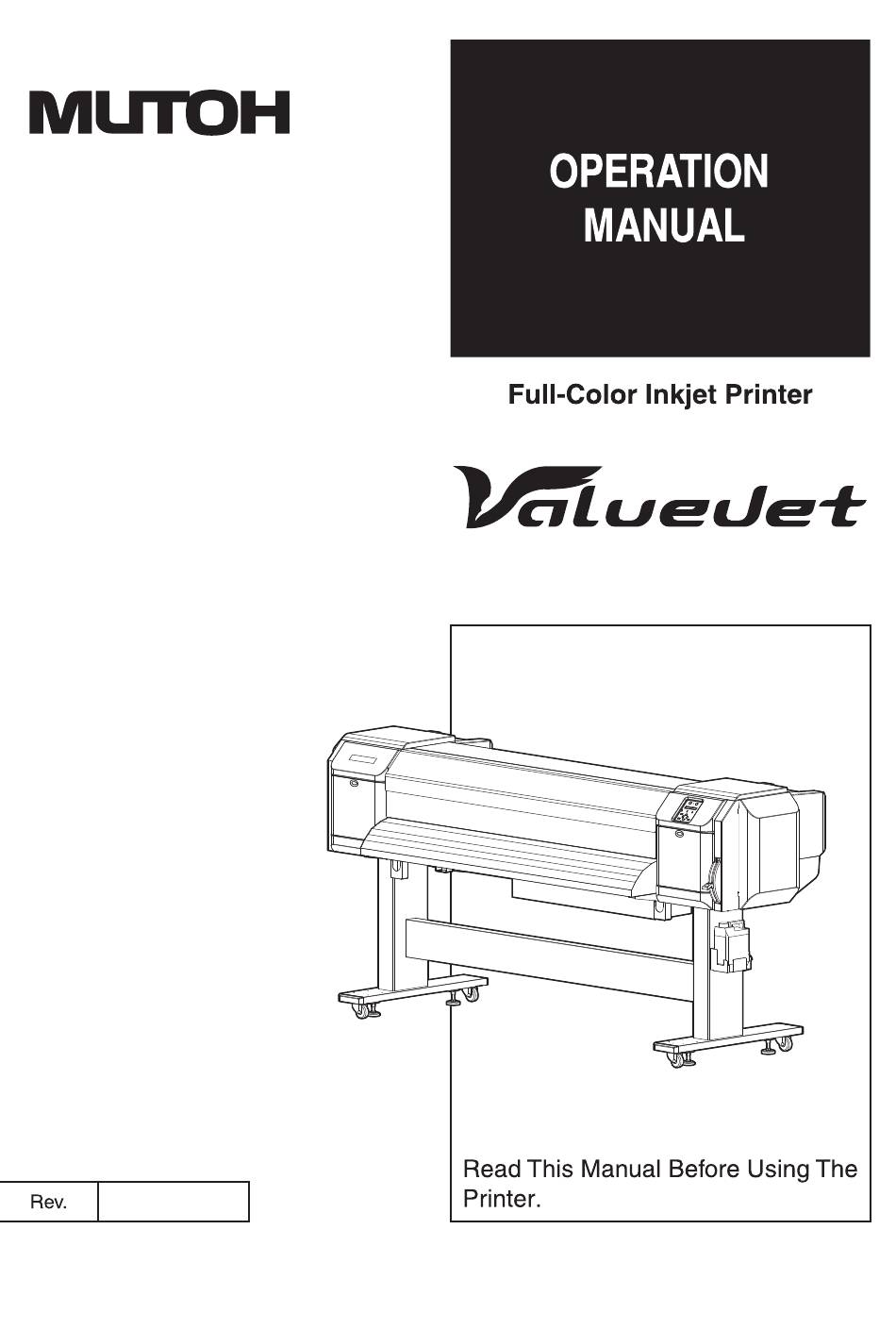

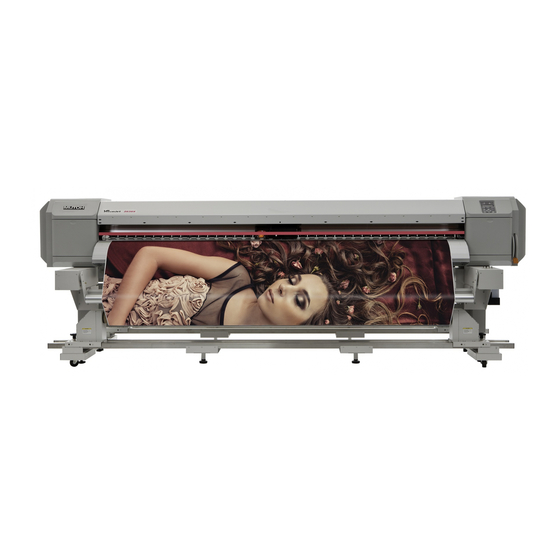

  • Page 1 VJ-2638X VJ-1938X VJ-1638X VJ-1938WX VJ-1638WX VJx638xE-A-08...
  • Page 3 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Important Notice For Users in Europe The CE marking is a mandatory European marking for certain product groups to indicate conformity with the essential health and safety requirements set out in European Directives. By affixing the CE marking, the manufacturer, his authorized representative, or the person placing the product on the market or putting it into service ensures that the item meets all the essential requirements of all applicable EU directives and that the applicable conformity assessment procedures have been applied.
  • Page 4 • The product and the contents of this publication may be changed without prior notification. • MUTOH INDUSTRIES LTD. has made the best efforts to keep this publication free from error, but if you find any uncertainties or misprints, please call us or the shop where you bought this equipment.
  • Page 5 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Warranty Limitations 1. MUTOH INDUSTRIES LTD. warrants part repair or replacement as a sole measure only if a failure is found in the system or in the materials and workmanship of the product the seller produced. However, if the cause of failure is uncertain, decide the action after due mutual consultation.
  • Page 6 This manual explains the operation procedure when you start the printer for the first time. Operation Manual (this manual) Purpose and Target Readers This manual explains preparations before use and operation procedures for MUTOH Full Color Ink Jet Printer VJ-2638X/1938X/1638X/1938WX/1638WX. This manual is prepared for the owners and operators of this printer.
  • Page 7 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Manual Configuration Section Description This chapter explains the installation of this printer, warning terms that operators need to know, 1 Safety instructions caution items and warning labels on the printer main unit. 2 Product overview This chapter explains the features of the printer along with the names and functions of each part. 3 Before using This chapter explains necessary steps before using the printer.
  • Page 8 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL...

  • Page 9: Table Of Contents

    TABLE OF CONTENTS Safety instructions Types and meanings of warnings ....... 16 Important safety instructions .
  • Page 10 Table of Contents VJ-2638X/1638X/1938WX/1638WX OPERATION MANUAL Loading media ..........87 3.4.1 Loading Roll Media onto the Roll media holder .
  • Page 11 VJ-2638X/1638X/1938WX/1638WX OPERATION MANUAL Table of Contents Operating from Operation panel....... . 208 4.4.1 Feeding media .
  • Page 12 Table of Contents VJ-2638X/1638X/1938WX/1638WX OPERATION MANUAL 5.1.25 Gateway menu ..........273 5.1.26 Header Dump menu .
  • Page 13 VJ-2638X/1638X/1938WX/1638WX OPERATION MANUAL Table of Contents Troubleshooting Malfunctions and failures ........348 7.1.1 Problems in installation and introduction .
  • Page 14 Table of Contents VJ-2638X/1638X/1938WX/1638WX OPERATION MANUAL...

  • Page 15: Safety Instructions

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Safety instructions Safety instructions This chapter explains the installation of this printer, warning terms that operators need to know, caution items and warning labels on the printer. WARNING • When installing and operating this printer, be sure to follow the directions and warnings in this manual.

  • Page 16: Types And Meanings Of Warnings

    Safety instructions VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Types and meanings of warnings The warnings in the Operation Manual and the warning labels attached to the printer are categorized into three stages. Understand the meanings of the following warning terms and follow the contents (instructions) in this manual.

  • Page 17: Important Safety Instructions

    It could lead to an electric shock or fire. Immediately turn OFF the power switch, disconnect the power plug from the electric socket, and contact your local MUTOH dealer. Wire the various cords as directed in the Operation Manual. Wrong wiring could cause a fire.
  • Page 18 Safety instructions VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Take power for the printer directly from the power socket (AC 100 V to 120 V or AC 200 V to 240 V). Do not use multiple plugs on the same socket. This could generate heat and might cause a fire. Be sure to use a dedicated power socket with an earth wire for the power supply, and connect it to the earth wire.
  • Page 19 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Safety instructions Do not spill waste fluid when replacing Flushing-box sponges. If waste fluid comes into contact with Grid roller, it may damage its surface and affect media feeding. When cleaning Ceaning wiper, • Do not touch Cleaning wiper and Head cap unit. Head cleaning may not be performed correctly because of oil from your hands.
  • Page 20 Safety instructions VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL <VJ-2638X/1938X/1638X> Do not touch Media guide while printing. Media guide becomes very hot and you could burn yourself. Do not touch Media feed slot, Platen, and Media guide while Heater is working. Media feed slot, Platen, and Media guide become very hot and you could burn yourself. Ventilate the workplace.

  • Page 21: Warning Labels

    • Use cloth, water and mild detergent for removing dirt from the warning labels. Avoid organic solvents and gasoline. • Replace the labels if they are damaged, lost or illegible. If the warning labels have to be replaced, contact your local MUTOH dealer. Warning labels...

  • Page 22: Location And Type Of Warning Labels

    Safety instructions VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 1.3.2 Location and type of warning labels Pasting locations of the warning labels are shown in the following figure. 1.3.2.1 VJ-2638X/1938X/1638X Warning labels Front section Types of warning labels Warning labels...
  • Page 23 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Safety instructions Types of warning labels Warning labels...
  • Page 24 Safety instructions VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Rear section VJ-2638X/1938X Types of warning labels This device has three power systems. There is a risk of electric shock unless the three power cables are unplugged during the maintenance. VJ-1638X Types of warning labels This device has two power systems.

  • Page 25: Vj-1938Wx/1638Wx Warning Labels

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Safety instructions 1.3.2.2 VJ-1938WX/1638WX Warning labels Types of warning labels Warning labels...
  • Page 26 Safety instructions VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Types of warning labels VJ-1938WX Types of warning labels VJ-1638WX Types of warning labels Warning labels...
  • Page 27 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Safety instructions NOTE The following marks are for China’s safety standards. Dan hab yungh youq gij digih haijbaz 2000m doxroengz haenx ancienz sawjyungh. Dan hab yungh youq gij dienheiq diuzgen mbouj dwg diegndat haenx ancienz sawjyungh. Warning labels...
  • Page 28 Safety instructions VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Warning labels...

  • Page 29: Product Overview

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Product overview Product overview This chapter explains the features of this printer along with the names and functions of each part.

  • Page 30: Features

    Product overview VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Features This section explains the main features of the printer. (1) High-speed output The new print head has realized high-speed output. (2) Wide variety of compatible media The height of Print head is adjustable to three levels, making it possible to print on various paper with the width of 0.08 mm to 2.8 mm.

  • Page 31: Names Of Parts And Functions

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Product overview Names of parts and functions This section explains the names and functions of each part. 2.2.1 Front section NOTE The illustrations used in this section are those of VJ-1638X. Name Function Media loading lever Used for fixing or releasing the media. •...
  • Page 32 Product overview VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Name Function Front cover Used to prevent the user from coming in contact with the driving mechanism during the printer operation. Opened and closed when media is loaded or jammed. It is normally closed. Stand Used when installing the printer on a flat floor.

  • Page 33: Rear Section

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Product overview 2.2.2 Rear section (1) Rear section (VJ-2638X) Name Function Media feed slot Used for feeding media. Ink cartridge slot Insert Ink cartridges. Media guide Used to feed the media smoothly when loading or printing on the media. •...
  • Page 34 Product overview VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL (2) Rear section (VJ-1938X/1638X/1938WX/1638WX) VJ-1938WX VJ-1638X VJ-1638X VJ-1938X VJ-1638WX Name Function Roll media holder Load the roll media. Equipped with Flanges to attach the roll media and Fixing levers to fix Roll media holders. Media feed slot Used for feeding media.

  • Page 35: Operation Panel

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Product overview 2.2.3 Operation panel Used to set the operating conditions, to display the status of the printer, and to set various functions. Explains names of each operation key and status display along with the functions. Refer to the following for details regarding the operation method of Operation panel. 4.3 Menu setups on Operation panel •When setting the menu from Operation panel: 4.4 Operating from Operation panel...
  • Page 36 Product overview VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Name Normal Setup menu display [Menu] key Shifts to the Setup menu. Shifts from Setup menu display to Normal. [Enter] key Restarts printing while printing is being • Select the menu to set, and shift to the next suspended.
  • Page 37 When an error requiring a restart (fatal malfunction for the printer operation) occurs, all lamps blink with an alarm. 7.2.3 Error requiring restart •If the error persists even when the malfunction is fixed, contact your local MUTOH dealer. Names of parts and functions...

  • Page 38: Ink Level Indicator

    Product overview VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 2.2.4 Ink level indicator When the “Remain Ink menu” on Display menu is set to “On”, the ink level indicator that discribes the ink or ink cartridge status is displayed on LCD monitor. 5.7 Display menu 5.7.4 Remain Ink menu •...

  • Page 39: Estimated Ink Level Graphic

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Product overview 2.2.4.1 Estimated Ink level graphic Indicator to display the conditions of ink/cartridges Remaining ink amount: More than 80%, less than 100% Remaining ink amount: More than 60%, less than 80% Remaining ink amount: More than 40%, less than 60% Remaining ink amount: More than 20%, less than 40% Remaining ink amount:...

  • Page 40: Printer Status Outline

    Product overview VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Printer status outline This section explains the printer status. 2.3.1 Status (1) Normal Printing is possible when the media is loaded. The various functions for printing can be performed on Operation panel. (2) Setup menu display Various settings regarding printing can be made from Operation panel.

  • Page 41: Changing Printer Status

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Product overview 2.3.2 Changing printer status Follow the procedure below and change the printer status. (1) Normal → Setup menu display Press the [Menu] key on Operation panel when the printer is set to Normal. • “Menu 1: Setup>” is displayed on Operation panel and the display shifts to the Setup menu. NOTE For details regarding the Setup menu, refer to 4.3 Menu setups on Operation panel...
  • Page 42 Product overview VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Printer status outline...

  • Page 43: Before Using

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using Before using This chapter explains necessary steps before using the printer.

  • Page 44: Power Cord Set Connection

    • Do not route the power cord set near heating appliances. NOTE Contact your local MUTOH dealer if the power cord set is damaged. Follow the procedure below to install the power cord set. 1. Make sure that the printer is turned OFF.
  • Page 45 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 2. Connect the power cord set to the AC inlet(s) located on the right side of the printer. NOTE The number of AC inlets differs depending on the printer model. • VJ-2638X/1938X: 3 locations • VJ-1638X: 2 locations •...
  • Page 46 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL <VJ-1938X/1638X> 2 VJ-1938X VJ-1638X Name AC inlet Power cord set <VJ-1938WX/1638WX> Name AC inlet Power cord set Power cord set connection...
  • Page 47 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 3. Insert the plug of the power cord set firmly in the socket. WARNING • Do not pull out or insert the power plug with a wet hand. This could lead to an electric shock. •...
  • Page 48 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL NOTE • Contact your local MUTOH dealer if the earth connection is not/cannot be established. • When the printer is ON, do not pull out the power cord set from the power socket. Whenever the plug is pulled out from the power socket, turn OFF the power on Operation panel and allow one minute or more before inserting the plug in the power socket again.

  • Page 49: Turning The Power On/Off

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using Turning the power ON/OFF This section explains how to turn the printer ON/OFF. 3.2.1 Turning the power ON Follow the procedure below to turn the power ON. 1. Press the [Power] key on Operation panel to turn OFF the printer. •...

  • Page 50: Turning The Power Off

    Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 3.2.2 Turning the power OFF Follow the procedure below to turn the printer OFF. 1. Verify the following regarding the operational condition of the printer. • Printing or other operations are not in progress. • Operation panel display is Normal.
  • Page 51 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 3. Raise the media loading lever when the printer is not used for a long time. Name Media loading lever Turning the power ON/OFF...

  • Page 52: Filling Ink

    Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Filling ink This section describes the procedure to install Ink cartridges for the first time. CAUTION • Before operation, make sure to read the Safety Data Sheet (SDS). • When handling Ink cartridges or Ink packs, pay attention so that ink does not come into contact with your eyes or skin.
  • Page 53 • Any problems caused by using an ink bag other than those recommended above will not be covered by the warranty, and repair expenses will be paid by the customer. • For types and details of Ink cartridges, contact your local MUTOH dealer. • Do not give Ink cartridges or Ink packs strong shakes.

  • Page 54: Changing The Angle Of Ink Cartridge Slot (Vj-2638X/1938X/1638X/1638Wx)

    Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 3.3.1 Changing the angle of Ink cartridge slot (VJ-2638X/1938X/ 1638X/1638WX) NOTE VJ-1938WX is not equipped with this function. Follow the procedure below to change the angle. 3.3.1.1 When inserting Ink cartridges vertically 1. Rotale Ink cartridge slot by 90 degrees upward. Name Ink cartridge slot 2.

  • Page 55: When Inserting Ink Cartridges Horizontally

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 3.3.1.2 When inserting Ink cartridges horizontally 1. Tilt Ink cartridge slot slightly toward the rear side of the printer. Name Ink cartridge slot 2. To unlock, return Ink cartridge slot to the original position. Name Ink cartridge slot Filling ink...
  • Page 56 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 3. Rotate Ink cartridge slot by 90 degrees downward. Name Ink cartridge slot 4. Check if Ink cartridge slot is horizontal. 5. Change the opposite side in the same way. Filling ink...

  • Page 57: When Using 220Ml/440Ml Ink Cartridges

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 3.3.2 When using 220ml/440ml Ink cartridges NOTE The procedures differ depending on the product. Check your printer model name and follow the correct procedure. 3.3.2.1 For VJ-2638X/1938X/1638X 1. Turn the printer ON. • The printer starts the initializing operation. •...
  • Page 58 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 4. Rotale Ink cartridge slot by 90 degrees upward. 3.3.1 Changing the angle of Ink cartridge slot (VJ-2638X/1938X/1638X/1638WX) Name Ink cartridge slot 5. Insert Cleaning cartridge into Ink cartridge slot. • Keep the arrow of Cleaning cartridge facing the front side of the printer and insert it into the printer.
  • Page 59 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using • Insert Cleaning cartridge all the way in Ink cartridge slot. Name Cleaning cartridge Ink cartridge slots • When all Cleaning cartridges are installed, “Busy-Washing” is displayed on Operation panel, and the printer starts charging the cleaning fluid. •...
  • Page 60 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL • “Busy-Washing” is displayed on Operation panel and the printer starts head cleaning. • When head cleaning is complete, “Wash retry? No” is displayed on Oeration panel. 7. Press the [Enter] key on Operation panel. •...
  • Page 61 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 9. Install Ink cartridges in Ink cartridge slots on the rear side of the printer. • Make sure that Ink cartridges are inserted into the correct Slots. Match the ink color label with the ink color before inserting Ink pack. •...
  • Page 62 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL a.Type of 4Colors 4 colors 4 colors Name Ink cartridge Ink cartridge slot K1 Ink cartridge slot K2 Ink cartridge slot C1 Ink cartridge slot C2 Ink cartridge slot M1 Ink cartridge slot M2 Ink cartridge slot Y1 Ink cartridge slot Y2 Filling ink...
  • Page 63 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using b.Type of 7Colors 7 colors 7 colors Lm C Name High-capacity ink pack adapter Ink cartridge slot 1 Ink cartridge slot 2 Ink cartridge slot 3 Ink cartridge slot 4 Ink cartridge slot 5 Ink cartridge slot 6 Ink cartridge slot 7 Ink cartridge slot 8 •...
  • Page 64 If there is no improvement in the print result even after refilling a small amount of ink, leave the printer unused for an hour or more. Then, refill a small amount of ink again and check the print result. If there is still no improvement, contact your local MUTOH dealer. Filling ink...

  • Page 65: For Vj-1938Wx

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 3.3.2.2 For VJ-1938WX 1. Turn the printer ON. • The printer starts the initializing operation. • After the initial operation is compete, “Start Ink Charge – > E” is displayed on Operation panel. 2. Press the [Enter] key on Operation panel. •...
  • Page 66 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 3. Select whether to perform cleaning of the ink path before the initial ink charge. NOTE • Cleaning may be required depending on the ink type to be set. • To perform head cleaning, make sure to use the cleaning liquid that matches the ink. a.
  • Page 67 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 6. Insert Cleaning cartridge into Ink cartridge slot. • Keep the arrow of Cleaning cartridge facing up and insert it into the printer. Name Cleaning cartridge Arrow • Insert Cleaning cartridge all the way in Ink cartridge slot. Name Cleaning cartridge Ink cartridge slots...
  • Page 68 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 7. Remove all Cleaning cartridges. Name Cleaning cartridge • “Busy-Washing” is displayed on Operation panel and the printer starts head cleaning. • When head cleaning is complete, “Wash retry? No” is displayed on Operation panel. 8.
  • Page 69 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 10. Install Ink cartridges in Ink cartridge slots on the back of the printer. • Make sure that Ink cartridges are inserted into the correct Slots. Match the ink color label with the ink color before inserting Ink pack. •...
  • Page 70 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Name Ink cartridge Ink cartridge slot K1 Ink cartridge slot K2 Ink cartridge slot C1 Ink cartridge slot C2 Ink cartridge slot M1 Ink cartridge slot M2 Ink cartridge slot Y1 Ink cartridge slot Y2 •...
  • Page 71 If there is no improvement in the print result even after refilling a small amount of ink, leave the printer unused for an hour or more. Then, refill a small amount of ink again and check the print result. If there is still no improvement, contact your local MUTOH dealer. Filling ink...

  • Page 72: For Vj-1638Wx

    Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 3.3.2.3 For VJ-1638WX 1. Turn the printer ON. • The printer starts the initializing operation. • After the initial operation is compete, “Start Ink Charge – > E” is displayed on Operation panel. 2. Press the [Enter] key on Operation panel. •...
  • Page 73 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 3. Select whether to perform cleaning of the ink path before the initial ink charge. NOTE • Cleaning may be required depending on the ink type to be set. • To perform head cleaning, make sure to use the cleaning liquid that matches the ink. a.
  • Page 74 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 6. Rotale Ink cartridge slot by 90 degrees upward. 3.3.1 Changing the angle of Ink cartridge slot (VJ-2638X/1938X/1638X/1638WX) Name Ink cartridge slot 7. Insert Cleaning cartridge into Ink cartridge slot. • Keep the arrow of Cleaning cartridge facing the front side of the printer and insert it into the printer.
  • Page 75 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using • Insert Cleaning cartridge all the way in Ink cartridge slot. Name Cleaning cartridge Ink cartridge slots • When all Cleaning cartridges are installed, “Busy-Washing” is displayed on Operation panel, and the printer starts charging the cleaning fluid. •...
  • Page 76 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL • When head cleaning is complete, “Wash retry? No” is displayed on Operation panel. 9. Press the [Enter] key on Operation panel. • “Insert InkCartridges” is displayed on Operation panel. 10. Take out the ink cartridge from the bag and gently shake it two to three times. •...
  • Page 77 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 11. Install Ink cartridges in Ink cartridge slots on the back of the printer. • Make sure that Ink cartridges are inserted into the correct Slots. Match the ink color label with the ink color before inserting Ink pack. •...
  • Page 78 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Name Ink cartridge Ink cartridge slot K1 Ink cartridge slot K2 Ink cartridge slot C1 Ink cartridge slot C2 Ink cartridge slot M1 Ink cartridge slot M2 Ink cartridge slot Y1 Ink cartridge slot Y2 •...
  • Page 79 If there is no improvement in the print result even after refilling a small amount of ink, leave the printer unused for an hour or more. Then, refill a small amount of ink again and check the print result. If there is still no improvement, contact your local MUTOH dealer. Filling ink...

  • Page 80: Installing High Capacity Ink Pack Adapter (Option) For Vj-2638X/1938X/1638X

    Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 3.3.3 Installing High Capacity Ink Pack Adapter (option) for VJ- 2638X/1938X/1638X Use the optional High-capacity ink pack adapter to use the 1000ml Ink packs on VJ-2638X/1938X/ 1638X. NOTE High-capacity ink pack adapters are not compatible with VJ-1938WX/1638WX. Follow the procedure below to install High-capacity ink pack adapter.
  • Page 81 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 2. Turn the printer ON. • The printer starts the initializing operation. • After the initial operation is compete, “Start Ink Charge – > E” is displayed on Operation panel. 3. Press the [Enter] key on Operation panel. •...
  • Page 82 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 6. Insert High-capacity ink pack adapter into Ink cartridge slot. NOTE Do not insert High-capacity ink pack adapter into Ink cartridge slot without attaching Cleaning fluid pack. The information of the remaining IC chip card will be rewritten and Cleaning fluid pack will not be usable.
  • Page 83 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 7. Remove all High-capacity ink pack adapters. Name High-capacity ink pack adapter • “Busy-Washing” is displayed on Operation panel and the printer starts head cleaning. • When head cleaning is complete, “Wash retry? No” is displayed on Oeration panel. NOTE Do not remove only Cleaning fluid pack while High-capacity ink pack adapter is installed on the printer.
  • Page 84 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 9. Remove Cleaning fluid pack and IC chip card from High-capacity ink pack adapter. NOTE When there is remaining Cleaning fluid pack and IC chip card, clarify the corresponding pack and card, and store it as a set. 10.
  • Page 85 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 4 colors 4 colors Name High-capacity ink pack adapter Ink cartridge slot K1 Ink cartridge slot K2 Ink cartridge slot C1 Ink cartridge slot C2 Ink cartridge slot M1 Ink cartridge slot M2 Ink cartridge slot Y1 Ink cartridge slot Y2 •...

  • Page 86: When Using High-Capacity Ink Pack Adapter For The First Time On The Printer Whose Ink Is Filled86

    • For VJ-2638X/1938X/1638X, users cannot change the number of ink pack colors after the initial ink replenishment. To request a change, contact your local MUTOH dealer. • If the printer perform the nozzle check printing immediately after the initial ink replenishment is complete, the following results may occur.

  • Page 87: Loading Media

    ROM. • Refer to the following for details about handling media. 4.2 Media • For types and details of the recommended media, contact your local MUTOH dealer. 3.4.1 Loading Roll Media onto the Roll media holder This section describes the procedure to load the roll media onto the Roll media holder.
  • Page 88 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Follow the procedure below to load the roll media. 1. Loosen Fixing levers on the Roll media holders (both left and right) on the back of the printer. Set the distance between Roll media holders wider () than the actual width of the roll media to be set. Name Roll media holder (Left) Roll media holder (Right)
  • Page 89 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 2. Tighten Fixing lever of Roll media holder (Left) and fix the roll media holder (Left). Name Roll media holder (Left) Fixing lever 3. Set the roll media to Roll media holder (Left). Name Roll media holder (Left) Roll media Loading media...
  • Page 90 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 4. Attach Roll media holder (Right) to the roll media() and tighten Fixing lever(). Name Roll media holder (Right) Roll media Fixing lever Loading media...
  • Page 91 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 5. Loosen the fixing levers of the right and left roll media holders (), move the roll media to the center (), press Roll media holder toward the printer () and fix the levers (). NOTE When tightening Fixing lever, press Roll media holder toward the printer.

  • Page 92: Loading Roll Media Into The Printer

    Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 3.4.2 Loading Roll Media into the printer This section explains how to set the roll media. NOTE • For VJ-2638X, refer to the operation manual of Heavy take-up unit. Operation Manual for Heavy-Duty take-up unit “4.3 Setting the Roll Paper” •...
  • Page 93 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 2. Raise front or rear Media loading lever. Name Media loading lever • “Lever Up” is displayed on Operation panel. 3. Open Front cover. Name Front cover Loading media...
  • Page 94 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 4. Set the roll media to Media feed slot. NOTE If the end of the roll media is not wound tightly, wind it tightly again, and then load it. Name Roll media Media feed slot 5.
  • Page 95 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 6. Rewind the roll media a little by rolling Flange on Roll media holder while holding the edge of the media, and eliminate any slack or slant. NOTE • If you set the roll media free while rewinding, the roll media may fall out from Media feed slot and fall toward the back of the printer.
  • Page 96 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 7. Make sure that the edges of the media is appropriately pressed by Pressurizing rollers. • When the media is set as shown in the following figure X, follow the procedure to adjust the position of the roll media. If the media is set as shown in the following figure X, the media may be misaligned or creased during printing.
  • Page 97 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using <For VJ-1938WX/1638WX> Name Roll media Pressurizing rollers a. Loosen Fixing levers of the right and left Roll media holders(), and move the roll media to left or right(). b. After moving the roll media(), fix it with Fixing levers of the right and left Roll media holders().
  • Page 98 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 8. Lower front or rear Media loading lever. Name Media loading lever NOTE • When loading the new roll media, cut the front edge of the media if it is not straight. 4.4.3 Cutting media •...
  • Page 99 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 9. Close Front cover. Name Front cover • The User Type Setup menu is displayed on Operation panel. 3.4.3 Setting the User Type Setting To change the user type, follow and set the user type. Loading media...

  • Page 100: Setting The User Type Setting

    Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 3.4.3 Setting the User Type Setting This section explains how to set the user type setting. Follow the procedure below to set the user type setting. 1. Turn ON the printer and load the media. •...
  • Page 101 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 3. Press the [Enter] key on Operation panel. • The user type setting is set. • “Media Initial” is displayed on Operation panel and media initialization starts. NOTE If the following operations are performed in the User Type Setting menu, the printer starts media initial operation without changing the User Type setting.

  • Page 102: Changing Torque Of Roll Media Holder

    Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 3.4.4 Changing Torque of Roll Media Holder This section explains how to change the torque setting of the Roll media holder. The 1 kg torque is usually used. When the media is creased or the print head might have a risk of striking the media, change to the 4 kg torque.
  • Page 103 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using • Torque can be set to either 1 kg or 4 kg as below. Name Damper knob Loading media...

  • Page 104: Releasing Pressure Arms Individually (Vj-1938Wx/1638Wx Only)

    Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 3.4.5 Releasing pressure arms individually (VJ-1938WX/1638WX only) When printing on thin media or media without stiffness, the media rubs against the print head and becomes dirty. In such a case, it may improve when releasing the pressure arms holding both sides of media.
  • Page 105 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 3. Release the pressure arms on both edges of media. • To release the pressure arms, pull the lever of pressure arm cancel function until it clicks in place. Name Pressure arm Pressure arm cancel function 4.

  • Page 106: Test Print

    Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Test print Follow the procedure below to perform test printing to confirm that the printer works correctly. 1. Turn ON the printer and load the roll media. 3.4.2 Loading Roll Media into the printer 2. Confirm that the printer is in the Normal status. 3.
  • Page 107 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using c. Press the [>] key on Operation panel. • “Test1: Nozzle Check” is displayed on Operation panel. • The display shifts to the Test Print menu. 5.2 Test Print Menu 4. Press the [+] key or [–] key on Operation panel to select an item for printing from the following items.
  • Page 108 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 5. Press the [Enter] key on Operation panel. • Start performing Test Print for the selected item. Refer to the following for details on each of the print list items. 3.5.1 Nozzle check 3.5.2 Mode print 3.5.3 Setup print 3.5.4 Palette print 3.5.5 Color Verify (VJ-2638X/1938X/1638X only)

  • Page 109: Nozzle Check

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 3.5.1 Nozzle check It is used to check whether there are any clogged heads, or missing/blurred prints. NOTE If the nozzle check result shows that the checked points are blurred or missing, perform head cleaning. 6.2.3 Head cleaning Perform nozzle check once again at the end of the work.

  • Page 110: Mode Print

    Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 3.5.2 Mode print Used to confirm the following printing conditions. • PrintMode • Effect • Pre-heater set temperature (VJ-2638X/1938X/1638X) • Platen heater set temperature (VJ-2638X/1938X/1638X) • After heater set temperature (VJ-2638X/1938X/1638X) • Media feed compensation micro adjustment value Refer to the following for printing procedure.

  • Page 111: Setup Print

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 3.5.3 Setup print Used to check the current setup of the printer. NOTE Keep the printed setup print at hand. Refer to the following for printing procedure. 3.5 Test print The illustrations used in this section are print samples of VJ-1638X. Ｓｅｔｕｐ　Ｌｉｓｔ...

  • Page 112: Palette Print

    Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 3.5.4 Palette print Palette printing is performed as a color demonstration. NOTE When the selected print mode of the user type is “Graphics 1” or “Graphics 2”, “Palette menu” is not displayed. Refer to the following for printing procedure. 3.5 Test print Test print...

  • Page 113: Color Verify (Vj-2638X/1938X/1638X Only)

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 3.5.5 Color Verify (VJ-2638X/1938X/1638X only) The “Color Verify” feature can be utilized to aid the printer operator in checking for and isolating potential color reproduction variations before they become a visual detriment. In this function, 14 color patches are printed, and the colors are measured by the optional spectrophotometer (SPECTROVUE VM-10).
  • Page 114 • The optional SPECTROVUE VM-10 is required to perform this function. For more information about the SPECTROVUE VM-10, contact your local MUTOH dealer. • Before performing this function, make sure to print the nozzle check pattern to check if there is no missing nozzle.
  • Page 115 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 4. Display the Test Print menu on the operation panel. Press the [Menu] key on the operation panel. • “Menu1: Setup>” is displayed on the operation panel. • The operation panel shifts to the Setup menu display. b.
  • Page 116 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 5. Press the [+] key or [-] key on the operation panel to select “Test5: Color Verify”. 6. Press the [Enter] key on the operation panel. • The printing of following items starts. a. Color Patches b.
  • Page 117 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using User Type = Type 3 Pre Heater = 42˚C Head Temp. =25˚C dE(94) < 1.0: No discernable difference in color. Praten Heater = 42˚C dE(94) < 3.2: Minimally discernable color difference for colors viewed side-by-side. Dryer = 42˚C dE(94) <...
  • Page 118 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 8. Open the maintenance cover on the left of the printer. • “Remove connector cap and attach instrument [ENTER]” is displayed on the operation panel. Name Maintenance Cover NOTE When a certain time has passed without opening the maintenance cover, the print head returns toward the right side of the printer to protect the print head.
  • Page 119 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 10. Press the release buttons on both sides of spectrophotometer, install it to the connector at the print head. Name Spectrophotometer Release buttons Print head section Connector NOTE Make sure that spectrophotometer is NOT installed at an angle, and that there is no gap between the connector and spectrophotometer.
  • Page 120 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 12. Remove the white reference plate from the plate installation place, turn it over so that the white side faces up, and install it back to the original place. Name White reference plate Plate installation place NOTE Before measuring the color patches, make sure that the white side of the white reference plate is facing up.
  • Page 121 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 14. When “Start measurement [ENTER]” is displayed on the operation panel, press the [Enter] key. • Spectrophotometer starts measuring the color patches. • “Measuring...” is displayed on the operation panel. • After measuring is complete, “Detaching instrument [ENTER]” is displayed on the operation panel.
  • Page 122 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 16. Open the maintenance cover on the left of the printer. • “Detach instrument and Set connector [ENTER]” is displayed on the operation panel. Name Maintenance Cover 17. While pressing the release buttons on both sides of spectrophotometer, pull it forward to remove it from the print head.
  • Page 123 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 18. Firmly pinch the tabs on both sides of the connector cap with your fingers, and install it to the connector at the print head. Name Connector cap Tabs Print head section Connector 19. Press the [Enter] key. •...
  • Page 124 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 20. Remove the white reference plate from the plate installation place, turn it over so that the black side faces up, and install it back to the original place. Name White reference plate Plate installation place NOTE When the white reference plate is not in use, make sure that it is turned over facing down to avoid any contamination.
  • Page 125 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using • The printing of following items starts. a. Date b. Serial Number c. Color Difference (dE) C o l o r V e r i f i c a t i o n 2012/10/01 15:25 Serial No.
  • Page 126 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 23. Press [Enter] key to save the measurement value of the currently printed color patches. NOTE • When the measurement value is saved, the baseline will be replaced by the currently measured value. • Press [Cancel] key to not to save the measurement value. •...

  • Page 127: Head Alignment

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 3.5.6 Head alignment You can print out the adjustment pattern in this menu to check the misalignment of the print head, and then adjust it. Adjustment methods for this printer are as follows. Adjustment Description Reference method Standard...

  • Page 128: Standard Head Alignment

    Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 3.5.6.1 Standard head alignment Adjustment is performed only for the print mode set by the current User Type. 1. Turn ON the printer and load the roll media. 3.4.2 Loading Roll Media into the printer 2.
  • Page 129 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using c. Press the [>] key on Operation panel. • “Test1: Nozzle Check” is displayed on Operation panel. d. Press the [+] key or [-] key on Operation panel to select “Test6: HeadAdjust>”. e. Press the [>] key on Operation panel. •...
  • Page 130 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL WARNING • While “Warming Up” is displayed, do not touch Platen and Media guide. They become very hot and you could burn yourself. NOTE You can start printing during warming up. 4.4.7 Starting printing during warming up (VJ-2638X/1938X/1638X) •...
  • Page 131 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 4. Select the most aligned number from 1 to 7. • 6 is selected in the next printing sample. Not good Good Not good NOTE • “4” represents the current setting value. • When the line is aligned, the bold line on its left side does not have a white vertical line. 5.
  • Page 132 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 6. Press the [+] key or [-] key on Operation panel to enter the number that you selected in Step 4. NOTE When you press the [Cancel] key on Operation panel, the setting value is not entered and the display returns to “HeadAdj.1: Standard”.

  • Page 133: Custom Head Alignment

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 3.5.6.2 Custom head alignment Perform adjustment for A to F patterns. All print modes will be adjusted. This menu consists of the following menus. Adjustment Description Reference Fine Ptn. ALL Print out the confirmation patterns A to F, and then adjust all patterns.
  • Page 134 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL b. Press the [+] key or [-] key on Operation panel to select “Menu2: Test Print>”. c. Press the [>] key on Operation panel. • “Test1: Nozzle Check” is displayed on Operation panel. d. Press the [+] key or [-] key on Operation panel to select “Test6: HeadAdjust>”. e.
  • Page 135 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using f. Press the [+] key or [-] key on Operation panel to select “HeadAdj. 2: Custom”. 3. Press the [Enter] key on Operation panel. • “Fine Ptn. ALL” is displayed on Operation panel. 4. Press the [+] key or [-] key to select the pattern to be adjusted. •...
  • Page 136 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 5. Press the [Enter] key on Operation panel. • For VJ-2638X/1938X/1638X, “Warming Up Skip ->E” is displayed on Operation panel. (This is not displayed for VJ-1938WX/1638WX since it does not perform warming up. WARNING • While “Warming Up” is displayed, do not touch Platen and Media guide. They become very hot and you could burn yourself.
  • Page 137 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 6. Select the most aligned number from 1 to 7. • 6 is selected in the next printing sample. Not good Good Not good NOTE • “4” represents the current setting value. • When the line is aligned, the bold line on its left side does not have a white vertical line. 7.
  • Page 138 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 9. Press the [Enter] key on Operation panel. • The setting value is fixed. • When you have selected “AdjustALL” in step 4, Pattern*: 4 (refer to the chart below for *) is displayed on Operation panel. Check the print result of the relevant pattern, and set the number that is most aligned in the same way as steps 6 to 9.

  • Page 139: Print Quality Adjustment

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using Print quality adjustment It is used for optimizing the quality of image prints. Adjustment methods for this printer are as follows. Adjustment Description Reference method Standard Adjustment is performed only for the print mode set by the 3.6.1 Standard print quality current User Type.

  • Page 140: Standard Print Quality Adjustment

    Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 3.6.1 Standard print quality adjustment Adjusts only the print mode in the user type setting which is currently set. This menu consists of the following menus. Menu name Description Reference Standard confirmation Print out the confirmation pattern and check the 3.6.1.1 Standard confirmation pattern degree of misalignment.

  • Page 141: Standard Confirmation Pattern

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 3.6.1.1 Standard confirmation pattern Print out the confirmation pattern of the print mode in the user type setting which is currently set. 1. Turn ON the printer and load the roll media. 3.4.2 Loading Roll Media into the printer 2.
  • Page 142 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL c. Press the [>] key on Operation panel. • “User: TypeXX” (XX is a number between 1 and 15) is displayed on Operation panel. d. Press the [+] key or [-] key on Operation panel to select the user type setting. e.
  • Page 143 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using g. Press the [>] key on Operation panel. h. Press the [Enter] key on Operation panel. • “Thickness 170 µm” is displayed on the operation panel. (The default is set to 170 µm. If the default value has been changed, the changed value is displayed.) i.
  • Page 144 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL j. Press the [Enter] key on Operation panel. • Media thickness value is set. • “Adj. Print1: Standard” is displayed on Operation panel. k. Press the [Enter] key on Operation panel. • “Adj. 1: Confirm Ptn.” is displayed on Operation panel. •...
  • Page 145 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 3. Press the [Enter] key on Operation panel. • For VJ-2638X/1938X/1638X, “Warming Up Skip ->E” is displayed on Operation panel. (This is not displayed for VJ-1938WX/1638WX since it does not perform warming up.) CAUTION • While “Warming Up” is displayed, do not touch Platen and Media guide. They become very hot and you could burn yourself.
  • Page 146 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 4. Confirm that the confirmation pattern printing result is as follows. Good Not good Not good a. When the printing result is Good: You do not need perform print quality adjustment. The procedure for print quality adjustment is complete. b.

  • Page 147: Standard Rough Adjustment Pattern

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 3.6.1.2 Standard rough adjustment pattern Perform rough adjustment when the degree of misalignment is big. Print rough adjustment pattern and register the set values. 1. Display the Standard Adjust Print menu on Operation panel in the same way as step 2 of 3.6.1.1 Standard confirmation pattern 2.
  • Page 148 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL • A rough adjustment pattern is printed for both Head 1 and Head 2 (VJ-2638X/1938X/1638X starts printing after warming up is complete.) Q3/Q4/G1/G2 Pattern for Head1 Pattern for Head2 • For the rough adjustment pattern, the same petterns will be printed on both sides and center of the media.
  • Page 149 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 5. “Pattern*1: 11” (refer to the chart below for *) is displayed on Operation panel. • The pattern name indicated by * differs depending on the set print mode. Print modes and corresponding pattern names are listed as follows. Print Mode Pattern name Quality 1, 2...
  • Page 150 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 7. Press the [Enter] key on Operation panel. • Determines the setting. • “Pattern*2: 11” is displayed next. 8. For Head 2, check the print results on both sides and center of the media and select the number that looks most aligned between 1 and 21.
  • Page 151 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 10. Press the [Enter] key on Operation panel. • Determines the setting. • “Adj.2: Rough Pattern” is displayed on Operation panel. Print quality adjustment...

  • Page 152: Standard Micro Adjustment Pattern

    Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 3.6.1.3 Standard micro adjustment pattern Perform micro adjustment when the degree of misalignment is small. Print micro adjustment pattern and register the set values. 1. Display the Standard Adjust Print menu on Operation panel in the same way as step 2 of 3.6.1.1 Standard confirmation pattern 2.
  • Page 153 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using • An micro adjust print pattern is printed for both Head 1 and Head 2. (VJ-2638X/1938X/1638X starts printing after warming up is complete.) Pattern for Head 1 Pattern name Pattern for Head 2 Q3/Q4/G1/G2 Current Print Mode •...
  • Page 154 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 5. “Pattern*1: 4” (refer to the chart below for *) is displayed on Operation panel. • The pattern name indicated by * differs depending on the set print mode. Print modes and corresponding pattern names are listed as follows. PrintMode Pattern name Quality 1, 2...
  • Page 155 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 7. Press the [Enter] key on Operation panel. • Determines the setting. • “Pattern*2: 4” is displayed next. 8. For Head 2, check the print results on both sides and center of the media and select the number that looks most aligned between 1 and 7.
  • Page 156 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 10. Press the [Enter] key on Operation panel. • Determines the setting. • “Adj.3: Fine Pattern” is displayed on Operation panel. Print quality adjustment...

  • Page 157: Custom Print Quality Adjustment

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 3.6.2 Custom print quality adjustment Perform adjustment for all patterns (A to F). All print modes will be adjusted. This menu consists of the following menus. Menu name Description Reference Custom confirmation pattern Print out the confirmation patterns (A to F) 3.6.2.1 Custom confirmation and check the degree of misalignment.

  • Page 158: Custom Confirmation Pattern

    Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 3.6.2.1 Custom confirmation pattern Using this menu, you can print out all of the confirmation patterns (A to F) and check the degree of misalignment. 1. Turn ON the printer and load the roll media. 3.4.2 Loading Roll Media into the printer 2.
  • Page 159 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using c. Press the [Enter] key on Operation panel. • “User: TypeXX” (XX is a number between 1 and 15) is displayed on Operation panel. d. Press the [+] key or [-] key on Operation panel to select the user type setting. e.
  • Page 160 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL g. Press the [>] key on Operation panel. • “Thickness 170 µm” is displayed on the operation panel. (The default is set to 170 µm. If the default value has been changed, the changed value is displayed.) h.
  • Page 161 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using j. Press the [+] key or [-] key on Operation panel to select “Adj. Print2: Custom”. k. Press the [Enter] key on Operation panel. • “Adj.1: Confirm Ptn.” is displayed on Operation panel. • The display enters the Adjust Print menu. 5.1.1.1.2 Adjust Print menu 3.
  • Page 162 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL CAUTION • While “Warming Up” is displayed, do not touch Platen and Media guide. They become very hot and you could burn yourself. NOTE You can start printing during warming up. 4.4.7 Starting printing during warming up (VJ-2638X/1938X/1638X) •...
  • Page 163 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 4. Confirm that the confirmation pattern printing result is as follows. • Check each of the confirmation patterns A to F. Good Not good Not good a. When the printing result is Good: You do not need perform print quality adjustment. The procedure for print quality adjustment is complete.

  • Page 164: Custom Rough Adjustment Pattern

    Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 3.6.2.2 Custom rough adjustment pattern Perform micro adjustment when the degree of misalignment is small. This menu consists of the following menus. Menu name Description Reference Custom rough Rough Pattern All confirmation patterns (A to F) will be 3.6.2.2.1 Rough Pattern ALL adjustment adjusted.
  • Page 165 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using CAUTION • While “Warming Up” is displayed, do not touch Platen and Media guide. They become very hot and you could burn yourself. NOTE You can start printing during warming up. 4.4.7 Starting printing during warming up (VJ-2638X/1938X/1638X) •...
  • Page 166 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 4. For Head 1, check the print results on both sides and center of the media and select the number that looks most aligned between 1 and 21. • “12” is selected in the following pattern A1. Not good Good Not good...
  • Page 167 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 7. Press the [Enter] key on Operation panel. • Determines the setting. • “Pattern*2: 11” is displayed next. 8. For Head 2, check the print results on both sides and center of the media and select the number that looks most aligned between 1 and 21.
  • Page 168 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 10. Press the [Enter] key on Operation panel. • Determines the setting. 11. Enter the values for patterns B to F in the same way. • Press the [Enter] key to set the value. • Once all set values have been entered, press the [Enter] key to register the set values of patterns A to F.
  • Page 169 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 3.6.2.2.2 Rough Pattern A to F Print one adjustment pattern from A to F and register the set value. The following describes how to adjust pattern A only. 1. Display the Custom Adjust Print menu on Operation panel in the same way as Step 2 of 3.6.2.1 Custom confirmation pattern 2.
  • Page 170 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL • A rough adjust print pattern is printed for both Head 1 and Head 2. (VJ-2638X/1938X/1638X starts printing after warming up is complete.) Pattern name Uni dir normal speed large dot family Pattern for Head 1 Print information Pattern for Head 2 •...
  • Page 171 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 6. Press the [+] key or [-] key on Operation panel to enter the number that you selected in Step 4. NOTE When you press the [Cancel] key on Operation panel, the display returns to “Adj.3: RoughPatternA”.
  • Page 172 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 9. Press the [+] key or [-] key on Operation panel to enter the number that you selected in Step 8. 10. Press the [Enter] key on Operation panel. • Determines the setting. • “Adj.3: RoughPatternA” is displayed on Operation panel. Print quality adjustment...

  • Page 173: Custom Micro Adjustment Pattern

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 3.6.2.3 Custom micro adjustment pattern Perform micro adjustment when the degree of misalignment is small. This menu consists of the following menus. Menu name Description Reference Custom micro Fine PatternALL All confirmation patterns (A to F) will be 3.6.2.3.1 Fine Pattern ALL adjustment adjusted.
  • Page 174 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL CAUTION • While “Warming Up” is displayed, do not touch Platen and Media guide. They become very hot and you could burn yourself. NOTE You can start printing during warming up. 4.4.7 Starting printing during warming up (VJ-2638X/1938X/1638X) •...
  • Page 175 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 4. For Head 1, check the print results on both sides and center of the media and select the number that looks most aligned between 1 and 7. • “6” is selected in the following pattern. Not good Good Not good...
  • Page 176 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 7. Press the [Enter] key on Operation panel. • Determines the setting. • “Pattern*2: 4” is displayed next. 8. For Head 2, check the print results on both sides and center of the media and select the number that looks most aligned between 1 and 7.
  • Page 177 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 10. Press the [Enter] key on Operation panel. • Determines the setting. 11. Enter the values for patterns B to F in the same way. • Press the [Enter] key to set the value. • Once all set values have been entered, press the [Enter] key to register the set values of patterns A to F.
  • Page 178 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 3.6.2.3.2 Fine Pattern A to F Print one adjustment pattern from A to F and register the set value. The following describes how to adjust pattern A only. 1. Display the Custom Adjust Print menu on Operation panel in the same way as Step 2 of 3.6.2.1 Custom confirmation pattern 2.
  • Page 179 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using • An micro adjust print pattern is printed for both Head 1 and Head 2. (VJ-2638X/1938X/1638X starts printing after warming up is complete.) Pattern name Pattern for Head 1 Pattern for Head 2 Uni dir normal speed large dot family Print Information...
  • Page 180 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 5. Press the [+] key or [-] key on Operation panel to enter the number that you selected in Step 4. NOTE When you press the [Cancel] key on Operation panel, the display returns to “Adj10: Fine PatternA”. 6.
  • Page 181 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 7. For Head 2, check the print results on both sides and center of the media and select the number that looks most aligned between 1 and 7. Uni dir normal speed large dot family 8.

  • Page 182: Connecting The Printer To Pc

    Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Connecting the printer to PC This section explains how to connect the printer and a PC. 3.7.1 System requirements The operating systems with which this printer is compatible are as follows. (Printer driver is not compatible with VJ-2638X/1938X/1938WX.) Operating system Windows 10, Windows 8/8.1, Windows 7 (SP1 or later), Windows Vista (SP2 or later) NOTE...

  • Page 183: Connecting A Network Interface Cable

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Before using 3.7.3 Connecting a network interface cable This section explains how to connect a network interface cable. Follow the procedure below to connect this printer to your PC. 1. Connect the other connector of the network interface cable to your PC. Name Network interface cable Network interface cable connector...
  • Page 184 Before using VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Connecting the printer to PC...

  • Page 185: Handling The Printer

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Handling the printer Handling the printer This chapter explains how to handle the printer.

  • Page 186: Print Flow Chart

    Handling the printer VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Print flow chart The following flow chart illustrates the procedure to perform printing with the printer. Refer to each section as required. 1. Create print data. Create print data with application software. ↓ 2. Turn the power ON and set the media. 3.4 Loading media 4.2 Media ↓...
  • Page 187 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Handling the printer NOTE • Do not open Front cover and Maintenance cover during printing. If the above covers are opened, printing will be interrupted. • Printing restarts once Covers are closed. However, you are not guaranteed to have high print quality.

  • Page 188: Media

    Select the appropriate media according to the intended use. NOTE • For details of the recommended media, contact your local MUTOH dealer. • If failures or malfunctions of the printer occur by using the media other than the recommended media: •...

  • Page 189: Cautions On Handling Media

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Handling the printer 4.2.2 Cautions on handling media Note the following points when handling the media. NOTE • Use recommended media under an appropriate environment. The appropriate temperature and humidity for printing are as follows. Temperature Humidity Guaranteed range of printing accuracy 22 C to 30 C 40% to 60%...

  • Page 190: Printable Area

    Handling the printer VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 4.2.4 Printable area The printable area of this printer is as follows. a=5mm *1 b=5mm to 25mm c=5mm d=5mm to 25mm *1 The value of "a" will be 15 mm in the following cases: - Immediately after media initialization - When feeding the media by using the [Backward] key The value of "a"...

  • Page 191: Head Height Adjustment

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Handling the printer 4.2.5 Head height adjustment Printing with high printing rate or using strongly-curved media can cause Print heads to rub the media. Changing the distance from Print head surface to the media (head height) may allow you to prevent Head from rubbing the media.
  • Page 192 Handling the printer VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 2. Change the head height by moving Head height adjustment lever (orange). High High Name Head height adjustment lever • High lamp on Operation panel lights up in green. • Low lamp on Operation panel lights up in green. 3.

  • Page 193: When Setting The Head Height To High

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Handling the printer 4.2.5.2 When setting the head height to High NOTE • If Head height adjustment lever is raised, high print quality is not guaranteed. • Do not open Front cover and change the head height during printing. If the head height is changed, the alignment will be changed and high print quality will not be guaranteed.
  • Page 194 Handling the printer VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 2. Change the head height by moving Head height adjustment lever (orange). NOTE Do not raise Head height adjustment lever higher than the following position. Doing so may damage the printer. High High High Name Head height adjustment lever •...

  • Page 195: When Setting The Head Height To Low

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Handling the printer 4.2.5.3 When setting the head height to Low NOTE Do not open Front cover and change the head height during printing. If the head height is changed, the alignment will be changed and high print quality will not be guaranteed.
  • Page 196 Handling the printer VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 3. Close Front cover. Name Front cover Media...

  • Page 197: Media Feed Compensation

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Handling the printer 4.2.6 Media feed compensation This section explains the Media feed compensation. The feeding length depends on the media type. The following or similar results may be seen in prints. • Printed images overlap. • White lines are printed over images.
  • Page 198 Handling the printer VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 2. Performs Initial Adjust Print. a. Press the [Enter] key on Operation panel. • “Feed Length: 250 mm” is displayed on Operation panel. The length of media that is fed (feeding length) for initial adjustment printing is normally set at 250 mm. If you increase the feeding length, the accuracy of the Media feed compensation improves.
  • Page 199 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Handling the printer • The initial adjustment value is saved. • “PF2: Initial Change” is displayed on Operation panel. 5. Performs Confirm Print. a. Press the [+] key or [–] key on Operation panel to select “PF3: Confirm Print”. b.
  • Page 200 Handling the printer VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 7. Performs Micro Adjustment Print. a. Display the PF Adjust menu on Operation panel in the same way as in Step 1. b. Press the [+] key or [–] key on Operation panel to select “PF4: Micro Print”. c.

  • Page 201: How To Fix The Media Firmly

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Handling the printer 8. Sets up Micro Adjustment Change. a. Press the [+] key or [-] key on Operation panel to select “PF5: Micro Change”. b. Press the [Enter] key on Operation panel. • “Micro Change: 0.00%” is displayed on Operation panel. c.

  • Page 202: Installing Media Holder Plates

    Handling the printer VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 4.2.7 Installing Media holder plates Variations in quality and use conditions can cause the edges of the media to curl, resulting in damage to the media by the print head surface. To prevent this, use Media holder plates to reduce the amount of curling in the media. Follow the procedure below to install Media holder plates.
  • Page 203 • Stop using the printer. • Using the printer with deformed Media plates may damage Grid roller or Print heads. Contact your local MUTOH dealer. NOTE If there is interference with the media as it is fed through the printer after Media holder plates have been installed, Media holder plates should not be used.
  • Page 204 Handling the printer VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 6. If Media holder plates are not used, return the plates to their initial positions as shown in the following figure. Name Roll media Media holder plates Media...

  • Page 205: Menu Setups On Operation Panel

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Handling the printer Menu setups on Operation panel 4.3.1 Menu setup procedure Follow the procedure below to configure each setup menu. 1. Confirm that Operation panel is Normal. 2. Press the [Menu] key on Operation panel. • “Menu1: Setup>”...
  • Page 206 Handling the printer VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 4. The setting in the blinking part on LCD monitor of Operation panel can be changed. Press the [+] key or [-] key on Operation panel to change the setting. 5. To save the changed setting, press the [Enter] key on Operation panel. •...

  • Page 207: Panel Setup Menu Overview

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Handling the printer 4.3.2 Panel setup menu overview This section explains the outline of each menu. There are the following items in the Panel setup menu. Setup item Description Setup menu Various settings of the printer are configured. Test Print menu Performs nozzle check of Print head and setup list.

  • Page 208: Operating From Operation Panel

    Handling the printer VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Operating from Operation panel This section explains various functions that can be operated from Operation panel. 2.2.3 Operation panel For names and functions of each key, refer to 4.4.1 Feeding media You can feed the roll media at a position that you want. Follow the procedure below to feed media.

  • Page 209: Stopping Printing Operation

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Handling the printer 4.4.2 Stopping printing operation If you want to stop printing for some reason, operate as follows. 1. Stop sending printing data from the computer to the printer. 2. Press the [Cancel] key on Operation panel for more than 2 seconds. •...

  • Page 210: Cutting Media

    Handling the printer VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 4.4.3 Cutting media This section explains how to cut media. If Media ejection mode is set to Auto Cut, the printer cuts the media automatically after printing. 5.1.6 Output Mode menu If you press the [Cutting] key on Operation panel more than two seconds while Operation panel is Normal, you can cut the media at the desired position.

  • Page 211: Cutting Media Manually

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Handling the printer 4.4.4 Cutting media manually This section explains how to cut the roll media manually. Since VJ-2638X/1938X/1638X is equipped with Heaters, strictly comply with the following caution. CAUTION • Right after printing, Media guide becomes very hot. Allow Media guide to cool down before the next operation.
  • Page 212 Handling the printer VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 4. Place a razor blade on Media cut groove on Media guide, and cut the roll media. CAUTION • Pay attention to the following points when cutting roll media. Mishandling Razor blade may cause a cut on your finger or hand. •...

  • Page 213: Changing And Confirming Settings While Printing

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Handling the printer 4.4.5 Changing and confirming settings while printing While the printer is operating, you can change or confirm settings for the Panel setup menu. 4.4.5.1 Procedure for changing and confirming settings while printing Follow the procedure below to change or confirm settings for the Panel setup menu. 1.

  • Page 214: Settings That Can Be Changed Or Confirmed While Printing

    Handling the printer VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 4.4.5.2 Settings that can be changed or confirmed while printing NOTE • When you change a setting during operation, be sure to select “Backup” to save the setting that you changed. If the printer returns to Normal without “Backup” being selected, the changed setting is not saved. •...

  • Page 215: Pausing Printing

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Handling the printer 4.4.6 Pausing printing It is possible to pause to print during printing. Follow the procedure below to pause or restart printing. NOTE If the printing is paused, the print quality will not be guaranteed. 1.

  • Page 216: Starting Printing During Warming Up (Vj-2638X/1938X/1638X)

    Handling the printer VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 4.4.7 Starting printing during warming up (VJ-2638X/1938X/1638X) You can start printing while the printer is warming up, even though the heater temperature has not reached the set temperature. NOTE • Even when you start printing during warming up, warming up continues until the temperature reaches the set temperature.

  • Page 217: Normal Display While Printing

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Handling the printer 4.4.8 Normal Display while Printing The remaining length and remaining time to complete the currently printing data can be displayed by an easy operation. NOTE • The values displayed in this function are just standard values, not guarantee the accuracy. •...
  • Page 218 Handling the printer VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 3. Press [-] key on the operation panel to display [Remain Time]. • Displays the time remaining to print in minutes for the data currently being printed. 4. Press [-] key on the operation panel to display [Roll Remain]. •...

  • Page 219: Using Spectrophotometer (Vj-2638X/1938X/1638X)

    The optional spectrophotometer (SPECTROVUE VM-10) can be attached to print and measure the color target. Performing color calibration or profiling of the printer by using RIP software compatible with SPECTROVUE VM-10 enables printing with more accurate colors. For Software server RIP (option), contact MUTOH local dealer. Follow the procedure below. CAUTION •...
  • Page 220 Handling the printer VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 3. Load the media. 3.4 Loading media 4. Set the user type setting. 3.4.3 Setting the User Type Setting • When the user type setting and media initial operation are complete, “Ready to Print” is displayed on Operation panel.
  • Page 221 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Handling the printer 7. Open Maintenance cover on the left of the printer. • “Remove connector cap and attach instrument. [ENTER]” is displayed on Operation panel. Name Maintenance cover NOTE When a certain time has passed without opening Maintenance cover, Print head returns toward the right side of the printer for protection.
  • Page 222 Handling the printer VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 9. Press the release buttons on both sides of spectrophotometer (SPECTROVUE VM-10), install it to the connector of Print head. Name Spectrophotometer Release buttons Print head section Connector NOTE Make sure that Spectrophotometer is NOT installed at an angle, and that there in no gap between the connector and Spectrophotometer.
  • Page 223 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Handling the printer 11. Remove the white reference plate from the plate installation place, turn it over so that the white side faces up, and install it back to the original place. Name White reference plate Plate installation place NOTE Before measuring the color target, make sure that the white side of the white reference plate is facing up.
  • Page 224 Handling the printer VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 13. When “Start measurement [ENTER]” is displayed on Operation panel, press the [Enter] key. • Spectrophotometer starts measuring the color target. • “Measuring...” is displayed on Operation panel. • After measuring is complete, “Detaching instrument [ENTER]” is displayed on Operation panel. NOTE •...
  • Page 225 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Handling the printer 15. Open Maintenance cover on the left of the printer. • “Detach instrument and set connector cap. [ENTER]” is displayed on Operation panel. Name Maintenance cover 16. While pressing the release buttons on both sides of Spectrophotometer, pull it forward to remove it from Print head.
  • Page 226 Handling the printer VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 17. Firmly pinch the tabs on both sides of Connector cap with your fingers, and install it to the connector of Print head. Name Connector cap Tabs Print head section Connector 18. Press the [Enter] key. •...
  • Page 227 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Handling the printer 19. Remove the white reference plate from the plate installation place, turn it over so that the black side faces up, and install it back to the original place. Name White reference plate Plate installation place NOTE When White reference plate is not in use, make sure that it is turned over facing down to avoid any contamination.
  • Page 228 Handling the printer VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Using Spectrophotometer (VJ-2638X/1938X/1638X)

  • Page 229: Panel Setup Menu

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu Panel setup menu The section explains the Setup menu of the printer. Setup item Description Setup menu Various settings of the printer are configured. 5.1 Setup menu Test Print menu Performs nozzle check of Print head and setup list. 5.2 Test Print Menu Cleaning menu Performs head cleaning.

  • Page 230: Setup Menu

    Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Setup menu Various settings of the printer are configured. Setup item Description User Type Sets the user type setting for printing. • Enter] key: shifts to the sub menu. 5.1.1 User Type menu Spitting Sets up the spitting operation while printing.
  • Page 231 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu Setup item Description Strike Wait Sets up the waiting time while overwrite printing. • [Enter] key: shifts to the sub menu. 5.1.13 Strike Wait menu Slant Check Sets up slanting detection during media loading. •...

  • Page 232: User Type Menu

    Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Setup item Description Heater Control This function is to specify the heater control modes depending on the usages. • [Enter] key: shifts to the sub menu. 5.1.28 Heater Control menu Start Feed You can change the margin setting between images. •...

  • Page 233: User Type Advanced Setup Menu

    • End detection of roll media cannot be performed, etc. The problems caused by the use of the media other than recommended one will not be covered by the warranty and repair expenses will be paid by the customer. For details, contact your local MUTOH dealer. Setup menu...
  • Page 234 Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Setup item Setting Description Type 1 to 15 Print Mode Sets up the print mode according to the usage of print data or print speed. • [Enter] key: shifts to the sub menu. 5.1.1.1.1 Print Mode menu Adjust Print Sets up when adjusting the printer for the optimum quality of image print.
  • Page 235 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu Setup item Setting Description Type 1 to 15 UserCopy Copies the setting values of the user type currently selected to a different user type collectively. • [Enter] key: shifts to the sub menu. 5.1.1.1.9 UserCopy menu —...
  • Page 236 Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 5.1.1.1.1 Print Mode menu Settings for print quality (print mode) are set according to the usage of print data or print speed. NOTE After setting the Print mode, the display changes to Effect menu. Effect menu Setup item Setting...
  • Page 237 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu Details of print mode The set values of print quality that are registered in each print mode are as follows. NOTE In the chart below, the print speed becomes faster as the condition is closer to the following cases. •...
  • Page 238 Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Effect menu Sets up the Effect menu. Set up this menu when you want to improve print quality by adjusting the set print mode. NOTE The print quality may not be improved depending on the printing condition. Setup item Setting Description...
  • Page 239 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu 5.1.1.1.2 Adjust Print menu Sets up when adjusting the printer for the optimum quality of image print. NOTE • When newly setting or changing the user type setting after adjusting Standard adjust print, make sure to adjust print.
  • Page 240 Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Standard Adjust Print menu Adjusts only the print mode in the user type setting which is currently set. Setup item Setting Description Adjustment Confirmation pattern Print the test pattern for the alignment. Check before adjusting. 3.6.1.1 Standard confirmation pattern Rough adjustment pattern Perform this when the degree of misalignment is big.
  • Page 241 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu Custom Adjust Print menu Perform adjustment for all patterns (A to F). All print modes will be adjusted. Setup item Setting Description Adjustment Confirm ptn The test patterns of A to F will be printed for Adjust print. Check before adjusting.
  • Page 242 Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 5.1.1.1.3 Media feed compensation Sets up various settings on the media feed compensation. Setup item Setting Description Init.Adj.Print Performs Initial Adjust Print. • [Enter] key: shifts to the sub menu. (1) Init.Adj.Print menu Init.Adj.Change Sets up Initial Adjust Change.
  • Page 243 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu (1) Init.Adj.Print menu Performs Initial Adjust Print. Setup item Setting Description FeedLength 100mm to <250mm> to Changes the length (feed length) of the media feed direction 500mm for initial adjust print. • [Enter] key: Determines the setting.
  • Page 244 Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL (4) Micro Adj. Print menu Performs Micro Adjustment Print. Setup item Setting Description Micro Adj. Print — Prints the following PF pattern (micro adjustment) with a focus on the micro adjustment value. • 0%, ±0.1%, ±0.2%, ±0.5%, ±0.8%, ±1.2% —...
  • Page 245 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu 5.1.1.1.4 Pre-heater menu (VJ-2638X/1938X/1638X) Sets the temperature of Pre-heater. Set to curb a rapid temperature change at the printing portion by pre-heating the media before printing. NOTE • This function is not displayed for VJ-1938WX/1638WX. •...
  • Page 246 Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 5.1.1.1.5 Platen Heater menu (VJ-2638X/1938X/1638X) Sets the temperature of Platen heater. Set to improve print quality by allowing the ink to settle by heat. NOTE • This function is not displayed for VJ-1938WX/1638WX. • The set temperature of Platen heater differs depending on the media. Setup item Setting Description...
  • Page 247 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu 5.1.1.1.6 Dryer menu (VJ-2638X/1938X/1638X) Sets the temperature of Dryer. Set to dry the print side after printing. NOTE • This function is not displayed for VJ-1938WX/1638WX. • The set temperature of Dryer differs depending on the media. Setup item Setting Description...
  • Page 248 Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 5.1.1.1.7 Vacuum Fan menu Sets up vacuum fan operation. Setup item Setting Description Vacuum Fan Set this if there is a possibility of paper jamming from media feed failure when the setting is “Middle”. Middle Set this if there is a possibility of paper jamming from media feed failure when the setting is “High”.
  • Page 249 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu 5.1.1.1.9 UserCopy menu Copies the setting values of the user type currently selected to a different user type collectively. The following setting values are copied. • Print mode • Effect • Adjustment value for the adjustment print •...

  • Page 250: Spitting Menu

    Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 5.1.2 Spitting menu Sets up the spitting operation while printing. NOTE • When Spitting is set to “Off”, Nozzles will become easily clogged because spitting is not performed. In such a case, print quality cannot be guaranteed. •...

  • Page 251: Spitting Pass Count Menu

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu Setup item Setting Description Spitting <On> Perform the spitting operation on Spitting box located on the origin side for every shuttle. • [Enter] key: saves the setting and shifts to the sub menu. 5.1.2.1 Spitting Pass Count menu On Media Perform the spitting operation on the page margins.
  • Page 252 Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Example of spitting operation Spitting setting Return Count setting Operation 1 time Perform the spitting operation on Spitting box every time Print head returns to the origin position. Spitting operation is not performed over the media. 5 times Performs the spitting operation on Spitting box on the origin side every five times Print head returns to the origin position.

  • Page 253: Side Margin Menu

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu 5.1.3 Side Margin menu Set up the right and left margins (side margins) while printing. NOTE • When the Spitting menu is set to “On Media”, the maximum printable media width becomes 16 mm shorter.

  • Page 254: Media Set Menu

    Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 5.1.4 Media Set menu Sets whether to detect the media width and edge while initializing the media. NOTE • When Media Detection menu is set to “Off”, set the media width of the current media in Media Width menu.

  • Page 255: Media Width Menu

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu 5.1.5 Media Width menu Specifies the media width between the loading mark and the left end of the media if media detection is not performed during media initialization. (1) Media Width menu Displays the detected media width if media detection is performed during media initialization. (2) Media Width display menu For media detection settings, refer to the following.
  • Page 256 Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL (1) Media Width menu NOTE Setting a larger value than the media width set in the Media Width menu may cause ink to leak on the media or printer. Setup item Setting Description MediaWidth VJ-2638X: Set the media width.

  • Page 257: Output Mode Menu

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu 5.1.6 Output Mode menu Sets the media ejection method after printing. NOTE • When the take-up unit is not installed, do not set Output mode to “Take-up”. By doing so, the product will be unable to function properly. •...

  • Page 258: Page Gap Menu

    Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 5.1.6.2 Page Gap menu When “Output Mode” is set to “Take up”, the menu is shifted to “Page Gap”. In the Page Gap menu, you can change the margin setting between images. Setup item Setting Description Page Gap...

  • Page 259: Method Of Cut Menu

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu 5.1.7 Method of Cut menu Sets the media cutting operation after printing. NOTE • When the the media detection is set to “Off”, the media cannot be cut automatically. • Some media may not be cut (cannot be cut at all or cannot be cut finely). In such a case, set the “Output Mode menu”...

  • Page 260: Origin Menu

    Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 5.1.8 Origin menu Sets the beginning of printing (origin) of the print data. Set the menu when reprinting on the margin with changing the printing data position to the printed media. NOTE • When Output Mode menu is set to “Take-up”, the set value X (media feeding distance) becomes 0 mm to 15,000 mm.
  • Page 261 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu Setup item Setting Description Origin • X (media feeding distance): Change Print head position and media feeding distance with the following -15,000 mm to 15,000 mm keys. • Y (print head transferring • [+] key: increases the setting value. distance): •...

  • Page 262: Prev. Stick Menu (Vj-2638X/1938X/1638X)

    Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 5.1.9 Prev. Stick menu (VJ-2638X/1938X/1638X) Sets up to prevent media from sticking when printing starts. NOTE • This function is not displayed for VJ-1938WX/1638WX. • When the Output Mode menu is set to “Take-up”, the setting for the “Prev. Stick menu” is disabled. 5.1.6 Output Mode menu Setup item Setting...

  • Page 263: Head Travel Menu

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu 5.1.11 Head Travel menu Sets up the range that Print head moves while printing. Setup item Setting Description CR Movement Data Print head moves the range of the print data width. The printing speed will be improved since the moving range of Print head is optimized.

  • Page 264: Strike Wait Menu

    Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 5.1.13 Strike Wait menu Sets up the waiting time while overwrite printing. NOTE • When using the media with a narrow width for VJ-2638X/1938X/1638X, the media cannot be warmed up adequately, therefore the print quality may not be preserved. In such a case, set up the Strike Wait time while overwrite printing to warm up the media adequately before printing.

  • Page 265: Auto Cleaning Menu

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu 5.1.15 Auto Cleaning menu Configure the settings for the auto cleaning operation. The cleaning mode reflects the settings in Operation panel. 6.2.3 Head cleaning Setup item Setting Description Auto Cleaning WaitingTime Set the value for auto-cleaning in standby mode. 5.1.15.1 Idle Auto Cleaning Pringing time Set the value for auto cleaning during printing.

  • Page 266: Printing Mode Auto Cleaning

    Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 5.1.15.2 Printing Mode Auto Cleaning Set the auto cleaning interval during printing. Setup item Setting Description PrintingTime <Off> to 5 mins to 180 mins Selects the time for auto cleaning while printing. • Off: Auto cleaning is not performed. •...

  • Page 267: Ink Status Menu

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu 5.1.16 Ink Status menu Displays various information of IC chips. NOTE To display various information of IC chips, use genuine ink and S/C cards. If Ink cartridges other than genuine Ink cartridges are used, ink status will not be displayed correctly.

  • Page 268: Roll Length Menu

    Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 5.1.17 Roll Length menu Sets up the roll media length. Setup item Setting Description Roll media <Off> Roll Length is not used. • [Enter] key: saves the setting and shifts to the previous menu. 5.1 Setup menu Roll1 Sets up the roll media length.

  • Page 269: Print Stop Menu

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu 5.1.17.2 Print Stop menu You can set whether or not to display “Roll Remain Error” and pause printing when the length of the roll media that is counted inside the printer becomes 0. NOTE •...

  • Page 270: Exhaust Fan Menu

    Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 5.1.18 Exhaust Fan menu Sets up Exhaust fan operation. Ventilates the inside of the printer to stablize the parts performance. It also decreases the contamination by ink mist inside the printer. We recommend that you use Exhaust fan, especially when printing for a long time.

  • Page 271: Cr Maintenance Menu

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu 5.1.20 CR Maintenance menu Performs maintenance. Used in the following cases. • Cleaning Cleaning wiper 6.2.4 Cleaning Cleaning wiper • Cleaning circumference of Print head 6.2.5 Cleaning the circumference of Print head • Replacing Cutter 6.1.4 Replacing Cutter Setup item Setting...

  • Page 272: Life Times Menu

    CR Motor • The part should be changed when all of the asterisks have disappeared and “Change” is displayed. PF Motor Contact your local MUTOH dealer to ask for replacing parts. — • [Cancel] key: shifts to the previous menu.

  • Page 273: Subnet Mask Menu

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu 5.1.24 Subnet Mask menu Sets the subnet mask of the printer. NOTE Be sure to set the subnet mask after consulting the network administrator. Setup item Setting Description Subnet Mask 0.0.0.0 to Change the subnet mask by operating the following keys. <255.255.255.0>...

  • Page 274: Header Dump Menu

    Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 5.1.26 Header Dump menu This function is to specify whether to print the following information (dump data) of print data. • Data Header • Number of Dot in Data (Printed only when the header dump setting is “On”.) •...

  • Page 275: Single Head Menu

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu 5.1.27 Single Head menu You can set whether or not to perform printing using only one Print head. NOTE • This printer has 2 Print heads inside Print head unit. • Even if “Head 1” or “Head 2” is set, when performing the Test print menu, the both Print heads are used for printing.

  • Page 276: Heater Control Menu

    Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 5.1.28 Heater Control menu This function is to specify the heater control modes depending on the usages. NOTE This function is not displayed for VJ-1938WX/1638WX. 5.1.28.1 VJ-1938X/1638X Paper cocklings may occur during printing when heated. This can be minimized by selecting an appropriate setting as follows.

  • Page 277: Vj-2638X

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu 5.1.28.2 VJ-2638X This function is to specify the heater control modes depending on the current capacity. By using an appropriate setting, it can also minimize paper cocklings caused by heating system during printing. NOTE When inserting power cords set into the power sockets, the following current capacity is required for VJ-2638X.

  • Page 278: Start Feed Menu

    Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 5.1.29 Start Feed Menu In the Start Feed menu, you can change the margin setting between images. Setup Item Description Setup Item Start Feed -10 mm to <0 mm> to • Value over 0: The margin setting between images will be 500 mm wider than when setting “0”.

  • Page 279: Test Print Menu

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu Test Print Menu Performs nozzle check of Print head and setup list. Refer to the following for the operation procedure of test print. 3.5 Test print Setup Item Description Nozzle Check Perform the nozzle check printing. It is used to check whether there are any clogged heads, or missing/blurred prints.

  • Page 280: Cleaning Menu

    Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Cleaning menu Performs head cleaning. Head cleaning can be operated when the printer is Normal. Refer to the following for operation procedures. 6.2.3 Head cleaning Setup item Description Description Short — Discharges smaller amount of ink compared to “Normal”. •...

  • Page 281: Menu Option Menu

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu Menu Option menu Sets up the contents of the Setup menu. You can make setup items that you do not normally use invisible. Switch the setting On (displayed) to Off (undisplayed) using the [<] key or [>] key on Operation panel. When the setting is On, “*”...
  • Page 282 Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Setup item Setting Description VJ-2638X/ VJ-1938WX/ 1938X/1638X 1638WX Multi Strike Sets up whether to display the Multi Strike menu. <On> <On> Strike Wait Sets up whether to display the Strike Wait menu. <On> <On> Slant Check Sets up whether to display the Slant Check menu.
  • Page 283 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu Setup item Setting Description VJ-2638X/ VJ-1938WX/ 1938X/1638X 1638WX Start Feed Set whether or not to display the Start Feed menu <On> <On> ALL On Displays all items in the Setup menu. • Pressing the [Enter] key displays “*” for all items in the Menu Option menu.

  • Page 284: Version Menu

    Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Version menu Displays the versions of the firmware. <VJ-2638X/1938X/1638X> Setup item Setting Description Ver. M/C *.**(Main side)/ Displays the versions of the firmware of the main side (M) and *.**(Controller side) controller side (C). —...

  • Page 285: Sleep Mode Menu

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu Sleep Mode menu Sleep mode settings are configured. When you activate sleep mode, the printer operates as follows. • Exhaust fan stops. • Vacuum fan stops. • All Heaters stop (VJ-2638X/1938X/1638X). • All Lamps turn off except for Power lamp. •...

  • Page 286: Timer Setting Menu

    Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 5.6.1 Timer Setting menu Set the head cleaning interval of this printer for Sleep Mode. When more than the set time has passed, Print head is cleaned automatically. NOTE • During Sleep Mode, even if the set amount of time has passed, print-head cleaning is not performed under the following circumstances.

  • Page 287: Sleep Mode Start Menu

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu 5.6.2 Sleep Mode Start menu Activate Sleep Mode During Sleep Mode, “Restart -> Enter” is displayed on Operation panel. During Sleep Mode, pressing [Enter] key will return the printer to Normal. NOTE • If the printer is under one of the following conditions while shifting to the Sleep Mode, “Don’t Start Sleep Mode”...

  • Page 288: Display Menu

    Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Display menu Sets the language and unit displayed on LCD monitor of Operation panel. Setup item Setting Description Display Language Sets the language used in the menu items displayed on LCD monitor of Operation panel. 5.7.1 Language menu Temperature Sets the unit of temperature display.

  • Page 289: Temperature Menu

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Panel setup menu 5.7.2 Temperature menu Sets the unit of temperature display. Setup item Setting Description Temperature <Celsius [ºC]> Displays the temperature in Celsius [ºC]. Fahrenheit [ºF] Displays the temperature in Fahrenheit [ºF]. — • [Enter] key: saves the setting and shifts to the previous menu.

  • Page 290: Job Status Menu

    Panel setup menu VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Job Status Menu Various information of previous print will be displayed. The length of printed data and if the print is completed will be displayed. When the print is canceled, the information how much the print is completed will be displayed. Setup item Setting Description...

  • Page 291: Maintenance

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Maintenance Maintenance This chapter describes daily maintenance of the printer.

  • Page 292: Replacing Consumable Components

    Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Replacing consumable components This section describes when and how to replace Ink cartridges (or ink packs), roll media and Flushing- box sponges. 6.1.1 Replacing Ink cartridges This section describes when to replace Ink cartridges. (1) Replacement time a.
  • Page 293 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Maintenance NOTE • [*******] in the messages for ink cartridge replacement indicates the color (slot number) that is running low or has run out, using the following characters. <When using four colors> • K: Black (Slot K1) •...
  • Page 294 Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL (2) Type Our genuine Ink cartridges and Ink packs that are compatible with the printer are as follows. <For VJ-2638X/1938X/1638X> Description Model No. Ink cartridge K (Black: 220 ml) VJ-MSINK3A-BK220 Ink cartridge K (Black: 440 ml) VJ-MSINK3A-BK440 Ink cartridge K (Black: 1,000 ml) VJ-MSINK3A-BK1000...
  • Page 295 NOTE • To use 1,000ml Ink packs, High-capacity ink pack adapter (option) is required. For details on High-capacity ink pack adapter, contact your local MUTOH dealer. • Use genuine Ink cartridges for replacement. This printer is designed to use genuine Ink cartridges and Ink packs.
  • Page 296 Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL (1) Replacing 220ml and 440ml Ink cartridges NOTE 440ml Ink cartridges are not compatible with VJ-1938WX/1638WX. 1. Confirm that the printer is turned ON. NOTE Do not replace Ink cartridges when the printer is turned OFF. The remaining ink may not be detected correctly, causing abnormal printing.
  • Page 297 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Maintenance b. For VJ-2638X/1938X/1638X/1638WX Name Ink cartridge Ink cartridge slots 3. Take out the new Ink cartridge from the bag. NOTE • Open the bag just before attaching Ink cartridge to Ink cartridge slot. Leaving Ink cartridge with the bag open for a long time may result in abnormal printing. •...
  • Page 298 Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL (2) Replacing High-capacity ink pack adapter (option) NOTE High-capacity ink pack adapters are not compatible with VJ-1938WX/1638WX. 1. Confirm that the printer is turned ON. NOTE Do not replace High-capacity ink pack adapters when the printer is turned OFF. The remaining ink may not be detected correctly, causing abnormal printing.
  • Page 299 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Maintenance 3. Take out the new Ink pack from the bag. NOTE • Open the bag just before attaching Ink pack to High-capacity ink pack adapter. Leaving Ink pack with the bag open for a long time may result in abnormal printing. •...
  • Page 300 Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL CAUTION • In the following cases, make sure to perform the initial ink charge from the Cleaning menu after installing High-capacity ink pack adapter. • When installing High-capacity ink pack adapter for the first time on the printer whose ink is filled •...

  • Page 301: Replacing Roll Media

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Maintenance 6.1.2 Replacing Roll Media This section describes when and how to replace the roll media. (1) Replacement time Replace the roll media when the following situation occurs. a. When the roll media loaded in the printer runs out •...
  • Page 302 Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 2. Raise front or rear Media loading lever. Name Media loading lever 3. Turn Flanges of Roll media holder and take up the roll media. Name Roll media holder Roll media Replacing consumable components...
  • Page 303 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Maintenance 4. Loosen Fixing lever of Right roll media holder and remove the roll media from Roll media holder. Name Roll media holder (Right) Fixing lever Roll media 5. Take the same procedure as in Step 4, remove the roll media from Roll media holder (left). Name Roll media holder (Left) Fixing lever...
  • Page 304 Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 6. To load another roll media, refer to the following. 3.4 Loading media For loading the roll media, refer to 4.2.3 Precaution on storing media For storing the roll media not in use, refer to • The procedure for replacing the roll media is complete.

  • Page 305: Replacing Flushing Box Sponges

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Maintenance 6.1.3 Replacing Flushing box sponges This section explains how to replace Flushing-box sponges. NOTE Make sure to install Flushing-box sponges in the printer. Flushing-box sponges are an essential part to make printing consistent. (1) Replacement time Replace Flushing-box sponges in the following situations.
  • Page 306 Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL (3) Replacing steps Follow the steps below to replace Flushing-box sponges. 1. Check the followings while the printer is turned ON. • Printing or other operations are not in progress. • Operation panel display is Normal. 2.
  • Page 307 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Maintenance c. Press the [+] key or [-] key on Operation panel to select “Set 20: CR Maintenance”. d. Press the [Enter] key on Operation panel. • “CR Mainte.: Start” is displayed on Operation panel. • The display enters the CR Maintenance menu. 5.1.20 CR Maintenance menu 3.
  • Page 308 Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 4. Open Front cover. Name Front cover • Replace Flushing-box sponge in a short time. Leaving Print head at the replacement position may result in clogging of Print head. 5. Lift Flushing-box sponge tab and unhook. Then, remove Flushing-box sponge. Name Flushing-box sponge tab Flushing boxes...
  • Page 309 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Maintenance 6. Install the new Flushing-box sponge to each Flushing box. Name Flushing-box sponges Flushing boxes 7. Close Front cover. Name Front cover Replacing consumable components...
  • Page 310 Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 8. Press the [Enter] key on Operation panel. • Print head returns to its original position. • “CR Mainte.: Start” is displayed on Operation panel. 9. Press the [Menu] key on Operation panel. • The printer enters Normal. •...

  • Page 311: Replacing Cutter

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Maintenance 6.1.4 Replacing Cutter This section describes when and how to replace Cutter. (1) Replacement time Replace Cutter when the following situation occurs. a. When the media is not cut smoothly b. When the cut surface is feathered, etc (2) Type Our genuine Cutter that is compatible with the printer is as follows.
  • Page 312 Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL b. Press the [>] key on Operation panel. • “Set1: User Type” is displayed on Operation panel. c. Press the [+] key or [-] key on Operation panel to select “Set 20: CR Maintenance”. d. Press the [Enter] key on Operation panel. •...
  • Page 313 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Maintenance 3. Press the [Enter] key on Operation panel. • Maintenance starts. • Print head moves to the left of the printer (cutter replacement position). • “CR Mainte.: End” is displayed on Operation panel. 4. Open Maintenance cover on the left of the printer. Name Maintenance cover NOTE...
  • Page 314 Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 5. Press the tab of Cutter lightly, turn Cutter holder in the direction as illustrated below. NOTE • Do not press the tab of Cutter strongly or suddenly let go of it. There is a spring in Cutter holder and it may fly out. •...
  • Page 315 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Maintenance 6. Remove Cutter. CAUTION • Do not touch the blade edge. It may cause an injury. • Do not touch the cutter blade edge with a hard substance or drop Cutter. Cutter blade may be damaged or chipped. NOTE Used Cutter should be put in a plastic bag, etc, and dispose of it in compliance with local ordinance and instructions of local authorities.
  • Page 316 Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 7. Install a new Cutter as illustrated. NOTE Make sure that the spring in Cutter holder does not fly out while installing. Name Razor blade Replacing consumable components...
  • Page 317 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Maintenance 8. Press the tab of Cutter lightly, return Cutter holder to its initial position. NOTE • Do not press the tab of Cutter strongly or suddenly let go of it. There is a spring in Cutter holder and it may fly out. •...
  • Page 318 Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 10. Press the [Enter] key on Operation panel. • Print head returns to its original position. • “CR Mainte.: Start” is displayed on Operation panel. 11. Press the [Menu] key on Operation panel. • The printer enters Normal. •...

  • Page 319: Cleaning The Printer

    It could lead to an electric shock or fire. Immediately turn OFF the power switch, disconnect the power plug from the electric socket, and contact your local MUTOH dealer. CAUTION • Unplug the power cable with the power off, before cleaning the outer case and inside of the printer.

  • Page 320: Cleaning The Outer Case

    Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 6.2.1 Cleaning the outer case CAUTION • Unplug the power cable with the power off, before cleaning the outer case of the printer. This section describes how to clean the outer case. Wipe out dust and dirt attached to the outer case by using a soft cloth. Cleaning the printer...

  • Page 321: Cleaning The Inside Of The Printer

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Maintenance 6.2.2 Cleaning the inside of the printer CAUTION • Unplug the power cable with the power off before cleaning the inside of the printer. This section describes how to clean the inside of the printer. Follow the procedure below. 1.
  • Page 322 Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 2. Remove paper powder and dust attached to Pressurizing rollers using a soft brush. NOTE Do not blow paper powder inside the printer using tools such as an air duster. It may cause an abnormal noise from the inside of the printer. <VJ-2638X/1938X/1638X>...
  • Page 323 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Maintenance 3. Apply a damp and tightly squeezed soft cloth to wipe out paper powder and ink attached to Platen and Media guide. <VJ-2638X/1938X/1638X> Name Platen Media guide <VJ-1938WX/1638WX> Name Platen Media guide Cleaning the printer...
  • Page 324 Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 4. Apply a damp and tightly squeezed soft cloth to wipe off the dirt of the unpainted (silver color) area in the center of Grid roller. <VJ-2638X/1938X/1638X> Name Grid roller <VJ-1938WX/1638WX> Name Grid roller Cleaning the printer...

  • Page 325: Head Cleaning

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Maintenance 6.2.3 Head cleaning If the printed data is unexpectedly faint or dots are missing, clean the Print head and Nozzles by performing Head cleaning. Follow the procedure below to perform Head cleaning. CAUTION • Turn on the printer and then perform Head cleaning. NOTE When not using the printer for a long period (one week or more), perform Head cleaning once a week.
  • Page 326 Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL • The following figures explain the LED lights for each Cleaning mode. Short mode Normal mode Long mode Cleaning mode Description Short mode Discharges smaller amount of ink compared to “Normal”. Normal mode Select this mode normally. Long mode Discharges larger amount of ink compare to “Normal”.
  • Page 327 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Maintenance NOTE • If blurs or lacking parts in printed media do not disappear with one time of Head cleaning, perform Strong cleaning. • Head Cleaning can also be performed from Panel Setup menu. 5.3 Cleaning menu •...

  • Page 328: Cleaning Cleaning Wiper

    Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 6.2.4 Cleaning Cleaning wiper This section describes how to clean Cleaning wiper. (1) Time for cleaning Once a week, or when blurs or lacking parts appear on printed media after Head cleaning. (2) Cleaning procedures Follow the procedure below to clean Cleaning wiper. CAUTION •...
  • Page 329 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Maintenance b. Press the [>] key on Operation panel. • “Set1: User Type” is displayed on Operation panel. c. Press the [+] key or [-] key on Operation panel to select “Set 20: CR Maintenance”. d. Press the [Enter] key on Operation panel. •...
  • Page 330 Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 3. Press the [Enter] key on Operation panel. • Maintenance starts. • Print head moves to the left. • Cleaning wiper rises. • “CR Mainte.: End” is displayed on Operation panel. 4. Open Maintenance cover on the right of the printer. Name Maintenance cover CAUTION...
  • Page 331 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Maintenance 5. Use Cleaning stick to remove the ink and dust on Cleaning wiper. a. Front side of Cleaning wiper: Remove the ink and dust in the horizontal direction. Name Cleaning wiper Cleaning stick Head cap unit b.
  • Page 332 Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 6. Close the right maintenance cover. • Close the cover firmly until it is locked. Name Maintenance cover 7. Press the [Enter] key on Operation panel. • Cleaning wiper returns to the original position. • Print head returns to its original position. •...
  • Page 333 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Maintenance 8. Press the [Menu] key on Operation panel. • The printer enters Normal. • Cleaning Cleaning wiper is complete. Cleaning the printer...

  • Page 334: Cleaning The Circumference Of Print Head

    Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 6.2.5 Cleaning the circumference of Print head This section describes how to clean the circumference of Print head. (1) Time for cleaning When foreign substances such as dust or ink clump that can cause missing dots or ink leakage is attached around Print head (2) Cleaning procedures Follow the procedure below to clean the circumference of Print head.
  • Page 335 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Maintenance 2. Display the CR Maintenance menu on Operation panel. a. Press the [Menu] key on Operation panel. • “Menu1: Setup>” is displayed on Operation panel. • Operation panel shifts to the Setup menu display. b. Press the [>] key on Operation panel. •...
  • Page 336 Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL d. Press the [Enter] key on Operation panel. • “CR Mainte.: Start” is displayed on Operation panel. • The display enters the CR Maintenance menu. 5.1.20 CR Maintenance menu 3. Press the [Enter] key on Operation panel. •...
  • Page 337 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Maintenance 4. Open Maintenance cover on the left of the printer. Name Maintenance cover 5. Move Print head by hand until you can see the circumference of Print head. Name Print head section Circumference of Print head CAUTION •...
  • Page 338 Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 6. Use a penlight, etc to check if any foreign substance such as dust or ink clump is attached to the following places. • Circumference of Print head (silver colored metal assembly) • Head guide (black plastic) Name Circumference of Print head (silver colored metal assembly) Head guide (black plastic)
  • Page 339 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Maintenance CAUTION • When cleaning around Print head, • Never touch Print head nozzles. Doing so may damage Print head. • Do not touch the tip of Cleaning stick. Print head may be damaged because of oil from your hands. •...
  • Page 340 Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 10. Press the [Menu] key on Operation panel. • The printer enters Normal. • Cleaning the circumference of Print head is complete. Cleaning the printer...

  • Page 341: Disposal Of Waste Fluids

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Maintenance Disposal of waste fluids The timing and method for the disposal of waste fluid are described below. (1) Disposal timing Dispose of waste fluids in the following cases: a. When Waste fluid tank is more than half full. b.
  • Page 342 Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 4. After pouring the waste fluid to the empty container, close the waste fluid valve securely. Name Waste fluid valve 5. Wipe the opening of Waste fluid valve with a cloth, etc. 6. Dispose of the waste fluid as an industrial waste product. •...

  • Page 343: Moving Or Transporting The Printer

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Maintenance Moving or transporting the printer This section describes how to move or transport the printer. 6.4.1 Moving the printer This section describes how to move the printer. CAUTION • When moving the printer, make sure to maintain a horizontal position. •...
  • Page 344 Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 5. Move the printer. NOTE The casters supplied with the dedicated Stand are manufactured for little movement in flat indoor areas, not for transporting equipment. Name Adjusters Stands Moving or transporting the printer...

  • Page 345: Transporting The Printer

    When transporting the printer, make sure to pack it in the same condition as purchased, using protective and packing materials to protect the printer from vibration and shocks. NOTE When transporting the printer, consult the MUTOH product dealer at your point of purchase. Moving or transporting the printer...
  • Page 346 Maintenance VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Moving or transporting the printer...

  • Page 347: Troubleshooting

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Troubleshooting Troubleshooting This chapter describes possible troubles and countermeasures of this product. If the error not included in any items of this section occurs, contact your local MUTOH dealer.

  • Page 348: Malfunctions And Failures

    Troubleshooting VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Malfunctions and failures This section describes undisplayed malfunctions and failures of the printer, possible causes and countermeasures. 7.1.1 Problems in installation and introduction (1) Cannot perform the initial ink charge Possible cause Remedy Reference Is Front cover open or Media loading lever Close Front cover, or lower Media loading 3.4 Loading raised?

  • Page 349: Cannot Print At All

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Troubleshooting 7.1.2 Cannot print at all (1) Does not work at all after power activation Possible cause Remedy Reference Is Power cord set connected to the plug? Connect Power cord set. 3.1 Power cord set connection Does the AC power supply provide the Connect the cable to another outlet.
  • Page 350 Troubleshooting VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL (3) When data is sent from the computer, an error occurs at the printer and nothing is printed Possible cause Remedy Reference Is the type of printer selected correctly at the Check that the printer type settings on the computer? computer side and printer side are the same.

  • Page 351: Media-Related Troubleshooting

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Troubleshooting 7.1.3 Media-related troubleshooting (1) The media slips or is torn during initialization NOTE If the media is jammed or torn, remove it according to 7.3 The media is jammed Possible cause Remedy Reference Are you using the recommended media? Use the recommended media.
  • Page 352 Troubleshooting VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL (2) The media is crumpled during initialization NOTE If the media is jammed or torn, remove it according to 7.3 The media is jammed Possible cause Remedy Reference Are you using the recommended media? Use the recommended media. 4.2.1 Media type Is the loading position of the media correct?
  • Page 353 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Troubleshooting (4) Media jams frequently occur NOTE If media other than the recommended one is used, correct media feeding cannot be assured. Possible cause Remedy Reference Are you using the recommended media? Use the recommended media. 4.2.1 Media type Is the media used in an environment other Use the media in the specified environment.

  • Page 354: Printing-Related Troubleshooting

    Troubleshooting VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 7.1.4 Printing-related troubleshooting (1) Printing is partially stained or incomplete NOTE Proper print quality may not be obtained with the media other than the recommended one. Possible cause Remedy Reference Does the media include moisture? Replace it with the new media. 6.1.2 Replacing Roll Are you using the creased or wrinkled media?
  • Page 355 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Troubleshooting Possible cause Remedy Reference Is the head height set to “High” or “Mid”? Return the head height to “Low”. 4.2.5 Head height adjustment (4) White or black lines appear on printed media Possible cause Remedy Reference Are you using the recommended media? Use the recommended media.
  • Page 356 Troubleshooting VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL (6) Printing lines are duplicated or patchy Possible cause Remedy Reference Are Nozzles in good condition? Perform Head cleaning. 6.2.3 Head cleaning Is the head height set to “High” or “Mid”? Return the head height to “Low”. 4.2.5 Head height adjustment Malfunctions and failures...

  • Page 357: Error Messages

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Troubleshooting Error messages This section describes messages displayed during normal printer operation or when errors occur, and solutions to the messages. 7.2.1 Status messages This section describes messages displayed during printer normal operation. When the printer is operating correctly, each operation status is displayed on Operation panel as below. Display Description Reference...
  • Page 358 Setting Life Times The operational life of Print head has almost Contact your local [Head*] expired. (Continues operation) MUTOH dealer. Life Times The operational life of the pump motor is Contact your local [Pump] almost expired. (Continues operation) MUTOH dealer.

  • Page 359: Message Type Error Display And Remedies

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Troubleshooting 7.2.2 Message type error display and remedies This section describes message type errors and remedies. Message type errors are displayed when certain failures occur during printer operation. If a message type error occurs, the printer may display the following error messages on Operation panel and stop operation.
  • Page 360 6.1.1 wrong Ink cartridge slot. cartridge slot. Replacing Ink cartridges [*] S/C Ink Err This type of ink cannot be Contact your local MUTOH 6.1.1 used for this printer. dealer. Replacing Ink cartridges [*] S/C CodeErr An improper Ink cartridge is Contact your local MUTOH —...
  • Page 361 • Start printing and measuring the color target again. • If you still have trouble, contact your local MUTOH dealer. Measurement Error Colorimeter has been Remove Colorimeter. 4.5 Using (Illegal Operation)

  • Page 362: Error Requiring Restart

    For an error requiring restart, operation will return to normal after removing the cause of the error and restarting the printer. If the same error continues to be displayed, contact the your local MUTOH dealer. Be sure to tell us the code no. of the error message when you contact us.

  • Page 363: The Media Is Jammed

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Troubleshooting The media is jammed When the set media is jammed, follow the procedure below to remove it. 1. Turn OFF the power of the printer. 3.2.2 Turning the power OFF 2. Open Front cover. Name Front cover 3.
  • Page 364 Troubleshooting VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL 4. Raise Media loading lever. Name Media loading lever 5. Pull the media to your side, and cut the torn part with cutting tools such as a razor blade. Name Razor blade Roll media The media is jammed...
  • Page 365 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Troubleshooting 6. Turn Flanges of Roll media holder and take up the roll media. Name Flanges Roll media 7. If paper dust or pieces of paper remain inside the printer, remove them. The media is jammed...
  • Page 366 Troubleshooting VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL The media is jammed...

  • Page 367: Appendix

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Appendix Appendix This chapter describes specifications and included components with this printer.

  • Page 368: Product Specifications

    Appendix VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Product specifications 8.1.1 Printer specifications Items Specification Model name VJ-2638X VJ-1938X VJ-1638X VJ-1938WX VJ-1638WX Printing method On-demand piezo drive system Drive system Firmware servo/DC motor drive Media feed system Multipoint pressurizing grid roller system Media fixing system Pressurization roller down system by manual lever Media feed/ejection Rear feed/Front ejection...
  • Page 369 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Appendix Items Specification Memory 384 MB Command MH-RTL (RTL-PASS) Interface Ethernet (10/100/1000BASE-T) Supply system Supplied through tubes from independent color cartridges Cartridges <VJ-2638X/1938X/1638X> Black, Cyan, Magenta, Yellow: 220 ml ± 5 ml each or 440 ml ± 5 ml (1,000 ml ±...
  • Page 370 Appendix VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Items Specification Power consumption Printing <VJ-2638X> MAIN: 1,300 W HEATER 1: 1,300 W HEATER 2: 1,300 W <VJ-1938X> MAIN: 1,630 W HEATER 1: 1,200 W HEATER 2: 1,200 W <VJ-1638X> MAIN: 1,100 W HEATER: 1,250 W <VJ-1938WX/1638WX>...

  • Page 371: Interface Specification

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Appendix Interface specification This section describes each type of interface specifications supported by this printer. 8.2.1 Network interface specification Items Specification Network type Ethernet IEEE802.3 Network I/F 10BASE-T/100BASE-TX/1000BASE-T Automatic transfer type (RJ-45 Connector twisted pair cable) MDI/MDI-X Automatic transfer Corresponding protocol TCP/IP Interface specification...

  • Page 372: Options/Supply List

    Appendix VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Options/Supply list For more information about the options and the supply items, contact your local MUTOH dealer. Options/Supply list...

  • Page 373: Setup Menu Diagram

    VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Setup menu diagram Setup menu diagram For details of the Setup menu configuration diagram, refer to the followings. NOTE • For details of each setup item, refer to followings: • Setup menu diagram (Ready to Print): 5 Panel setup menu •...
  • Page 374 Setup menu diagram VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Setup menu diagram (Ready to Print) (1/4) Setup UserType To Setup menu diagram(Ready to Print)(2/4) Spitting <On> On Media Side Margin <10 mm> to 25 mm Media Initial Top&Width <Width> VJ-1638X/ MediaWidth 210 mm to <1,000 mm> to 1638WX (When Media Initial menu is "Off") 1,625 mm...
  • Page 375 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Setup menu diagram Setup menu diagram (Ready to Print) (2/4) To Setup menu diagram(Ready to Print)(1/4) <Type 1> to Type 15 Print Mode Quality 1 Quality 2 Quality 3 Quality 4 Graphics 1 <Graphics 2> Banner1 Banner2 Banner3 Banner4 Adjust Print...
  • Page 376 Setup menu diagram VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Setup menu diagram (Ready to Print) (3/4) Setup To Setup menu diagram (Ready to Print)(1/4) Auto Cleaning For type of 4 colors Ink Status K/k/C/c/M/m/Y/y 1/2/3/4/5/6/7/8 For type of 7 colors Roll Length <Off> Roll 1 Roll 2 This function is not displayed...
  • Page 377 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Setup menu diagram Setup menu diagram (Ready to Print) (4/4) To Setup menu diagram(Ready to Print)(1/4) Test Print Nozzle Check Mode Print SetUp List Palette Color Verify VJ-2638X/1938X/1638X only Head Adjust Cleaning Short Normal Long Little Charge Initial Charge Menu Option User Type...
  • Page 378 Setup menu diagram VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Setup menu diagram (Receiving / Converting / Printing) Temperature Pre Heater Platen Heater Dryer VJ-2638X/1938X/1638 only Pre Heater Off/30°C to 50°C Platen Heater Off/30°C to 50°C Dryer Off/30°C to 50°C PF Micro Adj. -5.00% to <0.00%> to 5.00% Backup ToDo Length Job Status...
  • Page 379 VJ-2638X/1938X/1638X/1938WX/1638WX OPERATION MANUAL Revision History Date Version Manual code Supported Firmware 2013.10 VJx638xE-A-00 V.1.00 2013.12 VJx638xE-A-01 V.3.02 2014.5 VJx638xE-A-02 V.3.03 2014.8 VJx638xE-A-03 V.3.04 2015.1 VJx638xE-A-04 V.3.05 2015.5 VJx638xE-A-05 V.3.06 2015.7 VJx638xE-A-06 V.3.06 2016.6 VJx638xE-A-07 V.3.09 2016.7 VJx638xE-A-08 V.3.09...

This manual is also suitable for:

Valuevet vj-1938xValuevet vj-1638xValuevet vj-1938wxValuevet vj-1638wx

Table of Contents
