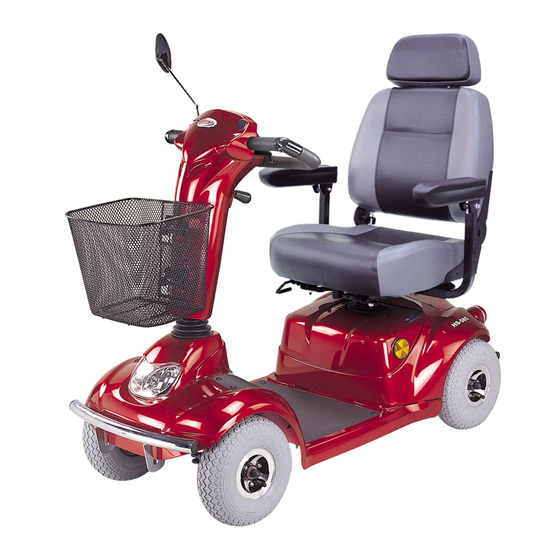

    5-Series Instruction Booklet TABLE OF CONTENTS Introduction --------------------------------------------------------------1 Important Precautions -------------------------------------------------2 Electromagnetic Interference and Warnings ----------------------3 Identification of Parts --------------------------------------------------6 Operating Your Scooter ---------------------------------------------10 Disassembling Your Scooter ---------------------------------------12 Re-assembling Your Scooter ---------------------------------------14 Charging the Batteries ----------------------------------------------15 Care and Maintenance ----------------------------------------------17 Troubleshooting -------------------------------------------------------18 Technical Specifications...

  • Page 3: Introduction

    5-Series Instruction Booklet INTRODUCTION Thank you and congratulations on purchasing your new C.T.M. Mobility Scooter. It is designed to provide you with transportation indoors and outdoors. Chien Ti Enterprise Co., Ltd. is the manufacturer for the C.T.M. mobility scooter. We pride ourselves on providing safe and comfortable products.

  • Page 4: Important Precautions

    5-Series Instruction Booklet IMPORTANT PRECAUTIONS •Only one person at a time can ride a C.T.M. Mobility Scooter. •Maximum load is 135 kg / 300 lbs. •Turn the key off before getting on or off your scooter. •Always drive carefully with your feet on the floorboard and be aware of others in your area.

  • Page 5: Electromagnetic Interference And Warnings

    5-Series Instruction Booklet ELECTROMAGNETIC INTERFERENCE AND WARNINGS CAUTION: It is very important that you read this information regarding the possible effects of Electromagnetic Interference on your powered wheelehair. Powered wheelchairs and motorized scooters may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones.
  • Page 6 5-Series Instruction Booklet 3.Long-range transmitters and transceivers such as commercial broadcast transmitters (radio and TV broadcast antenna towers) and amateur (HAM) radios. Other types of hand-held devices, such as cordless phones, laptop computers, AM/FM radios, TV sets, CD players, and cassette players, and small appliances, such as electric shavers and hair dryers, so far as we know, are not likely to cause EMI problems to your motorized scooter.
  • Page 7 5-Series Instruction Booklet 4.Be aware that adding accessories or components, or modifying the powered wheelchairs may make it more susceptible to EMI; and. There is no easy way to evaluate their effect on the overall immunity of the motorized scooter. 5.Report all incidents of unintended movement or brake release to the distributor listed on the inside front cover of this manual.

  • Page 8: Identification Of Parts

    5-Series Instruction Booklet IDENTIFICATION OF PARTS Before attempting to drive this scooter on your own, it is important that you familiarize yourself with the controls and how they operate. Premium Upholstery Rearview Mirror Mid-Back W/Headrest Swivel Seat-Sliding Adjustment Basket Flip-up Armrests-Width Adjustable Tiller Angle Adjustment...
  • Page 9 5-Series Instruction Booklet Function Of Parts： TOP CONTROL PANEL •Speed Control Knob The rabbit means fast and the turtle means slow. By turning this knob, you can control the total speed transferred to the thumb controls. •Self Diagnostic Warning Lights Flashing of a light on the control panel indicates there is a problem with the scooter.
  • Page 10 5-Series Instruction Booklet AT BASE OF STEERING TILLER •Tiller Angle Adjustment Push downward on the handle to loosen. Move the tiller to adjust and release the handle to lock the tiller at a comfortable angle. Figure 5 Figure 5 BELOW SEAT •Seat Sliding Lever Lift the lever up to adjust the seat to either go forward or backward.
  • Page 11 5-Series Instruction Booklet REAR BODY •Rear Compartment Cover To have access to the controller if a dealer needs to complete any programming. •Anti-Tip Wheels (Fig. 8) Designed to keep the scooter from tipping over. •Free-Wheeling Lever When the lever is in the N (Neutral) position, the scooter can be moved manually without power.

  • Page 12: Operating Your Scooter

    5-Series Instruction Booklet OPERATING YOUR SCOOTER Before beginning your journey with your new scooter, make sure that the scooter is on a level surface and clear of any obstacles. Although your scooter is able to climb slopes it is safer to practice on a leveled surface. You can make the following adjustments to increase your comfort when driving：...
  • Page 13 5-Series Instruction Booklet Keep in mind these rules： •Release the thumb levers and allow the scooter to stop completely before changing from forward to reverse, or reverse to forward. •When turning a corner, swing the front wheels wide, because the back wheels will turn more tightly.

  • Page 14: Disassembling Your Scooter

    5-Series Instruction Booklet DISASSEMBLING YOUR SCOOTER Taking apart your scooter enables you to save space when keeping it in storage or to carry it along in your vehicle when going away from home. Having the scooter disassembled is easier than ever since no tools are required. Please follow these steps Remove the seat by unlocking the seat rotational lever and then lift off.(See Fig.
  • Page 15 5-Series Instruction Booklet Detach the front and rear sections by holding one end on the bumper and the other on the seat stem.(See Fig. 15) Once all the parts have been disassembled, you are now able to put the pieces in storage or in a vehicle for transportation.(See Fig.

  • Page 16: Re-Assembling Your Scooter

    5-Series Instruction Booklet ASSEMBLING YOUR SCOOTER To assemble the scooter, you can repeat the disassembly directions in reverse. Abbreviated directions are given below. Refer to the Figures on pages 12 - 13 to locate the parts. 1.Use the Tiller Adjustment to move the tiller up out of the way. 2.Tilting the rear end to a horizontal position, insert the scooter frame tube of the front end into the rear section first, making sure that the locking pins are removed.

  • Page 17: Charging The Batteries

    5-Series Instruction Booklet CHARGING THE BATTERIES Batteries must be charged before using the scooter for the first time and should be recharged after each day use. You will need the scooter and the battery charger. Each country may supply different charger.
  • Page 18 5-Series Instruction Booklet The time needed to recharge will vary depending on the depletion of the batteries. Charging for longer than necessary will not harm the batteries. They cannot be overcharged. Keep in mind these rules： •Fully charge batteries at least once a month, more if you use the scooter regularly. Charge after each trip exceeding 3 kilometers / 1.86 miles.

  • Page 19: Care And Maintenance

    5-Series Instruction Booklet CARE AND MAINTENANCE Taking care of your scooter will keep it in top-notch condition. It is recommended that you have your dealer to provide preventative maintenance service of your scooter on a regularly basis. Here are a few maintenance guidelines: BODY COVER: If your scooter is dirty, use a damp or lightly soapy cloth to wipe it down.

  • Page 20: Troubleshooting

    5-Series Instruction Booklet TROUBLESHOOTING To check the Self-Diagnostic Warning Light, turn on the key and count the number of flashes. Impact Flash Code/Fault Notes on Scooter 1. Battery needs Battery charge is running Iow. Will drive recharging Recharge the batteries as soon as possible. Battery charge is empty.
  • Page 21 5-Series Instruction Booklet Other Problems： •Scooter will not move when the key is turned on: 1.Check the battery gauge on the control panel. All the LED lights should be on. 2.Check the Self-Diagnostic Warning Light. It should be steady. If it is flashing, see chart on page 18 for problem identification.

  • Page 22: Technical Specifications

    5-Series Instruction Booklet TECHNICAL SPECIFICATIONS SPECIFICATIONS HS-575 HS-585 Overall Length 1300 mm / 51.2" 1280 mm / 50.4" Overall Width 610 mm / 24" 610 mm / 24" Overall Height 990 mm / 39" 988 mm / 38.9" Wheels: Front 260 mm / 10"...
