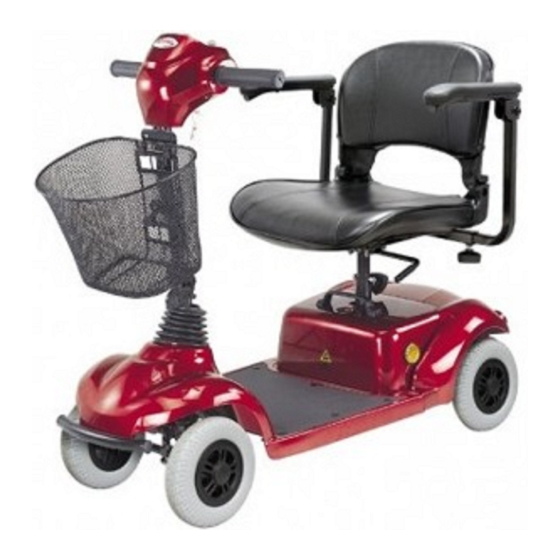

- Page 1 C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER HS-290 Instruction Booklet...
-
Page 2: Table Of Contents
HS-290 Instruction Booklet TABLE OF CONTENTS INTRODUCTION --------------------------------------------------------1 IMPORTANT PRECAUTIONS ----------------------------------------2 ELECTROMAGNETIC INTERFERENCE AND WARNINGS ----3 IDENTIFICATION OF PARTS ----------------------------------------6 OPERATING YOUR SCOOTER -------------------------------------9 DISASSEMBLING YOUR SCOOTER -----------------------------11 ASSEMBLING YOUR SCOOTER ----------------------------------13 CHARGING THE BATTERIES --------------------------------------14 CARE AND MAINTENANCE ----------------------------------------15... -
Page 3: Introduction
Also, please retain this booklet for future reference. If you have any question, you can contact : C.T.M.HOMECARE PRODUCT, INC. 13815 Magnolia Ave. #B, Chino CA 91710 Toll Free : 1-866-466-8168 Tel : 909-590-1388 Fax : 909-590-3365 E-Mail : ctm@ctmhomecare.com http : //www.ctmhomecare.com... -
Page 4: Important Precautions
HS-290 Instruction Booklet IMPORTANT PRECAUTIONS Only one person at a time could ride a C.T.M. Mobility Scooter. Maximum load is 115 kgs / 253 pounds. Turn key off before getting on or off your scooter. Always drive carefully with your feet on legrcom and be aware of others in your area. -
Page 5: Electromagnetic Interference And Warnings
HS-290 Instruction Booklet SAFETY INFORMATION ON ELECTROMAGNETIC INTERFERENCE ( EMI ) CAUTION: It is very important that you read this information regarding the possible effects of Electromagnetic Interference on your motorized scooter. Powered wheelchairs and motorized scooters may be susceptible to electromagnetic... - Page 6 HS-290 Instruction Booklet 3.Long-range transmitters and transceivers such as commercial broadcast transmitters (radio and TV broadcast antenna towers) and amateur (HAM) radios. Other types of hand-held devices, such as cordless phones, laptop computers, AM/FM radios, TV sets, CD players, and cassette players,...
- Page 7 HS-290 Instruction Booklet 4.Be aware that adding accessories or components, or modifying the motorized scooter, may make it more susceptible to EMI; and There is no easy way to evaluate their effect on the overall immunity of the motorized scooter.
-
Page 8: Identification Of Parts
Armrest Width Armrest Width Rear Adjustment Adjustment Compartment Thumbscrews Thumbscrews Cover Thumb Lever Thumb Lever Key(Inserted into Horn Button key Switch) Speed Dial Anti-Tip Wheels Free-Wheeling lever Figure 2 - HS-290 Top Control Panel Figure 3 - HS-290 Back View... - Page 9 HS-290 Instruction Booklet Function Of Parts TOP CONTROL PANEL Speed Dial Knob The Rabbit means fast and turtle means slow. By turning this knob, you can control total speed transferred to thumb controls. HeadLight Switch To switch headlight on & off by pressing the headlight switch.
- Page 10 HS-290 Instruction Booklet Legroom Adjuster There are 4 holes on front and rear frame tube to adjust legroom. First, remove battery pack, pull the toggle latch (figure. 5) to loosen and pull the detent pin (figure. 6) to remove. Once position is located, insert the pin to desired position, and push toggle latch to lock.
-
Page 11: Operating Your Scooter
HS-290 Instruction Booklet OPERATING YOUR SCOOTER Before beginning your journey with your new scooter, make sure that scooter is on a level surface and clear of any obstacle. Although your scooter is able to climb slope, it is safer to practice on a level surface. - Page 12 HS-290 Instruction Booklet Keep in mind these rules Release thumb lever and allow scooter to stop completely before changing from forward to reverse, or reverse to forward. When turning to a corner, swing the front wheels widely, so back wheels will turn more tightly.
-
Page 13: Disassembling Your Scooter
HS-290 Instruction Booklet DISASSEMBLING YOUR SCOOTER Taking apart your scooter enables you to save space when keeping it in storage or to carry it along in vehicle when going away from home. Having scooter disassembled is easier than ever since no tools are required. Please follow these steps: 1.Remove seat by loosening the Seat Lock Knob (C) and pulling Seat Rotation Lever (D) - Page 14 HS-290 Instruction Booklet 5.Pull out Locking Lever (H) and place tiller on the end of legroom. (See Fig. 12) 6.Remove guide pin (J) underneath the rear section where battery pack placed. Unlatch the lever (K) to loosen, and slowly extend front section away from rear section until cable is seen.
-
Page 15: Assembling Your Scooter
HS-290 Instruction Booklet RE-ASSEMBLING YOUR SCOOTER To assemble scooter, you can repeat the disassembly direction in reverse. Abbreviated directions are given below. Refer to the Figures on pages 11 - 12 to locate parts. 1.Connect rear section to front section of scooter together with a guide pin to lock in place. -
Page 16: Charging The Batteries
HS-290 Instruction Booklet CHARGING THE BATTERIES Your C.T.M. scooter is equipped with two sealed, service free 12V. 12Ah. rechargeable batteries and one 24V/2A charger. Batteries must be charged before using scooter for the first time and should be recharged after each day's use. Be sure power switch is OFF and free-wheeling lever (M) is not in Neutral. -
Page 17: Care And Maintenance
HS-290 Instruction Booklet CARE AND MAINTENANCE Taking care of your scooter will keep it in top-notch condition. It is recommended that you discuss with local authorized dealer for a preventative maintenance schedule. Here are few maintenance guidelines BODY COVER : if your scooter is dirty, use a damp or lightly soapy cloth to wipe it down. -
Page 18: Troubleshooting
HS-290 Instruction Booklet TROUBLESHOOTING To check the Self-Diagnostic Warning Light, turn on the key and count the number of flashes. Impact Flash Code/Fault Notes on Scooter 1. Battery needs Battery is running Iow. Will drive recharging Recharge batteries as soon as possible. - Page 19 HS-290 Instruction Booklet Other Problems The scooter will not move when the power is turned on: 1.Check battery gauge on control panel. Battery gauge should be in the green area. 2.Check the Self-Diagnostic Warning Light. It should be steady. If it is flashing, see chart on page 16 for problem identification.
-
Page 20: Technical Specifications
HS-290 Instruction Booklet SPECIFICATION Overall Length 43.7" Overall Width 18.5" Overall Height 33.1" Wheels: Front 8" Wheels: Rear 8" Weight w/ Batteries 94.4 Ibs Max. Speed 5 mph Weight Capacity 253 Ibs Ground Clearance 1.4" Grade Climbable 8 degree Curb Climbing 1.6"...
