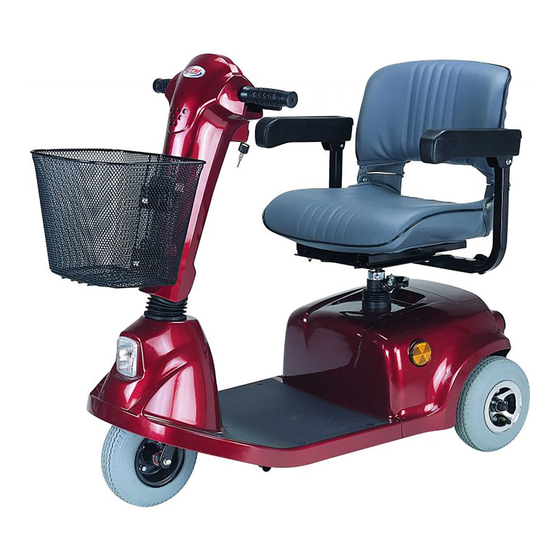

C.T.M. MOBILITY SCOOTER
C.T.M. MOBILITY SCOOTER
C.T.M. MOBILITY SCOOTER
3-Series
Instruction Booklet
HS-320
HS-360

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS-320 and is the answer not in the manual?

Questions and answers

Related Manuals for C.T.M. HS-320

Summary of Contents for C.T.M. HS-320

  • Page 1 C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER 3-Series Instruction Booklet HS-320 HS-360...

  • Page 2: Table Of Contents

    3-Series Instruction Booklet TABLE OF CONTENTS INTRODUCTION ----------------------------------------------------------1 IMPORTANT PRECAUTIONS --------------------------------------------2 ELECTROMAGNETIC INTERFERENCE AND WARNINGS ------------3 IDENTIFICATION OF PARTS ---------------------------------------------5 OPERATING YOUR SCOOTER ------------------------------------------7 DISASSEMBLING YOUR SCOOTER ------------------------------------9 ASSEMBLING YOUR SCOOTER --------------------------------------11 CHARGING THE BATTERIES ------------------------------------------12 CARE AND MAINTENANCE --------------------------------------------13 TROUBLESHOOTING --------------------------------------------------14 TECHNICAL SPECIFICATIONS...

  • Page 3: Introduction

    Also, retain this booklet for future reference. If you have any questions, please contact your local dealer or: C.T.M.HOMECARE PRODUCT, INC. 13815 Magnolia Ave. #B, Chino CA 91710 Toll Free : 1-866-466-8168 Tel : 909-590-1388 Fax : 909-590-3365 E-Mail : ctm@ctmhomecare.com http : //www.ctmhomecare.com...

  • Page 4: Important Precautions

    3-Series Instruction Booklet IMPORTANT PRECAUTIONS Only one person at a time can ride a C.T.M. Mobility Scooter. Maximum load is 135 kgs/ 300 pounds. Turn key off before getting on or off. Always drive carefully and be aware of others using the same area as yourself. Always use pedestrian crossings where possible.

  • Page 5: Electromagnetic Interference And Warnings

    3-Series Instruction Booklet ELECTROMAGNETIC INTERFERENCE AND WARNINGS CAUTION: It is very important that you read this information regarding the possible effects of Electromagnetic Interference on your motorized scooter. Powered wheelchairs and motorized scooters may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones.
  • Page 6 3-Series Instruction Booklet Motorized Scooter Electromagnetic Interference Because EM energy rapidly becomes more intense as one move closer to the transmitting antenna (source), the EM fields from hand-held radio wave sources (transceivers) are of special concern. It is possible to unintentionally bring high levels of EM energy very close to the motorized scooter control system while using these devices.

  • Page 7: Identification Of Parts

    3-Series Instruction Booklet IDENTIFICATION OF PARTS Before attempting to drive this scooter on your own, it is important that you familiarise yourself with the controls, and how to operate them. Swivel Seat With Thumb Lever Fold Down Back Charging Port Tilting Armrest Front Basket Seat Roation Lever...
  • Page 8 3-Series Instruction Booklet FUNCTION OF PARTS TOP CONTROL PANEL Speed Control Knob The Rabbit means fast and Turtle is slow. By turning this you control the total speed transferred to the thumb controls. Self-Diagnostic Warning Light Flashing indicates problems with the scooter. See page 14 for more information. Power Reserve Indicator The 5 LED are red.

  • Page 9: Operating Your Scooter

    3-Series Instruction Booklet OPERATING YOUR SCOOTER You can make the following adjustments to increase your comfort when driving. Adjust seat height and location Tiller Angle Adjustment to comfortable position. Adjust armrest width. 1.Before operating your scooter, check the following: Free-wheeling device on D Speed control knob All 5 LED for is at the turtle picture.
  • Page 10 3-Series Instruction Booklet Keep in mind these rules: Release thumb levers and allow scooter to stop completely before changing from forward to reverse, or reverse to forward. When turning a corner, swing the front wheels wide, because the back wheels will turn more tightly.

  • Page 11: Disassembling Your Scooter

    3-Series Instruction Booklet DISASSEMBLING YOUR SCOOTER C.T.M. 3-series's compact and light weight design fits easily into the trunk or back seat of most cars for transportation. No tools are necessary to disassemble scooter. Please follow these steps: Remove seat by releasing Seat Rotation Lever and then. lift off.(See Fig. 4) Figure 4 Figure 4 Remove Rear Shroud off of the Scooter.(See Fig.
  • Page 12 3-Series Instruction Booklet By removing the Front Basket and Adjusting the tiller down by using the Tiller Angle Adjustment.(See Fig. 9) There are 5 main parts after disassembling the scooter.(See Fig. 10) Figure 9 Figure 9 Figure 10 Figure 10 Figure 11 Figure 11 Figure 12...

  • Page 13: Assembling Your Scooter

    3-Series Instruction Booklet ASSEMBLING YOUR SCOOTER To assemble the scooter, you can repeat the disassembly directions in reverse. Abbreviated directions are given below. Refer to the Figures on pages 9-10 locate the parts. 1.Use the tiller angle adjustment to move the steering column up out of the way. 2.Place the front basket.

  • Page 14: Charging The Batteries

    3-Series Instruction Booklet CHARGING THE BATTERIES Batteries must be charged before using the scooter for the first time and should be recharged after each day use. You will need the scooter and the battery charger. Each country may supply different charger. The charging procedure may be different from below.

  • Page 15: Care And Maintenance

    3-Series Instruction Booklet CARE AND MAINTENANCE Cleaning Your Scooter If your scooter is dirty, use a damp or lightly soapy cloth to wipe it down. Do not use running water to wash or rinse the scooter in order to protect the electrical parts. Polish with an automotive liquid polish.

  • Page 16: Troubleshooting

    3-Series Instruction Booklet TROUBLESHOOTING To check the Self-Diagnostic Warning Light, turn on the key and count the number of flashes. Impact Flash Code/Fault Notes on Scooter 1. Battery needs Battery charge is running Iow. Will drive recharging Recharge the batteries as soon as possible. Battery charge is empty.

  • Page 17: Technical Specifications

    3-Series Instruction Booklet SPECIFICATION SPECIFICATIONS HS-320 HS-360 Overall Length 42.9" 45.7" Overall Width 21.7" 21.7" Overall Height 36.6" 37.4" Wheels: Front 9" 9" Wheels: Rear 9" 9" Weight w/ Batteries 118.7 lbs 148.9 lbs Max. Speed 5 mph 5 mph...
