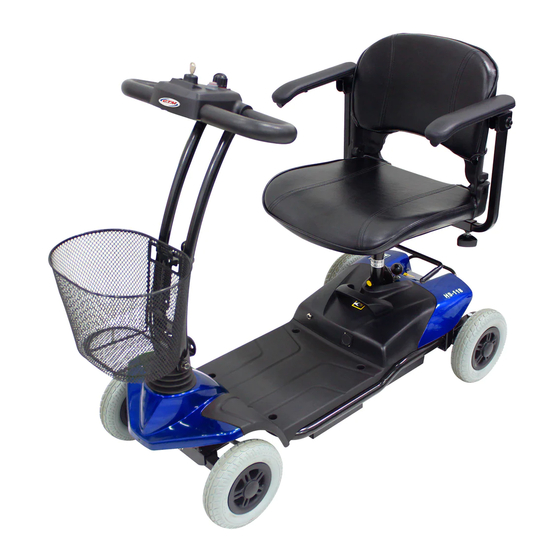

- Page 1 C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER 1-Series Instruction Booklet HS-115 HS-118...
-
Page 2: Table Of Contents
1-Series Instruction Booklet TABLE OF CONTENTS INTRODUCTION ----------------------------------------------------------1 IMPORTANT PRECAUTIONS ------------------------------------------2 SAFETY INFORMATION ON ELECTROMAGNETIC --------------------------------------------------3 INTERFERENCE (EMI) -------------------------------------------5 IDENTIFICATION OF PARTS ------------------------------------------9 CHARGING THE BATTERIES --------------------------------10 DISASSEMBLING YOUR SCOOTER --------------------------------------------------12 TROUBLESHOOTING -----------------------------------------------------------------13 CAUTION --------------------------------------------------------14 SPECIFICATION... -
Page 3: Introduction
1-Series Instruction Booklet INTRODUCTION Thank you and congratulations on purchasing your new C.T.M. Mobility Scooter. It is designed to provide you with transportation ability indoors and outdoors. We pride ourselves on providing safe and comfortable products. Our goal is to ensure your complete satisfaction with our product. -
Page 4: Important Precautions
•Always use pedestrian crossing wherever possible. Take extreme care when crossing roads. •Do not drive on slopes exceeding HS-115 6 degrees & HS-118 8 degrees, and take extreme care when turning on slopes. •Do not use full power when turning. -
Page 5: Safety Information On Electromagnetic Interference (Emi)
1-Series Instruction Booklet SAFETY INFORMATION ON ELECTROMAGNETIC INTERFERENCE (EMI) CAUTION : It is very important that you read this information regarding the possible effects of Electromagnetic Interference on your motorized scooter. Powered wheelchairs and motorized scooters may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones. - Page 6 1-Series Instruction Booklet Motorized Scooter Electromagnetic Interference : Because EM energy rapidly becomes more intense as one move closer to the transmitting antenna (source), the EM fields from hand-held radio wave sources (transceivers) are of special concern. It is possible to unintentionally bring high levels of EM energy very close to the motorized scooter control system while using these devices.
-
Page 7: Identification Of Parts
Charging Socket Figure 1 - HS-115.118 Front View Battery Gauge Self-Diagnostic Warning Light Main Key Switch Horn Button Thumb Free-Wheeling Lever Reflectors Lever Speed Dial Knob Anti-Tip Wheels Figure 2 - HS-115.118 Top Control Panel Figure 3 - HS-115.118 Back View... - Page 8 1-Series Instruction Booklet FUNCTION OF PARTS： Main Key Switch (A) 1.Turn the key to the right - Turn the scooter on 2.Turn the key to the left - Turn the scooter off Always ensure that the scooter is switched off before getting on or off the scooter and before removing any items of the scooter.
- Page 9 1-Series Instruction Booklet Tiller Angle Adjustment : 1.Lift up the lever (G) to disengage the pin. 2.Simultaneously, adjust the steering fore-aft to the most comfortable angle. Release lever (G) and ensure the pin is fully engaged to lock the steering column in position. Seat Rotation Adjustment : 1.Lift lever (H) upward to disengage pin.
- Page 10 1-Series Instruction Booklet Accessories : Basket assembling and disassembling : (J2) Remove the Front Basket (J2) and place it off to the side. Armrest assembling and angle adjustment : 1.Remove plugs (J3) at both sides. 2.Assembling armrests. 3.Adjust armrest to most comfortable angle, then lock Figure 9 Figure 9 with knob (J4).
-
Page 11: Charging The Batteries
Your C.T.M. scooter is equipped with two sealed, maintanence free 12V. 12Ah. rechargeable batteries and one HS-115 24V/1.5A charger & HS-118 24V/1.8A charger. Batteries must be charged before using scooter for first time and should be recharged after each day's use. -
Page 12: Disassembling Your Scooter
1-Series Instruction Booklet DISASSEMBLING YOUR SCOOTER I. Seat Disassembling : Remove seat by pulling up Seat Rotation Lever (H). Then lift up away from scooter. II. Battery Pack Disassembling : As indication, Push Release Lever (L) backward and pull Battery Pack Handle (M) to remove batteries from scooter. - Page 13 1-Series Instruction Booklet Steering Fold Method : Lift up the lever (G) to bend down the steering to the lowest hole position and fold down the steering column as shown in Figure 15. Re-assembling your scooter by vise versa above disassembling procedures. Figure 16 Figure 16 Fuse Replacement :...
-
Page 14: Troubleshooting
1-Series Instruction Booklet TROUBLESHOOTING Flash Description Meaning Battery Low The batteries are running low. •Recharge the batteries Low Battery Fault The batteries have run out of charge. •Recharge the batteries. High Battery Fault Battery voltage is too high. This may occur if overcharged &/or traveling down a long slope. -
Page 15: Caution
1-Series Instruction Booklet CAUTION 1.Obstacle Climbing : Your scooter can climb obstacles and curbs of up to 35mm in height. Never attempt to overcome an obstacle when on an uphill or downhill gradient! Always approach obstacles straight on! Ensure that the front wheels and rear wheels move over the obstacle in one stroke, do not stop halfway! 2.The maximum gap the scooter can drive over is 10cm, In unlikely event of a panel display error, you need to re-set the display... -
Page 16: Specification
1-Series Instruction Booklet SPECIFICATION SPECIFICATIONS HS-115 HS-118 Overall Length 1000 mm / 39.4" 1000 mm / 39.4" Overall Width 510 mm / 20" 510 mm / 20" Overall Height 905 mm / 35.6" 890 mm / 35" Wheels: Front 195 mm / 8"...
