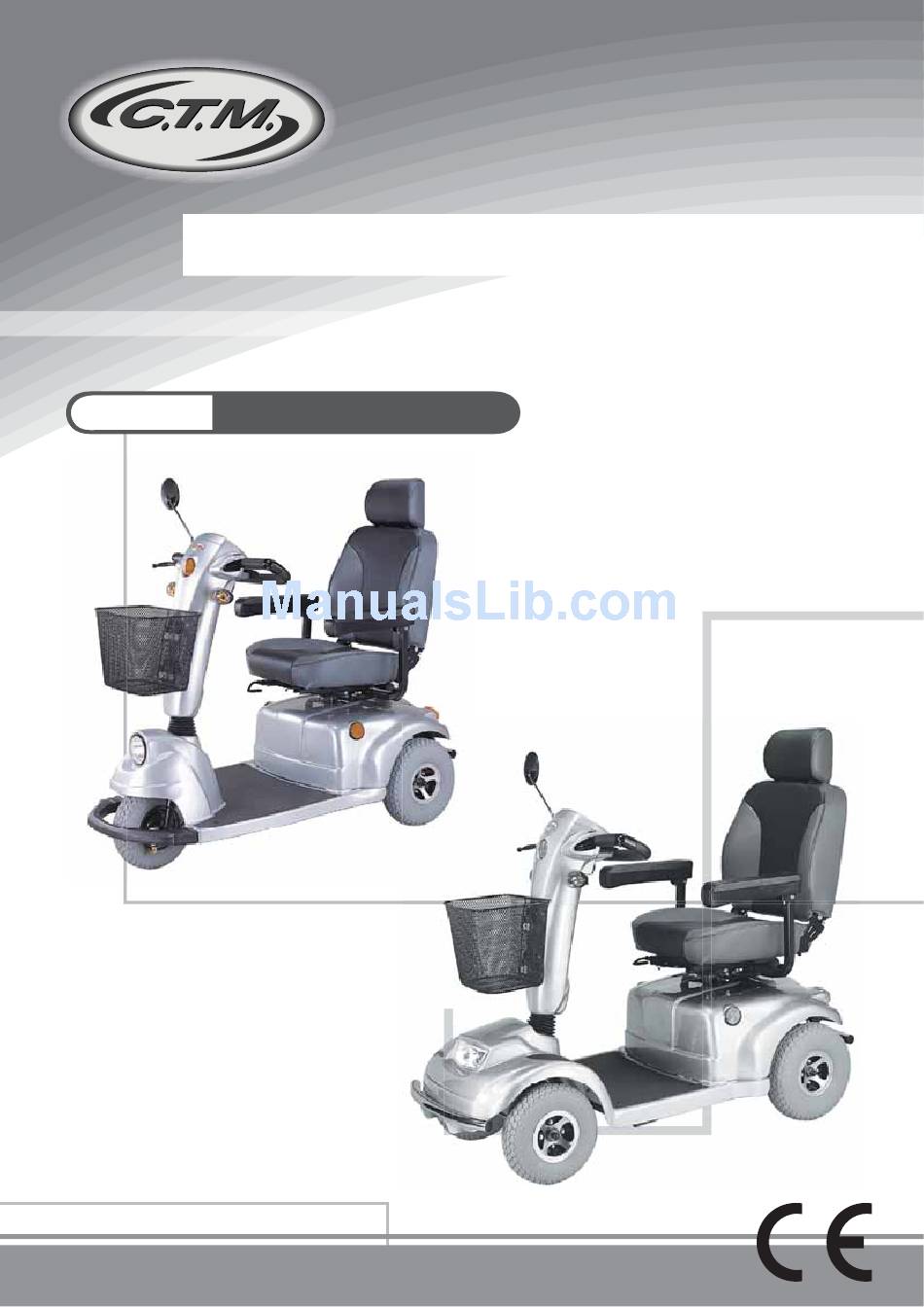

C.T.M. MOBILITY SCOOTER
C.T.M. MOBILITY SCOOTER
C.T.M. MOBILITY SCOOTER
8-Series
Instruction Booklet
HS-855
HS-895

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS-855 and is the answer not in the manual?

Questions and answers

Related Manuals for C.T.M. HS-855

Summary of Contents for C.T.M. HS-855

  • Page 1 C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER 8-Series Instruction Booklet HS-855 HS-895...

  • Page 2: Table Of Contents

    8-Series Instruction Booklet TABLE OF CONTENTS INTRODUCTION --------------------------------------------------------1 IMPORTANT PRECAUTIONS ----------------------------------------2 ELECTROMAGNETIC INTERFERENCE AND WARNINGS ----3 IDENTIFICATION OF PARTS ----------------------------------------5 OPERATING YOUR SCOOTER -------------------------------------8 DISASSEMBLING YOUR SCOOTER -------------------------------10 ASSEMBLING YOUR SCOOTER ----------------------------------12 CHARGING THE BATTERIES --------------------------------------13 CARE AND MAINTENANCE ----------------------------------------14 TROUBLESHOOTING ------------------------------------------------15 TECHNICAL SPECIFICATIONS...

  • Page 3: Introduction

    8-Series Instruction Booklet INTRODUCTION Thank you and congratulation on purchasing your new C.T.M. Mobility Scooter. It is designed to provide you with transportation ability indoors and outdoors. We pride ourselves on providing safe and comfortable products. Our goal is to ensure your complete satisfaction.

  • Page 4: Important Precautions

    8-Series Instruction Booklet IMPORTANT PRECAUTIONS •Only one person at a time could ride a C.T.M. Mobility Scooter. •Maximum load is 205 kgs/ 450 lbs. •Turn key off before getting on or off. •Always drive carefully and be aware of others using the same area. •Always use pedestrian crossings wherever possible.

  • Page 5: Electromagnetic Interference And Warnings

    8-Series Instruction Booklet ELECTROMAGNETIC INTERFERENCE AND WARNINGS CAUTION: It is very important that you read this information regarding the possible effects of Electromagnetic Interference on your motorized scooter. Powered wheelchairs and motorized scooters may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones.
  • Page 6 8-Series Instruction Booklet Motorized Scooter Electromagnetic Interference： Because EM energy rapidly becomes more intense as one moves closer to the transmitting antenna (source), the EM fields from hand-held radio wave sources (transceivers) are of special concern. It is possible to unintentionally bring high levels of EM energy very close to the motorized scooter control system while using these devices.

  • Page 7: Identification Of Parts

    8-Series Instruction Booklet IDENTIFICATION OF PARTS Before attempting to drive this scooter on your own, it is important that you familiarize yourself with the controls, and how to operate Delta Handle Bar Swivel Seat with Headrest Thumb Lever Hand brake Front Turn Signals Tilting Armrest Front...
  • Page 8 8-Series Instruction Booklet FUNCTION OF PARTS： TOP CONTROL PANEL •Speed Control Knob The Rabbit means fast and Turtle is slow. By turning this you control total speed transferred to thumb controls. •Power Reserve Indicator When the scooter is turned on, the needle on the power reserve indicator will move to the right to indicate the amount of battery charge.
  • Page 9 8-Series Instruction Booklet FUNCTION OF PARTS： BELOW SEAT •Seat Rotation Lever Pull the seat rotation lever up to adjust seat's turning angle, also can lift up the seat. •Seat Sliding Lever Pull the seat sliding lever up to adjust the seat to either go forward or backward to an appropriate position.

  • Page 10: Operating Your Scooter

    8-Series Instruction Booklet OPERATING YOUR SCOOTER Before beginning your journey with your new scooter, make sure that the scooter is on a level surface and clear of any obstacles. Although your scooter is able to climb slopes. It is safer to practice on a level surface. You could make the following adjustments to increase your comfort when driving.
  • Page 11 8-Series Instruction Booklet Keep in mind these rules： •Release thumb levers and allow scooter to stop completely before changing from forward to reverse, or reverse to forward. •When turning a corner, swing front wheels wide, because back wheels will turn more tightly.

  • Page 12: Disassembling Your Scooter

    8-Series Instruction Booklet DISASSEMBLING YOUR SCOOTER Extreme care must be taken when assembling or disassembling the scooter. Please take care near any moring parts and finger traps,between opening and closing parts. Taking apart your scooter enables you to save space when keeping it in storage or to carry it along in your vehicle when going away from home.
  • Page 13 8-Series Instruction Booklet Remove Front Basket (I) and push down the Tiller Angle Adjustment (J) to fold the tiller in a lower position. (See Fig. 14) Once all the parts have been disassembled, you are now able to put the pieces in storage or in a vehicle for transportation.

  • Page 14: Assembling Your Scooter

    8-Series Instruction Booklet ASSEMBLING YOUR SCOOTER To assemble scooter, you can repeat disassembly directions in reverse. Abbreviated directions are given below. Refer to Figures on pages 10 - 11 to locate parts. 1.Using the tiller angle adjustment, unfold the tiller in an upright position. Place the front basket on the tiller.

  • Page 15: Charging The Batteries

    8-Series Instruction Booklet CHARGING THE BATTERIES Batteries must be charged before using the scooter for the first time and should be recharged after each day use. You will need the scooter and the battery charger. Each country may supply different charger.

  • Page 16: Care And Maintenance

    8-Series Instruction Booklet CARE AND MAINTENANCE Taking care of your scooter will keep it in top-notch condition. It is recommended that you have your dealer to provide preventative maintenance service of your scooter on a regularly basis. Here are a few maintenance guidelines: BODY COVER: If your scooter is dirty, use a damp or lightly soapy cloth to wipe it down.

  • Page 17: Troubleshooting

    8-Series Instruction Booklet TROUBLESHOOTING To check the Self-Diagnostic Warning Light, turn on the key and count the number of flashes. Impact Flash Code/Fault Notes on Scooter 1. Battery needs Battery charge is running Iow. Will drive recharging Recharge the batteries as soon as possible. Battery charge is empty.
  • Page 18 8-Series Instruction Booklet Other Problems： •Scooter will not move when the key is turned on: 1.Check the power reserve indicator on the control panel. The needle should be in the green, yellow or red area. 2.Check the Self-diagnostic Warning Light. It should be steady. If it is flashing, see chart on page 18 for problem identification.

  • Page 19: Technical Specifications

    8-Series Instruction Booklet SPECIFICATION SPECIFICATIONS HS-855 HS-895 Overall Length 1420 mm / 55.9" 1445 mm / 56.9" Overall Width 685 mm / 27" 685 mm / 27" Overall Height 1120 mm / 44.1" 1095 mm / 43.1" Wheels: Front 290 mm / 11"...

This manual is also suitable for:

Hs-895
