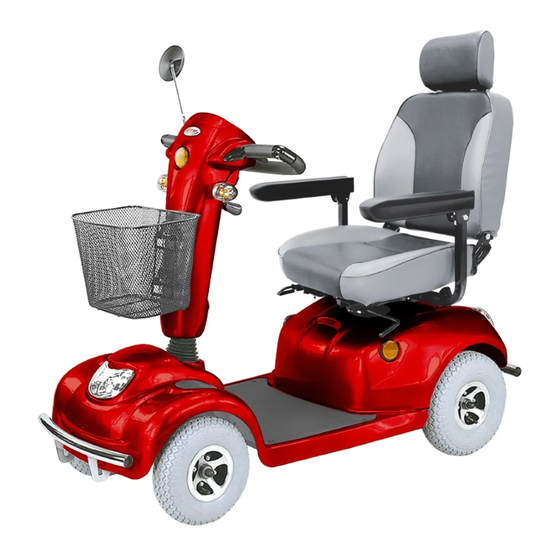

  • Page 1 C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER 7-Series Instruction Booklet HS-735 HS-745...

  • Page 2: Table Of Contents

    7-Series Instruction Booklet TABLE OF CONTENTS INTRODUCTION -------------------------------------------------------1 IMPORTANT PRECAUTIONS ---------------------------------------2 ELECTROMAGNETIC INTERFERENCE AND WARNINGS ---3 SAFETY WARNING AND INSTRUCTION LABELS --------------5 IDENTIFICATION OF PARTS ----------------------------------------6 OPERATING YOUR SCOOTER -------------------------------------8 DISASSEMBLING YOUR SCOOTER ------------------------------9 ASSEMBLING YOUR SCOOTER ---------------------------------10 CHARGING THE BATTERIES -------------------------------------11 CARE AND MAINTENANCE ---------------------------------------12...

  • Page 3: Introduction

    7-Series Instruction Booklet INTRODUCTION Thank you and congratulations on purchasing your new C.T.M. Mobility Scooter. It is designed to provide you with transportation indoors and outdoors. We pride ourselves on providing safe and comfortable products. Our goal is to ensure your complete satisfaction with our product.

  • Page 4: Important Precautions

    7-Series Instruction Booklet IMPORTANT PRECAUTIONS •Only one person at a time could ride a C.T.M. Mobility Scooter. •Maximum load is 181 kg / 400 lbs. •Turn key off before getting on or off. •Always drive carefully and be aware of others using the same area. •Always use pedestrian crossings wherever possible.

  • Page 5: Electromagnetic Interference And Warnings

    7-Series Instruction Booklet ELECTROMAGNETIC INTERFERENCE AND WARNINGS CAUTION: It is very important that you read this information regarding the possible effects of Electromagnetic Interference on your motorized scooter. Powered wheelchairs and motorized scooters may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones.
  • Page 6 7-Series Instruction Booklet 2.Be aware of nearby transmitters, such as radio or TV stations, and try to avoid coming close to them; 3.If unintended movement or brake release occurs, turn the motorized scooter OFF as soon as it is safe; 4.Be aware that adding accessories or components, or modifying the motorized scooter, may make it more susceptible to EMI;...

  • Page 7: Safety Warning And Instruction Labels

    7-Series Instruction Booklet SAFETY WARNING AND INSTRUCTION LABELS Warning Sticker 1.Please read the instruction booklet carefully before using your scooter. 2.Do not drive the scooter on slippery surfaces or on slopes over 12 degrees limit. 1.Please read the instruction Booklet carefully before using your scooter. 2.Keep the scooter properly maintained.

  • Page 8: Identification Of Parts

    7-Series Instruction Booklet IDENTIFICATION OF PARTS Before attempting to drive this scooter on your own, it is important that you familiarize yourself with the controls, and how to operate them. Mirror Tiller Angle Adjustment Tall Back Rotating Seat-Sliding Throttle Adjustment Turn Signals Tilting Armrest Front Basket...
  • Page 9 7-Series Instruction Booklet FUNCTION OF PARTS： TOP CONTROL PANEL •Speed Dial The Rabbit means fast and Turtle is slow. By turning this you control the total speed transferred to the thumb controls. •Self Diagnostic Warning Lights Flashing indicates problems with the scooter. See page 17 for more information. •Battery Gauge There are five yellow LED lights.

  • Page 10: Operating Your Scooter

    7-Series Instruction Booklet OPERATING YOUR SCOOTER You can make the following adjustments to increase your comfort when driving. •adjust seat height and location •adjust steering column to comfortable position. •adjust legroom. 1.Before operating your scooter, check the following: •free-wheeling device on D •speed dial is at the turtle picture.

  • Page 11: Disassembling Your Scooter

    7-Series Instruction Booklet DISASSEMBLING YOUR SCOOTER No tools are necessary to disassemble scooter. You can disassemble scooter for transportation. Seat (A) is removable by releasing the Seat Adjusting Lever (B) and then lift off. (See Fig. 4) Rear Shroud (C) is removable by lifting the Rear Shroud toward the direction as the shaft showed in the picture (See Fig.

  • Page 12: Assembling Your Scooter

    7-Series Instruction Booklet ASSEMBLING YOUR SCOOTER To assemble the scooter, you can repeat the disassembly directions in reverse. Abbreviated directions are given below. Refer to the Figures on pages 11 - 12 to locate the parts. 1.Use the tiller angle adjustment lever to move the steering column up out of the way. 2.Place the front basket 3.Tilting the rear end to a horizontal position, insert the scooter frame tube of the front end into the rear section first, making sure that the locking pins are removed.

  • Page 13: Charging The Batteries

    7-Series Instruction Booklet CHARGING THE BATTERIES Batteries must be charged before using the scooter for the first time and should be recharged after each day use. You will need the scooter and the battery charger. Each country may supply different charger. The charging procedure may be different from below.

  • Page 14: Care And Maintenance

    7-Series Instruction Booklet CARE AND MAINTENANCE DAILY CHECK Please always check your scooter before you start your every journey. Check point Inspection What to do if the inspection is failed N-D leaver Check for correct function Contact your dealer. Horn Check for correct function Contact your dealer.
  • Page 15 7-Series Instruction Booklet CLEANING YOUR SCOOTER •Do not use any abrasive or scouring liquids for cleaning. Only use a damp cloth and gentle detergent. •Do not use hose pipe or splash water directly onto the scooter as this may cause damage to electronics.

  • Page 16: Trouble Shooting

    7-Series Instruction Booklet TROUBLE SHOOTING Here are some suggestions about solving problems you may have with your scooter. There is a self-diagnostic warning light on the control panel. To check the self-diagnostic warning light, turn on the key and count the number of blinks on the warning light. SCOOTER WON’T MOVE WHEN KEY IN TURNED ON Check point Solution...

  • Page 17: Technical Specifications

    7-Series Instruction Booklet SPECIFICATION SPECIFICATIONS HS-735 HS-745 Overall Length 1397 mm / 55" 1450 mm / 57" Overall Width 685 mm / 27" 685 mm / 27" Overall Height 1060 mm / 41.7" 1060 mm / 41.7" Front Wheels 290 mm / 11" 290 mm / 11"...
