- Page 1 C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER C.T.M. MOBILITY SCOOTER 2-Series Instruction Booklet HS-235 HS-250...
-
Page 2: Table Of Contents
2-Series Instruction Booklet TABLE OF CONTENTS INTRODUCTION -------------------------------------------------------1 IMPORTANT PRECAUTIONS ----------------------------------------2 ELECTROMAGNETIC INTERFERENCE AND WARNINGS ----3 IDENTIFICATION OF PARTS ----------------------------------------5 OPERATING YOUR SCOOTER --------------------------------------7 DISASSEMBLING YOUR SCOOTER -------------------------------9 ASSEMBLING YOUR SCOOTER ----------------------------------10 CHARGING BATTERIES ---------------------------------------------11 CARE AND MAINTENANCE ----------------------------------------12 TROUBLESHOOTING ------------------------------------------------13 TECHNICAL SPECIFICATIONS ------------------------------------15... -
Page 3: Introduction
Also, please retain this booklet for future reference. If you have any question, you can contact : C.T.M.HOMECARE PRODUCT, INC. 6191 Schaefer Ave Suite B Chino CA 91710 Tel : +909-590-1388 Fax : +909-590-3365 E-Mail : ctm@ctmhomecare.com http : //www.ctmhomecare.com... -
Page 4: Important Precautions
2-Series Instruction Booklet IMPORTANT PRECAUTIONS •Only one person at a time could ride a C.T.M. Mobility Scooter. •Maximum load is 115 kgs / 250 pounds. •Turn key off before getting on or off your scooter. •Always drive carefully with your feet on legrcom and be aware of others in your area. •Always use pedestrian crossing wherever possible. -
Page 5: Electromagnetic Interference And Warnings
2-Series Instruction Booklet ELECTROMAGNETIC INTERFERENCE AND WARNINGS CAUTION: It is very important that you read this information regarding the possible effects of Electromagnetic Interference on your motorized scooter. Powered wheelchairs and motorized scooters may be susceptible to electromagnetic interference (EMI), which is interfering electromagnetic energy (EM) emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones. - Page 6 2-Series Instruction Booklet Motorized Scooter Electromagnetic Interference： Because EM energy rapidly becomes more intense as one moves closer to the transmitting antenna (source), the EM fields from hand-held radio wave sources (transceivers) are of special concern. It is possible to unintentionally bring high levels of EM energy very close to the motorized scooter control system while using these devices.
-
Page 7: Identification Of Parts
2-Series Instruction Booklet IDENTIFICATION OF PARTS Before attempting to drive this scooter on your own, it is important that you familiarize yourself with the controls, and how to operate Luxury Padded Foldable Flip Up Armrest Front Basket Seat Rotation Lever Tiller Angle Adjustment Seat Lock Knob... - Page 8 2-Series Instruction Booklet FUNCTION OF PARTS： TOP CONTROL PANEL •Speed Dial Knob The Rabbit means fast and Turtle is slow. By turning this you control total speed transferred to thumb lever. •Self Diagnostic Warning Lights Flashing indicates problems within scooter. See page 17 for more information. •Battery Gauge There are five yellow LED lights.
-
Page 9: Operating Your Scooter
2-Series Instruction Booklet OPERATING YOUR SCOOTER You could make the following adjustments to increase your comfort when driving. •adjust seat height and location •adjust tiller angle adjustment to comfortable position. •adjust legroom. 1.Before operating your scooter, check the following: •free-wheeling lever is in D •speed dial is at turtle picture. - Page 10 2-Series Instruction Booklet Keep in mind these rules： •Release thumb levers and allow scooter to stop completely before changing from forward to reverse, or reverse to forward. •When turning to a corner, swing the front wheels widely so back wheels will turn more tightly.
-
Page 11: Disassembling Your Scooter
2-Series Instruction Booklet DISASSEMBLING YOUR SCOOTER C.T.M. 2-series' compact design and light weight style making it fit easily into trunk or back seat of most cars for transportation. No tools are necessary to disassemble scooter. Remove seat by loosening the Seat Lock Knob (A) and pulling Seat Rotation Lever (B) upwards then lift off. -
Page 12: Assembling Your Scooter
2-Series Instruction Booklet ASSEMBLING YOUR SCOOTER To assemble scooter, you can repeat the disassembly direction in reverse. Abbreviated directions are given below. Refer to Figures on pages 11 - 12 to locate parts. 1.Tighten the Tiller Angle Adjustment to lock the tiller into its upright position. 2.Place front basket. -
Page 13: Charging Batteries
2-Series Instruction Booklet CHARGING THE BATTERIES Your C.T.M. scooter is equipped with two sealed, service free 12V. 12Ah. rechargeable batteries and one 24V. 2A charger. Batteries must be charged before using scooter for the first time and should be recharged after each day's use. Be sure power switch is OFF position and scooter is not in free-wheeling mode. -
Page 14: Care And Maintenance
2-Series Instruction Booklet CARE AND MAINTENANCE Cleaning Your Scooter： If your scooter is dirty, use a damp or lightly soapy cloth to wipe it down. Do not use running water to wash or rinse the scooter in order to protect the electrical parts. Polish with an automotive liquid polish. -
Page 15: Troubleshooting
2-Series Instruction Booklet TROUBL ESHOOTING Here are some suggestions about solving problems you may have with your scooter. There is a LED Self-Diagnostic Warning Light on the Control Panel. To check the Self-Diagnostic Warning Light, turn on the key and count the number of blinks on the Warning Light. Number of Problem Solution... - Page 16 2-Series Instruction Booklet Other Problems： During charging, if light on charger does not change to green: Contact your authorized dealer. Scooter will not move when key is turned on: 1.Check Battery Gauge on control panel. All the LED Lights should be on. 2.Check Self-Diagnostic Warning Light.
-
Page 17: Technical Specifications
2-Series Instruction Booklet SPECIFICATION SPECIFICATIONS HS-235 HS-250 Overall Length 40.8" 41" Overall Width 18.5" 18.5" Overall Height 33.1" 33.1" Wheels: Front 8" 7" Wheels: Rear 8" 8" Weight w/ Batteries 89.1 lbs 91.9 lbs Max. Speed 5 mph 5 mph Weight Capacity 250 lbs 250 lbs...
Need help?
Do you have a question about the 2 Series and is the answer not in the manual?
Questions and answers
I have a CTM HS-235 Mobility Scooter. The batteries are new but there is no power being transferred to the rear axle. Your manual doesn't talk about this problem. Could it be a problem with the speed dial or?
The context does not specifically mention a power transfer issue to the rear axle. However, if the scooter does not move despite having new batteries, the following should be checked:
1. Battery gauge: All LED lights should be on.
2. Self-diagnostic warning light: It should be steady. If flashing, refer to the diagnostic chart.
3. Electrical connections: Ensure all are tight.
4. If the problem persists, contact the authorized dealer.
A power transfer issue could be related to motor problems, brake malfunction, or internal errors, all of which require dealer assistance.
So, while a power transfer issue is not explicitly confirmed, related problems are possible and should be checked by the dealer.
This answer is automatically generated
I have a CTM HS-235 Mobility Scooter. The batteries are new but there is no power being transferred to the rear axle. Your manual doesn't talk about this problem. Could it be a problem with the speed dial or?
If the C.T.M. HS-235 Mobility Scooter has new batteries but still will not move when the key is turned on, the manual suggests checking the following:
1. Check the Battery Gauge—ensure all LED lights are on.
2. Check the Self-Diagnostic Warning Light—if it's flashing, refer to the error code chart.
3. Check all electrical connections to ensure they are tight.
If these steps do not resolve the issue, the problem may involve a short in the motor, brake malfunction, motor problems, or other internal errors. In these cases, the manual advises contacting an authorized dealer.
So, yes, there could be a power transfer issue to the rear axle due to motor or internal problems, even with new batteries.
This answer is automatically generated

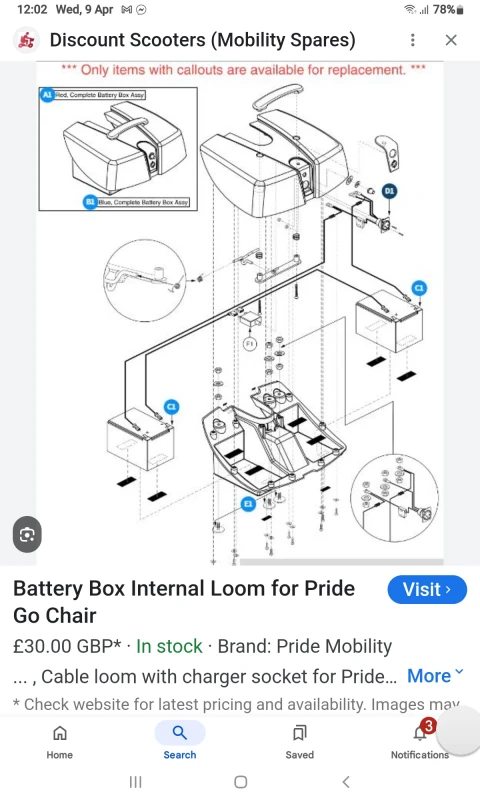

What size fuse should I use in the battery box on my hs250
